SCHEDULED SERVICING
3.6L AND 5.7L ENGINES
These vehicles are equipped with an automatic oil change indicator system. The oil change indicator system will remind you that it is time to take your vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil change indicator message will illuminate. This means that service is required for your vehicle.
Operating conditions such as frequent
short-trips, trailer tow, and extremely hot or cold ambient temperatures will influence when the “Change Oil” or “Oil Change Required” message is displayed. Have your vehicle serviced as soon as possible, within the next 500 miles (805 km).
The “Oil Change Required” message will be displayed in the instrument cluster and a single chime will sound, indicating that an oil change is necessary.
An authorized dealer will reset the oil change indicator message after completing the scheduled oil change. If a scheduled oil change is performed by someone other than an authorized dealer, the message can be reset by referring to “Instrument Cluster Display”
Under no circumstances should oil change intervals exceed 10,000 miles (16,000 km), 12 months or 350 hours of engine run time, whichever comes first. The 350 hours of engine run or idle time is generally only a concern for fleet customers.
Maintenance Plan — 3.6L And 5.7L
Refer to the maintenance schedules on the following page for the required maintenance intervals. More frequent maintenance may be needed in severe conditions, such as dusty areas and very short trip driving. In some extreme conditions, additional maintenance not specified in the maintenance schedule may be required.
|
At Every Oil Change Interval As Indicated By Oil Change Indicator System: |
|
Change oil and filter
|
|
Rotate the tires
Rotate at the first sign of irregular wear, even if it occurs before your next scheduled service
|
|
Inspect battery and clean and tighten terminals as required
|
|
Inspect brake pads, shoes, rotors, drums, hoses and parking brake
|
|
Inspect the CV/Universal joints
|
|
Inspect engine cooling system protection and hoses
|
|
Inspect exhaust system
|
|
Inspect engine air cleaner filter if using in dusty or off-road conditions, replace engine air cleaner filter if necessary
|
|
Inspect and replace the Evaporative System Fresh Air Filter as necessary, replacement may be more frequent if vehicle is operated in extreme dusty conditions
|
|
Mileage or time passed (whichever comes first) |
20,000 |
30,000 |
40,000 |
50,000 |
60,000 |
70,000 |
80,000 |
90,000 |
100,000 |
110,000 |
120,000 |
130,000 |
140,000 |
150,000 |
|
Or Years: |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
Or Kilometers: |
32,000 |
48,000 |
64,000 |
80,000 |
96,000 |
112,000 |
128,000 |
144,000 |
160,000 |
176,000 |
192,000 |
208,000 |
224,000 |
240,000 |
|
Additional Inspections |
||||||||||||||
|
Inspect the CV/Universal joints. |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
|
Inspect front suspension, tie rod ends, boot seals, and replace if necessary. |
X |
X |
X |
X |
X |
X |
X |
|||||||
|
Inspect the rear axle fluid. Inspect the front axle fluid (All Wheel Drive Only). |
X |
X |
X |
X |
X |
X |
X |
|||||||
|
Inspect the brake linings, replace as necessary. |
X |
X |
X |
X |
X |
X |
X |
|||||||
|
Adjust park brake on vehicles equipped with four wheel disc brakes. |
X |
X |
X |
X |
X |
X |
X |
|||||||
|
Inspect transfer case fluid (All Wheel Drive Only). |
X |
X |
X |
X |
X |
|
Mileage or time passed (whichever comes first) |
20,000 |
30,000 |
40,000 |
50,000 |
60,000 |
70,000 |
80,000 |
90,000 |
100,000 |
110,000 |
120,000 |
130,000 |
140,000 |
150,000 |
|
Or Years: |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
Or Kilometers: |
32,000 |
48,000 |
64,000 |
80,000 |
96,000 |
112,000 |
128,000 |
144,000 |
160,000 |
176,000 |
192,000 |
208,000 |
224,000 |
240,000 |
|
Change the rear axle fluid and on models equipped with All Wheel Drive (AWD) change the front axle fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or frequent trailer towing. |
X |
X |
X |
|||||||||||
|
Inspect and replace PCV valve if necessary. |
X |
1. The spark plug change interval is mileage based only, yearly intervals do not apply.
|
WARNING! |
|
You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.
Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and performance. This could cause an accident.
|

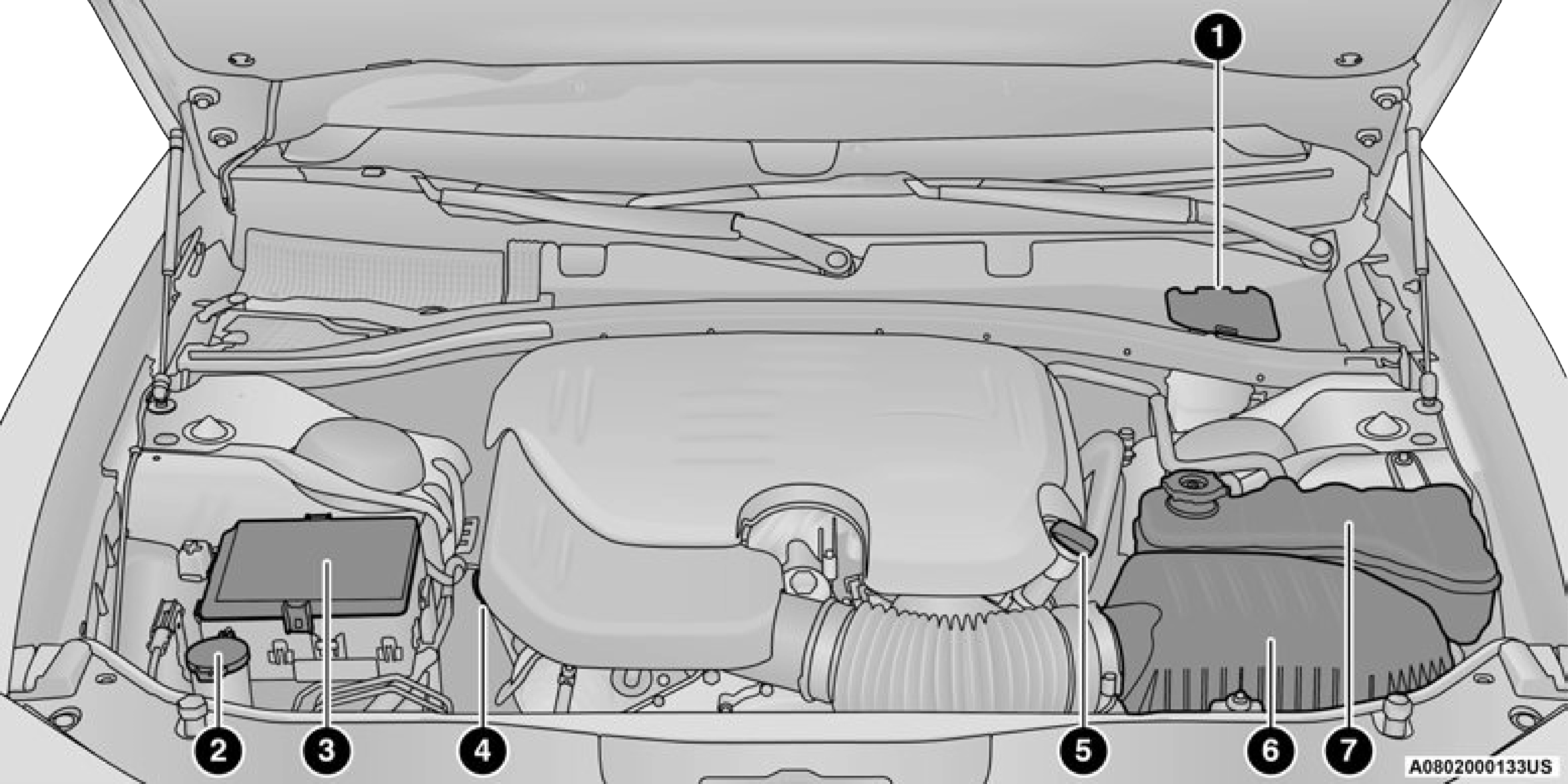

3.6L ENGINE
