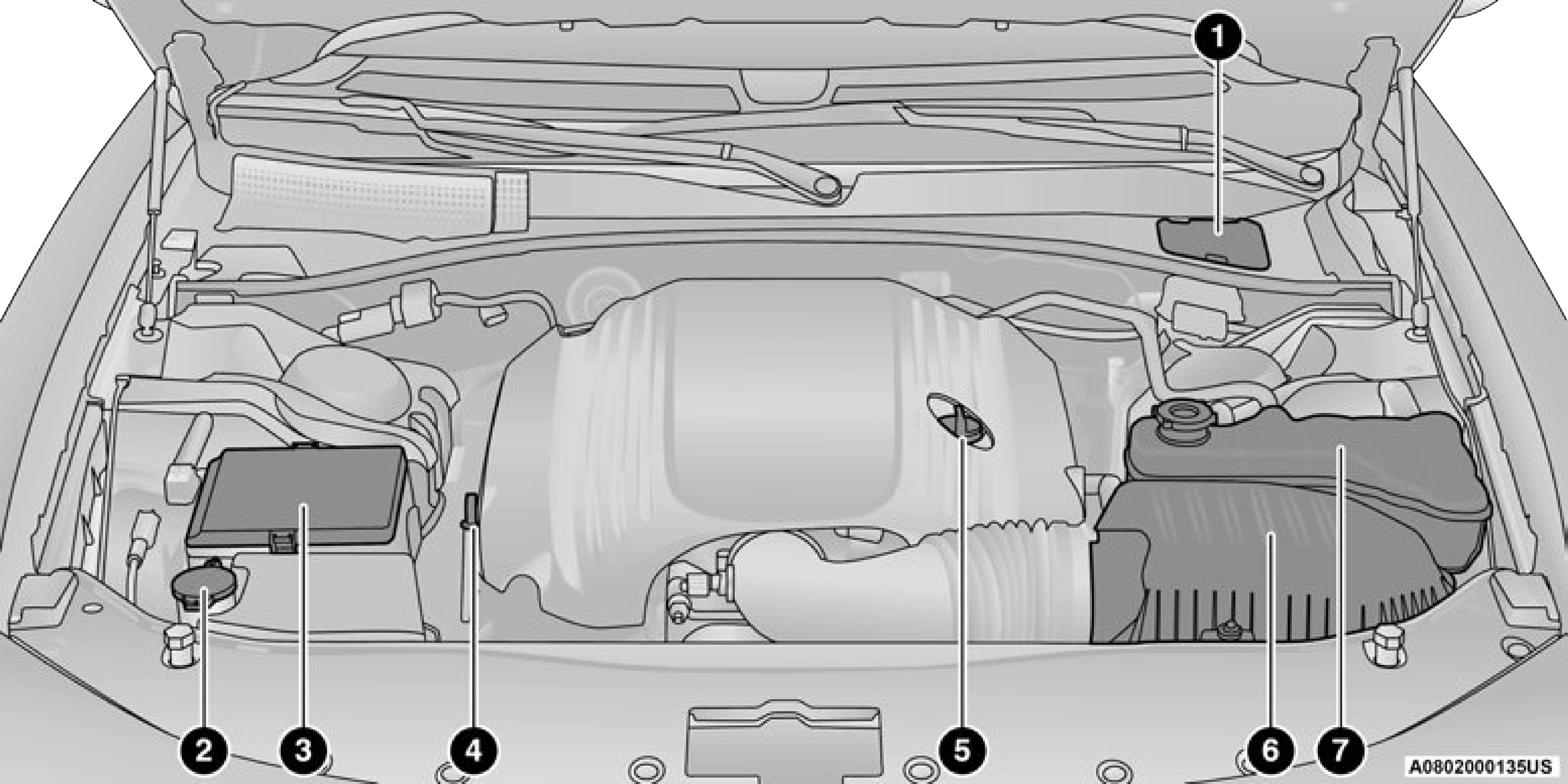

ENGINE COMPARTMENT
5.7L ENGINE
To ensure proper engine lubrication, the engine oil must be maintained at the correct level.
Check the oil level at regular intervals, such as every fuel stop. The best time to check the engine oil level is about ten minutes after a fully warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will improve the accuracy of the oil level readings.
There are four possible dipstick types:
Always maintain the oil level within the cross- hatch markings on the dipstick.
Adding 1 quart (1 liter) of oil when the reading is at the low end of the dipstick range will raise the oil level to the high end of the range marking.
ADDING WASHER FLUID 8
The windshield washer fluid reservoir is located in the front of the engine compartment. Be sure to check the fluid level at regular intervals. Fill the reservoir with windshield washer solvent (not radiator antifreeze) and operate the system for a few seconds to flush out the residual water.
When refilling the washer fluid reservoir, apply some washer fluid to a cloth or towel and wipe the wiper blades clean. This will help blade performance.
To prevent freeze-up of your windshield washer system in cold weather, select a solution or mixture that meets or exceeds the temperature range of your climate. This rating information can be found on most washer fluid containers.
The fluid reservoir will hold nearly 1 Gallon (4 Liters) of washer fluid when the message
“Low Washer Fluid” appears in the instrument cluster.
Your vehicle is equipped with a
maintenance-free battery. Water will never have to be added, and periodic maintenance is not required.
The battery is stored under an access cover in the trunk. Remote battery terminals are located in the engine compartment for jump starting
Cleaning the engine compartment with a high pressure washer is not recommended.
