INSTRUMENT CLUSTER

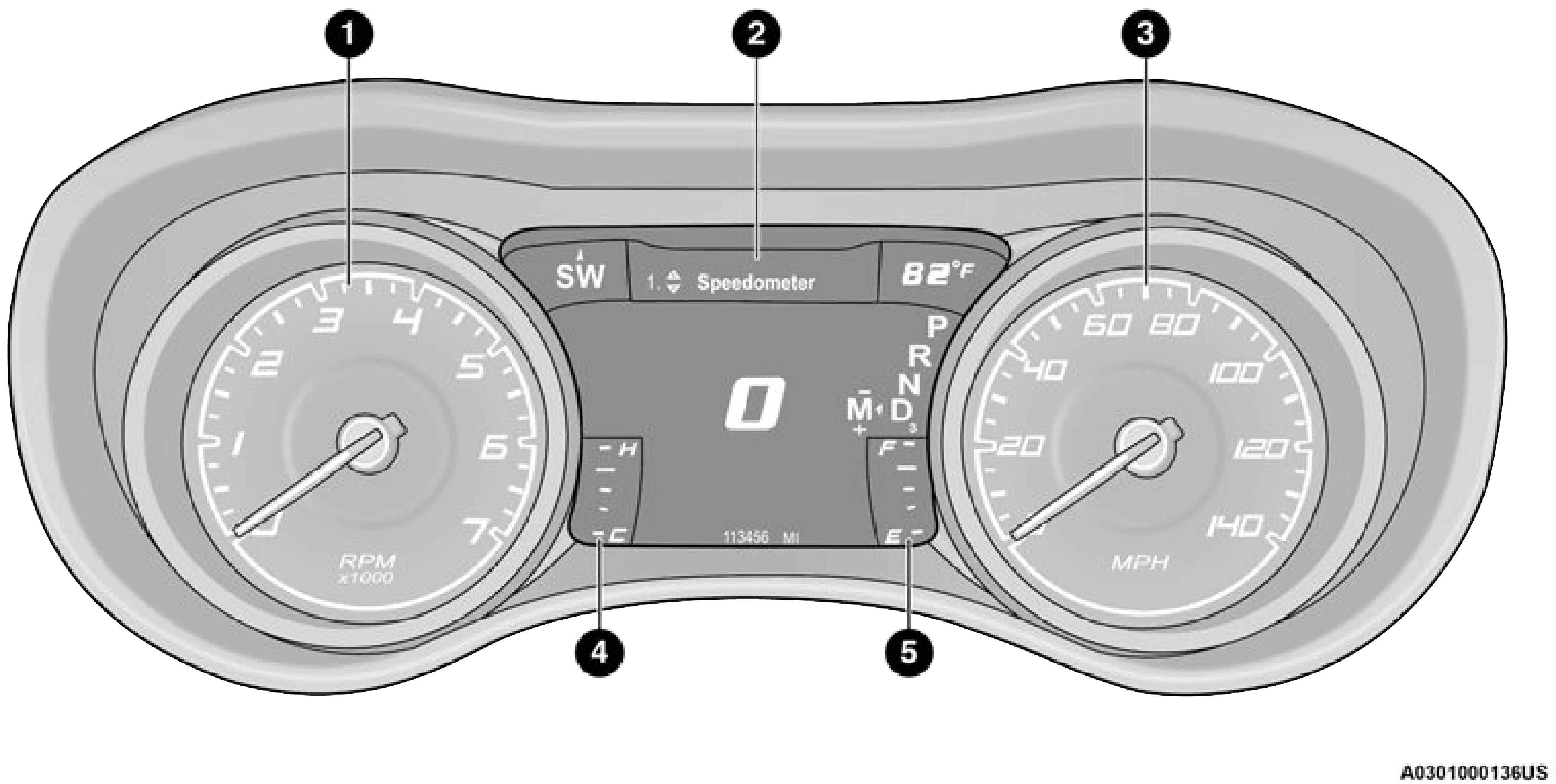

Instrument Cluster For 3.6L Engine

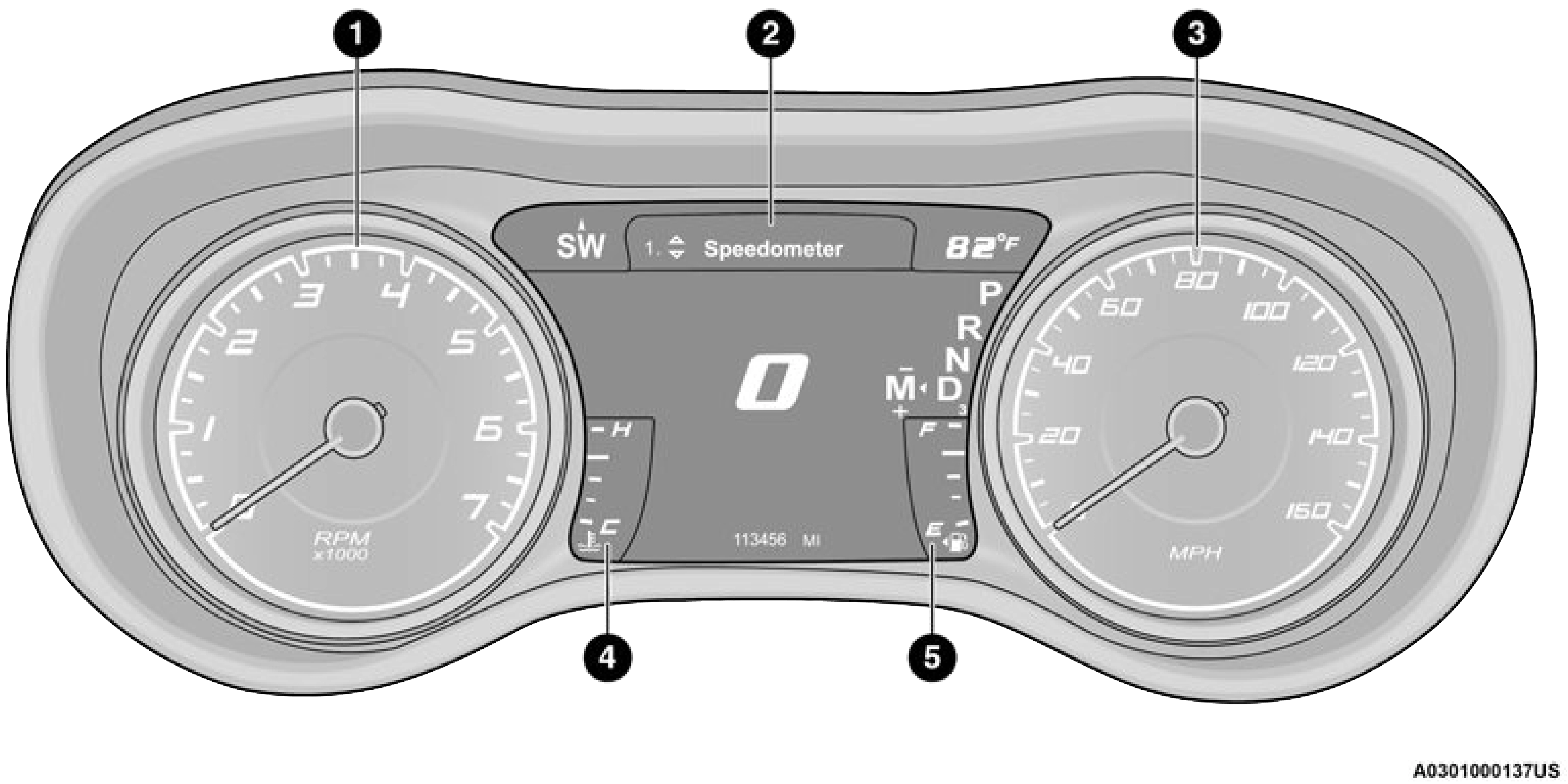

Instrument Cluster For 5.7L Engine
Tachometer
Indicates the engine speed in revolutions per minute (RPM x 1000).

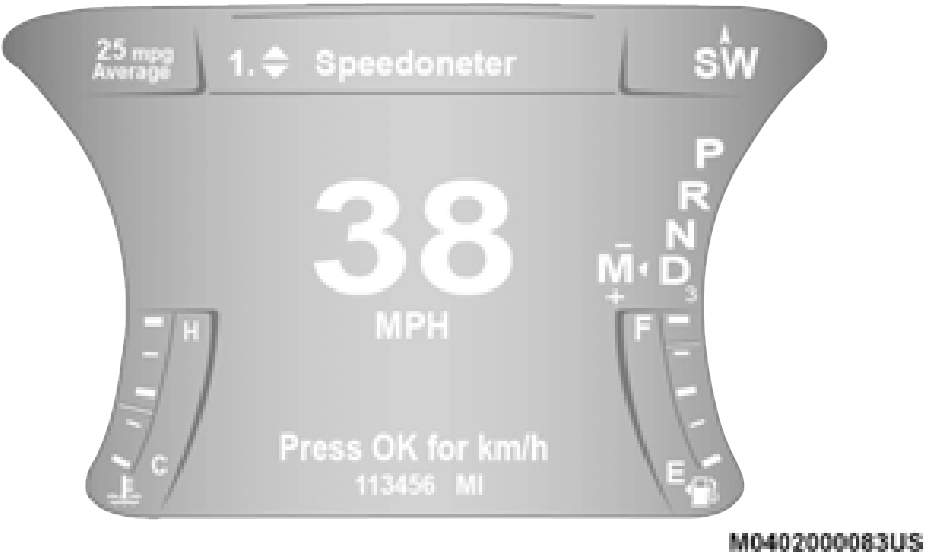

Instrument Cluster Display
When the appropriate conditions exist, this display shows the instrument cluster display messages page 74.
Instrument Cluster Display
Speedometer
Indicates vehicle speed.
Temperature Gauge
The temperature gauge shows engine coolant temperature. Any reading within the normal range indicates that the engine cooling system is operating satis- factorily.
The gauge pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
Fuel Gauge
The pointer shows the level of fuel in the fuel tank when the Keyless Push Button Ignition is in the ON/RUN position.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.The hard telltales will illuminate for a bulb check when the ignition is first cycled.
