INTERIOR STORAGE AND EQUIPMENT
Glove Compartment
The glove compartment is located on the passenger side of the instrument panel.

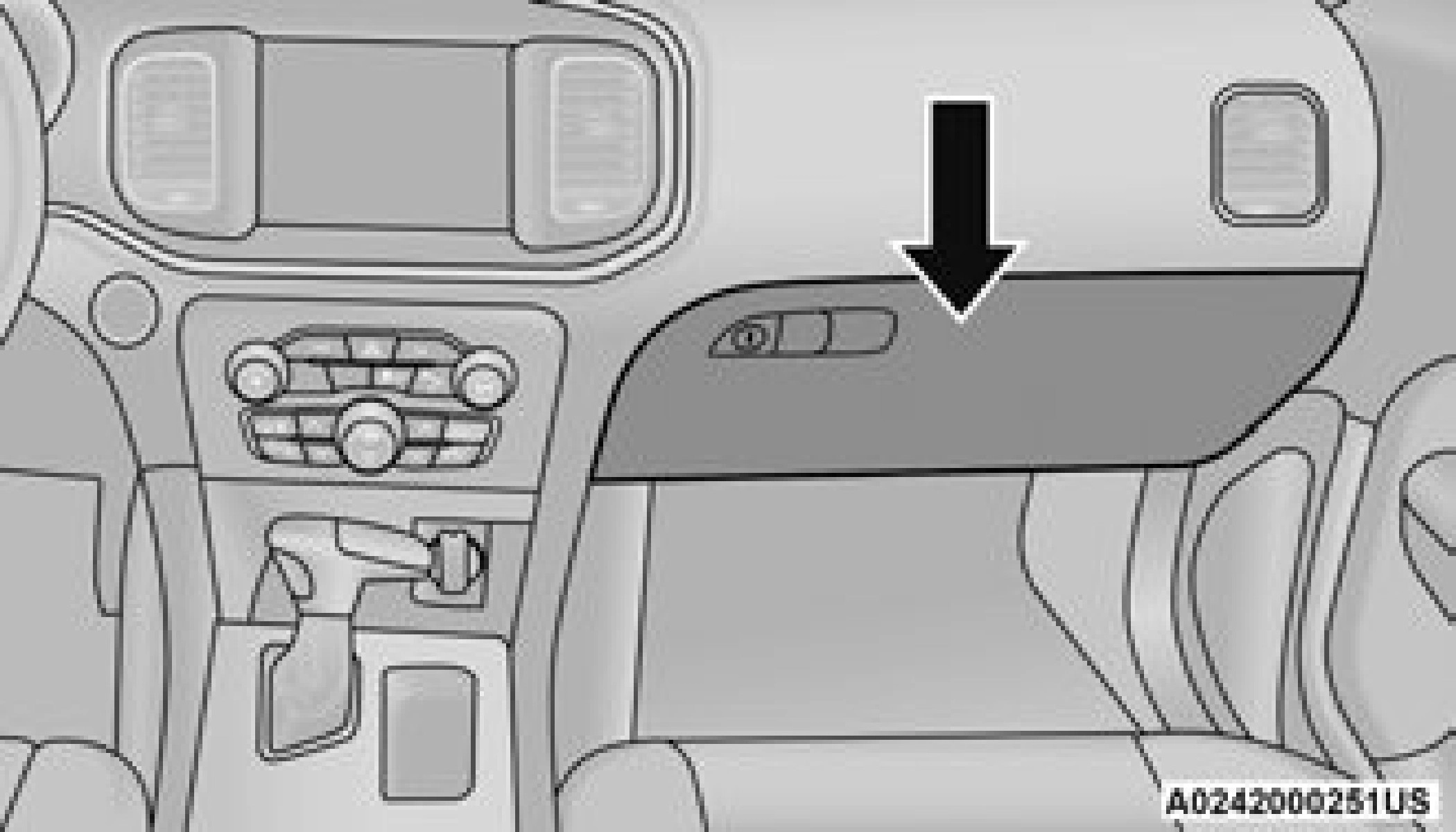

Glove Compartment
To open the glove compartment, pull the release handle.
Door Storage
Large storage areas are built into the door panels for easy access.

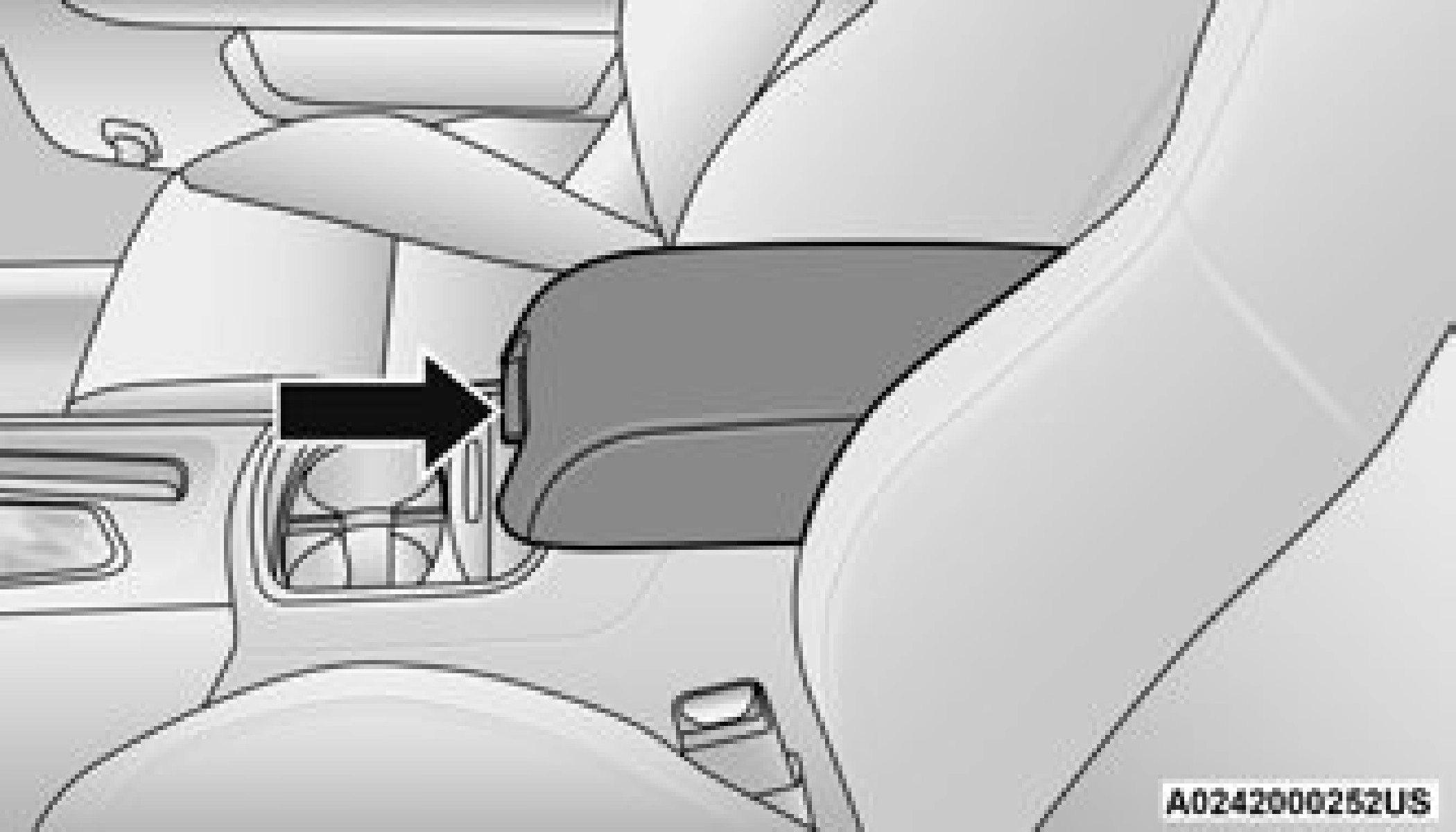

Two separate storage compartments are located underneath the center console armrest.
Center Console
Inside the center console armrest, there is a removable upper storage tray that can be slid forward/rearward on rails for access to the lower storage area. This tray has an integrated coin holder, along with additional area for small items and handheld devices. Below the upper tray, the lower storage compartment is made for larger items, like tissue boxes.
In addition, the 12 volt power outlet, USB, and AUX jack are located here.

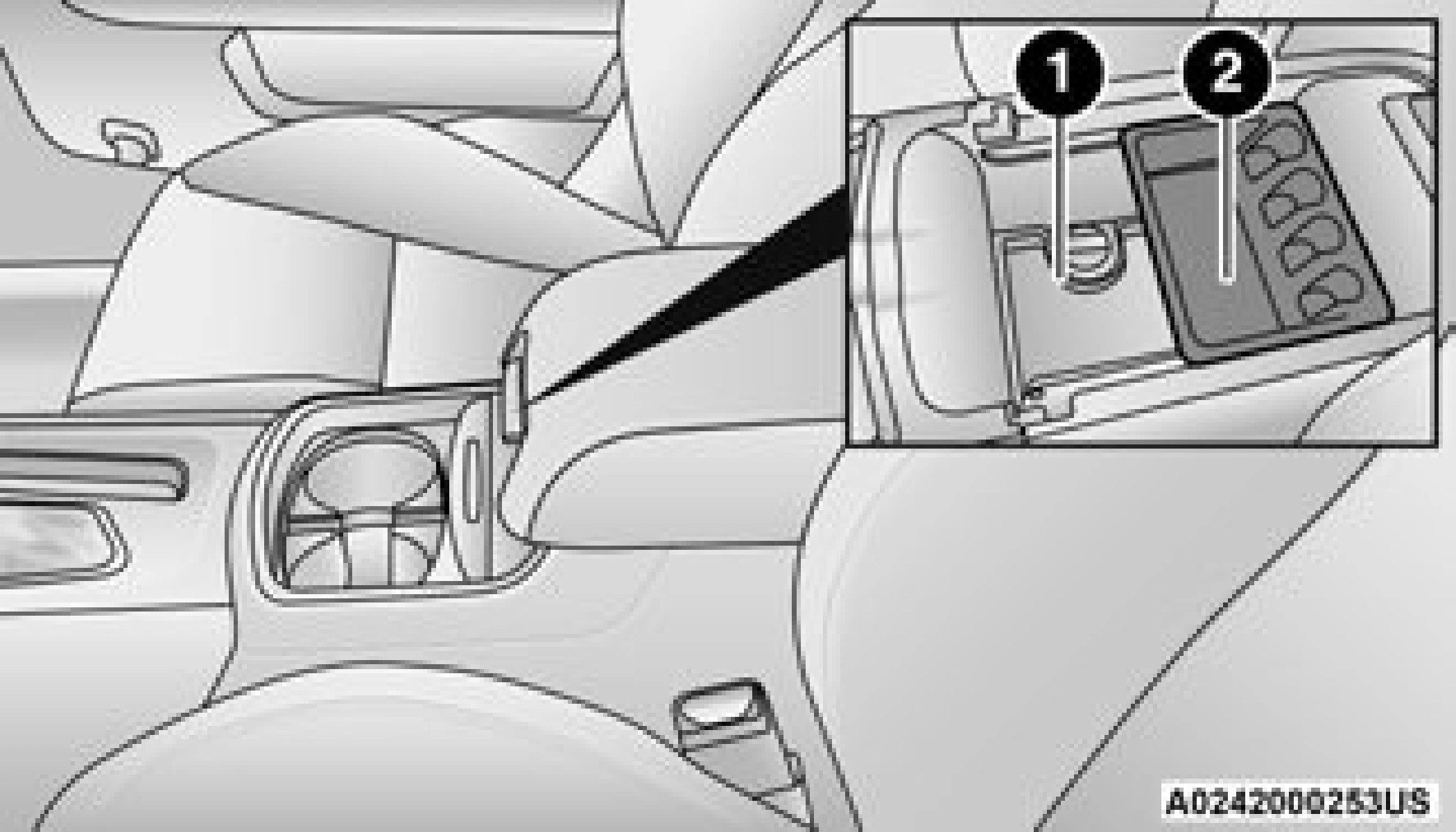

Center Console Storage
1 — Lower Storage Area 2 — Upper Storage Tray
At the front of the console a compartment is provided for the storage of a pair of sunglasses. The storage compartment access is a “push/ push” design. Push the chrome pad on the door to open. Push the chrome pad on the door to close.
USB/AUX CONTROL
This feature allows an external USB device to be plugged into the USB port.
Plugging in a smartphone device to a USB port may activate Android Auto™ or Apple CarPlay® features, if equipped. For further information, refer to “Android Auto™” or “Apple CarPlay®” in the Owner’s Manual Supplement.
Located on the rear of the front center console are dual USB “Charge Only” ports. The USB “Charge Only” ports will recharge battery operated USB devices when connected.
2

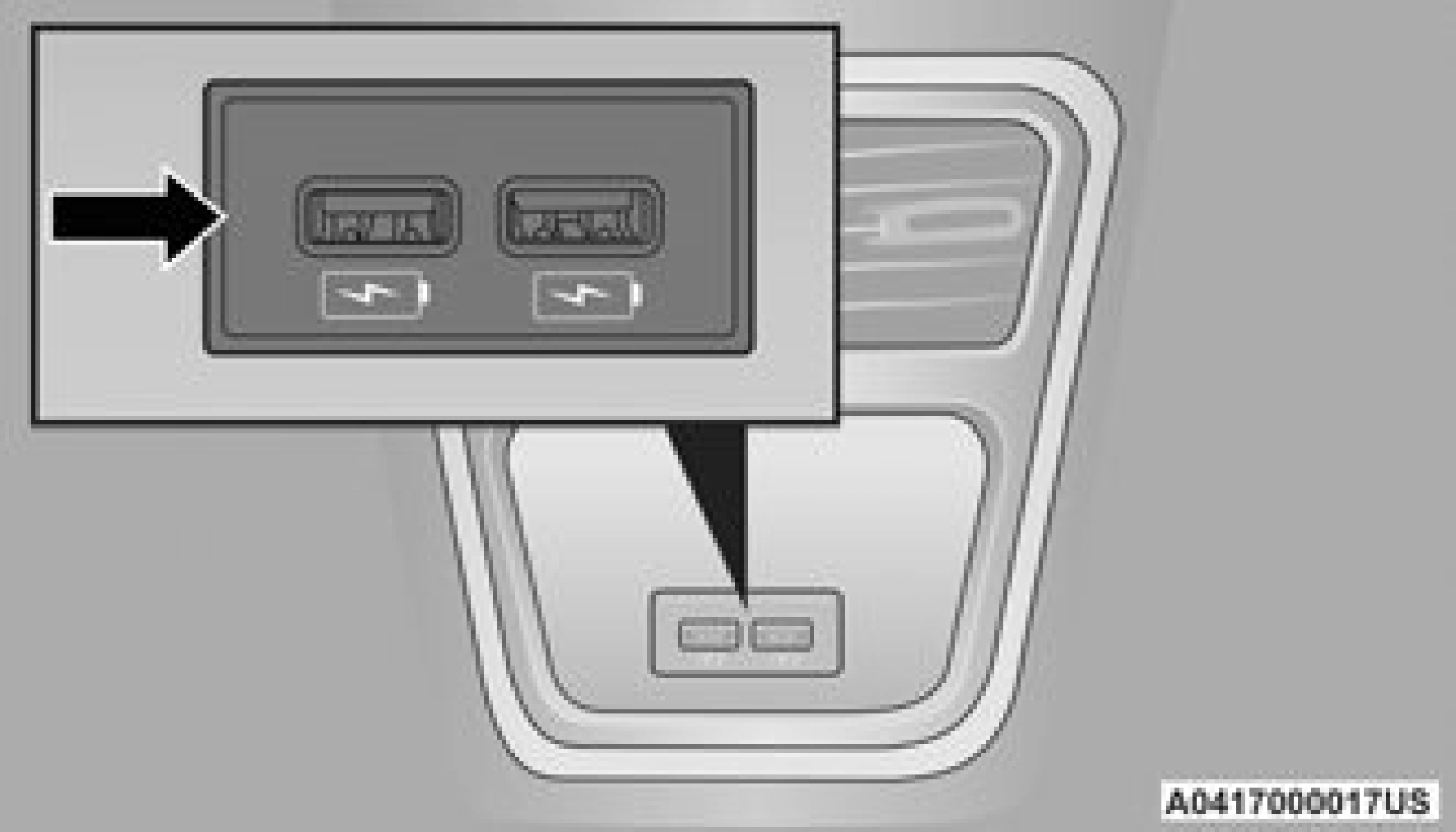

Rear USB Charging Ports
Sunglasses Bin Door

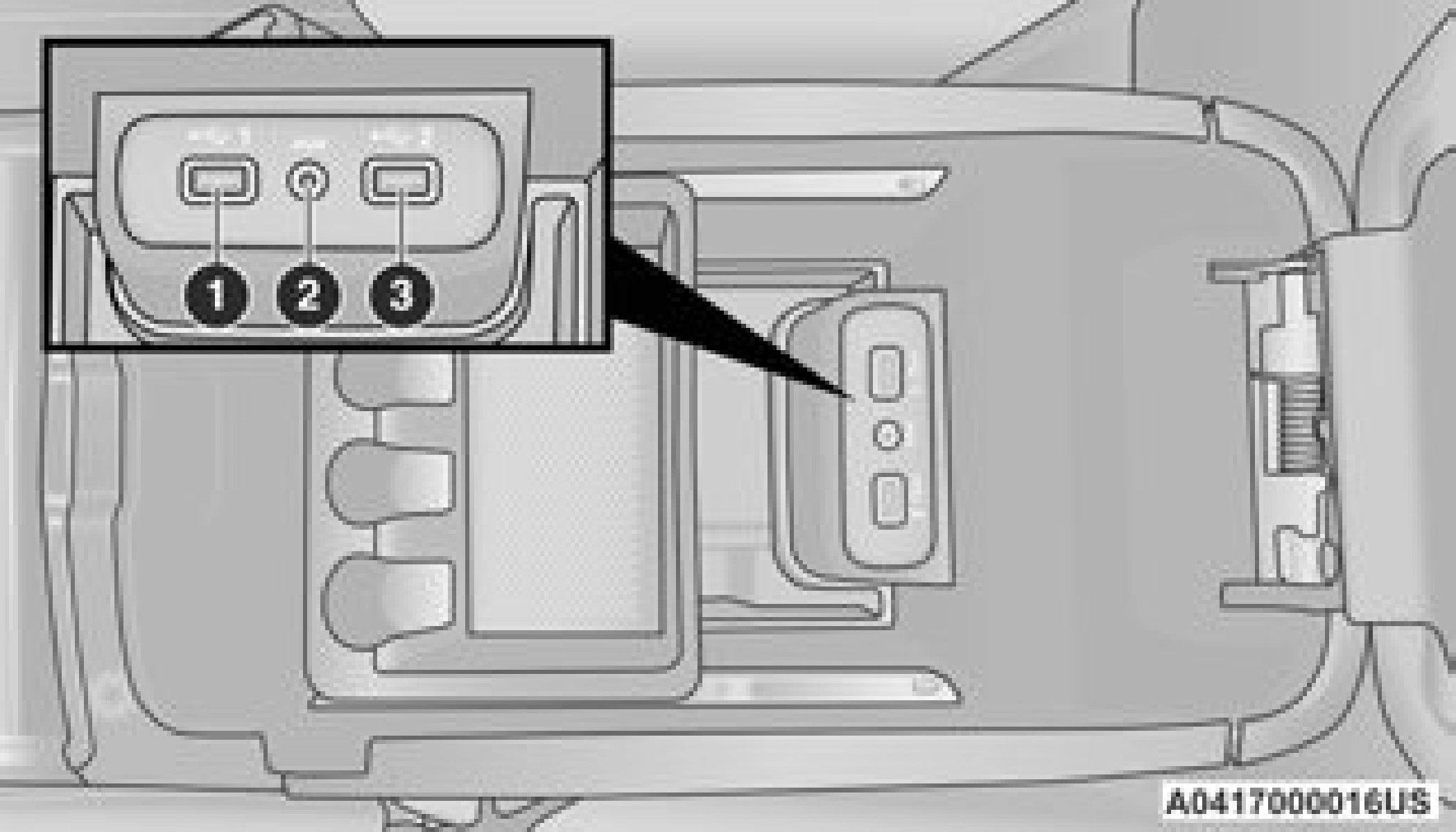

1 — USB 1 Port 2 — AUX Jack 3 — USB 2 Port
AUX/USB Ports
On some vehicles the front and/or rear cupholders are equipped with a light ring that illuminates the cupholders. The brightness of the light rings are controlled by the Dimmer Control page 50.

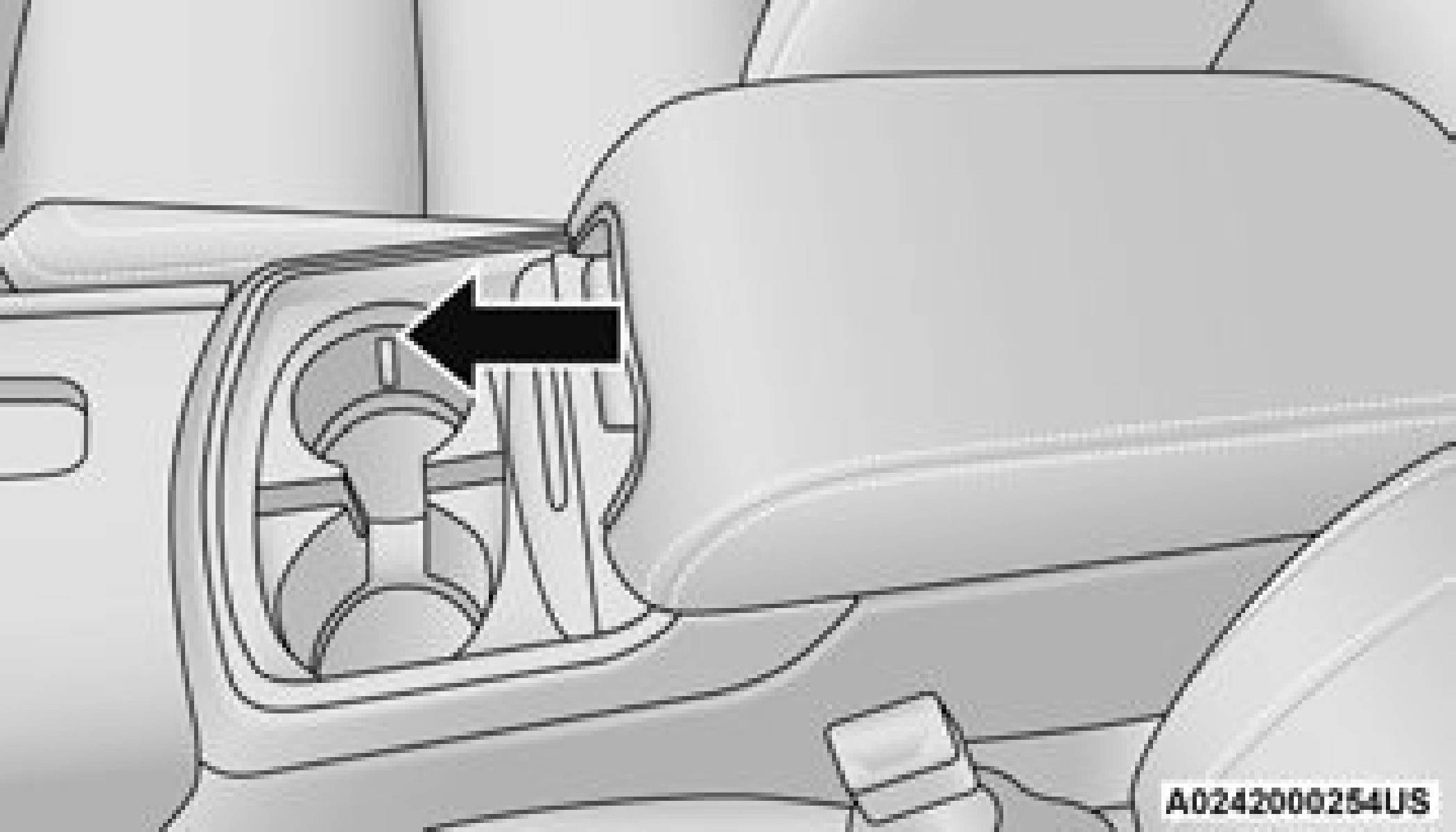

Light Ring Around Front Cupholders

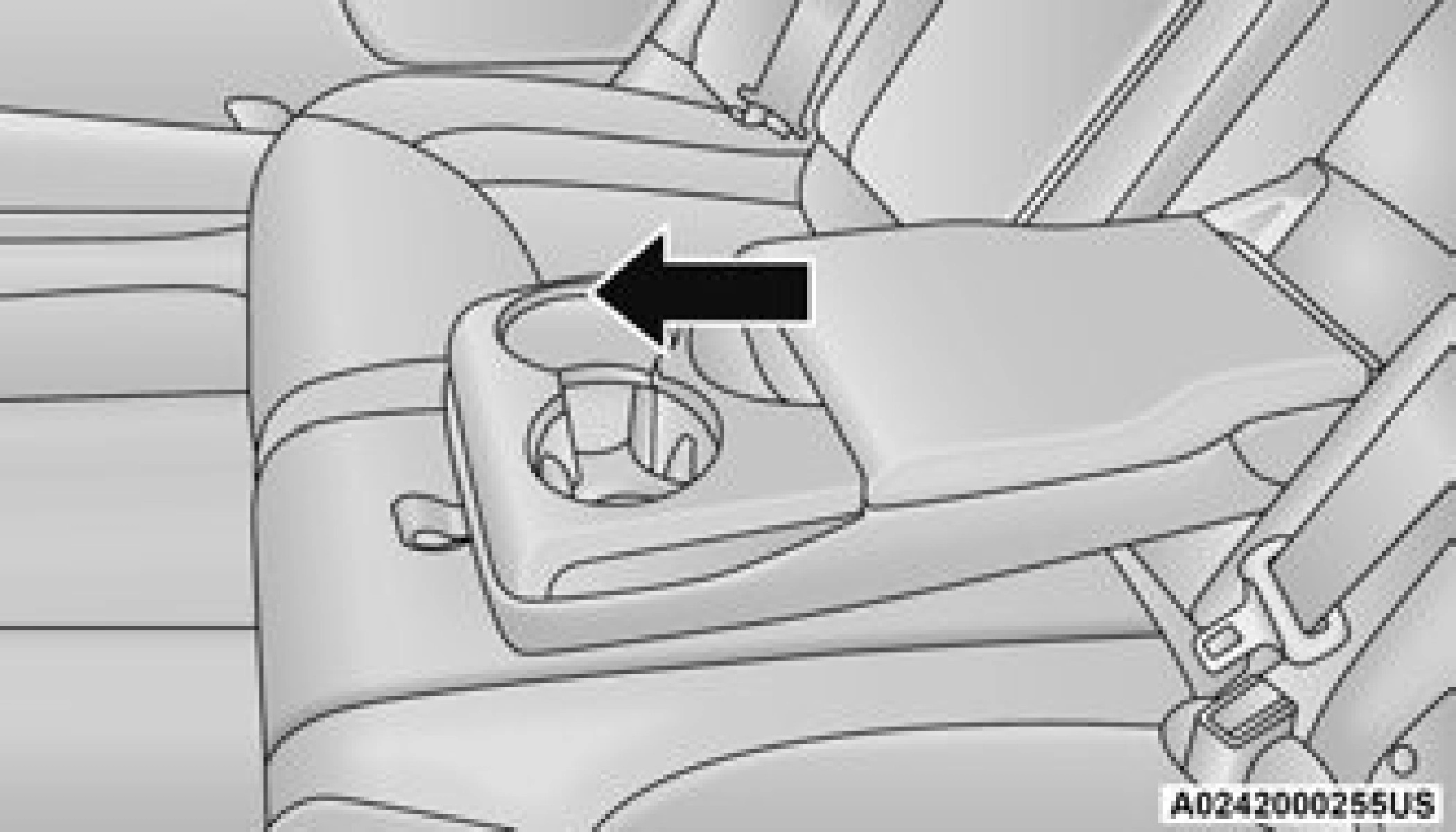

Light Ring Around Rear Cupholders
Your vehicle is equipped with 12 Volt (15 Amp) power outlets that can be used to power cellular phones, small electronics and other low powered electrical accessories. The power outlets are labeled with either a “key” or a “battery” symbol to indicate how the outlet is powered. Power outlets labeled with a “key” are powered when the ignition is in the ON or ACC position, while the outlets labeled with a “battery” are connected directly to the battery and powered at all times.
All accessories connected to the “battery” powered outlets should be removed or turned off when the vehicle is not in use to protect the battery against discharge.
The front power outlet is located inside the storage area on the center stack of the instrument panel.

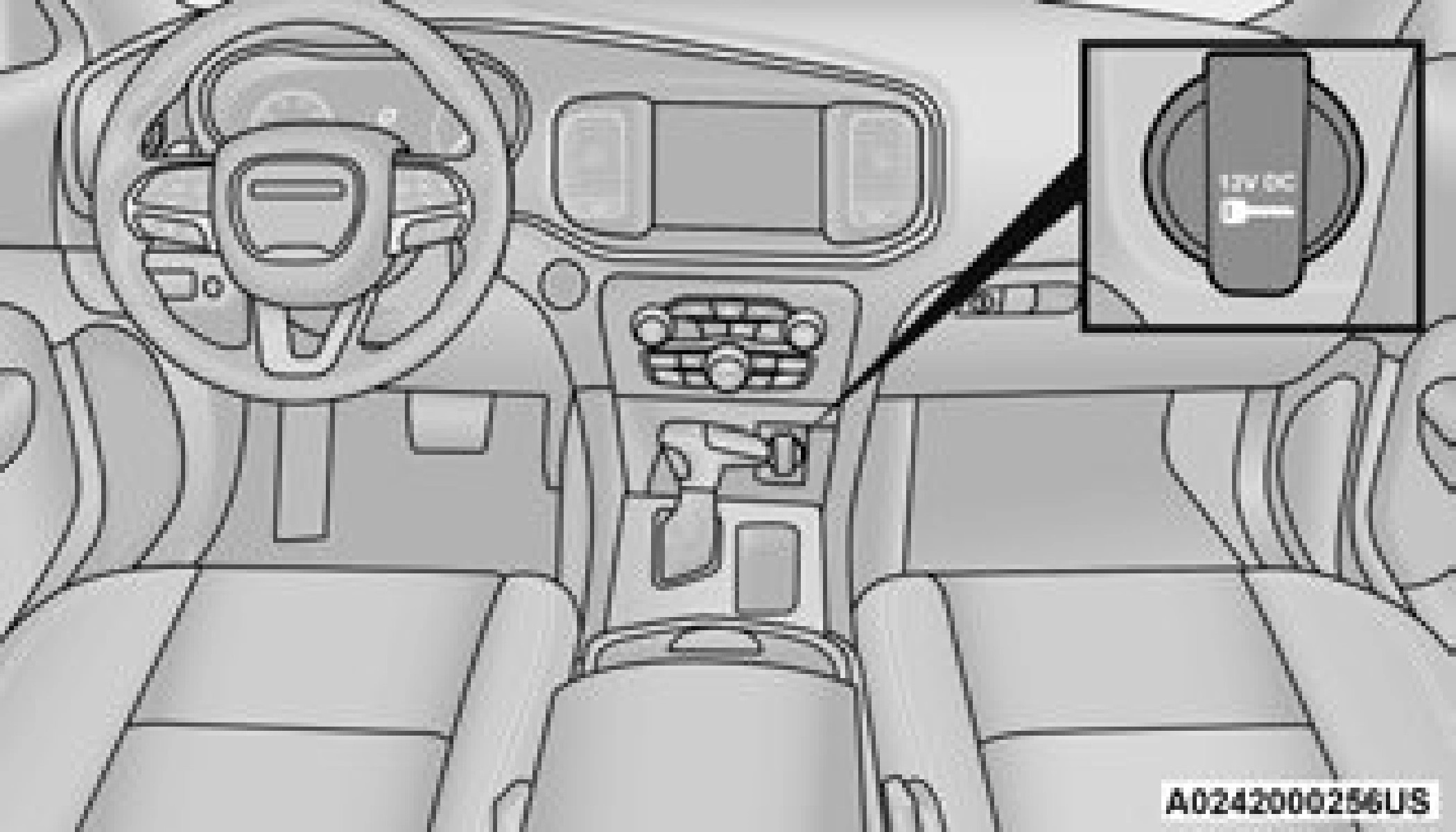

Front Power Outlet
In addition to the front power outlet, there is also a power outlet located in the storage area of the center console.

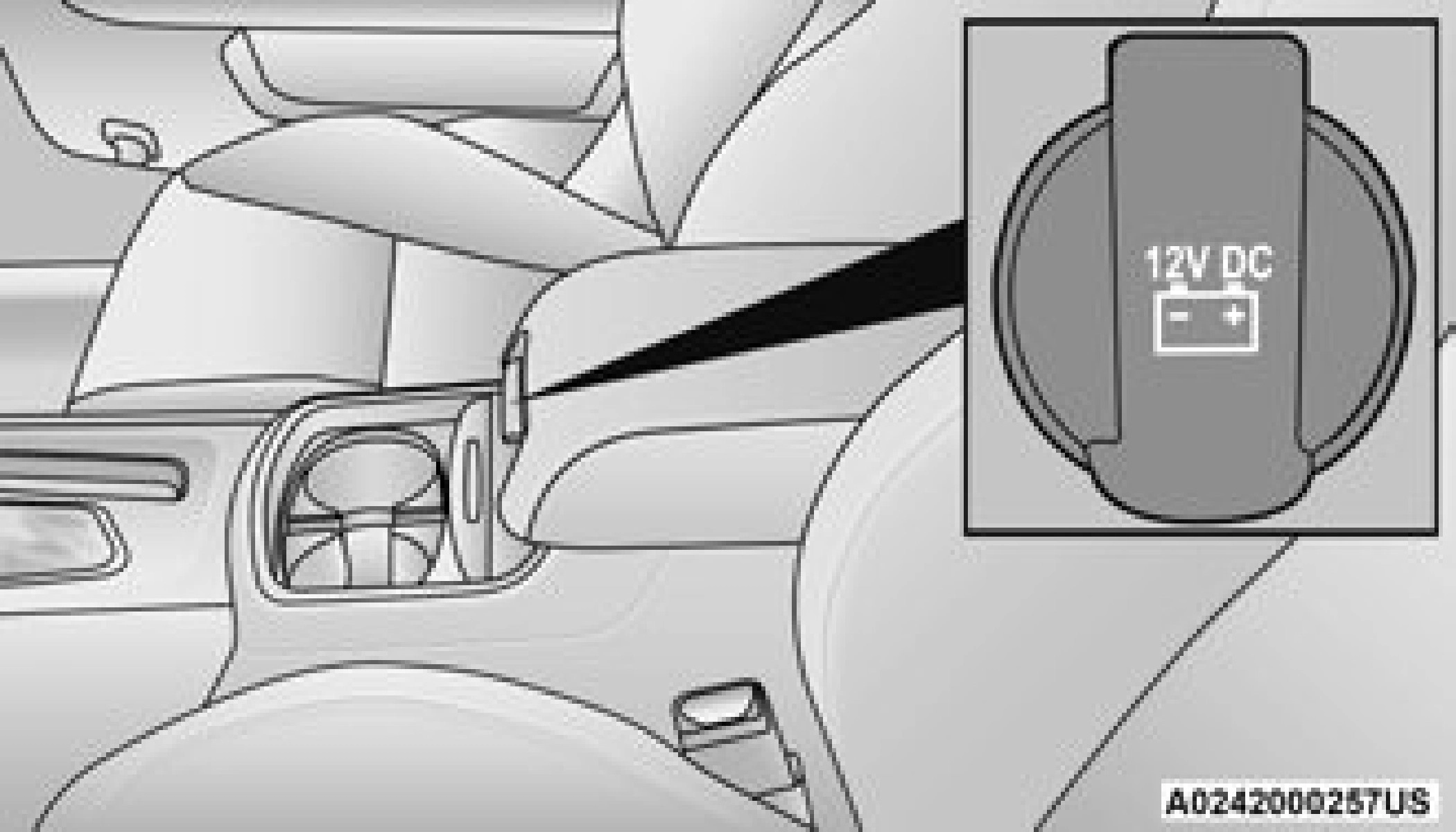

Center Console Power Outlet
If the Media Hub is in use, do not exceed the maximum power of 100 Watts (8 Amps) for the
center console power outlet. When the Media Hub is not in use, the outlet can deliver up to 160 Watts (13 Amps). If the power rating is exceeded, the fuse protecting the system needs to be replaced.
The instrument panel power outlet and dual rear console USB ports can be changed to “battery” (powered all the times) by moving the #12 20 Amp fuse from “IGN” to “B+”.

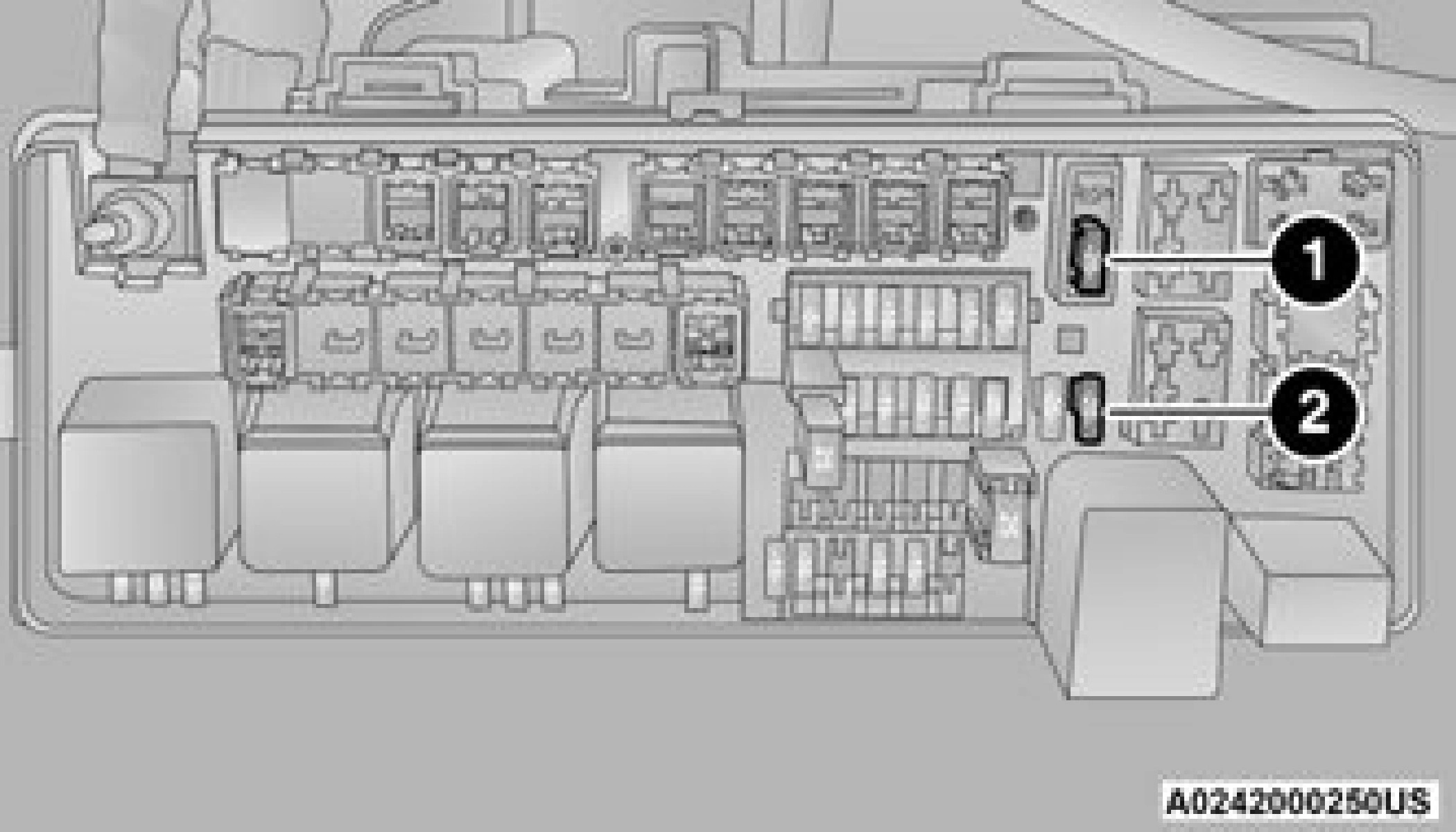

Power Outlet Fuse Locations
(Continued)
