2022 Volkswagen Jetta Owners Manual - Center console

Center console

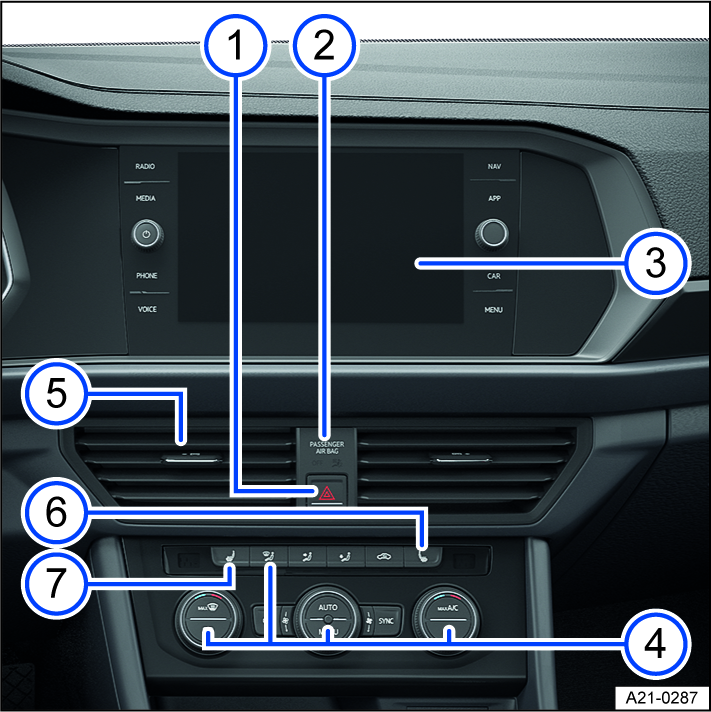

Fig. 6 Overview of the upper section of the center console.

1. Button for switching the emergency flashers on or off ⇒ In case of an emergency
2. Indicator light for front passenger’s airbag deactivation ⇒ Indicator light for front passenger’s front airbag
3. Infotainment system ⇒ First steps
4. Controls for the air conditioning system ⇒ Heating and air conditioning system
5. Vent ⇒ Air distribution and blower speed
6. Button for right seat heating ⇒ Seat heating and seat ventilation
7. Button for the left seat heating and the steering wheel heating ⇒ Steering wheel heating

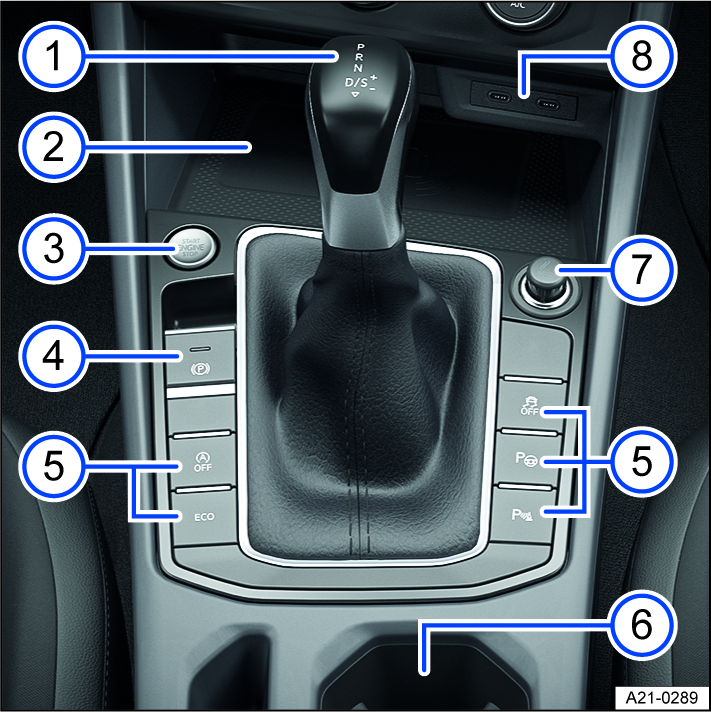

Fig. 7 Overview of the lower section of the center console.

1. Lever:

   • For DSG^® automated transmission ⇒ Automatic transmission

   • or automatic gearbox ⇒ Automatic transmission

   • or manual transmission ⇒ Manual transmission

2. Storage compartment

   • With functionality for wireless charging in accordance with Qi standard ⇒ Wireless charging function

3. Button to start and stop the engine (Keyless Access with push-button start) ⇒ Starting and stopping the engine
4. Electronic parking brake ⇒ Electronic parking brake
5. Buttons:

   • For start/stop system ⇒ Start/Stop system

   • For assist systems for parking and maneuvering ⇒ Parking and maneuvering

   • For ECO mode ⇒ Selecting the driving mode

   • For Driving Mode Selection ⇒ Driving Mode Selection

6. Storage compartment with cup holders
7. 12 V socket ⇒ Sockets
8. USB sockets with charge function for external device rechargeable batteries (depending on the vehicle equipment) ⇒ Wired and wireless connections
