Engine compartment
Vehicle features and options
This chapter describes model-specific equipment, systems, and functions that are currently available, or may become available in the future, even if they are not present in the vehicle.
Additional information:
Vehicle equipment.
Overview
1
2
3
4
5
6
7
1
Washer fluid
2
Jump-starting, positive battery terminal
3
Engine coolant
4
Oil filler neck
5
Coolant, auxiliary cooling
6
Identification number
7
Jump-starting, negative battery terminal
Hood
Safety information
Do not perform work in the engine compartment
Stay away from moving parts in the engine compartment
Keep the travel path of the hood unobstructed
Stop and close hood correctly
Keep the travel path of the hood unobstructed
Fold in wipers before opening the hood
Close the hood correctly
Opening hood

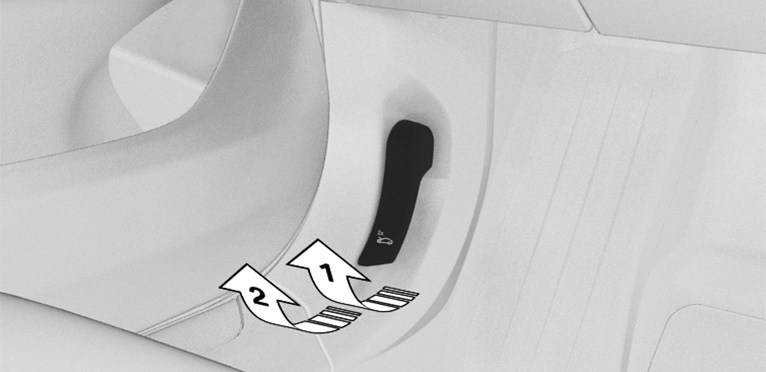

Pull the lever, arrow 1.
Hood is unlocked.
An acoustic signal and a notice in the instrument cluster indicate that the hood is open.
Release the lever and pull it again, arrow 2.
Hood can be opened.
Be careful of protruding parts on the hood.

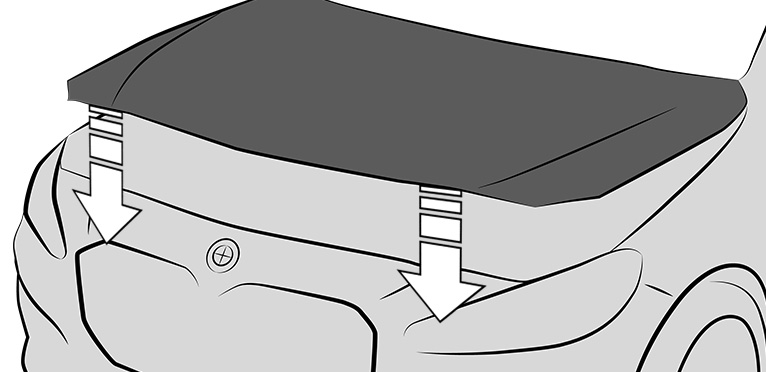

Closing the hood
Energetically close the hood from approx. 20 in/50 cm.
The hood must engage on both sides.
