2021 Toyota Corolla Owners Manual - Basic information before operation

Basic information before operation

289

After about 5 seconds or select- ing “Continue”, the caution screen automatically switches to the next screen.

When system response is extremely slow, the system can be restarted.

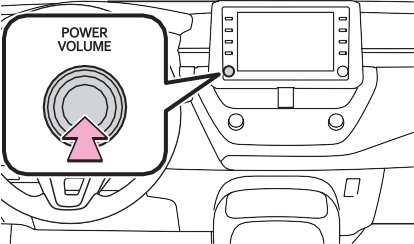

Press and hold the “POWER VOLUME” knob for 3 seconds or more.

Operations are performed by touching the touch screen directly with your finger.

*: The above operations may not be performed on all screens.

Flick operations may not be performed smoothly at high altitudes.

This system is operated mainly

by the buttons on the screen. (Referred to as screen buttons in this manual.)

When a screen button is

If the system does not respond to touching a screen button, move your finger away from the screen and then touch it again.

Dimmed screen buttons cannot be

291

operated.

The displayed image may become darker and moving images may be slightly distorted when the screen is cold.

In extremely cold conditions, the screen may not be displayed and the data input by a user may be deleted. Also, the screen buttons may be harder than usual to depress.

When you look at the screen through polarized material such as polarized sunglasses, the screen may be dark and hard to see. If so, look at the screen from differ- ent angles, adjust the screen set- tings on the display settings screen or take off your sun- glasses.

When is displayed on the

screen, select to return to the previous screen.

If the screen is dirty or wet

If a source of strong electro- magnetic waves is brought near the screen

If a glove is worn during oper- ation

If the screen is touched by a fingernail

If a stylus is used to operate the buttons

If your palm touches the oper- able area of another button during operation

If a button is touched quickly

If the operable part of a capacitive touch screen but- ton is touched by or covered with a metal object, such as the following, it may not oper- ate properly:

Magnetic isolation cards

Metallic foil, such as the inner packaging of a cigarette box

Metallic wallets or bags

Coins

Discs, such as a CD or DVD

If the operable part of a capacitive touch screen but- ton is wiped, it may operate unintentionally.

If the capacitive touch screen button is being touched when the engine switch is changed to ACC or ON, the button may not operate properly. In this case, remove anything touch- ing the button, turn the engine switch off and then turn it to

ACC or ON, or restart the sys- tem by press and hold the “POWER VOLUME” knob for 3 seconds or more.

Capacitive touch screen button sen- sor sensitivity can be adjusted. (P.321)

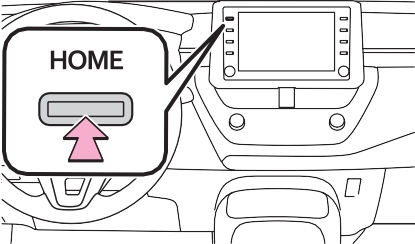

Press the “HOME” button.

Check that the home screen is displayed.

Selecting a screen will display it full screen.

The display information and area on the home screen can be cus- tomized.

The home screen can be set to several types of split layouts

293

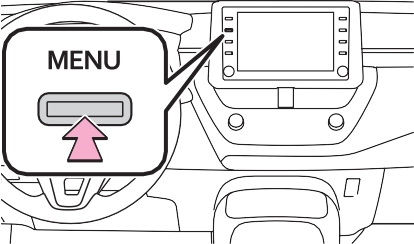

Press the “MENU” button.

Select “Setup”.

If the general settings screen is not displayed, select “General”.

Select “Customize Home Screen”.

Select the items to be set.

Select to change the display information and area on the home screen.

Select to change the home screen layout.

When searching by a name or entering data, letters and num- bers can be entered via the screen.

Text field. Entered charac- ter(s) will be displayed.

Select to erase one charac- ter.

Select and hold to continue erasing characters.

Select to move the cursor.

Select to choose predictive text candidate for entered text. (P.294)

Select to display a list of pre- dictive text candidates when there is more than one. (P.294)

Select to enter desired char- acters.

Select to enter characters in lower case or in upper case.

Select to change character types. (P.294)

Select to make a space on cursor.

1 Input text.

2 Select the desired candidate.

Keyboard layout can be changed. (P.321)

2 Select the desired character.

Depending on the screen being dis- played, it may not be possible to change keyboard characters.

To select a candidate that is not

displayed, select , and then select the desired predic- tive replacement candidate.

The list screen may be dis- played after entering characters. When a list is displayed, use the appropriate screen button to scroll through the list.

295

Select to skip to the next or previous page. Select and

hold or to scroll through the displayed list.

Indicates the position of the displayed entries in the entire list.

To scroll up/down pages, drag the bar.

If appears to the right of an item name, the complete name is too long to display.

Select to scroll to the end of the name.

Select to move to the begin- ning of the name.

1 Select .

Input text.

Select “Search”.

The list is displayed.

Press the “MENU” button.

Select “Display”.

Select the desired items to be set.

Select to turn the screen off. To turn it on, press any but-

ton.

Select to turn day mode on/off. (P.296)

Select to adjust the screen display. (P.296)

Select to adjust the camera display.

When the screen is viewed through polarized sunglasses, a rainbow pattern may appear on the screen due to optical characteristics of the screen. If this is disturbing, please operate the screen without polarized sunglasses.

Select “Day Mode”.

If the screen is set to day mode with the headlight switch turned on, this condition is memorized even with the engine turned off.

Select “General” or “Cam- era”.

Select the desired item.

“Display (General)” screen only:

Select “<” or “>” to select the desired display.

“Contrast”

“+”: Select to strengthen the con- trast of the screen.

“-”: Select to weaken the contrast of the screen.

“Brightness”

“+”: Select to brighten the screen. “-”: Select to darken the screen.

297
