Connectivity settings

This system is not guaranteed to operate with all Bluetooth® devices.

If your cellular phone does not support HFP, registering the Blue- tooth® phone or using OPP, PBAP, MAP or SPP profiles indi- vidually will not be possible.

If the connected Bluetooth® device version is older than rec- ommended or incompatible, the Bluetooth® device function may not work properly.

Refer to https://www.toyota.com/

audio-multimedia in the United States, https://www.toyota.ca/connected in Canada, and http://www.toyotapr.com/

audio-multimedia in Puerto Rico, to find approved Bluetooth® phones for this system.

Certification

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Registering from the sys- tem

This function is not available when Bluetooth® connection setting of your cellular phone is set to off.

Register the Bluetooth® device using your Blue- tooth® device.

299

Select “Phone”.

Operations up to this point can also be performed by pressing the “PHONE” button on the instrument panel.

Select “Yes” to register a phone.

Select the desired Bluetooth® device.

If the desired Bluetooth® phone is not on the list, select “If you cannot find...” and follow the guidance on the screen. (P.300)

For details about operating the Bluetooth® device, see the manual that comes with it.

A PIN code is not required for SSP (Secure Simple Pairing) compatible Bluetooth® devices. Depending on the type of Bluetooth® device being connected, a message confirming registration may be displayed on the Blue- tooth® device’s screen. Respond and operate the Bluetooth® device according to the confirmation message.

Check that the following screen is displayed, indicat- ing pairing was successful (a Bluetooth® link has been

established but registration is not yet complete).

The system is connecting to the registered device.

At this stage, the Bluetooth® functions are not yet avail- able.

8 Check that “Connected” is displayed and registration is complete.

If an error message is displayed, follow the guidance on the screen to try again.

If a cellular phone does not operate properly after being connected, turn the cellular phone off and on and then connect it again.

Registering from phone

Select “If you cannot find…”.

Select “Register from Phone”.

Check that the following screen is displayed, and reg- ister the Bluetooth® device using your Bluetooth® device.

For details about operating the Bluetooth® device, see the manual that comes with it.

A PIN code is not required for SSP (Secure Simple Pairing) compatible Bluetooth®

301

Respond and operate the Bluetooth® device according to the confirmation message.

Follow the steps in “Register- ing a Bluetooth® phone for the first time” from step 7. (P.298)

To use the Bluetooth® audio, it is necessary to register an audio player with the system.

Once the player has been regis- tered, it is possible to use the Bluetooth® audio.

This operation cannot be per- formed while driving.

For details about registering a Bluetooth® device: P.298

1 Turn the Bluetooth® connec- tion setting of your audio player on.

This function is not available when the Bluetooth® connection setting of your audio player is set to off.

Press the “AUDIO” button.

Select “Source” on the audio screen or press “AUDIO” but- ton again.

Select “Bluetooth”.

Select “Yes” to register an audio player.

Follow the steps in “Register- ing a Bluetooth® phone for the first time” from step 5. (P.298)

This system supports the follow- ing services.

Bluetooth® Core Specifica- tion

Ver. 2.0 (Recommended: Ver.

4.1 +EDR)

Profiles

HFP (Hands Free Profile) Ver.

1.0 (Recommended: Ver. 1.7)

This is a profile to allow hands-free phone calls using a cellular phone. It has outgoing and incoming call functions.

OPP (Object Push Profile) Ver. 1.1 (Recommended: Ver.

1.2)

This is a profile to transfer contacts data.

PBAP (Phone Book Access Profile) Ver. 1.0 (Recom- mended: Ver. 1.2)

This is a profile to transfer phone- book data.

MAP (Message Access Pro- file) Ver. 1.0 (Recommended: Ver. 1.2)

This is a profile to use phone mes- sage functions.

SPP (Serial Port Profile) Rec- ommended: Ver. 1.2

This is a profile to use the Toyota audio multimedia function.

A2DP (Advanced Audio Dis- tribution Profile) Ver. 1.0 (Rec- ommended: Ver. 1.3)

This is a profile to transmit stereo audio or high quality sound to the audio/visual system.

AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 (Rec- ommended: Ver. 1.6)

This is a profile to allow remote control the A/V equipment.

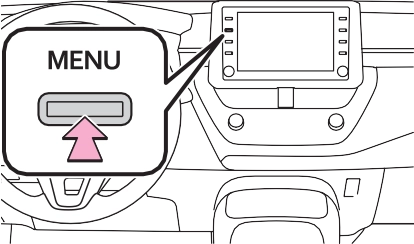

Press the “MENU” button.

Select “Setup”.

Select “Bluetooth”.

Select the desired item to be set.

has been registered, select which device to connect to.

303

Display the Bluetooth® set- tings screen. (P.302)

Select “Registered Device”.

Select the device to be con- nected.

Connecting a Bluetooth® device and editing the Blue- tooth® device information (P.303, 306)

Registering a Bluetooth® device (P.305)

Deleting a Bluetooth® device (P.305)

Setting the Bluetooth® sys- tem (P.307)

Up to 5 Bluetooth® devices (Phones (HFP) and audio play- ers (AVP)) can be registered.

If more than 1 Bluetooth® device

: Phone

: Audio player

: Phone/Toyota apps services

The profile icon for a currently connected device will be dis- played in color.

Selecting a profile icon which is not currently connected will switch the connection to the function.

If the desired Bluetooth® device is not on the list, select “Add New Device” to register the device. (P.305)

Select the desired connec- tion.

“Device Info”: Select to confirm and change the Bluetooth® device infor- mation. (P.306)

To disconnect the Bluetooth® device, select “Yes”.

Check that a confirmation screen is displayed when the connection is complete.

If an error message is displayed, follow the guidance on the screen to try again.

It may take time if the device con- nection is carried out during Blue- tooth® audio playback.

Depending on the type of Blue- tooth® device being connected, it may be necessary to perform additional steps on the device.

When disconnecting a Bluetooth® device, it is recommended to dis- connect using the system.

Connecting a Bluetooth® device in a different way (from phone top screen)

Connecting a Bluetooth® device in a different way (from phone setup screen)

P.388

Connecting a Bluetooth® device in a different way (from Bluetooth® audio screen)

P.347

Auto connection mode

To turn auto connection mode on, set “Bluetooth Power” to on. (P.307) Leave the Bluetooth® device in a location where the connection can be established.

When the engine switch is in ACC or ON, the system searches for a nearby regis- tered device.

The system will connect with the registered device that was last connected, if it is nearby. When automatic connection priority is set to on and there is more than one registered Bluetooth® phone available, the system will automatically connect to the Bluetooth® phone with the highest prior- ity. (P.307)

Connecting manually

When the auto connection has failed or “Bluetooth Power” is turned off, it is necessary to con- nect the Bluetooth® device man- ually.

305

Display the Bluetooth® set- tings screen. (P.302)

Follow the steps in “Connect- ing a Bluetooth® device” from step 2. (P.303)

Reconnecting the Blue- tooth® phone

If a Bluetooth® phone is discon- nected due to poor reception from the Bluetooth® network when the engine switch is in ACC or ON, the system auto- matically reconnects the Blue- tooth® phone.

Up to 5 Bluetooth® devices can be registered.

Bluetooth® compatible phones (HFP) and audio players (AVP) can be registered simultane- ously.

This operation cannot be per- formed while driving.

Display the Bluetooth® set- tings screen. (P.302)

Select “Add New Device”.

®

A registered device needs to be replaced. Select “Yes”, and select the device to be replaced.

Follow the steps in “Register- ing a Bluetooth® phone for the first time” from step 5. (P.298)

This operation cannot be per- formed while driving.

Display the Bluetooth® set- tings screen. (P.302)

Select “Remove Device”.

Select the desired device.

Select “Yes” when the confir- mation screen appears.

Check that a confirmation screen is displayed when the operation is complete.

When another Bluetooth

device is connected

To disconnect the Bluetooth® device, select “Yes”.

When deleting a Bluetooth® phone, the contact data will be deleted at the same time.

The Bluetooth® device’s infor- mation can be displayed on the screen. The displayed informa- tion can be edited.

This operation cannot be per- formed while driving.

Display the Bluetooth® set- tings screen. (P.302)

Select “Registered Device”.

Select the desired device to be edited.

Select “Device Info”.

Confirm and change the Bluetooth® device informa- tion.

The name of the Bluetooth® device is displayed. It can be changed to a desired name. (P.307)

Select to set the Bluetooth® audio player connection method. (P.307)

Device address is unique to the device and cannot be changed.

Phone number is unique to the Bluetooth® phone and cannot be changed.

Compatibility profile is unique to the Bluetooth® device and cannot be changed.

Select to reset all setup items.

5-3. Connectivity settings

307

If 2 Bluetooth® devices have been registered with the same device name, the devices can be distin- guished referring to the device’s address.

Depending on the type of Blue- tooth® phone, some information may not be displayed.

Select “Device Name”.

Enter the name and select “OK”.

Even if the device name is changed, the name registered in your Blue- tooth® device does not change.

Select “Connect Audio Player From”.

Select the desired connec- tion method.

“Vehicle”: Select to connect the audio player from the vehicle’s audio/visual system.

“Device”: Select to connect the vehicle’s audio/visual system from the audio player.

Depending on the audio player, the “Vehicle” or “Device” connection method may be best. As such, refer

to the manual that comes with the audio player.

Display the Bluetooth® set- tings screen. (P.302)

Select “Detailed Settings”.

Select the desired item to be set.

Select to set Bluetooth® con- nection on/off. (P.307)

Select to change the auto- matic connection priority of the registered Bluetooth® devices. (P.308)

Select to edit the system information. (P.308)

Select to reset all setup items.

1 Select “Bluetooth Power”. When “Bluetooth Power” is on: The Bluetooth® device is auto-

matically connected when the engine switch is in ACC or ON.

When “Bluetooth Power” is off: The Bluetooth® device is dis- connected, and the system will not connect to it next time.

While driving, the auto connection state can be changed from off to on, but cannot be changed from on to off.

Select “Preferred Device Set- tings”.

Select the desired item to be set.

Select to set automatic con- nection priority on/off.

Select to change the auto- matic connection priority of the registered Bluetooth® phones. (P.308)

Select to change the auto- matic connection priority of the registered Bluetooth®

audio players. (P.308)

Select to reset all setup items.

Changing Bluetooth® device automatic connec- tion priority

Select “Preferred Phones” or “Preferred Audio Players”.

Select the desired Bluetooth® device and select “Move Up” or “Move Down” to change the preferred order.

A newly registered Bluetooth® device will automatically be given the highest automatic connection priority.

2 Select the desired item to be set.

Editing the system name

Select “System Name”.

Enter a name and select “OK”.

Editing the PIN code

309

Select “System PIN Code”.

Enter a PIN code and select “OK”.

Displays system name. Can be changed to a desired name. (P.309)

PIN code used when the Bluetooth® device was regis- tered. Can be changed to a desired code. (P.309)

Device address is unique to the device and cannot be changed.

Select to set the connection status display of the phone on/off.

Select to set the connection status display of the audio player on/off.

Compatibility profile of the system

Select to reset all setup items.

*: If equipped

Enable the Wi-Fi® Hotspot function. (P.311)

Disable the “Hide Access Point” function. (P.310)

Search for the vehicle access point using the device you wish to connect.

For details about operating the device, refer to the documentation which came with it.

Operate the device to con- nect it to the vehicle access point.

To check the vehicle access point password, check “Password”. (P.311)

Hints for connecting to the vehicle via Wi-Fi® can be displayed. (P.311)

Enable the Wi-Fi® Hotspot function. (P.311)

Enable the “Hide Access Point” function. (P.310)

Enter the access point name (SSID) into the device you wish to connect and connect it.

To check the vehicle access point password, check “Pass- word”. (P.311)

The security settings on the device must be the same as that displayed for “Security”. (P.311)

For details about operating the device, refer to the docu- mentation which came with it.

311

Press the “MENU” button.

Select “Setup”.

Select “Wi-Fi*”.

*: Wi-Fi® is a registered trademark of Wi-Fi Alliance®.

Select the desired item to be set.

Select to check/change the access point password. (P.312)

Select to display hints for connecting to the vehicle via Wi-Fi®.

Select to make the access point searchable/unsearch- able.

Select to check/change the security protocol of the access point (for authentica- tion and encryption). (P.312)

Select to change the access point name (SSID). (P.312)

Select to change the Wi-Fi® connection channel (within the 2.4GHz frequency band). (P.312)

If any settings have been changed, it will be necessary to reset the

Wi-Fi® system to complete the changes. To reset the Wi-Fi® sys- tem, select “Yes” on the pop-up dis- played after changing the settings.

When the Wi-Fi® Hotspot func- tion is enabled, the system checks for a valid Hotspot ser- vice subscription.

If a hotspot service subscription has not been started, connect your device to the in-vehicle access point to start your sub-

scription. A trial subscription may be available.

Select “Password”.

Check that the following screen is displayed.

Displays the password

Select to display/hide the entered password.

Select to change the pass- word.

Select “Change Password”.

Enter the desired password and select “OK”.

When setting/changing a pass- word, observe the following guide- lines to help prevent the password from being cracked by a third party:

Use an 8-character or longer password consisting of letters and numbers. (Non-ASCII characters will not be recog- nized by the system.)

Change the password regu- larly.

If you write the password down, do not leave it some- where where it would be visi- ble.

Do not use the same or a sim- ilar password to that for other accounts.

Avoid using easy to identify words, such as your vehicle’s model name or license plate number, simple dictionary words, or words with simple obfuscation, such as c@t (for cat), as your password.

Select “Security”.

Select the desired security protocol.

Select “Access Point Name”.

Enter the desired access point name (SSID) and select “OK”.

1 Select “Channel”.

313

Select to change the chan- nel selection to auto- matic/manual.

When “Manual” is selected, select to change the channel.

Set “Select Channel” to “Manual”.

Select “Channel Number”.

Enter the desired channel number and select “OK”.

Channels 1 through 11 can be selected.

Wi-Fi® function operating hints

If a connected device is taken out of the Wi-Fi® connection area, the connection will be severed.

If the vehicle is driven out of the cellular communication coverage area, connecting to the internet via the Wi-Fi® Hotspot will not be possible.

If a Bluetooth® device is used while a device is connected using

the Wi-Fi® Hotspot function, the communication speed may decrease.

If the vehicle is near a radio antenna, radio station or other source of strong radio waves and electrical noise, communication may be slow or impossible.

WARNING

Use Wi-Fi® devices only when safe and legal to do so. Your audio unit is fitted with Wi-Fi® antennas. People with implantable cardiac pacemak- ers, cardiac resynchronization therapy-pacemakers or implant- able cardioverter defibrillators should maintain a reasonable distance between themselves and the Wi-Fi® antennas. The radio waves may affect the operation of such devices. Before using Wi-Fi® devices, users of any electrical medical device other than implantable cardiac pacemakers, cardiac resynchronization ther- apy-pacemakers or implantable cardioverter defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unex- pected effects on the operation of such medical devices.

Communication standards IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (2.4GHz)

Security WPA™ WPA2™

WPA™ and WPA2™ are trade- marks of Wi-Fi Alliance®.

*: This function is not made avail- able in some countries or areas.

Connect the device to the USB port. (P.330)

application supported by Apple CarPlay.

315

Select “Always Enable” or “Enable Once”.

If “Do Not Enable” is selected, an Apple CarPlay connection will not be established. In this case, the device can be oper- ated as a normal Apple device, such as an iPod.

Depending on the device con- nected, it may take approxi- mately 3 to 6 seconds before an Apple CarPlay connection is established.

Check that home screen of Apple CarPlay is displayed.

Select to display the home screen of Apple CarPlay. Touch and hold to activate Siri.

Select to start the application. User can use any iPhone

Select to display the system screen.

Check that the Android Auto application is installed to the device to be connected.

Connect the device to the USB port. (P.329)

Select “On” to enable the function.

“Off”: Select to not enable Android Auto. Android Auto will remain off until “Android Auto” of “Projection Settings” on the general settings screen is turned on.

Depending on the device con- nected, it may take approxi- mately 3 to 6 seconds before the system returns to previous screen.

The screen may change to “step 6” depending on the system.

Press the “MENU” button.

Select “Android Auto”.

Check that home screen of Android Auto is displayed.

When an Apple CarPlay/Android Auto connection is established, the function of some system but- tons will change.

When an Apple CarPlay/Android Auto connection is established, some system functions, such as the following, will be replaced by similar Apple CarPlay/Android Auto functions or will become unavailable:

iPod (Audio Playback)

Hands-free Phone

USB audio/USB video

Bluetooth® audio

Bluetooth® phone (Apple CarPlay only)

Toyota apps

When an Apple CarPlay/Android Auto connection is established, voice command system (Siri/Goo- gle Assistant) and map application voice guidance volume can be changed by selecting “Voice Vol- ume” on the voice settings screen. It cannot be changed by “POWER VOLUME” knob on Audio control panel. (P.325)

Apple CarPlay/Android Auto is an application developed by Apple Inc/Google LLC. Its functions and services may be terminated or changed without notice depending

on the connected device’s opera- tion system, hardware and soft- ware, or due to changes in Apple CarPlay/Android Auto specifica- tions.

For a list of the apps supported by Apple CarPlay or Android Auto, refer to their respective website.

While using these functions, vehi- cle and user information, such as location and vehicle speed, will be shared with the respective appli- cation publisher and the cellular service provider.

By downloading and using each application, you agree to their terms of use.

Data for these functions is trans- mitted using the internet and may incur charges.

For information about data trans- mission fees, contact your cellular service provider.

Depending on the application, cer- tain functions, such as music play- back, may be restricted.

As the applications for each func- tion are provided by a third-party, they may be subject to change or discontinuation without notice. For details, refer to the website of the function.

If the USB cable is disconnected, operation of Apple Car- Play/Android Auto will end.

At this time, sound output will stop and change to the system screen.

Use of the Apple CarPlay logo means that a vehicle user inter- face meets Apple performance standards. Apple is not responsi- ble for the operation of this vehicle

or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone or iPod may affect wire- less performance.

Apple CarPlay is a trademark of Apple Inc.

Compatible models Made for

iPhone X

iPhone 8

iPhone 8 Plus

iPhone 7

iPhone 7 Plus

iPhone SE

iPhone 6s

iPhone 6s Plus

iPhone 6

iPhone 6 Plus

iPhone 5s

iPhone 5c

iPhone 5

Android and Android Auto are trademarks of Google LLC.

317

Symptom	Solution
	Check if the device supports Apple Car-
	Play/Android Auto.
	Check if Apple CarPlay/Android Auto is
	enabled on the connected device.
	Check if that the Android Auto application is
	installed to the device to be connected.
	For details, refer to
	Apple CarPlay:
	https://www.apple.com/ios/carplay/.
	Android Auto:
	https://www.android.com/auto/.
An Apple Car- Play/Android Auto con- nection cannot be established.
	Check if “Apple CarPlay”/“Android Auto” of “Projection Settings” on the general settings screen is set to on. (P.321)
	Check if the USB cable being used is securely
	connected to the device and USB port.
	Check that the device is connected directly to
	the USB port of the system and not connected
	to a USB hub.
	For Apple CarPlay: Check if the Lightning cable
	being used is certified by Apple. Check if Siri is
	enabled.
	After checking all of the above, try to establish
	an Apple CarPlay/Android Auto connection.
	(P.314, 315)
When an Apple Car-
Play/Android Auto con-
nection is established and	As the system is not designed to play video
a video is being played,	through Apple CarPlay/Android Auto, this is not
the video is not displayed,	a malfunction.
but audio is output
through the system.
Although an Apple Car-
Play/Android Auto con- nection is established, audio is not output	The system may muted or the volume may be low. Increase the system volume.
through the system.

5-3. Connectivity settings

319

Symptom	Solution
The Apple Car- Play/Android Auto screen has artifacts and/or audio from Apple Car- Play/Android Auto has noise.	Check if the USB cable being used to connect the device to the system is damaged. To check if the USB cable is damaged inter- nally, connect the device to another system, such as a PC, and check if the device is recog- nized by the connected system. (The device should begin charging when connected.)
	After checking all of the above, try to establish an Apple CarPlay/Android Auto connection. (P.314, 315)
The map display of the Apple CarPlay Maps app cannot be enlarged or contracted with pinch multi-touch gestures.	As the Apple CarPlay Maps app is not compati- ble with pinch multi-touch gestures, this is not a malfunction.
During Apple CarPlay music application (Apple Music, Spotify, etc.) play- back, if the iPhone is operated to start and play audio from an application that is not compatible with Apple CarPlay* and the onboard device volume is changed, the audio of the incompatible application stops and the system resumes playback of the original music application.	This operation is performed according to the specification of the onboard device, this is not a malfunction.
After interrupt audio (such as navigation route guid- ance) is played from an application that is not compatible with Apple CarPlay while the onboard device is playing audio, the system does not resume playback of the original audio.	This operation is performed according to the specification of the onboard device, this is not a malfunction. Manually change the audio source by yourself. Or, do not use applications that are not compat- ible with Apple CarPlay.* Due to some naviga- tion applications are compatible from iOS 12, update to the latest iOS and application ver- sions.

Symptom	Solution
When using Apple Car- Play, route guidance arrows and turn by turn navigation are not dis- played on the multi-infor- mation display and system display. When using Android Auto, turn by turn navigation is not displayed on the multi-information display and system display.	This is not a malfunction as display of these items is not possible with this function.
When using Android Auto, hands-free call audio can- not be heard from the vehicle’s speakers.	Disconnect the phone from the USB cable and check if hands-free call audio can be heard using the hands-free system.
	Connect the phone to the system using Android Auto, turn up the volume on the system and check if hands-free call audio can be heard. Check if other sounds can be heard from the vehicle’s speakers.

*: Applications not compatible with Apple CarPlay are applications installed on the iPhone that are not displayed on the Apple CarPlay screen appli- cation list. (such as visual voicemail)

“Language”

Download Manual
