Premium Instrument Cluster

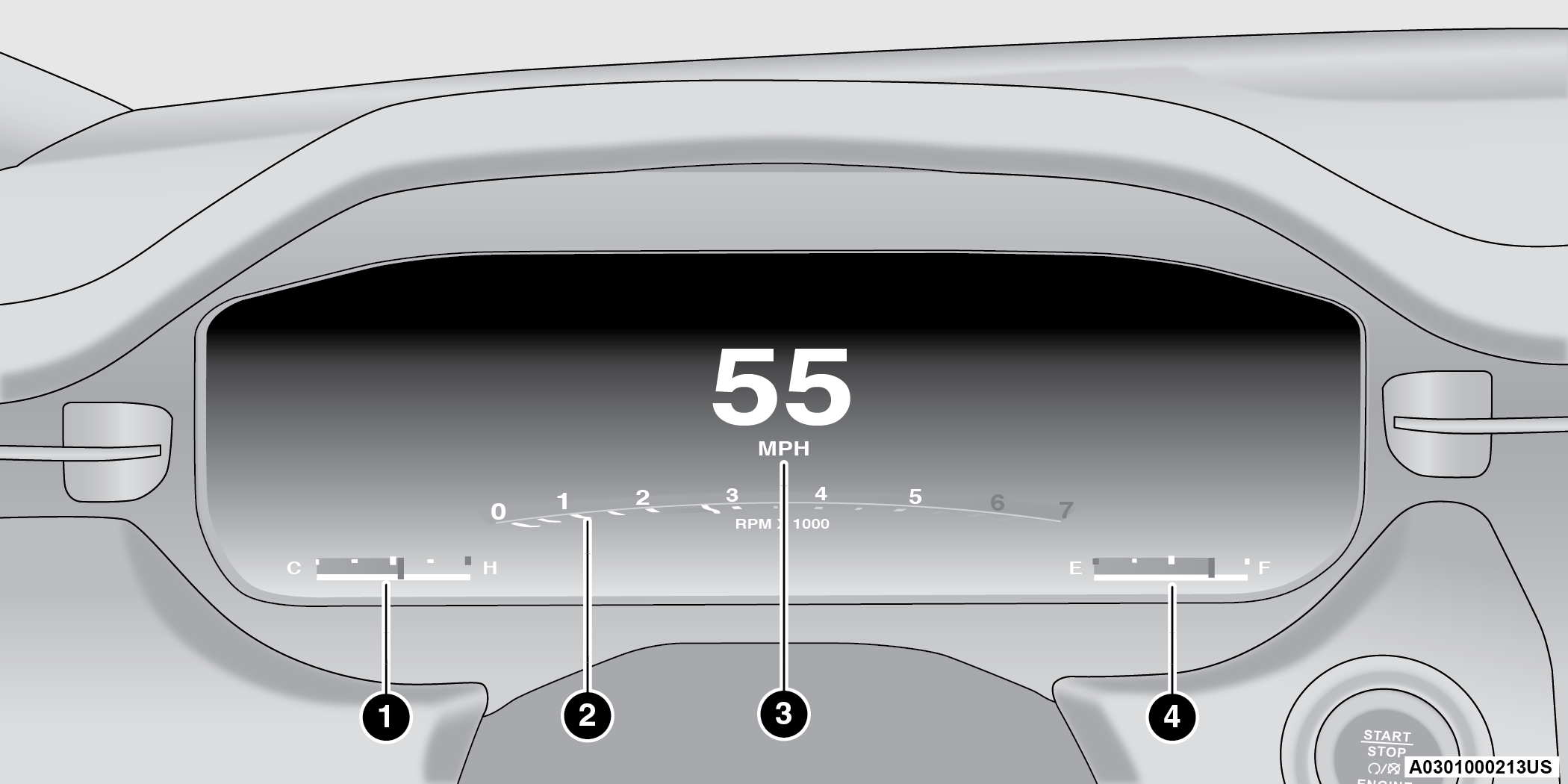

PREMIUM INSTRUMENT CLUSTER DESCRIPTIONS

1. Temperature Gauge

   • The temperature gauge shows engine coolant temperature. Any reading within the normal range indicates that the engine cooling system is operating satisfactorily.

   • The pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.

     WARNING:

     A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. It is recommended to call an authorized dealer for service if your vehicle overheats "⇨Cooling System".

     CAUTION:

     Driving with a hot engine cooling system could damage your vehicle. If the temperature gauge reads “H”, pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on the “H”, turn the engine off immediately and call an authorized dealer for service.

2. Tachometer

   • Indicates the engine speed in revolutions per minute (RPM x 1000).

3. Speedometer

   • Indicates vehicle speed.

4. Fuel Gauge

   • The pointer shows the level of fuel in the fuel tank when the Keyless Push Button Ignition is in the ON/RUN position.

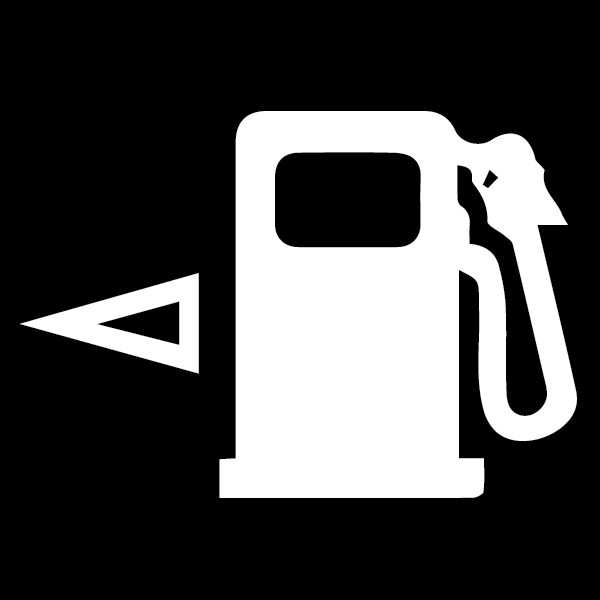

   • The fuel pump symbol points to the side of the vehicle where the fuel door is located.

Note:

The Instrument Cluster Warning Indicators will illuminate briefly for a bulb check when the ignition is first cycled.
