Mirrors
This is a single ball joint mirror that fixes to the windshield with a counterclockwise rotation. No tools are needed for mounting. The rearview mirror can be adjusted left and right, or tilted up and down. The mirror should be adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle). The mirror should be adjusted while set in the day position (toward the windshield).

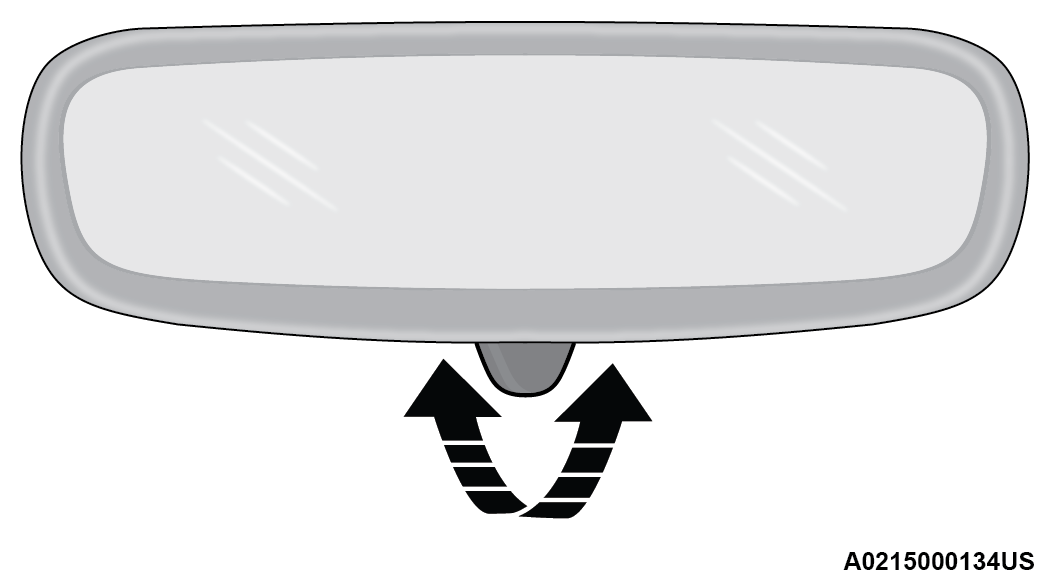

>Adjusting Rearview Mirror
AUTOMATIC DIMMING MIRROR — IF EQUIPPED
This is a single ball joint mirror that fixes to the windshield button with a counterclockwise rotation. No tools are needed for mounting. The rearview mirror can be adjusted left and right, or tilted up and down. The mirror should be adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare from vehicles behind you.
Note:
The Automatic Dimming Mirror feature is disabled when the vehicle is in REVERSE to improve the driver’s rear view. If your vehicle is equipped with an on/off button on the mirror, the mirror will default to on and can be turned on/off through the touchscreen.
You can turn the Automatic Dimming Mirror feature on or off by pushing the button at the base of the mirror (if equipped). If your vehicle is not equipped with an on/off button, the auto dimming feature is always on.

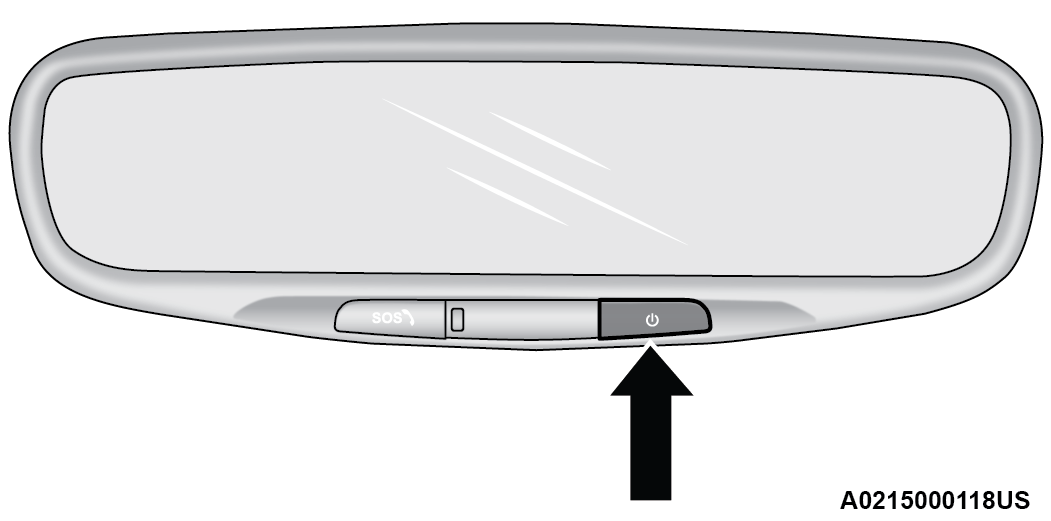

>Automatic Dimming Button
CAUTION:
To avoid damage to the mirror during cleaning, never spray any cleaning solution directly onto the mirror. Apply the solution onto a clean cloth and wipe the mirror clean.
ILLUMINATED VANITY MIRRORS
To access an illuminated vanity mirror, flip down one of the visors and lift the mirror cover.

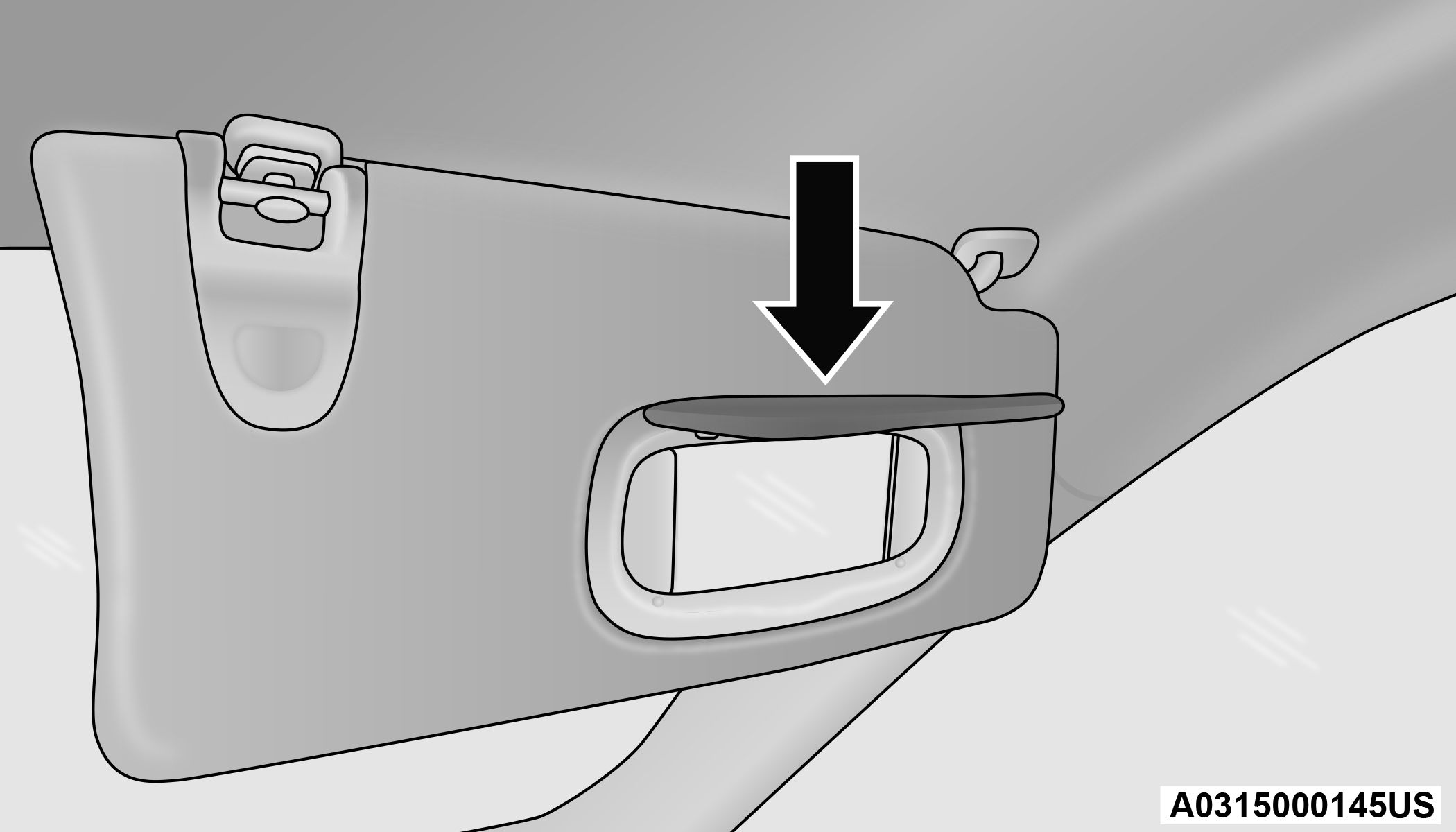

Illuminated Vanity Mirror Cover
SUN VISOR SLIDE-ON-ROD FEATURE — IF EQUIPPED
The sun visor Slide-On-Rod feature allows for additional flexibility in positioning the sun visor to block out the sun.
-
Fold down the sun visor.
-
Unclip the visor from the center clip.
-
Pivot the sun visor toward the side window.
-
Extend the sun visor for additional sun blockage.
Note:
The sun visor can also be extended while the sun visor is against the windshield for additional sun blockage through the front of the vehicle.
OUTSIDE MIRRORS
The outside mirror(s) can be adjusted to the center of the adjacent lane of traffic to achieve the optimal view.
Note:
The passenger side convex outside mirror will give a much wider view to the rear, and especially of the lane next to your vehicle.
WARNING:
Vehicles and other objects seen in the passenger side convex mirror will look smaller and farther away than they really are. Relying too much on your passenger side convex mirror could cause you to collide with another vehicle or other object. Use your inside mirror when judging the size or distance of a vehicle seen in the passenger side convex mirror.
POWER ADJUSTMENT MIRRORS
The power mirror control switch is located on the driver's side door trim panel.
To adjust a mirror, rotate the control switch to the desired mirror: (L) or (R). Then push the switch in the direction that you want the mirror to move.

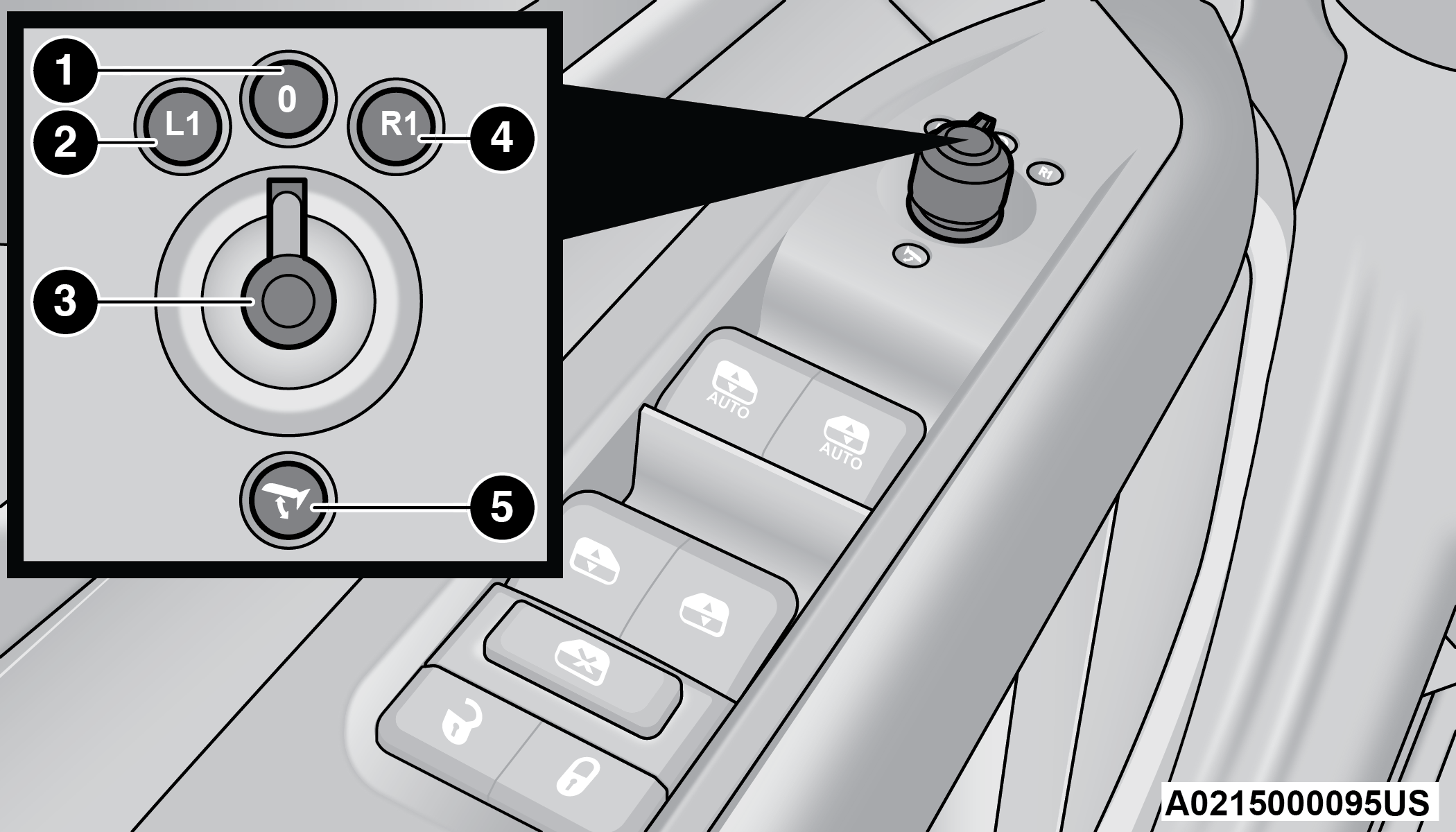

>Power Mirror Switch
| 1 — Neutral Position |
| 2 — Left Mirror |
| 3 — Control Switch |
| 4 — Right Mirror |
| 5 — Power Folding Position (If Equipped) |
Note:
Once adjustment is complete, rotate the knob to the neutral position to prevent accidental movements.
Power Folding — If Equipped
To fold the door mirrors in using the Power Folding Mirror function, rotate the control switch to the power folding position. Rotating the control to the left, right, or neutral position will return the mirrors to the driving position.
If the power mirror control switch is moved again during door mirror folding (from closed to open position and vice versa), the movement direction is reversed.
Power mirror position can be saved as part of the Driver Memory Settings (if equipped) "⇨DRIVER MEMORY SETTINGS — IF EQUIPPED".
FOLDING MIRRORS
The exterior mirrors are hinged to allow the mirror to pivot forward or rearward to help avoid damage. The mirror has three detent positions: full forward, normal and full rearward.

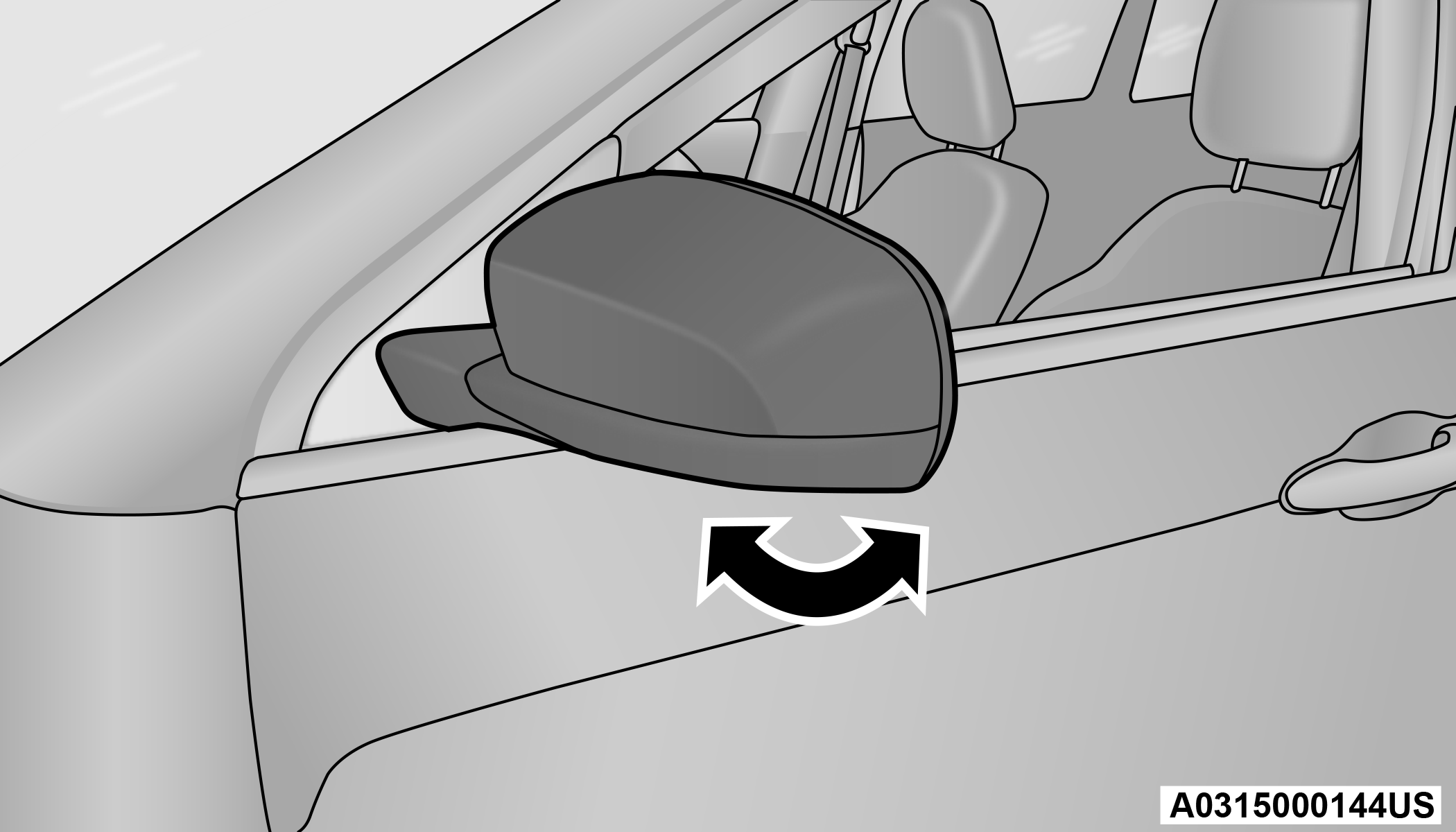

>Folding Exterior Mirror
HEATED MIRRORS — IF EQUIPPED
These mirrors are heated to melt frost or ice. This feature will be activated whenever you turn on the rear window defroster (if equipped) "⇨CLIMATE CONTROLS".
