Passive Anti-Theft System
Note: The system is not compatible with non-Ford aftermarket remote start systems.Use of these systems may result in vehicle starting problems and a loss of security protection.
Note: Metallic objects, electronic devices or a second programmed key on the same key chain may cause vehicle starting problems if they are too close to the key when starting the engine. Prevent these objects from touching the programmed key while starting the engine. Switch the ignition off, move all objects on the key chain away from the programmed key and restart the engine if a problem occurs.
Note: Do not leave a duplicate programmed key in your vehicle.Always take your keys and lock all doors when leaving your vehicle.
SecuriLock®
The system is an engine immobilization system.It is designed to help prevent the engine from being started unless a programmed key for your vehicle is used.Using an incorrectly programmed key may prevent the engine from starting. A message may appear in the information display.
If you are unable to start the engine with a programmed key, a malfunction has happened and a message may appear in the information display.
Automatic Arming
The engine immobilization system arms immediately after you switch the ignition off.
Automatic Disarming
Switching the ignition on with a programmed key disarms the engine immobilization system.
Replacement Keys
If your keys are lost or stolen and you do not have a spare programmed key, you will need to have your vehicle towed to an authorized dealer. You need to erase the programmed keys from your vehicle and program new keys.
Store an extra programmed key away from your vehicle in a safe place to help prevent any inconveniences. We recommend that you contact an authorized dealer to purchase additional spare or replacement keys.
Note: Your vehicle comes with two keys.
Programming a Remote Flip Key
The procedure programs both the vehicle immobilizer keycode and the remote entry portion of the remote control to your vehicle.
To program a new key, you require two programmed keys and one unprogrammed key with you in your vehicle.
We recommend that you contact an authorized dealer to have the key programmed if you do not have two programmed keys.
Make sure that you complete the procedure within 30 seconds.
Stop and wait for at least one minute before you start again if you miss a step.
Note: You can program a maximum of six keys to your vehicle.
Read the entire procedure before you begin.
- Close all the doors.
Note: Keep the doors closed throughout the procedure.
- Switch the ignition off.
Note: Do not press the brake pedal or accelerator pedal throughout the procedure.
- Insert the first programmed key into the ignition.
- Switch the ignition on.
- Wait five seconds.
- Switch the ignition off and remove the key from the ignition.
- Within 10 seconds, insert the second programmed key into the ignition.
- Switch the ignition on.
- Wait five seconds.
- Switch the ignition off and remove the key from the ignition.
- Within 10 seconds, insert the unprogrammed key into the ignition.
- Switch the ignition on.
- Wait five seconds.
- Switch the ignition off and remove the key from the ignition.
Check that the remote control functions operate and your vehicle starts with the new key.
Note: Wait 10 seconds and repeat the procedure if the remote control functions do not operate and you cannot start the engine.
Wait 20 seconds and repeat the procedure to program an additional key.
Programming a Passive Key
The procedure programs both the vehicle immobilizer keycode and the remote entry portion of the remote control to your vehicle.
To program a new key, you require two programmed keys and one unprogrammed key with you in your vehicle.
We recommend that you contact an authorized dealer to have the key programmed if you do not have two programmed keys.
Make sure that you complete the procedure within 30 seconds.
Stop and wait for at least one minute before you start again if you miss a step.
Note: You can program a maximum of four keys to your vehicle.
Read the entire procedure before you begin.
- Close all the doors.
Note: Keep the doors closed throughout the procedure.
- Switch the ignition off.
Note: Do not press the brake pedal or accelerator throughout the procedure.

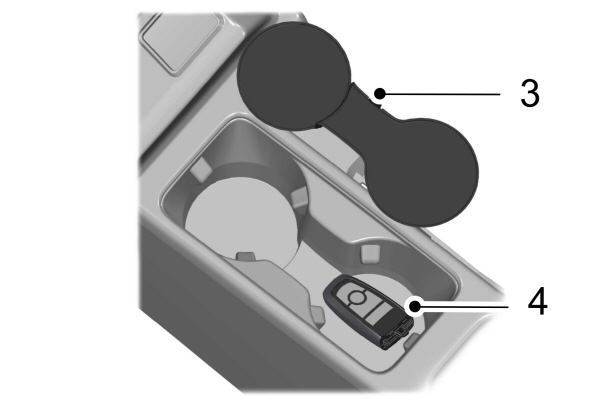

- Remove the rubber mat from the cup holder.
- Place the first programmed key in the backup position with the buttons facing upward and the unlock button facing the front of your vehicle.
- Press the push button ignition switch.
- Wait five seconds.
- Press the push button ignition switch.
- Remove the key.
- Within 10 seconds, place the second programmed key in the backup position.
- Press the push button ignition switch.
- Wait five seconds.
- Press the push button ignition switch.
- Remove the key.
- Within 10 seconds, place the unprogrammed key in the backup position.
- Press the push button ignition switch.
Check that the remote control function operate with the new key.
Note: Wait 10 seconds and repeat the procedure if the key functions do not operate.
Wait 20 seconds and repeat the procedure to program an additional key.
