Long Wheelbase, Vehicles With: Second Row Dual Captain Chairs
 WARNING: When folding or unfolding the seats, take care not to get your fingers caught between the seat backrest and seat frame. Failure to follow this warning could result in serious personal injury. WARNING: Do not use the bench seats as a bed when your vehicle is moving. Failure to follow this warning could result in serious personal injury or death. WARNING: Do not place any objects on a folded seat. Hard objects may become projectiles in a crash or sudden stop, which may increase the risk of serious personal injury. |
Second Row Seats

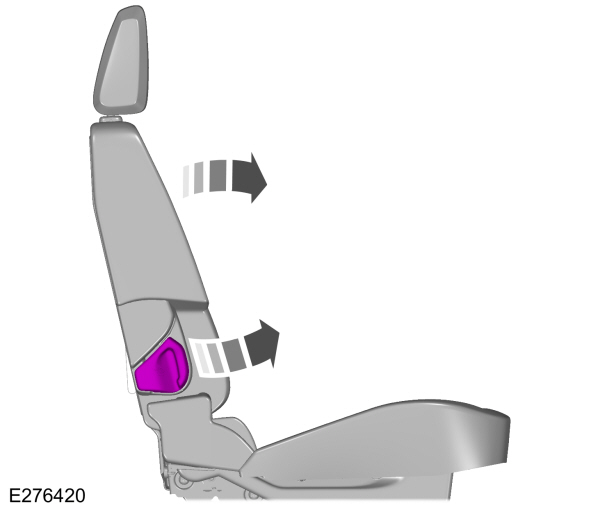

Folding the Seat
- Fully lower the head restraint. See Head Restraints.
- Pull the lever.
- Fold the seat backrest forward.

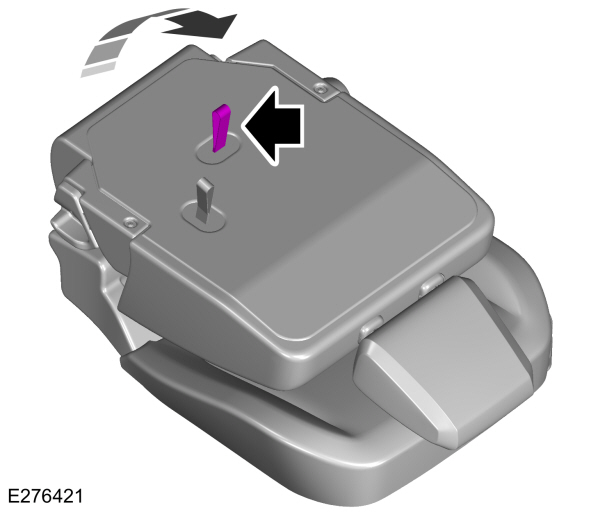

- Pull the strap.
- Move the seat forward to the lowered position.
Unfolding the Seat

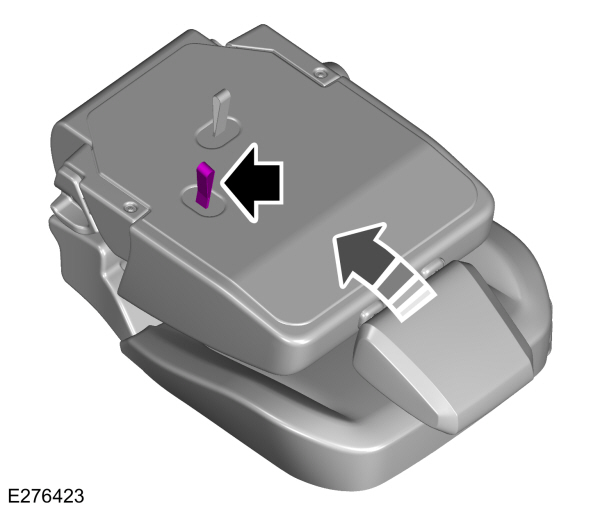

- Pull the strap.
- Lift the seat and move it backward.

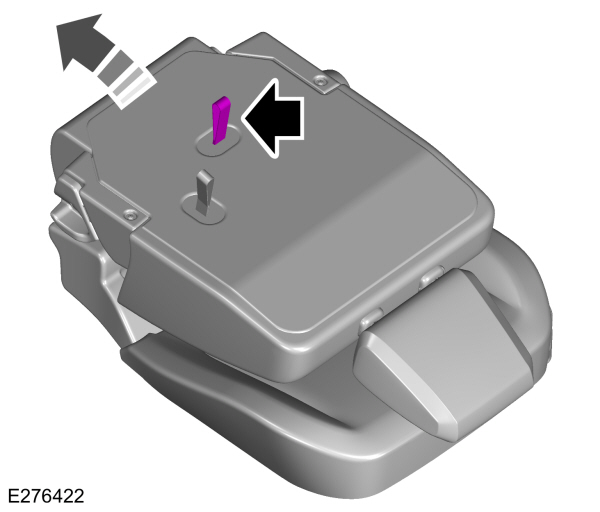

- Pull the strap.
- Unfold the seat backrest backward.
Third Row Seats
Moving the Seat Backward and Forward
| WARNING: Make sure the seat fully locks into place by rocking it backward and forward. Not securing the seat into the locked position can be dangerous in a crash and could cause serious personal injury or death. |
Folding the Seat Backrest
- Fully lower the head restraints. See Head Restraints.
- Fully move the seat backward.
- Pull the strap on the rear of the seat cushion.
- Fold the seat cushion forward.
- Pull the strap on the rear of the seat backrest.
- Fold the seat backrest forward.
Note: Rear row occupants can sit next to a seat in the same row that has the seat backrest in the folded position, but not when the seat is in the tilted position.
Unfolding the Seat Backrest
- Pull the strap on the rear of the seat backrest.
- Unfold the seat backrest backward and lock into position.
- Unfold the seat cushion backward and lock into position.
Creating a Level Load Floor
The carpeted cover is held in position by magnets. Fold the carpeted cover forward to cover up the folded seats.
