2022 Ford Transit Connect Owners Manual - Changing a Bulb

Changing a Bulb

WARNING:  Switch the lamps and the ignition off. Failure to do so could result in serious personal injury.    WARNING:  Bulbs can become hot, let the bulb cool down before removing it. Failure to do so could result in personal injury.

The following instructions describe how to remove the bulbs. Fit replacements in the reverse order unless otherwise stated.

You must fit bulbs of the correct specification. See  Bulb Specification Chart .

Note:   We recommended that you see an authorized dealer to change the headlamp bulbs if your vehicle is fitted with air conditioning. Some bulbs are difficult to access.

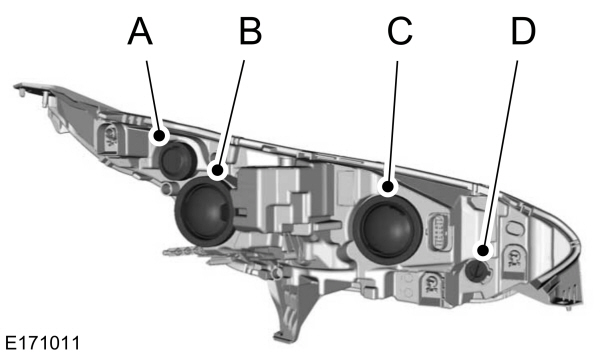

Headlamp

Remove the covers to gain access to the bulbs.

ASide marker BHeadlamp low beam and side lamp CHeadlamp high beam DDirection indicator

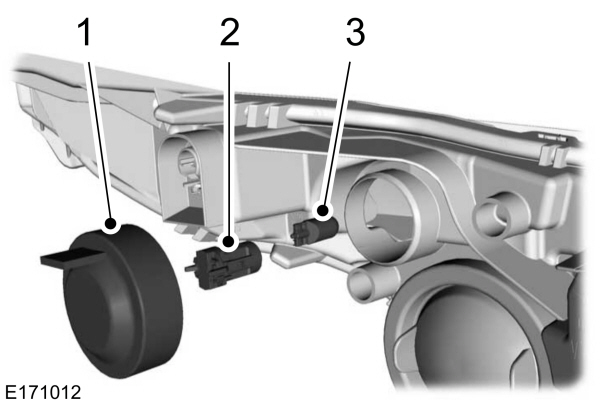

Side Marker

1. Remove the cover.

1. Remove the bulb holder by pulling it straight out.

1. Remove the bulb from the bulb holder by pulling it straight out.

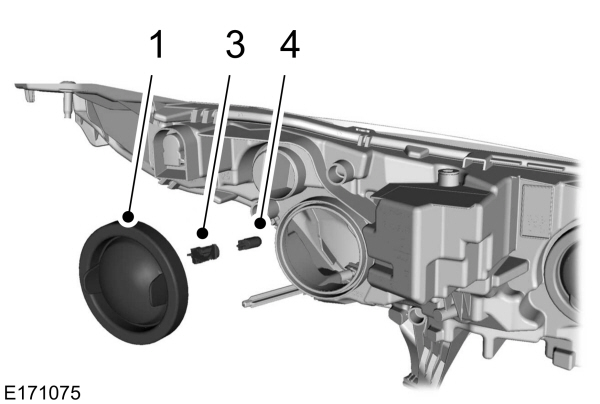

Side Lamp

1. Remove the cover.

1. Remove headlamp low beam bulb.

1. Remove the side lamp bulb holder by pulling it straight out.

1. Remove the bulb from the bulb holder by pulling it straight out.

Direction Indicator

1. Turn the bulb holder counterclockwise and remove it.

Note:   You cannot separate the bulb from the bulb holder.

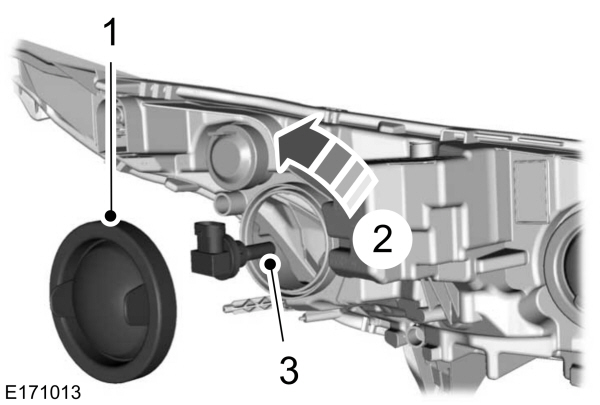

Headlamp Low Beam

1. Remove the cover.

1. Turn the bulb holder counterclockwise and remove it.

1. Remove the bulb by pulling it straight out.

Note:   Do not touch the glass of the bulb.

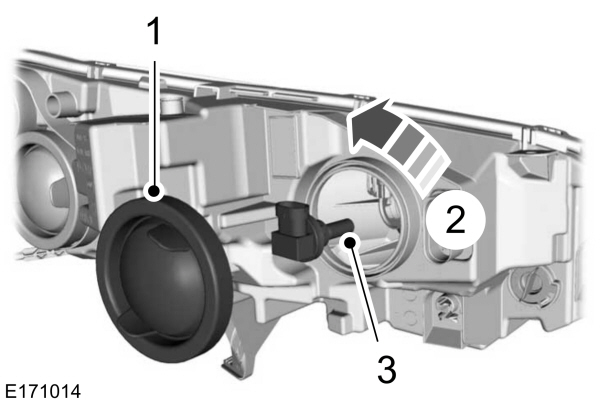

Headlamp High Beam

1. Remove the cover.

1. Turn the bulb holder counterclockwise and remove it.

Note:   Do not touch the glass of the bulb.

Side Direction Indicator

1. Turn the lamp clockwise and remove it.

1. Hold the bulb holder and turn the lamp counterclockwise and remove it.

1. Remove the bulb by pulling it straight out.

Front Fog Lamps

1. Disconnect the electrical connector.

1. Turn the bulb holder counterclockwise and remove it.

Note:   Do not touch the glass of the bulb.

Note:   You cannot separate the bulb from the bulb holder.

Rear Lamps

1. Remove the screws.

1. Turn the bulb holders counterclockwise to remove them.

1. Remove the bulbs by pulling them straight out.

Central High Mounted Brake Lamp

These are not serviceable items, see an authorized dealer if they fail.

License Plate Lamp

These are not serviceable items, see an authorized dealer if they fail.

Interior Lamps

Front Interior Lamp

1. Carefully remove the lamp.

1. Turn the bulb holder counterclockwise and remove it.

1. Remove the bulb by pulling it straight out.

Front Interior LED Lamps

Note:   If your vehicle has LED lamps these are not serviceable items, see an authorized dealer if they fail.

Reading Lamps

1. Carefully remove the lamp.

1. Turn the bulb holder counterclockwise and remove it.

1. Remove the bulb by pulling it straight out.

Cargo Area Lamp

1. Pry off the lamp cover.

1. Remove the cover.

1. Remove the bulb.
