Hood
If applicable, refer to the “Hybrid Supplement” for additional information.
The hood release lever (to open the primary latch) and safety latch (to open the secondary latch) must be released to open the hood.
-
Pull the hood release lever located under the driver’s side of the instrument panel.

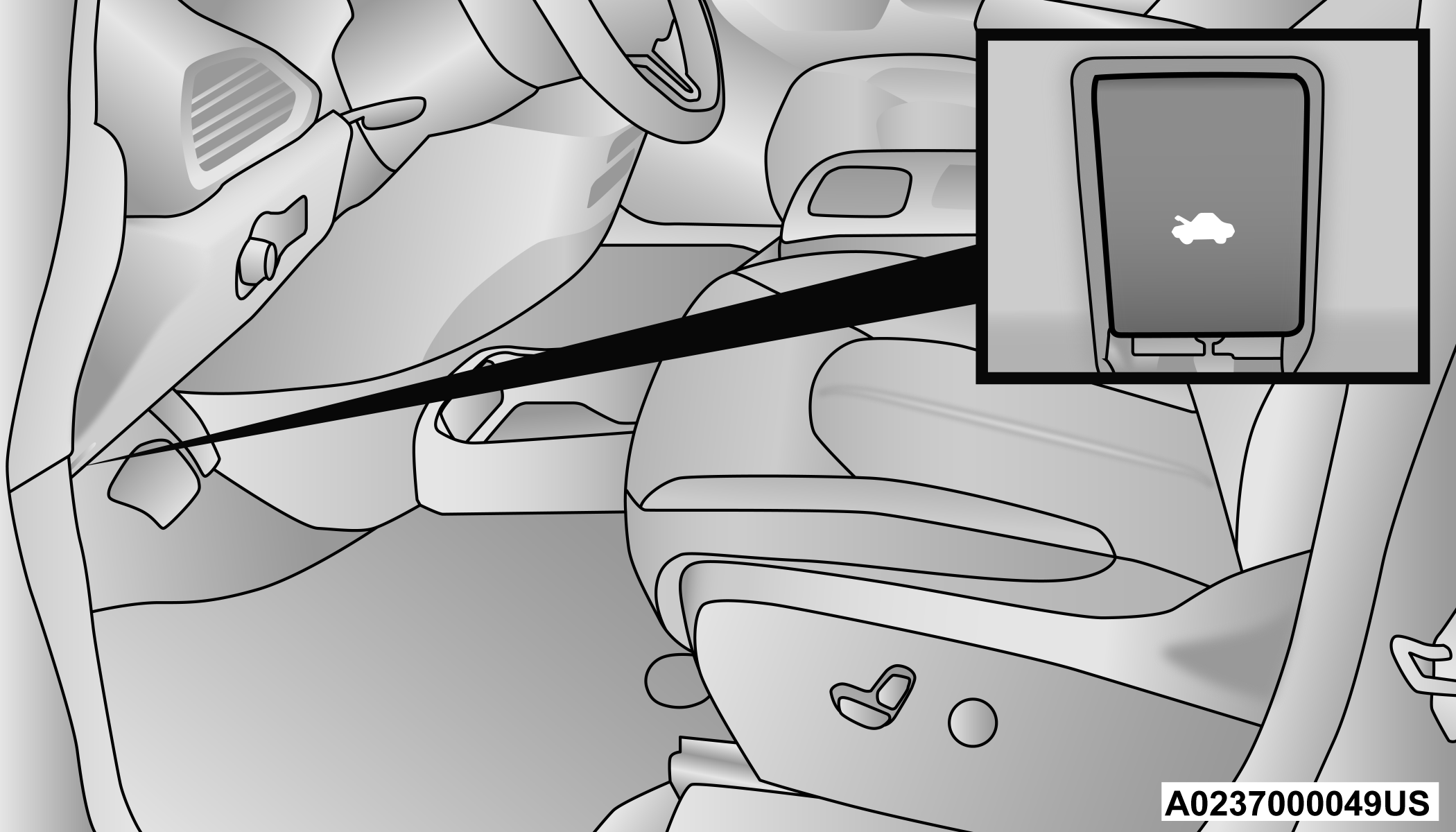

Hood Release Lever
-
Move to the outside of the front of the vehicle.
-
Push the safety latch release lever toward the passenger side of the vehicle. The safety latch is located behind the center front edge of the hood.

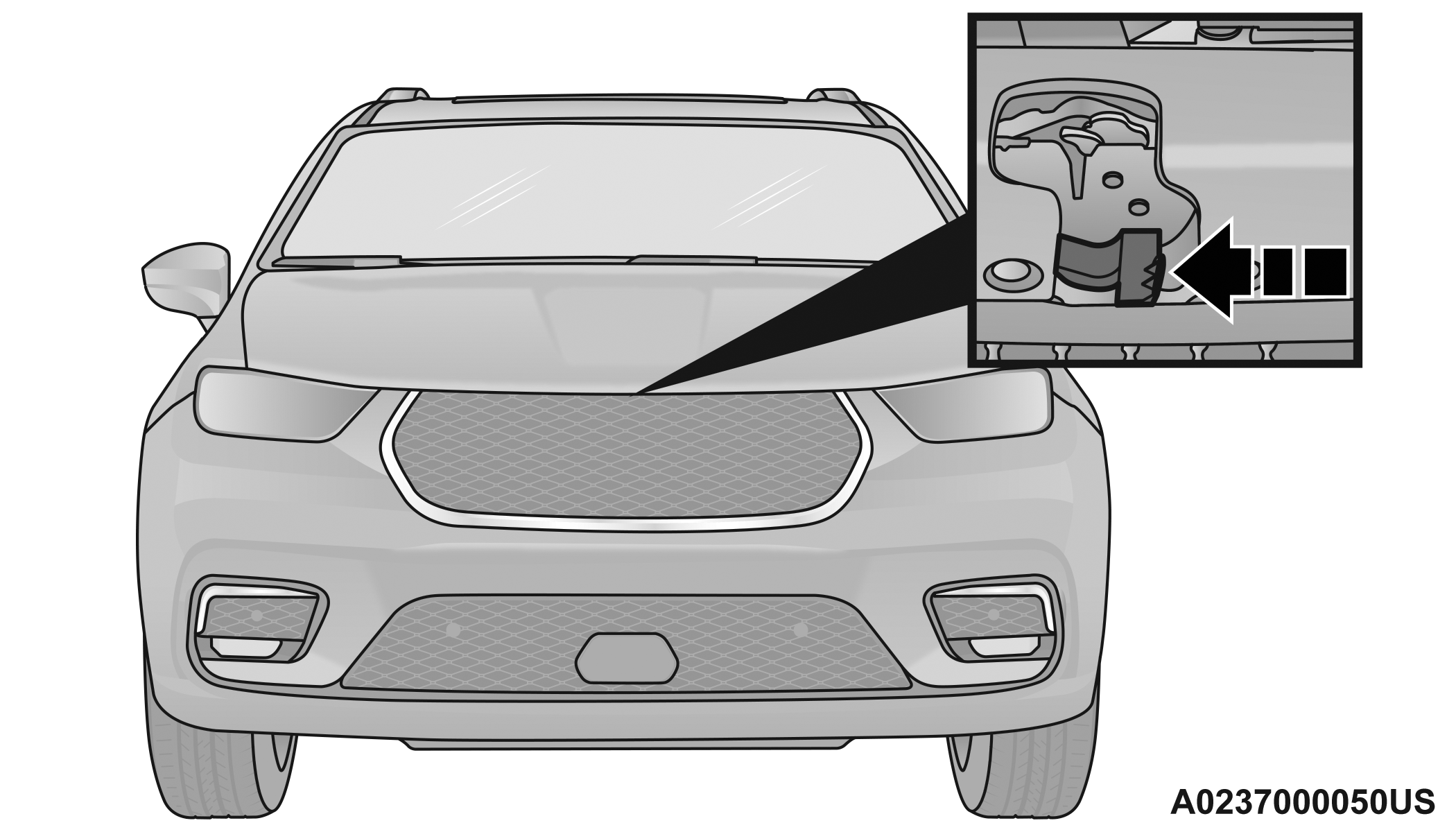

Safety Latch Release Lever Location
-
Remove the support rod from the locking tab and insert it into the seat located on the underside of the hood.
Note:
-
Before lifting the hood, check that the wiper arms are not in motion and not in the lifted position.
-
While lifting the hood, use both hands.
-
Vehicle must be at a stop and the gear selector must be in PARK.
CLOSING
-
Hold up the hood with one hand and with the other hand remove the support rod from its seat and reinsert it into the locking tab.
-
Lower the hood to approximately 12 inches (30 cm) from the engine compartment and drop it. Make sure that the hood is completely closed.
WARNING:
Be sure the hood is fully latched before driving your vehicle. If the hood is not fully latched, it could open when the vehicle is in motion and block your vision. Failure to follow this warning could result in serious injury or death.
CAUTION:
To prevent possible damage, do not slam the hood to close it. Lower hood to approximately 12 inches (30 cm) and drop the hood to close. Make sure hood is fully closed for both latches. Never drive vehicle unless hood is fully closed, with both latches engaged.
