2023 Chrysler Pacifica Owners Manual - Driver Memory Settings — If Equipped

Driver Memory Settings — If Equipped

This feature allows the driver to save up to two different memory profiles for easy recall through a memory switch. Each memory profile saves desired position settings for the following features:

• Driver’s seat

• Easy Entry/Exit seat operation (if equipped)

• Power steering wheel position (if equipped)

• Side mirrors (if equipped)

• A set of desired radio station presets

Note:

• Your vehicle is equipped with two key fobs, each can be linked to either memory position 1 or 2.

• Memory settings will be linked to the driver profiles in the Uconnect system, in addition to several other features (radio presets, home screens, settings, navigation, phone, etc.) "⇨UCONNECT SETTINGS".

The Driver Memory Settings switch is located on the driver door, next to the door handle, and consists of three buttons:

• The set (S) button, which is used to activate the memory save function.

• The (1) and (2) buttons which are used to recall either of two saved memory profiles.

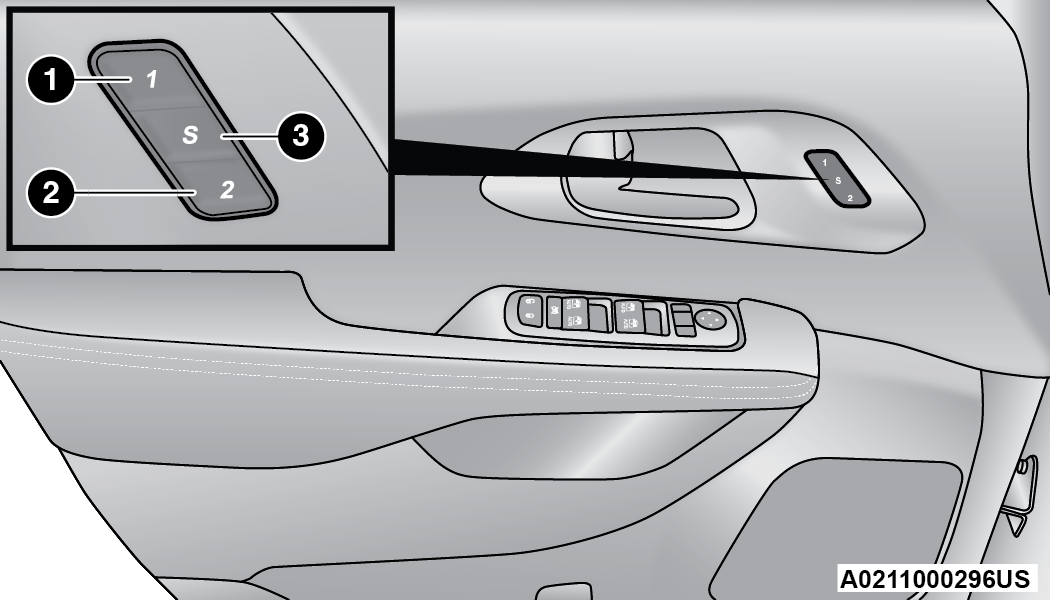

Driver Memory Switch

PROGRAMMING THE MEMORY FEATURE

To create a new memory profile, perform the following:

Note:

Saving a new memory profile will erase the selected profile from memory.

1. Place the vehicle’s ignition in the ON/RUN position (do not start the engine).

2. Adjust all memory profile settings to desired preferences (i.e., driver’s seat, outside mirrors and radio station presets).

3. Push the set (S) button on the memory switch, and then push the desired memory button (1 or 2) within five seconds. The instrument cluster display will show which memory position has been set.

Note:

Memory profiles can be set without the vehicle in PARK.

LINKING AND UNLINKING THE KEY FOB TO MEMORY

Your key fob can be programmed to recall one of two saved memory profiles.

Note:

Before programming your key fob you must select the “Personal Settings Linked to Key Fob” feature through the Uconnect Settings "⇨UCONNECT SETTINGS".

To program your key fob, perform the following:

1. Place the vehicle’s ignition in the OFF position.

2. Select a desired memory profile 1 or 2.

3. Once the profile has been recalled, push and release the set (S) button on the memory switch.

4. Push and release button (1) or (2) accordingly. “Memory Profile Set” (1 or 2) will display in the instrument cluster.

5. Push and release the lock button on the key fob within 10 seconds.

Note:

Your key fob can be unlinked from your memory settings by pushing the set (S) button, and then, within 10 seconds, pushing the unlock button on the key fob.

MEMORY POSITION RECALL

Note:

• The vehicle speed must be less than or equal to 5 mph (8 km/h) to recall memory positions. If a recall is attempted when the vehicle speed is greater than 5 mph (8 km/h), a message will be displayed in the instrument cluster display.

• Memory settings can be linked to driver profiles in the Uconnect system. Changing driver profiles will also recall the linked memory settings if the conditions are met "⇨UCONNECT SETTINGS".

To recall the memory settings for driver one or two, push the desired memory button (1 or 2) on the driver's door or the unlock button on the key fob linked to the desired memory position.

A recall can be canceled by pushing any of the memory buttons on the driver's door during a recall (S, 1, or 2). When a recall is canceled, the driver's seat stops moving. A delay of one second will occur before another recall can be selected.

Note:

Pushing the mirror adjust switch will cancel the memory mirror recall.
