Using the Compact Spare Tire*
Using the Compact Spare Tire*
Before Changing the Tire
Park the vehicle on a firm, level, and non-slippery surface.
Put the vehicle in Park (P) and apply the parking brake.
Turn on the hazard warning lights and turn the vehicle off.
Getting Ready to Change the Tire
Open the trunk. Open the trunk floor lid.

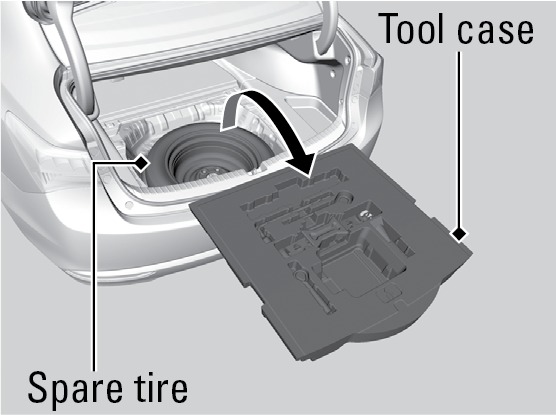

Take the tool case out of the trunk. Take the jack and wheel nut wrench out of the tool case.
Unscrew the wing bolt and remove the spacer cone. Remove the spare tire.

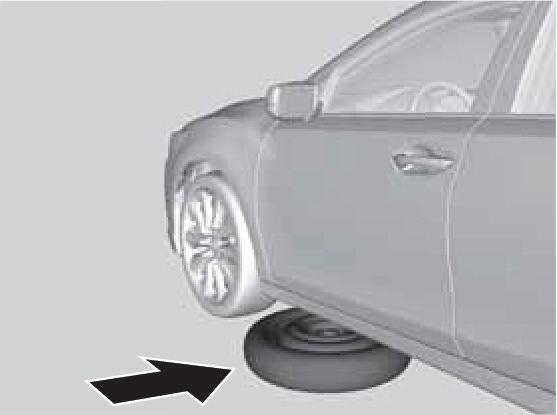

Place the compact spare tire (wheel side up) under the vehicle body, near the tire that needs to be replaced.

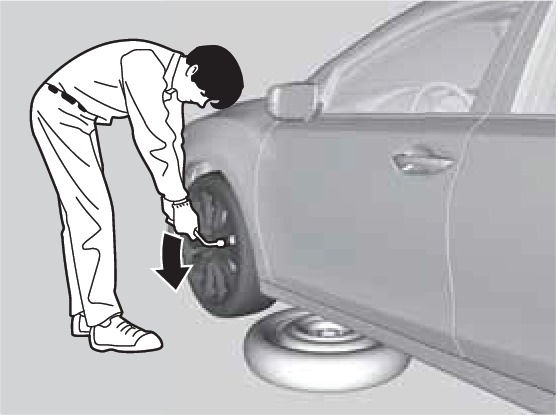

Loosen each wheel nut about one turn using the wheel nut wrench.
*if equipped
Setting Up the Jack

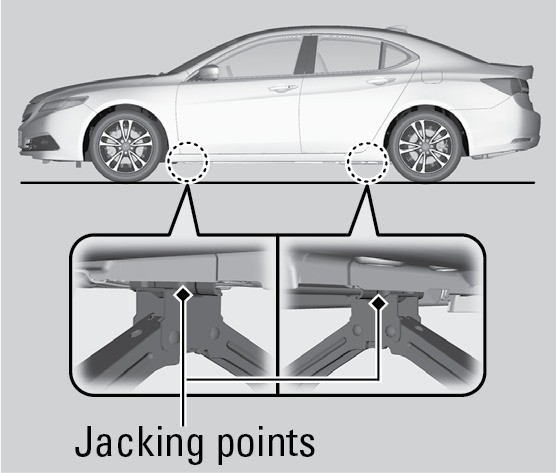

Place the jack under the jacking point closest to the tire to be changed.

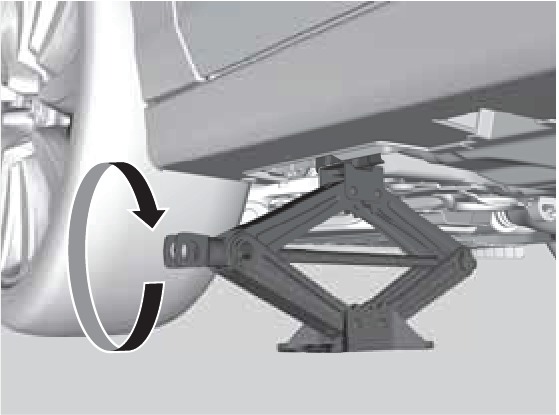

Turn the end bracket clockwise (as shown in the image) until the top of the jack contacts the jacking point. Make sure that the jacking point tab is resting in the jack notch. Do not overextend the jack.

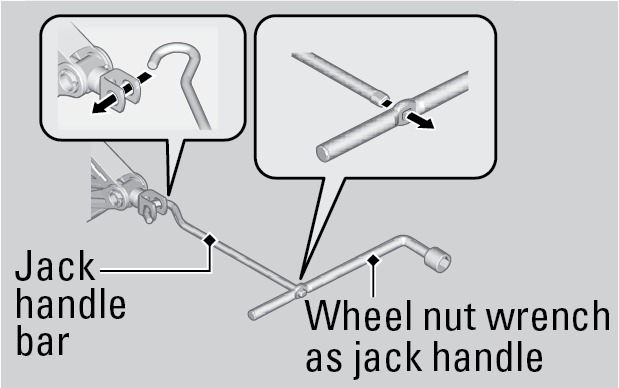

Raise the vehicle, using the jack handle bar and the jack handle, until the tire is off the ground.
The vehicle can easily roll off the jack, seriously injuring anyone underneath.
Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.
The following instructions must be followed to use the jack safely:
Do not use the jack with people or luggage in the vehicle.
Use the jack provided in your vehicle. Other jacks may not support the weight ("load") or fit the jacking point.
Do not use while the engine is running.
Use only where the ground is firm and level.
Use only at the jacking points.
Do not get in the vehicle while using the jack.
Do not put anything on top of or underneath the jack.
Do not use the jack if it doesn't work properly. Call your dealer or a professional towing service.
Replacing the Flat Tire

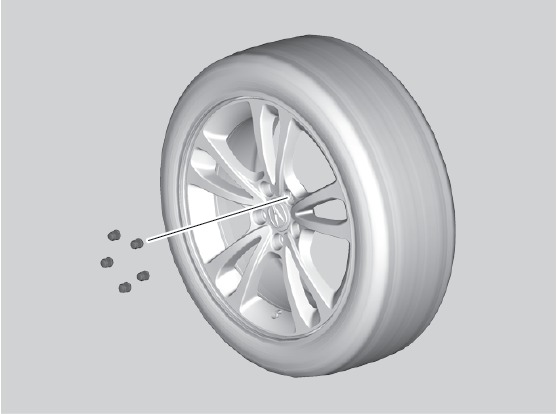

Remove the wheel nuts and flat tire.
Mount the compact spare tire. Replace the wheel nuts and lightly tighten them.

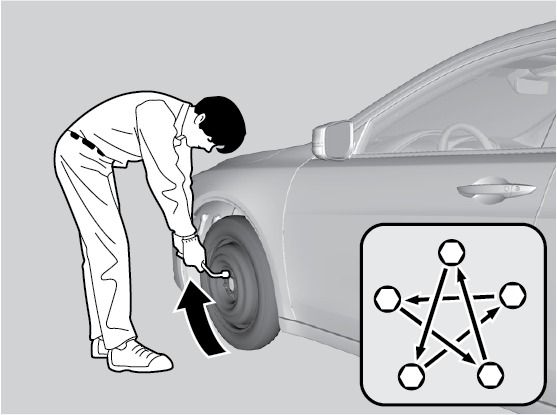

Lower the vehicle and remove the jack. Tighten the wheel nuts in the order indicated in the image. Go around, tightening the nuts, two to three times in this order. Do not over tighten the wheel nuts.
Storing the Flat Tire

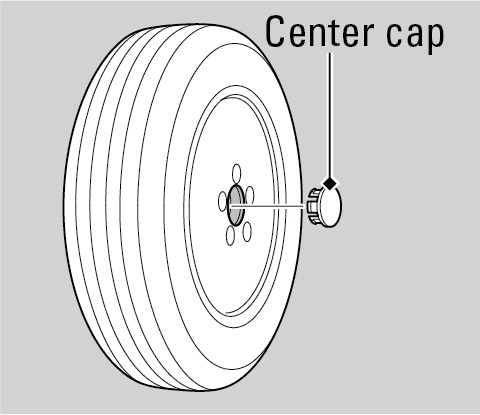

Remove the center cap and place the flat tire face down in the spare tire well.

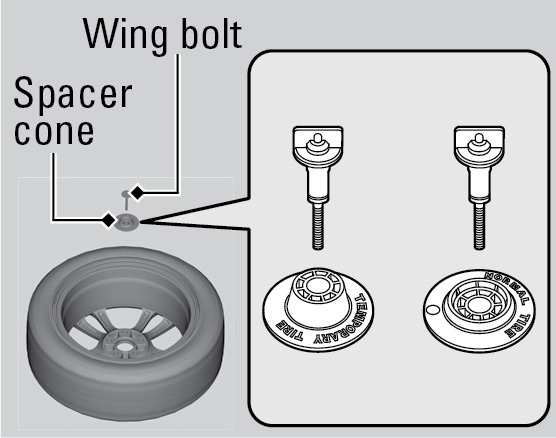

Remove the spacer cone from the wing bolt, flip it over, and insert it back on to the bolt. Secure the flat tire with the wing bolt.
Return the jack and wheel nut wrench to the tool case. Store the case in the trunk and close the trunk.
Loose items can fly around the interior in a crash and can seriously injure the occupants.
Store the wheel, jack, and tools securely before driving.
