Fuse Locations
Fuse Locations
If any electrical devices are not working, turn off the vehicle and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse by the fuse number and box cover number.
Engine Compartment Fuse Boxes

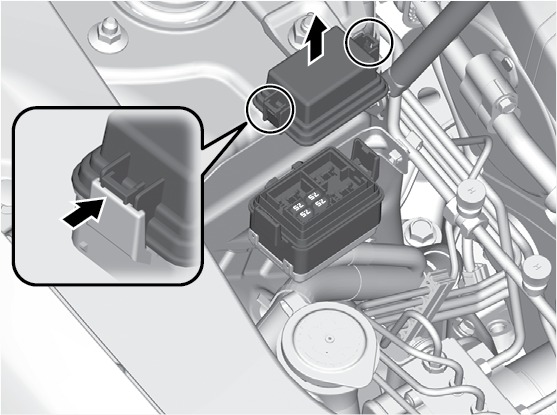

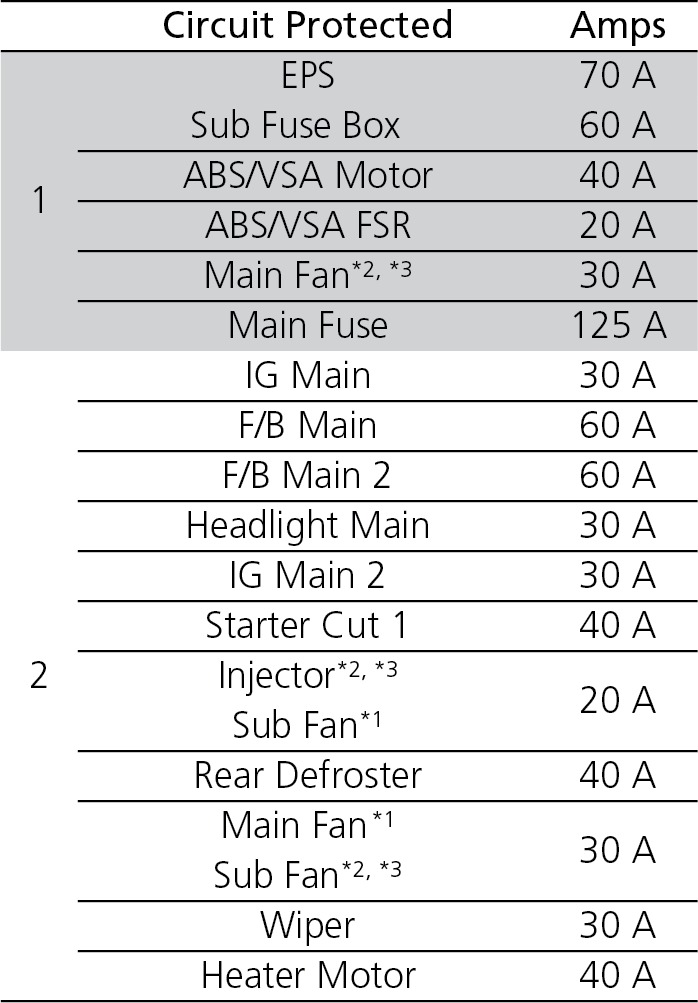

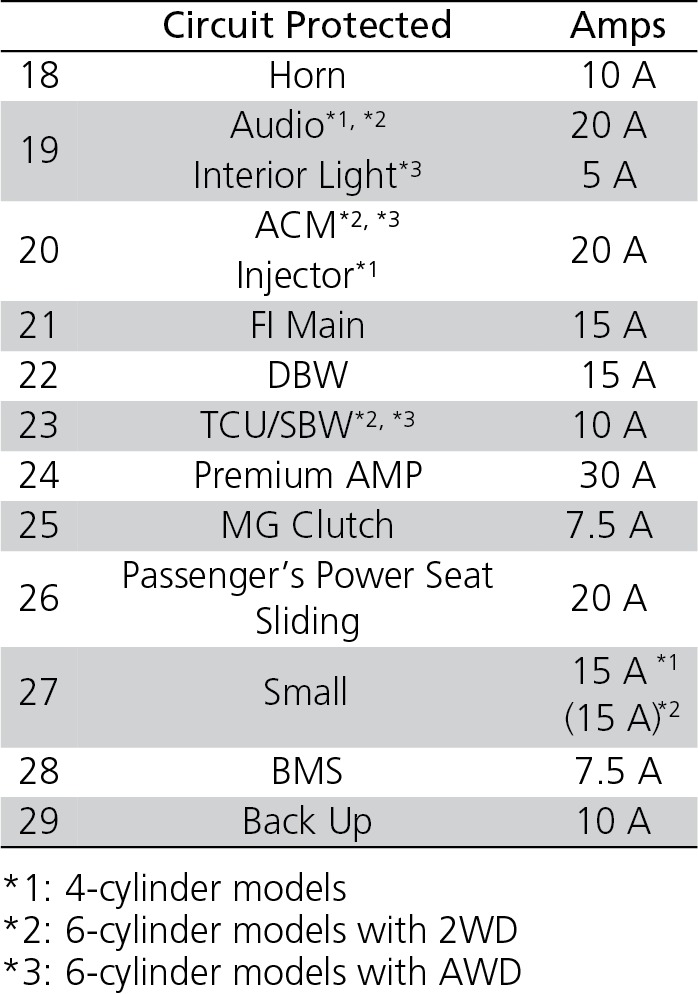

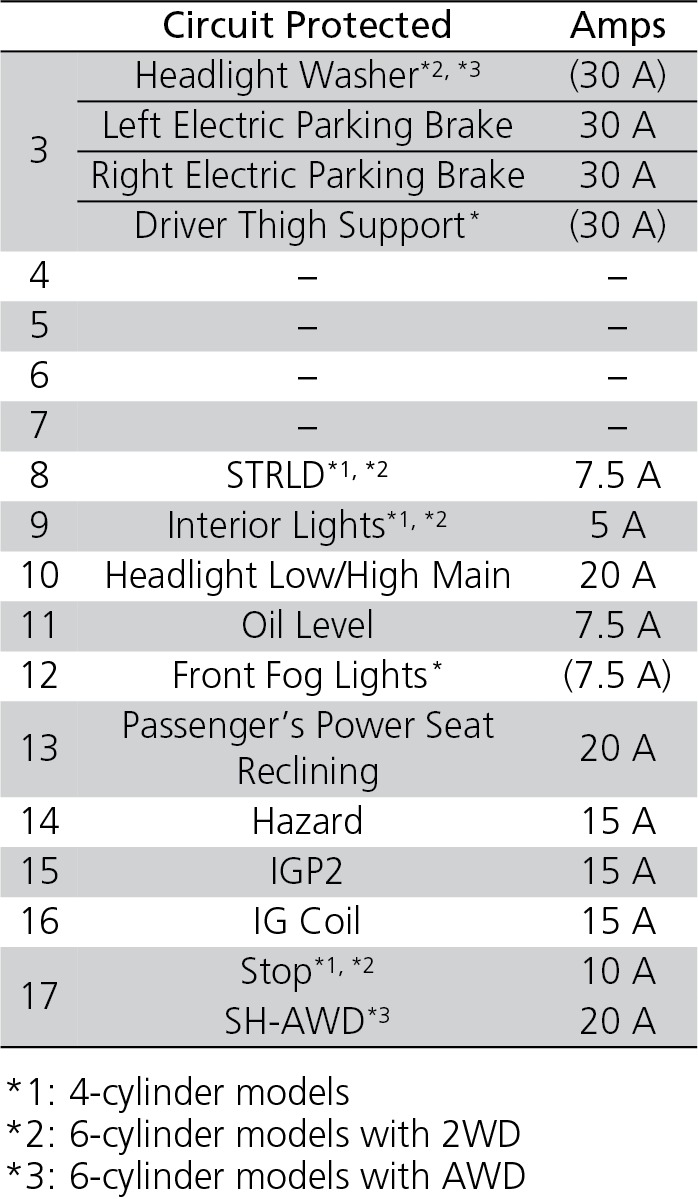

Fuse Box A

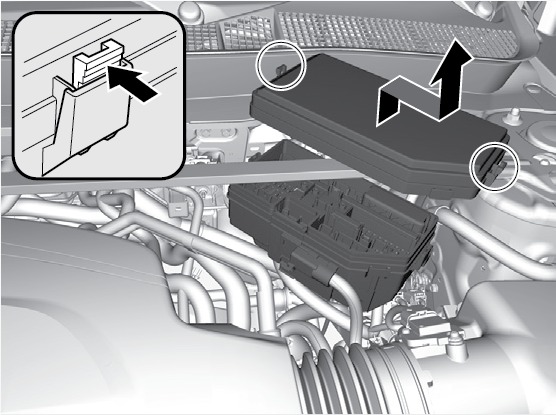

Located near the brake fluid reservoir. Push the tabs to open the box.

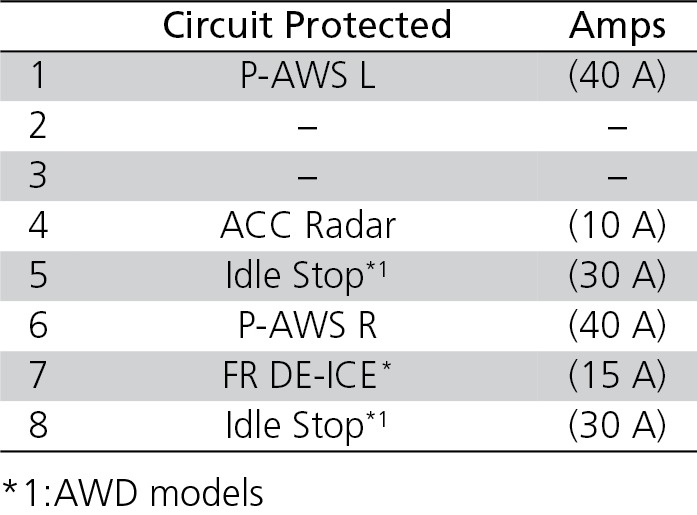

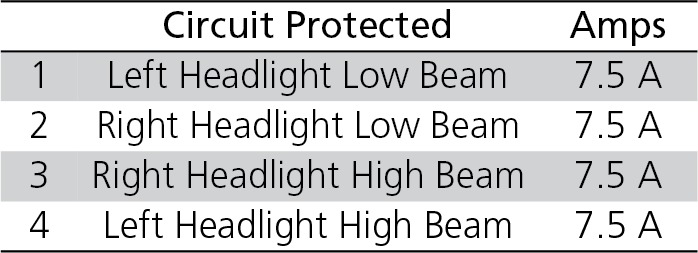

Fuse Box B
Located near the washer fluid cap. Push the tabs to open the box.
*if equipped
Interior Fuse Boxes

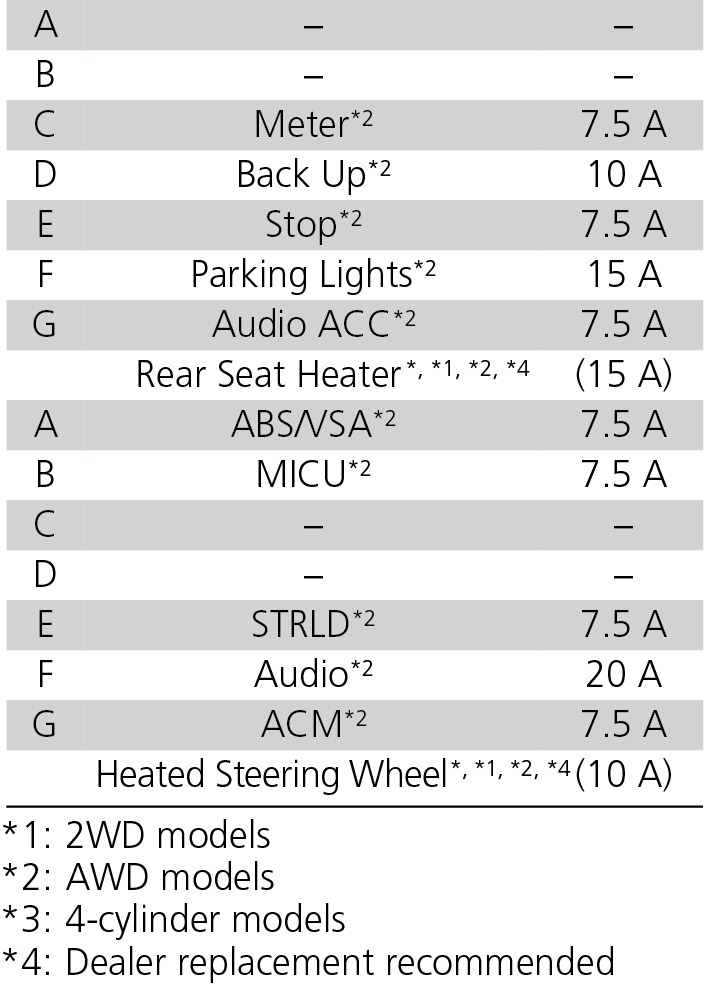

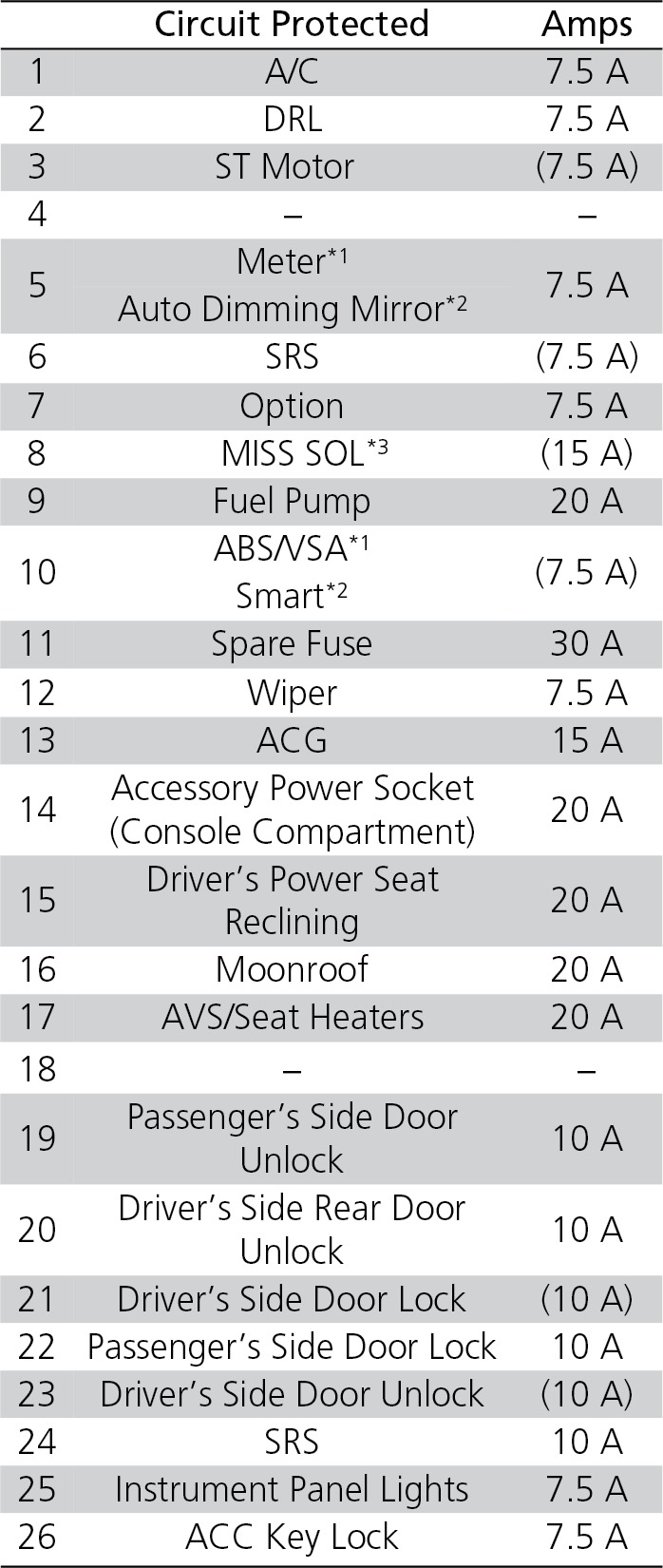

Fuse Box A
Located under the dashboard.

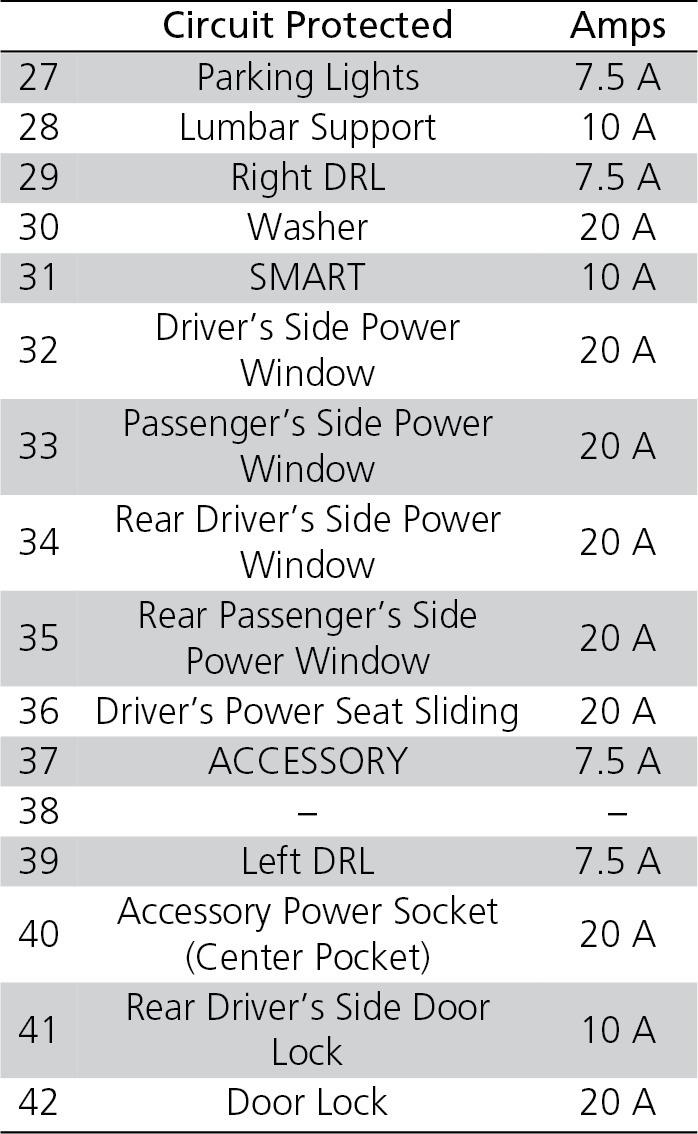

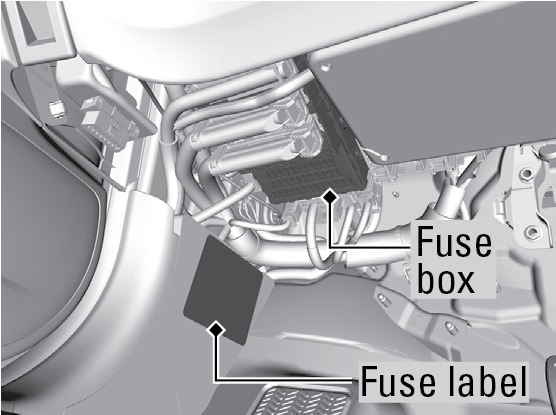

Fuse Box B

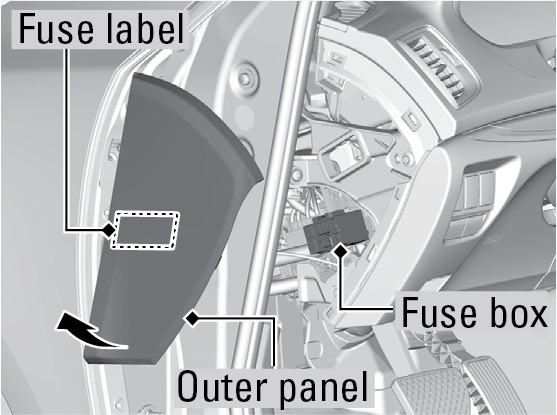

Located inside the driver's side outer panel. Grasp the bottom edge of the panel and pull to toward you to remove it.
*if equipped
Inspecting and Changing Fuses
Turn off the vehicle, including the headlights and all accessories.
Remove the fuse box cover.

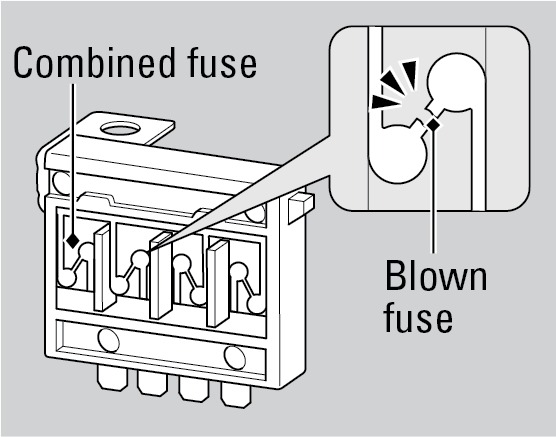

Check the large fuse in the engine compartment. If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace the fuse with a new one.

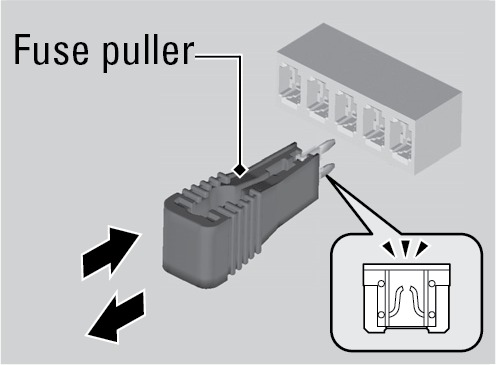

Inspect the small fuses in the engine compartment and the vehicle interior. If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
*if equipped
