Malfunction Indicators
Malfunction Indicators

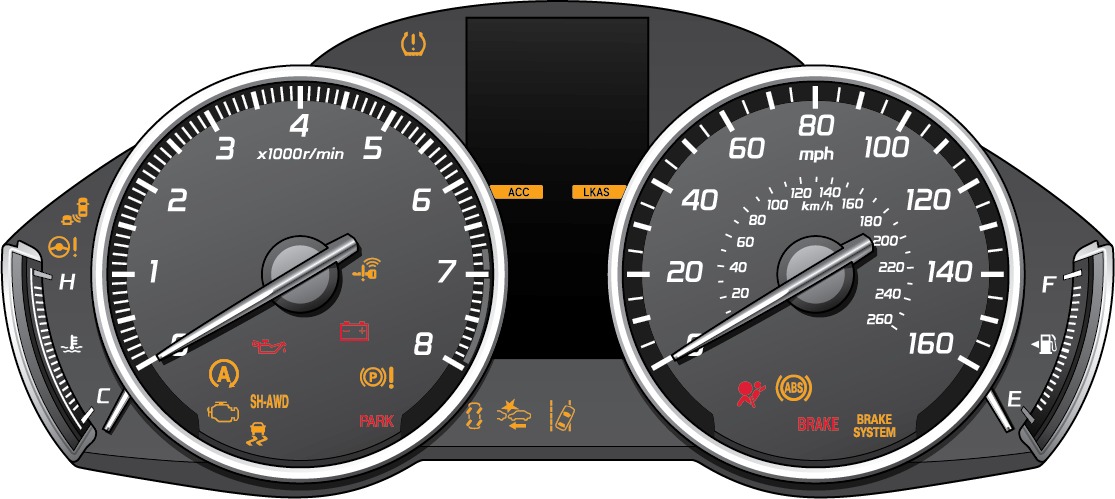

Indicators briefly appear with each engine start and then go out. Red and amber indicators are most critical. Blue and green indicators are used for general information.
These are the most critical indicators. If they come on and stay lit while driving or at any other time, there may be a problem. See your dealer if necessary.
 |
Brake system
Press the brake pedal lightly to check pedal pressure. If normal, check the brake fluid level when you stop. If abnormal, take immediate action. If necessary, downshift the transmission to slow the vehicle using engine braking. Have your vehicle repaired immediately. |
 |
Low oil pressure Engine oil pressure is low. Stop in a safe place. Open the hood and check the oil level, and add oil if necessary (see "Engine Oil"). If the indicator does not turn off, have your vehicle repaired immediately. |
 |
Malfunction indicator lamp (check engine light)
|
 |
Charging system The battery is not charging. Turn all electrical items off, but do not turn the vehicle off to prevent further battery discharge. Have your vehicle repaired immediately. |
 |
ABS (Anti-Lock Brake System) There is a problem with the anti-lock brake system. Your vehicle still has normal braking ability, but no anti-lock function. |
 |
Supplemental Restraint System (SRS) There is a problem with one of the airbag systems or seat belt tensioners. |
 |
Electric Power Steering (EPS) There is a problem with the electric power steering system. Stop in a safe place and restart the engine. |
 |
Tire Pressure Monitoring System (TPMS) If the indicator blinks and stays on, there is a problem with the tire pressure monitoring system. |
 |
Keyless Access system There is a problem with the keyless access system. |
 |
Vehicle Stability Assist® (VSA®) system There is a problem with the VSA system or hill start assist system. |
 |
Brake system There is a problem with one of the braking systems. Avoid high speeds and sudden braking. Your vehicle still has normal braking ability. |
 |
Blind spot information (BSI)* There is a problem with the system, or the sensor is blocked. |
 |
Adaptive Cruise Control (ACC) with Low Speed Follow There is a problem with the ACC system. |
 |
Lane Keeping Assist System (LKAS) There is a problem with the LKAS. |
 |
Forward Collision Warning (FCW)/Collision Mitigation Braking System™ (CMBS™) There is a problem with the system, the system is turned off, the camera temperature is too high, or the camera is blocked. |
 |
Lane Departure Warning (LDW)*/Road Departure Mitigation (RDM) There is a problem with the system, the camera temperature is too high, or the camera is blocked. |
 |
Electric parking brake system There is a problem with the electric parking brake system. Stop in a safe place and avoid using the parking brake. |
 |
Precision All-Wheel Steer™ (P-AWS®)* There is a problem with the system. Vehicle speed may be limited to 50 mph (80 km/h) or less. Have your vehicle checked by a dealer. |
 |
Electric parking brake If the indicator blinks, there is a problem with the electric parking brake. |
 |
Auto idle stop* If the indicator blinks, there is a problem with the system. |
 |
Super Handling-All Wheel Drive™ (SH-AWD®)* There is a problem with the system. The engine drives only the front wheels. If the indicator blinks, the differential temperature is too high. Stop in a safe place, shift to Park (P), and idle until the indicator goes off. |
 |
Transmission System Indicator The indicated current gear selection or all the gear positions blink if there is a problem with the transmission system. Models with electronic gear selector may no longer move. |
*if equipped
