Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

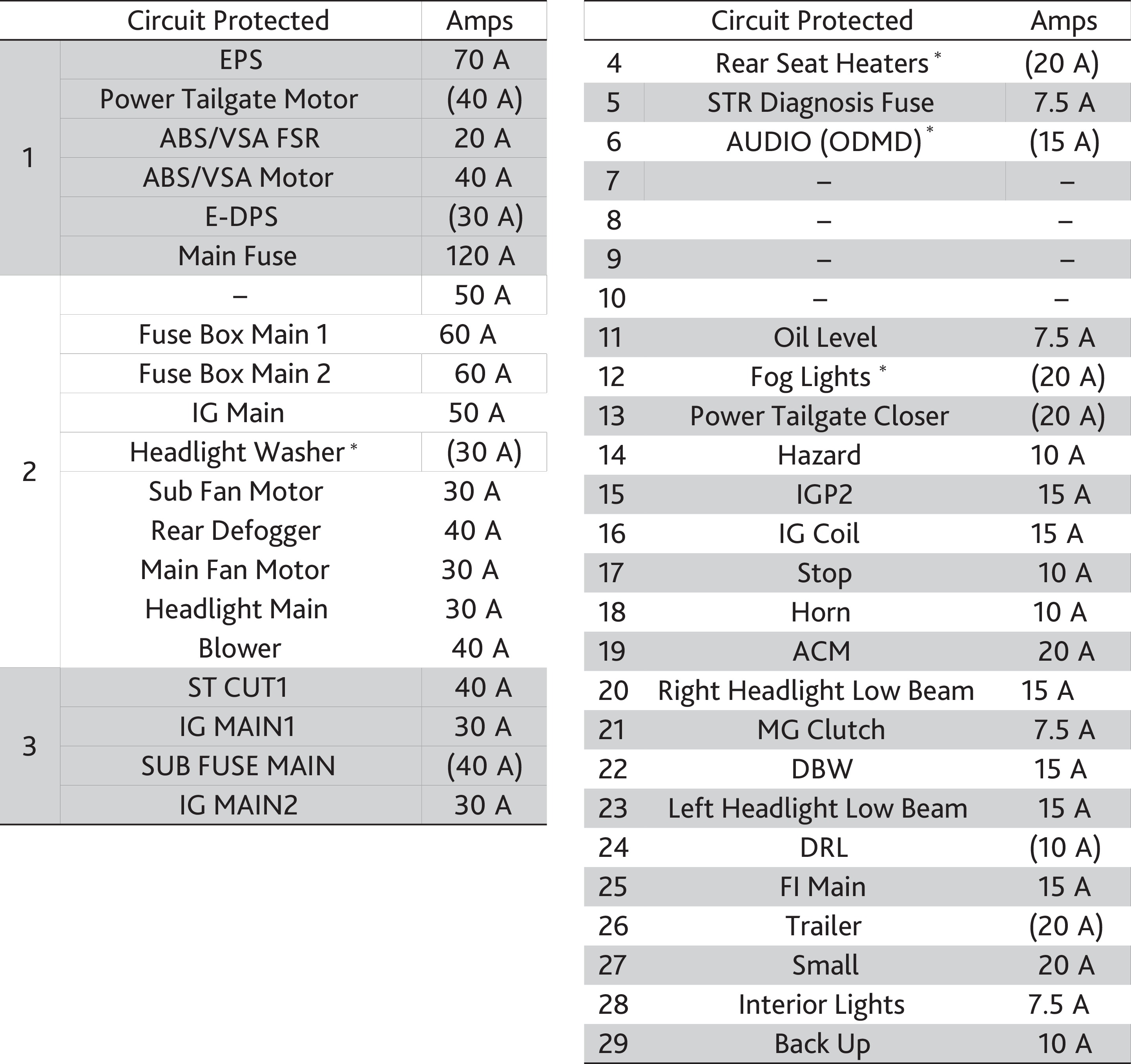

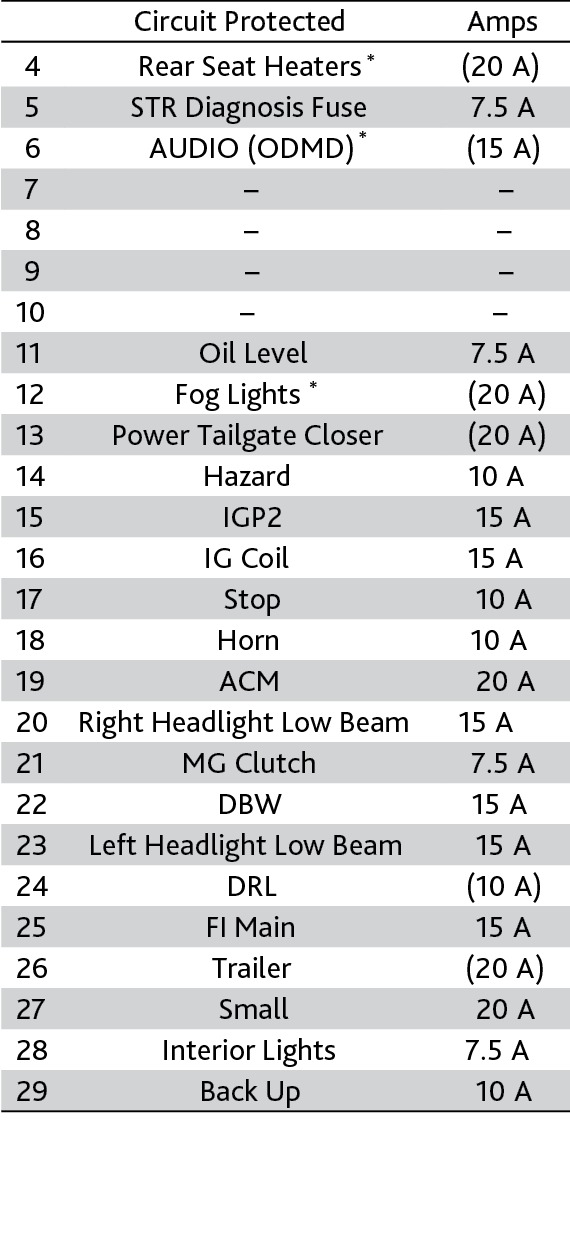

Engine Compartment Fuse Box
Located near the brake fluid reservoir. Push the tabs to open the box.
Tab
*if equipped
Interior Fuse Box
Located under the dashboard. Fuse locations are shown on the side-panel label. Locate the fuse by the fuse number and label number.
Fuse label
Fuse box
Inspecting and Changing Fuses
- Turn the vehicle off, including all lights and accessories.
- Remove the fuse box cover.
- Check the large fuse in the engine compartment.
If the fuse is blown, use a Phillips-head screwdriver to remove the screws and replace the fuse with a new one. Reinstall the screws.
Blown fuse
Combined fuse
- Inspect the small fuses in the engine compartment and the vehicle interior.
If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.
Fuse puller
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
