Collision Mitigation
Braking System™ (CMBS™)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a pedestrian detected in front of yours.
The system can alert you when a potential collision is determined, and reduce your vehicle speed to help minimize collision severity when a collision is deemed unavoidable.
The system activates when:
- The speed difference between your vehicle and a vehicle detected in front of you is about 3 mph (5 km/h) or over with a chance of a collision.
- Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a collision with an oncoming detected vehicle.
*if equipped
Alert Stages
The system has three alert stages for a possible collision. Depending on the circumstances or CMBS settings, CMBS may not go through all of the stages before initiating the last stage.

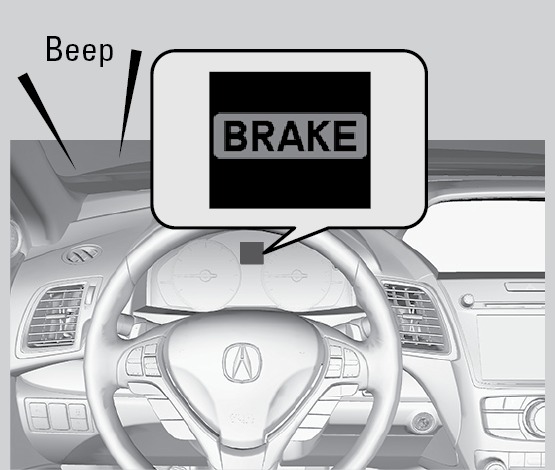

Stage 1: Visual warning and audible warning
Stage 2: Visual warning, audible warning, and light brake application
Stage 3: Visual warning, audible warning, and strong brake application
Changing Settings
Determine the warning timing. Use the interface dial to make selections.
- Press SETTINGS.
- Select Vehicle Settings. The vehicle must be in Park (P).
- Select Forward Collision Warning Distance.
- Select Long, Normal (default), or Short.
- Press BACK to exit the menu.
Turning CMBS On or Off

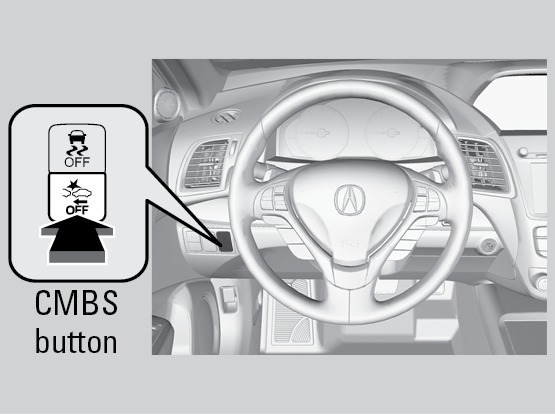

Press and hold the CMBS OFF button. A beep sounds and a message appears in the MID. The CMBS indicator appears when the system is off.
Important Safety Reminder
CMBS is designed to reduce the severity of an unavoidable collision. It does not prevent collisions nor stop the vehicle automatically. It is still your responsibility to operate the brake pedal and steering wheel appropriately according to the driving conditions.
