Fuse Locations
If any electrical devices are not working, turn off the vehicle and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse by the fuse number and box cover number.

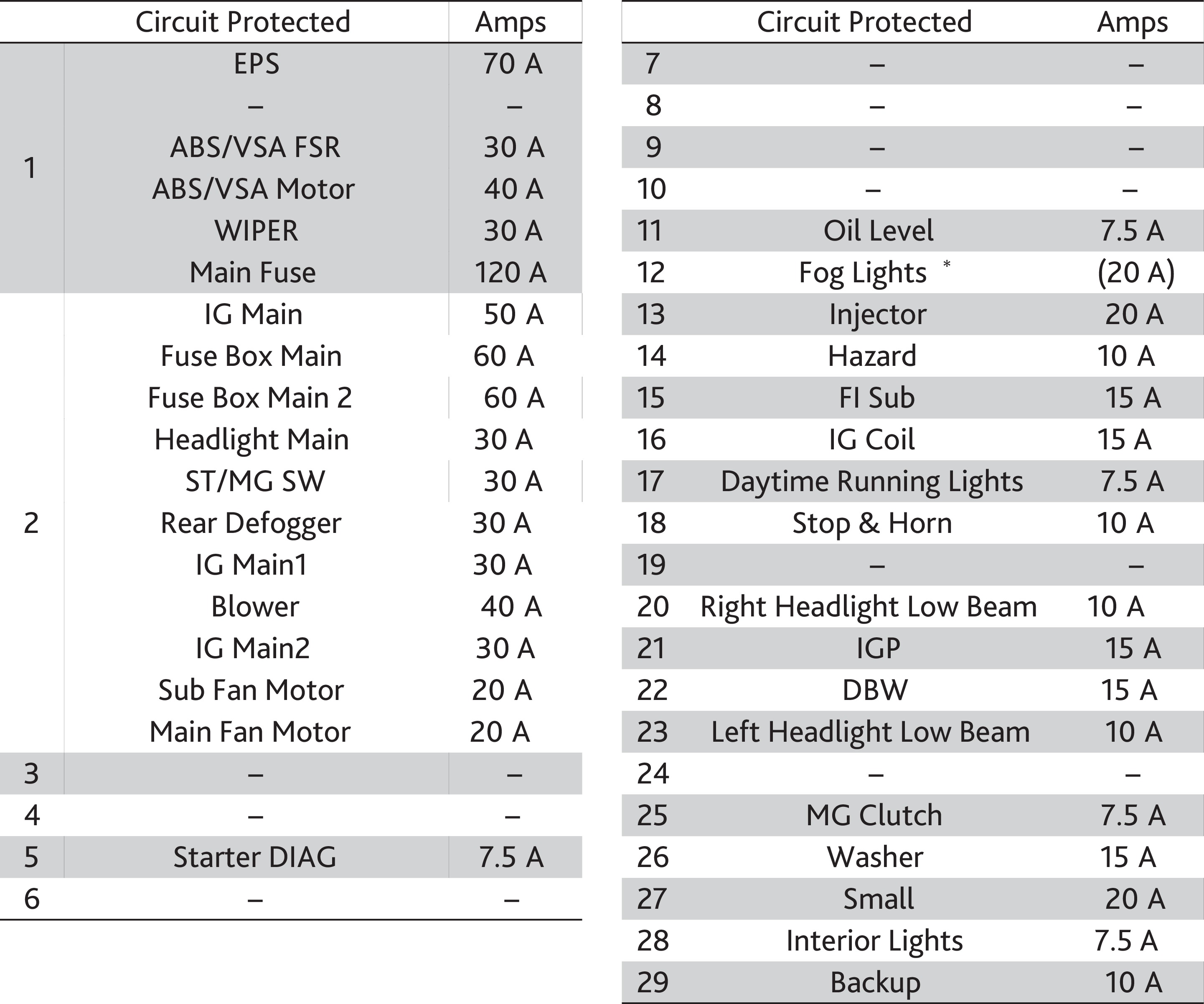

Engine Compartment Fuse Box
Located near the brake fluid reservoir. Push the tabs to open the box.
Tab
*if equipped

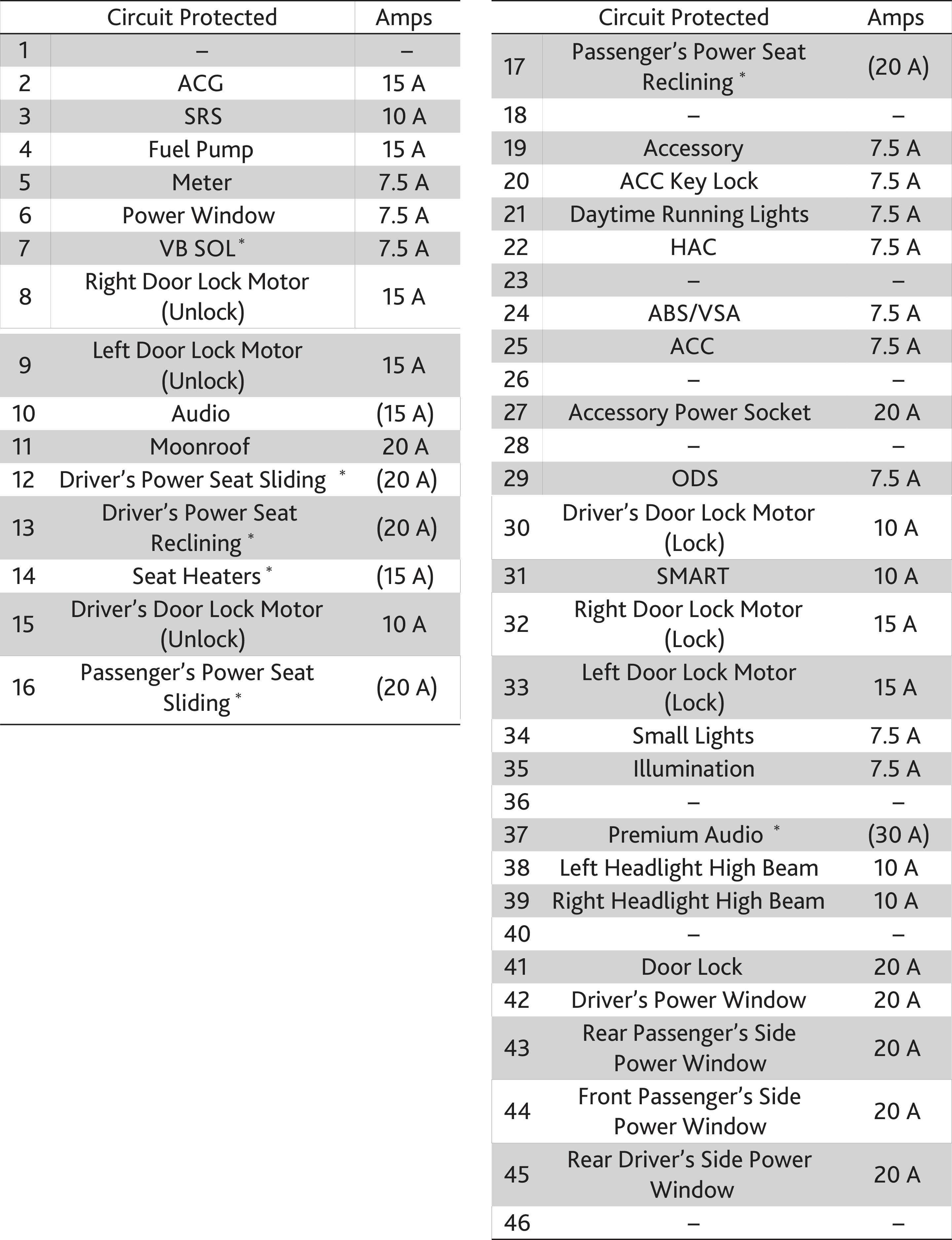

Interior Fuse Box
Located under the dashboard.
Fuse label
*if equipped
Inspecting and Changing Fuses
- Turn off the vehicle, including the headlights and all accessories.
- Remove the fuse box cover.
- Check all fuses inside the combined fuse case in the engine compartment. If any fuse is blown, use a Phillips-head screwdriver to remove the screw and replace the fuse with a new one.
Blown fuse
Combined fuse - Inspect the small fuses in the engine compartment and the vehicle interior. If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.
Fuse puller
NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
