Changing Wiper
Blades
If the wiper blades leave streaks across the windshield, try cleaning them first with a paper towel or soft cloth and wiper fluid. If the wiper blade rubber has deteriorated, you should change the wiper blades.

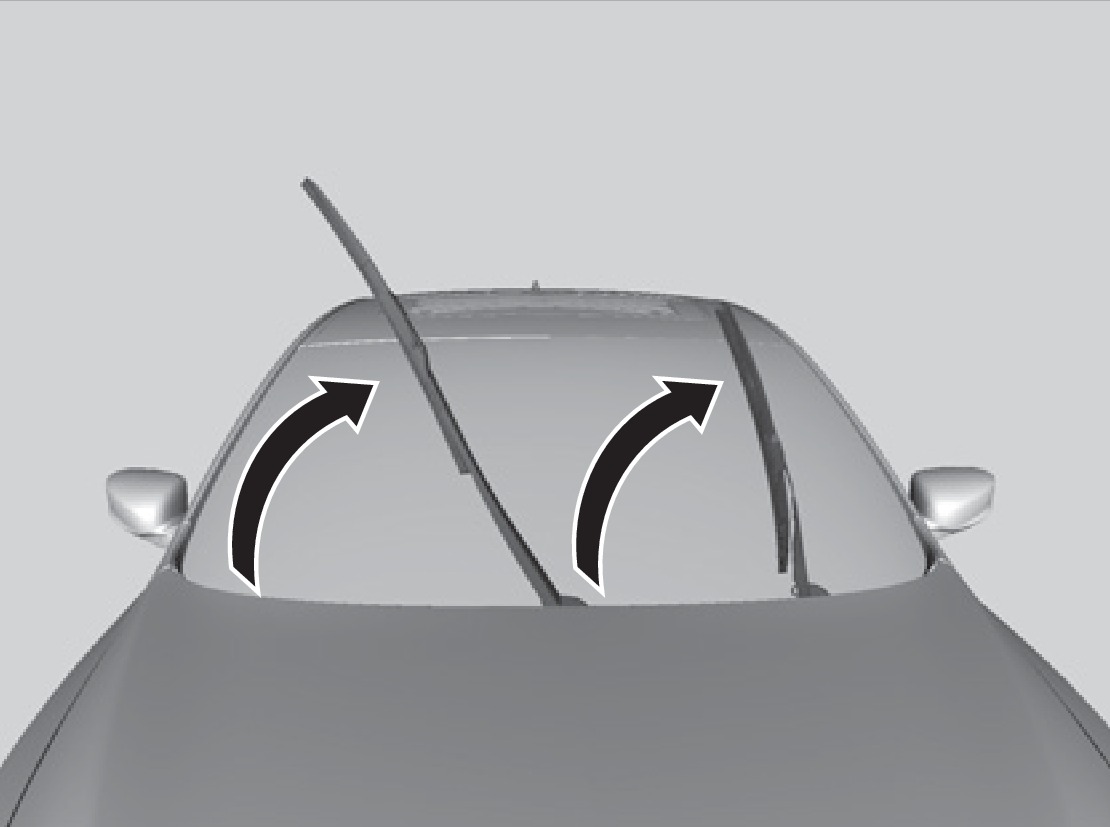

- Lift the driver side wiper arm first, then the passenger side.
- Wrap a flat-tip screwdriver in a cloth, then use it to pry on the edge of the lock tab, to push it up .
Lock tab - Slide the holder off the wiper arm.
- Slide the wiper blade out of its holder by pulling the tabbed end out.
Blade
- Remove the retainers from the rubber blade that was removed, and mount to a new rubber blade. Correctly align the rubber protrusion and the retainer grooves.
- Slide the new wiper blade onto the holder from the bottom end.
Retainer
Blade - Slide the wiper blade onto the wiper arm, then push down the lock tab.
- Lower the passenger side wiper arm first, then the driver side.
NOTICE
Avoid dropping the wiper arm, as it may damage the windshield.
