Collision Mitigation
Braking System™ (CMBS™)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a pedestrian detected in front of yours.
The system can alert you when it determines there is a potential for a collision, and reduce your vehicle speed to help minimize collision severity when a collision is deemed unavoidable.
The system activates when:
- The speed difference between your vehicle and a vehicle or pedestrian detected in front of you is about 3 mph (5 km/h) or over with a chance of a collision.
- Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a collision with an oncoming detected vehicle or a pedestrian in front of you.
*if equipped

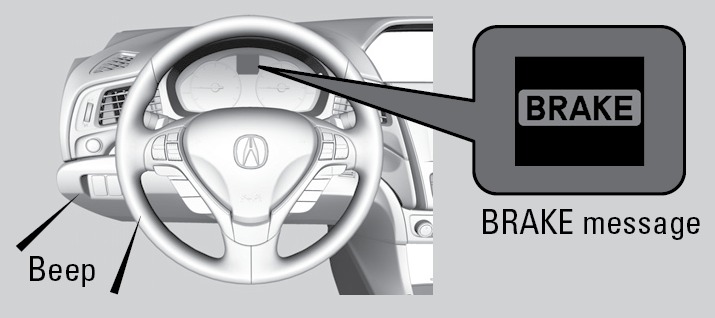

Alert Stages
The system has three alert stages for a possible collision. Depending on the circumstances or CMBS settings, CMBS may not go through all of the stages before initiating the last stage.
Stage 1: Visual and audible warnings
Stage 2: Visual and audible warnings, and light brake application
Stage 3: Visual and audible warnings, and strong brake application
Changing Settings
Determine the warning timing. Use the interface dial to make selections. The vehicle must be in Park (P) to change settings.
- Press SETTINGS.
- Select Vehicle Settings. The vehicle must be in Park (P).
- Select Driver Assist System Setup
- Select Forward Collision Warning Distance.
- Select Long, Normal (default), or Short
- Press BACK to exit the menu.

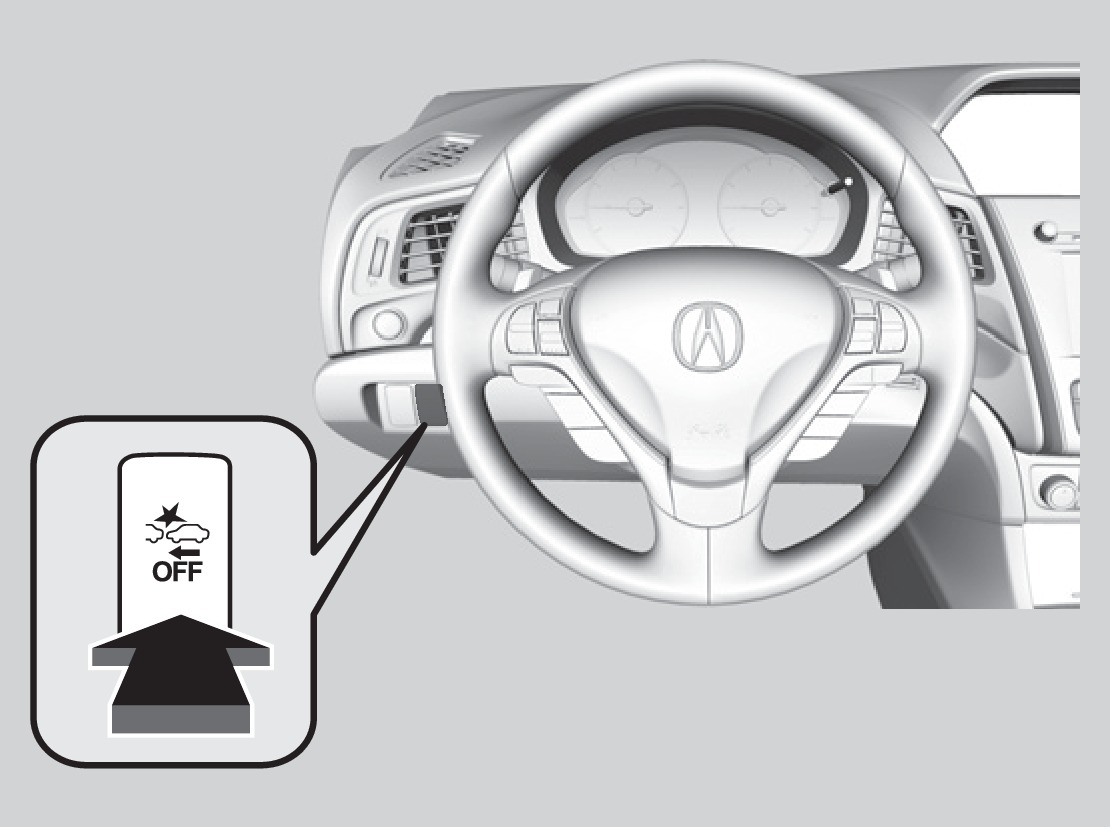

Turning CMBS On or Off
Press and hold the CMBS OFF button. A beep sounds and a message appears in the MID. The CMBS indicator appears when the system is off.
Important Safety Reminder
CMBS is designed to reduce the severity of an unavoidable collision. It does not prevent collision nor stop the vehicle automatically. It is still your responsibility to operate the brake pedal and steering wheel appropriately according to the driving conditions.
