2021 Toyota Tundra Owners Manual - Using the driving support systems



Using the driving support systems

    PCS (Pre-Collision System)

    LDA (Lane Departure Alert)

P. 272

    Automatic High Beam

P. 239

    Dynamic radar cruise control

P. 280

: If equipped

Radar sensor Front camera

WARNING

    To avoid malfunction of the radar sensor

Observe the following precautions.

Otherwise, the radar sensor may not operate properly, possibly leading to an accident resulting in death or serious injury.

    Keep the radar sensor and radar sensor cover clean at all times.
    Radar sensor
    Radar sensor cover

If the front of the radar sensor or the front or back of the radar sensor cover is dirty or covered with water droplets, snow, etc., clean it.

Clean the radar sensor and radar sen- sor cover with a soft cloth to avoid damaging them.

WARNING

    Do not attach accessories, stickers (including transparent stickers) or other items to the radar sensor, radar sensor cover or surrounding area.
    Do not subject the radar sensor or its surrounding area to a strong impact. If the radar sensor, front grille, or front bumper has been subjected to a strong impact, have the vehicle inspected by your Toyota dealer.
    Do not disassemble the radar sensor.
    Do not modify or paint the radar sensor or radar sensor cover.
    In the following cases, the radar sensor must be recalibrated. Contact your Toyota dealer for details.
    When the radar sensor or front grille are removed and installed, or replaced
    When the front bumper is replaced
    To avoid malfunction of the front camera

Observe the following precautions.

Otherwise, the front camera may not operate properly, possibly leading to an accident resulting in death or serious injury.

    Keep the windshield clean at all times.
    If the windshield is dirty or covered with an oily film, water droplets, snow, etc., clean the windshield.
    If a glass coating agent is applied to the windshield, it will still be neces- sary to use the windshield wipers to remove water droplets, etc. from the area of the windshield in front of the front camera.
    If the inner side of the windshield where the front camera is installed is dirty, contact your Toyota dealer.
    Do not attach objects, such as stickers, transparent stickers, etc., to the outer side of the windshield in front of the front camera (shaded area in the illus- tration).

A: From the top of the windshield to approximately 0.4 in. (1 cm) below the bottom of the front camera

B: Approximately 7.9 in. (20 cm) (Approximately 4.0 in. [10 cm] to the right and left from the center of the front camera)

WARNING

    If the part of the windshield in front of the front camera is fogged up or cov- ered with condensation, or ice, use the windshield defogger to remove the fog, condensation, or ice. (P. 342, 349)
    If water droplets cannot be properly removed from the area of the wind- shield in front of the front camera by the windshield wipers, replace the wiper insert or wiper blade.
    Do not attach window tint to the windshield.
    Replace the windshield if it is damaged or cracked.

After replacing the windshield, the front camera must be recalibrated. Con- tact your Toyota dealer for details.

    Do not allow liquids to contact the front camera.
    Do not allow bright lights to shine into the front camera.
    Do not dirty or damage the front camera.

When cleaning the inside of the windshield, do not allow glass cleaner to contact the lens of the front camera. Also, do not touch the lens.

If the lens is dirty or damaged, contact your Toyota dealer.

    Do not subject the front camera to a strong impact.
    Do not change the installation position or direction of the front camera or remove it.
    Do not disassemble the front camera.
    Do not modify any components of the vehicle around the front camera (inside rear view mirror, etc.) or ceiling.
    Do not attach any accessories to the hood, front grille or front bumper that may obstruct the front camera. Contact your Toyota dealer for details.
    If a surfboard or other long object is to be mounted on the roof, make sure that it will not obstruct the front camera.
    Do not modify the headlights or other lights.

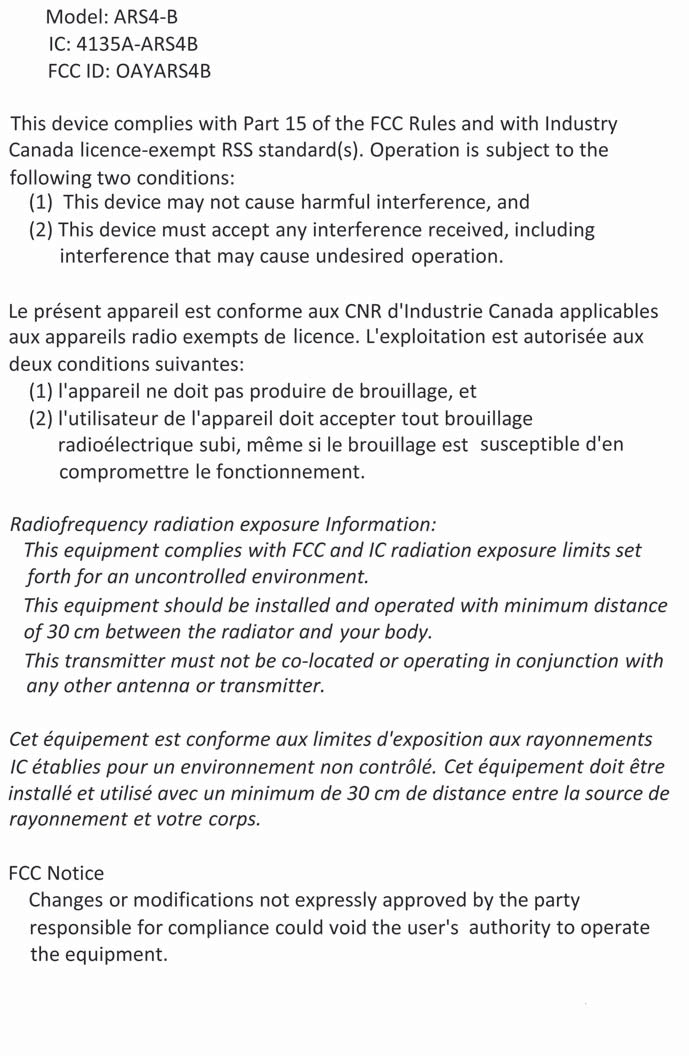

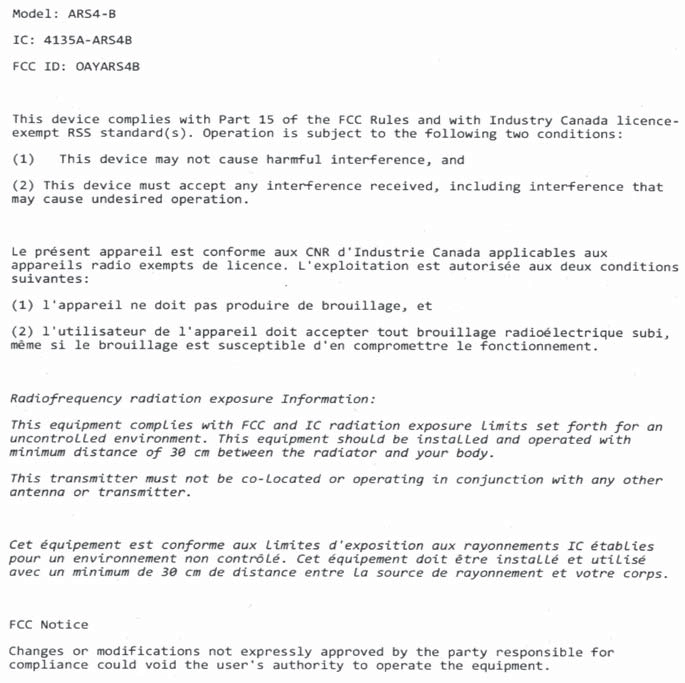

    Certification

For vehicles sold in the U.S.A.

For vehicles sold in Canada

    If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in the system.

    In the following situations, perform the actions specified in the table. When the normal operating conditions are detected, the message will disappear and the system will become operational.

If the message does not disappear, contact your Toyota dealer.

Situation

Actions

When the area around a camera is covered with dirt, moisture (fogged up, covered with con- densation, ice, etc.), or other for- eign matter

Using the wiper and A/C function, remove the dirt and other attached matter

(P. 342, 349).

When the temperature around the front camera is outside of the operational range, such as when the vehicle is in the sun or in an extremely cold environ- ment

If the front camera is hot, such as after the vehicle had been parked in the sun, use the air conditioning system to decrease the temperature around the front camera. If a sunshade was used when the vehicle was parked, depending on its type, the sunlight reflected from the surface of the sunshade may cause the temperature of the front camera to become excessively high.

If the front camera is cold, such after the vehicle is parked in an extremely cold environment, use the air conditioning sys- tem to increase the temperature around the front camera.

The area in front of the front camera is obstructed, such as when the hood is open or a sticker is attached to the part of the windshield in front of the front camera.

Close the hood, remove the sticker, etc. to clear the obstruction.

When “Pre-Collision System Unavailable” is displayed

Check whether there is attached materi- als on the radar sensor and radar sensor cover, and if there is, remove it.

    In the following situations, if the situation has changed (or the vehicle has been driven for some time) and the normal operating conditions are detected, the message will disappear and the system will become opera- tional.

If the message does not disappear, contact your Toyota dealer.

    When the temperature around the radar sensor is outside of the opera- tional range, such as when the vehicle is in the sun or in an extremely cold environment
    When the front camera cannot detect objects in front of the vehicle, such as when driving in the dark, snow, or fog, or when bright lights are shining into the front camera
    Depending on the conditions in the vicinity of the vehicle, the radar may judge the surrounding environment can not be properly recognized. In that case, “Pre-Collision System Unavailable” is displayed.

: If equipped

    Pre-collision warning

    Pre-collision brake assist

When the system determines that the possibility of a frontal colli- sion is high, the system applies greater braking force in relation to how strongly the brake pedal is depressed.

    Pre-collision braking

When the system determines that the possibility of a frontal colli- sion is high, the system warns the driver. If the system determines that the possibility of a frontal collision is extremely high, the brakes are automatically applied to help avoid the collision or reduce the collision speed.

WARNING

    Limitations of the pre-collision system
    The driver is solely responsible for safe driving. Always drive safely, taking care to observe your surroundings.

Do not use the pre-collision system instead of normal braking operations under any circumstances. This system will not prevent collisions or lessen collision damage or injury in every situation. Do not overly rely on this sys- tem. Failure to do so may lead to an accident, resulting in death or serious injury.

    Although this system is designed to help avoid a collision or help reduce the impact of the collision, its effectiveness may change according to vari- ous conditions, therefore the system may not always be able to achieve the same level of performance.

Read the following conditions carefully. Do not overly rely on this system and always drive carefully.

    Conditions under which the system may operate even if there is no pos- sibility of a collision: P. 267
    Conditions under which the system may not operate properly: P. 269
    Do not attempt to test the operation of the pre-collision system yourself. Depending on the objects used for testing (dummies, cardboard objects imitating detectable objects, etc.), the system may not operate properly, possibly leading to an accident.
    Pre-collision braking
    When the pre-collision braking function is operating, a large amount of braking force will be applied.
    If the vehicle is stopped by the operation of the pre-collision braking func- tion, the pre-collision braking function operation will be canceled after approximately 2 seconds. Depress the brake pedal as necessary.
    The pre-collision braking function may not operate if certain operations are performed by the driver. If the accelerator pedal is being depressed strongly or the steering wheel is being turned, the system may determine that the driver is taking evasive action and possibly prevent the pre-colli- sion braking function from operating.
    In some situations, while the pre-collision braking function is operating, operation of the function may be canceled if the accelerator pedal is depressed strongly or the steering wheel is turned and the system deter- mines that the driver is taking evasive action.
    If the brake pedal is being depressed, the system may determine that the driver is taking evasive action and possibly delay the operation timing of the pre-collision braking function.

WARNING

    When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop- erly, possibly leading to an accident resulting in death or serious injury:

    When the vehicle is being towed
    When your vehicle is towing another vehicle
    When transporting the vehicle via truck, boat, train or similar means of transportation
    When the vehicle is raised on a lift with the engine running and the tires are allowed to rotate freely
    When inspecting the vehicle using a drum tester such as a chassis dyna- mometer or speedometer tester, or when using an on vehicle wheel bal- ancer
    When a strong impact is applied to the front bumper or front grille, due to an accident or other reasons
    If the vehicle cannot be driven in a stable manner, such as when the vehi- cle has been in an accident or is malfunctioning
    When the vehicle is driven in a sporty manner or off-road
    When the tires are not properly inflated
    When the tires are very worn
    When tires of a size other than specified are installed
    When tire chains are installed
    When a compact spare tire or an emergency tire puncture repair kit is used
    If equipment (snow plow, etc.) that may obstruct the radar sensor or front camera is temporarily installed to the vehicle

    Enabling/disabling the pre-collision system

The system is automatically enabled each time the engine switch is turned to ON.

    Changing the pre-collision warning timing

The pre-collision warning timing can be changed on (P. 565) of the multi-information display.

The operation timing setting is retained when the engine switch is turned off.

The warning will begin to operate earlier than with the default timing.

This is the default setting.

The warning will begin to operate later than with the default timing.

    Operational conditions

The pre-collision system is enabled and the system determines that the pos- sibility of a frontal collision with a vehicle or pedestrian is high.

Each function is operational at the following speeds:

    Pre-collision warning:
    Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h). (For detecting a pedestrian, vehicle speed is between approximately 7 and 50 mph [10 and 80 km/h].)
    The relative speed between your vehicle and the vehicle or pedestrian ahead is approximately 7 mph (10 km/h) or more.
    Pre-collision brake assist:
    Vehicle speed is between approximately 20 and 110 mph (30 and 180 km/h). (For detecting a pedestrian, vehicle speed is between approximately 20 and 50 mph [30 and 80 km/h].)
    The relative speed between your vehicle and the vehicle or pedestrian ahead is approximately 20 mph (30 km/h) or more.
    Pre-collision braking:
    Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h). (For detecting a pedestrian, vehicle speed is between approximately 7 and 50 mph [10 and 80 km/h].)
    The relative speed between your vehicle and the vehicle or pedestrian ahead is approximately 7 mph (10 km/h) or more.

The system may not operate in the following situations:

    If a battery terminal has been disconnected and reconnected and then the vehicle has not been driven for a certain amount of time
    If the shift lever is in R
    If VSC is disabled (only the pre-collision warning function will be opera- tional)
    If the low speed four-wheel drive indicator is illuminated (only the pre-colli- sion warning function will be operational)
    Pedestrian detection function

The pre-collision system detects pedestri- ans based on the size, profile, and motion of a detected object. However, a pedes- trian may not be detected depending on the surrounding brightness and the motion, posture, and angle of the detected object, preventing the system from operating properly. (P. 271)

    Cancellation of the pre-collision braking

If either of the following occur while the pre-collision braking function is oper- ating, it will be canceled:

    The accelerator pedal is depressed strongly.
    The steering wheel is turned sharply or abruptly.
    Conditions under which the system may operate even if there is no pos- sibility of a collision
    In some situations such as the following, the system may determine that there is a possibility of a frontal collision and operate.
    When passing a vehicle or pedestrian
    When changing lanes while overtaking a preceding vehicle
    When overtaking a preceding vehicle that is changing lanes
    When overtaking a preceding vehicle that is making a left/right turn
    When passing a vehicle in an oncom- ing lane that is stopped to make a right/left turn
    When driving on a road where relative location to vehicle ahead in an adja- cent lane may change, such as on a winding road
    When rapidly closing on a vehicle ahead
    If the front of the vehicle is raised or lowered, such as when the road sur- face is uneven or undulating
    When approaching objects on the roadside, such as guardrails, utility poles, trees, or walls
    When there is a vehicle, pedestrian, or object by the roadside at the entrance of a curve
    When driving on a narrow path surrounded by a structure, such as in a tunnel or on an iron bridge
    When there is a metal object (manhole cover, steel plate, etc.), steps, or a protrusion on the road surface or roadside
    When a crossing pedestrian approaches very close to the vehicle
    When passing through a place with a low structure above the road (low ceil- ing, traffic sign, etc.)
    When passing under an object (bill- board, etc.) at the top of an uphill road
    When rapidly closing on an electric toll gate barrier, parking area barrier, or other barrier that opens and closes
    When using an automatic car wash
    When driving through or under objects that may contact the vehicle, such as thick grass, tree branches, or a banner
    When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead
    When driving through steam or smoke
    When there are patterns or paint on the road or a wall that may be mis- taken for a vehicle or pedestrian
    When driving near an object that reflects radio waves, such as a large truck or guardrail
    When driving near a TV tower, broadcasting station, electric power plant, or other location where strong radio waves or electrical noise may be present
    Situations in which the system may not operate properly
    In some situations such as the following, a vehicle may not be detected by the radar sensor and front camera, preventing the system from operating properly:
    If an oncoming vehicle is approaching your vehicle
    If a vehicle ahead is a motorcycle or bicycle
    When approaching the side or front of a vehicle
    If a preceding vehicle has a small rear end, such as an unloaded truck
    If a preceding vehicle has a low rear end, such as a low bed trailer
    If a vehicle ahead is carrying a load which protrudes past its rear bumper
    If a vehicle ahead has extremely high ground clearance
    If a vehicle ahead is irregularly shaped, such as a tractor or side car
    If the sun or other light is shining directly on a vehicle ahead
    If a vehicle cuts in front of your vehicle or emerges from beside a vehicle
    If a vehicle ahead makes an abrupt maneuver (such as sudden swerving, acceleration or deceleration)
    When suddenly cutting behind a preceding vehicle
    When a vehicle ahead is not directly in front of your vehicle
    When driving in inclement weather such as heavy rain, fog, snow or a sandstorm
    When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead
    When driving through steam or smoke
    When driving in a place where the surrounding brightness changes sud- denly, such as at the entrance or exit of a tunnel
    When a very bright light, such as the sun or the headlights of oncoming traffic, shines directly into the front camera
    When the surrounding area is dim, such as at dawn or dusk, or while at night or in a tunnel
    After the engine has started the vehicle has not been driven for a certain amount of time
    While making a left/right turn and for a few seconds after making a left/ right turn
    While driving on a curve and for a few seconds after driving on a curve
    If your vehicle is skidding
    If the front of the vehicle is raised or lowered
    If the wheels are misaligned
    If a wiper blade is blocking the front camera
    The vehicle is wobbling.
    The vehicle is being driven at extremely high speeds.
    When driving on a hill
    If the radar sensor or front camera is misaligned
    In some situations such as the following, sufficient braking force may not be obtained, preventing the system from performing properly:
    If the braking functions cannot operate to their full extent, such as when the brake parts are extremely cold, extremely hot, or wet
    If the vehicle is not properly maintained (brakes or tires are excessively worn, improper tire inflation pressure, etc.)
    When the vehicle is being driven on a gravel road or other slippery sur- face
    Some pedestrians such as the following may not be detected by the radar sensor and front camera, preventing the system from operating properly:
    Pedestrians shorter than approximately 3.2 ft. (1 m) or taller than approx- imately 6.5 ft. (2 m)
    Pedestrians wearing oversized clothing (a rain coat, long skirt, etc.), mak- ing their silhouette obscure
    Pedestrians who are carrying large baggage, holding an umbrella, etc., hiding part of their body
    Pedestrians who are bending forward or squatting
    Pedestrians who are pushing a stroller, wheelchair, bicycle or other vehi-
    Groups of pedestrians which are close together
    Pedestrians who are wearing white and look extremely bright
    Pedestrians in the dark, such as at night or while in a tunnel
    Pedestrians whose clothing appears to be nearly the same color or brightness as their surroundings
    Pedestrians near walls, fences, guardrails, or large objects
    Pedestrians who are on a metal object (manhole cover, steel plate, etc.) on the road
    Pedestrians who are walking fast
    Pedestrians who are changing speed abruptly
    Pedestrians running out from behind a vehicle or a large object
    Pedestrians who are extremely close to the side of the vehicle (outside rear view mirror, etc.)
    If VSC is disabled
    If VSC is disabled (P. 323), the pre-collision brake assist and pre-collision braking functions are also disabled.
    The PCS warning light will turn on and “VSC Turned Off Pre-Collision Brake System Unavailable” will be displayed on the multi-information display.

The LDA system recognizes visi- ble white (yellow) lines with the front camera on the upper portion of the windshield.

Functions included in LDA system

    Lane departure alert function

When the system determines that the vehicle might depart from its lane, a warning is dis- played on the multi-information display and the warning buzzer sounds to alert the driver.

When the warning buzzer sounds, check the surrounding road situation and carefully operate the steering wheel to move the vehicle back to the center of the lane.

: If equipped

    Vehicle sway warning

WARNING

    Before using LDA system

Do not rely solely upon the LDA system. The LDA system does not auto- matically drive the vehicle or reduce the amount of attention that must be paid to the area in front of the vehicle. The driver must always assume full responsibility for driving safely by always paying careful attention to the sur- rounding conditions and operating the steering wheel to correct the path of the vehicle. Also, the driver must take adequate breaks when fatigued, such as from driving for a long period of time.

Failure to perform appropriate driving operations and pay careful attention may lead to an accident, resulting in death or serious injury.

    To avoid operating LDA system by mistake

When not using the LDA system, use the LDA switch to turn the system off.

    Situations unsuitable for LDA system

Do not use the LDA system in the following situations.

The system may not operate properly and lead to an accident, resulting in death or serious injury.

    A spare tire, tire chains, etc., are equipped.
    Objects or patterns that could be mistaken for white (yellow) lines are present on the side of the road (guardrails, curbs, reflective poles, etc.).
    Vehicle is driven on a snow-covered road.
    White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.
    Asphalt repair marks, white (yellow) line marks, etc., are present due to road repair.
    Vehicle is driven in a temporary lane or restricted lane due to construction work.
    Vehicle is driven in a construction zone.

LDA system on.

The LDA indicator illuminates and a message is displayed on the multi-information display.

Press the LDA switch again to turn the LDA system off.

When the LDA system is turned on or off, operation of the LDA system continues in the same condition the next time the engine is started.

The illumination condition of the indicator informs the driver of the system operation status.

Illuminated in green:

LDA system is operating.

Flashing in yellow:

Lane departure alert function is operating.

Displayed when the multi-informa- tion display is switched to the driv- ing assist system information screen.

Inside of displayed white lines is black

Indicates that the system is recog- nizing white (yellow) lines. When the vehicle departs from its lane, the white line displayed on the side the vehicle departs from flashes orange.

Indicates that the system is not able to recognize white (yellow) lines or is temporarily canceled.

    Operation conditions of each function
    Lane departure alert function

This function operates when all of the following conditions are met.

    LDA is turned on.
    Vehicle speed is approximately 32 mph (50 km/h) or more.
    System recognizes white (yellow) lines.
    Width of traffic lane is approximately 9.8 ft. (3 m) or more.
    Turn signal lever is not operated.
    Vehicle is driven on a straight road or around a gentle curve with a radius of more than approximately 492 ft. (150 m).
    No system malfunctions are detected. (P. 279)
    Vehicle sway warning function

This function operates when all of the following conditions are met.

    Setting for “ Warning” in screen of the multi-information display is set to on. (P. 111)
    Vehicle speed is approximately 32 mph (50 km/h) or more.
    Width of traffic lane is approximately 9.8 ft. (3 m) or more.
    No system malfunctions are detected. (P. 279)
    Temporary cancellation of functions

When the operation conditions are no longer met, a function may be tempo- rarily canceled. However, when the operation conditions are met again, oper- ation of the function is automatically restored. (P. 277)

    Lane departure alert function

The warning buzzer may be difficult to hear due to external noise, audio play- back, etc.

    Vehicle sway warning function

When the system determines that the vehicle is swaying while the vehicle sway warning function is operating, a buzzer sounds and a warning message urging the driver to rest and the symbol shown in the illustration are simultaneously dis- played on the multi-information display.

Depending on the vehicle and road conditions, the warning may not operate.

    White (yellow) lines are only on one side of road

The LDA system will not operate for the side on which white (yellow) lines could not be recognized.

    Conditions in which functions may not operate properly

In the following situations, the front camera may not detect white (yellow) lines and various functions may not operate normally.

    There are shadows on the road that run parallel with, or cover, the white (yellow) lines.
    The vehicle is driven in an area without white (yellow) lines, such as in front of a tollgate or checkpoint, or at an intersection, etc.
    The white (yellow) lines are cracked, “Botts’ dots”, “Raised pavement marker” or stones are present.
    The white (yellow) lines cannot be seen or are difficult to see due to sand, etc.
    The vehicle is driven on a road surface that is wet due to rain, puddles, etc.
    The traffic lines are yellow (which may be more difficult to recognize than lines that are white).
    The white (yellow) lines cross over a curb, etc.
    The vehicle is driven on a bright surface, such as concrete.
    The vehicle is driven on a surface that is bright due to reflected light, etc.
    The vehicle is driven in an area where the brightness changes suddenly, such as at the entrances and exits of tunnels, etc.
    Light from the headlights of an oncoming vehicle, the sun, etc., enters the camera.
    The vehicle is driven where the road diverges, merges, etc.
    The vehicle is driven on a slope.
    The vehicle is driven on a road which tilts left or right, or a winding road.
    The vehicle is driven on an unpaved or rough road.
    The vehicle is driven around a sharp curve.
    The traffic lane is excessively narrow or wide.
    The vehicle is extremely tilted due to carrying heavy luggage or having improper tire pressure.
    The distance to the preceding vehicle is extremely short.
    The vehicle is moving up and down a large amount due to road conditions during driving (poor roads or road seams).
    The headlight lenses are dirty and emit a faint amount of light at night, or the beam axis has deviated.
    The vehicle has just changed lanes or crossed an intersection.
    Warning message

Warning messages are used to indicate a system malfunction or to inform the driver of the need for caution while driving. (P. 493)

    Customization

The following settings can be changed.

Function

Setting details

Lane departure alert function

Adjust alert sensitivity

Vehicle sway warning

Turn function on and off

Adjust alert sensitivity

For how to change settings, refer to P. 564.

Use the dynamic radar cruise control on freeways and highways.

    Vehicle-to-vehicle distance control mode (P. 283)
    Constant speed control mode (P. 289)

Vehicle-to-vehicle distance switch

Display Indicators Set speed

Cruise control switch

: If equipped

WARNING

    Before using dynamic radar cruise control
    Driving safely is the sole responsibility of the driver. Do not rely solely on the system, and drive safely by always paying careful attention to your sur- roundings.
    The dynamic radar cruise control provides driving assistance to reduce the driver’s burden. However, there are limitations to the assistance provided. Read the following conditions carefully. Do not overly rely on this system and always drive carefully.
    When the sensor may not be correctly detecting the vehicle ahead:

P. 291

    Conditions under which the vehicle-to-vehicle distance control mode may not function correctly: P. 293
    Set the speed appropriately depending on the speed limit, traffic flow, road conditions, weather conditions, etc. The driver is responsible for checking the set speed.
    Even when the system is functioning normally, the condition of the preced- ing vehicle as detected by the system may differ from the condition observed by the driver. Therefore, the driver must always remain alert, assess the danger of each situation and drive safely. Relying on this sys- tem or assuming the system ensures safety while driving can lead to an accident, resulting in death or serious injury.
    Switch the dynamic radar cruise control off using the “ON-OFF” button when not in use.
    Cautions regarding the driving assist systems

Observe the following precautions, as there are limitations to the assistance provided by the system.

Failure to do so may cause an accident resulting in death or serious injury.

    Assisting the driver to measure following distance

The dynamic radar cruise control is only intended to help the driver in determining the following distance between the driver’s own vehicle and a designated vehicle traveling ahead. It is not a mechanism that allows care- less or inattentive driving, and it is not a system that can assist the driver in low-visibility conditions. It is still necessary for driver to pay close attention to the vehicle’s surroundings.

WARNING

    Assisting the driver to judge proper following distance

The dynamic radar cruise control determines whether the following dis- tance between the driver’s own vehicle and a designated vehicle traveling ahead is within a set range. It is not capable of making any other type of judgement. Therefore, it is absolutely necessary for the driver to remain vigilant and to determine whether or not there is a possibility of danger in any given situation.

    Assisting the driver to operate the vehicle

The dynamic radar cruise control has limited capability to prevent or avoid a collision with a vehicle traveling ahead. Therefore, if there is ever any danger, the driver must take immediate and direct control of the vehicle and act appropriately in order to ensure the safety of all involved.

    Situations unsuitable for dynamic radar cruise control

Do not use dynamic radar cruise control in any of the following situations. Doing so may result in inappropriate speed control and could cause an acci- dent resulting in death or serious injury.

    Roads where there are pedestrians, cyclists, etc.
    In heavy traffic
    On roads with sharp bends
    On winding roads
    On slippery roads, such as those covered with rain, ice or snow
    On steep downhills, or where there are sudden changes between sharp up and down gradients

Vehicle speed may exceed the set speed when driving down a steep hill.

    At entrances to freeways and highways
    When weather conditions are bad enough that they may prevent the sen- sors from detecting correctly (fog, snow, sandstorm, heavy rain, etc.)
    When there is rain, snow, etc., on the front surface of the radar sensor or front camera
    In traffic conditions that require frequent repeated acceleration and decel- eration
    When your vehicle is towing a trailer or during emergency towing
    When an approach warning buzzer is heard often

Note that vehicle-to-vehicle distance will close in when traveling on long downhill slopes.

The vehicle travels at the speed set by the driver. The desired vehicle-to- vehicle distance can also be set by operating the vehicle-to-vehicle dis- tance switch.

When a preceding vehicle driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically decelerates your vehicle. When a greater reduction in vehicle speed is necessary, the system applies the brakes (the stop lights will come on at this time). The system will respond to changes in the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by the driver. Approach warning warns you when the system cannot decelerate suffi- ciently to prevent your vehicle from closing in on the vehicle ahead.

When there are no longer any preceding vehicles driving slower than the set speed

The system accelerates until the set speed is reached. The system then returns to constant speed cruising.

Radar cruise control indicator will come on and a message will be displayed on the multi-information display.

Press the button again to deacti- vate the cruise control.

If the “ON-OFF” button is pressed and held for 1.5 seconds or more, the system turns on in constant speed control mode. (P. 289)

Cruise control “SET” indicator will come on.

The vehicle speed at the moment the lever is released becomes the set speed.

Increases the speed Decreases the speed

Fine adjustment: Momentarily move the lever in the desired direction.

Large adjustment: Hold the lever up or down to change the speed, and release when the desired speed is reached.

In the vehicle-to-vehicle distance control mode, the set speed will be increased or decreased as follows:

For the U.S. mainland, Hawaii

Fine adjustment: By 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 each time the lever is operated

Large adjustment: Increases or decreases in 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 increments for as long as the lever is held

Fine adjustment: By 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 each time the lever is operated

Large adjustment: Increases or decreases in 5 mph (8 km/h)*1 or 5 km/h (3.1 mph)*2 increments for as long as the lever is held

Fine adjustment: By 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 each time the lever is operated

Large adjustment: The speed will continue to change while the lever is held.

*1: When the set speed is shown in “MPH”

*2: When the set speed is shown in “km/h”

Long Medium Short

The vehicle-to-vehicle distance is set automatically to long mode when the engine switch is turned to ON.

If a vehicle is running ahead of you, the preceding vehicle mark will also be displayed.

Distance options

Vehicle-to-vehicle distance

Long

Approximately 160 ft. (50 m)

Medium

Approximately 130 ft. (40 m)

Short

Approximately 100 ft. (30 m)

1 Pulling the lever toward you cancels the speed control.

The speed control is also canceled when the brake pedal is depressed.

However, cruise control does not resume when the vehicle speed is approximately 25 mph (40 km/h) or less.

a vehicle ahead, and sufficient automatic deceleration via the cruise control is not possible, the display will flash and the buzzer will sound to alert the driver. An example of this would be if another driver cuts in front of you while you are following a vehicle. Depress the brake pedal to ensure an appropriate vehicle-to- vehicle distance.

    Warnings may not occur when

In the following instances, warnings may not occur even when the vehicle-to-vehicle distance is small.

    When the speed of the preceding vehicle matches or exceeds your vehicle speed
    When the preceding vehicle is traveling at an extremely slow speed
    Immediately after the cruise control speed was set
    When depressing the accelerator pedal

When constant speed control mode is selected, your vehicle will main- tain a set speed without controlling the vehicle-to-vehicle distance. Select this mode only when vehicle-to-vehicle distance control mode does not function correctly due to a dirty radar sensor, etc.

With the cruise control off, press and hold the “ON-OFF” button for 1.5 seconds or more.

Immediately after the “ON-OFF” button is pressed, the radar cruise control indicator will come on. Afterwards, it switches to the cruise control indicator.

Switching to constant speed con- trol mode is only possible when operating the lever with the cruise control off.

Cruise control “SET” indicator will come on.

The vehicle speed at the moment the lever is released becomes the set speed.

Adjusting the speed setting: P. 286

Canceling and resuming the speed setting: P. 288

    Dynamic radar cruise control can be set when
    The shift lever is in D or range 4 or higher of S has been selected.
    Vehicle speed is at or above approximately 30 mph (50 km/h).
    Accelerating after setting the vehicle speed

The vehicle can accelerate by operating the accelerator pedal. After acceler- ating, the set speed resumes. However, during vehicle-to-vehicle distance control mode, the vehicle speed may decrease below the set speed in order to maintain the distance to the preceding vehicle.

    Automatic cancelation of vehicle-to-vehicle distance control mode Vehicle-to-vehicle distance control mode is automatically canceled in the fol- lowing situations:
    Actual vehicle speed falls at or below approximately 25 mph (40 km/h).
    VSC is activated.
    TRAC is activated for a period of time.
    When the VSC or TRAC system is turned off.
    The sensor cannot detect correctly because it is covered in some way.
    Pre-collision braking is activated.

If vehicle-to-vehicle distance control mode is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Toyota dealer.

    Automatic cancelation of constant speed control mode

Constant speed control mode is automatically canceled in the following situa- tions:

    Actual vehicle speed is more than approximately 10 mph (16 km/h) below the set vehicle speed.
    Actual vehicle speed falls below approximately 25 mph (40 km/h).
    VSC is activated.
    TRAC is activated for a period of time.
    When the VSC or TRAC system is turned off.
    Pre-collision braking is activated.

If constant speed control mode is automatically canceled for any other rea- son, there may be a malfunction in the system. Contact your Toyota dealer.

    Brake system operation sound

If the brakes are applied automatically while the vehicle is in vehicle-to-vehi- cle distance control mode, a brake system operation sound may be heard. This does not indicate a malfunction.

    Warning messages and buzzers for dynamic radar cruise control Warning messages and buzzers are used to indicate a system malfunction or to inform the driver of the need for caution while driving. If a warning message is shown on the multi-information display, read the message and follow the instructions.
    When the sensor may not be correctly detecting the vehicle ahead

In the case of the following and depending on the conditions, operate the brake pedal when deceleration of the system is insufficient or operate the accelerator pedal when acceleration is required.

As the sensor may not be able to correctly detect these types of vehicles, the approach warning (P. 288) may not be activated.

    Vehicles that cut in suddenly
    Vehicles traveling at low speeds
    Vehicles that are not moving in the same lane
    Vehicles with small rear ends (trailers with no load on board, etc.)
    Motorcycles traveling in the same lane
    When water or snow thrown up by the surrounding vehicles hinders the detecting of the sensor
    When your vehicle is pointing upwards (caused by a heavy load in the luggage compartment, etc.)
    Preceding vehicle has an extremely high ground clearance
    Conditions under which the vehicle-to-vehicle distance control mode may not function correctly

In the case of the following conditions, operate the brake pedal (or accelera- tor pedal, depending on the situation) as necessary.

As the sensor may not be able to correctly detect vehicles ahead, the system may not operate properly.

    When the road curves or when the lanes are narrow
    When steering wheel operation or your position in the lane is unstable
    When the vehicle ahead of you decelerates suddenly
    When driving on a road surrounded by a structure, such as in a tunnel or on a bridge
    While the vehicle speed is decreasing to the set speed after the vehicle accelerates by depressing the accelerator pedal

Indicators

Cruise control switch

1 Press the “ON-OFF” button to activate the cruise control.

Cruise control indicator will come on.

Press the button again to deacti- vate the cruise control.

“SET” indicator will come on.

The vehicle speed at the moment the lever is released becomes the set speed.

: If equipped

Increases the speed Decreases the speed

Fine adjustment: Momentarily move the lever in the desired direc- tion.

Large adjustment: Hold the lever in the desired direction.

The set speed will be increased or decreased as follows:

Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is operated.

Large adjustment: The set speed can be increased or decreased continu- ally until the lever is released.

The speed setting is also canceled when the brakes are applied.

Resuming is available when the vehicle speed is more than approx- imately 25 mph (40 km/h).

    Cruise control can be set when
    The shift lever is in D or range 4 or higher of S has been selected.
    Vehicle speed is above approximately 25 mph (40 km/h).
    Accelerating after setting the vehicle speed
    The vehicle can be accelerated normally. After acceleration, the set speed resumes.
    Even without canceling the cruise control, the set speed can be increased by first accelerating the vehicle to the desired speed and then pushing the lever down to set the new speed.
    Automatic cruise control cancelation

Cruise control will stop maintaining the vehicle speed in any of the following situations.

    Actual vehicle speed falls more than approximately 10 mph (16 km/h) below the preset vehicle speed.

At this time, the memorized set speed is not retained.

    Actual vehicle speed is below approximately 25 mph (40 km/h).
    VSC is activated.
    TRAC is activated for a period of time.
    When the VSC or TRAC system is turned off.
    4WD models: The operation cannot be switched for 5 seconds or more after operating the front-wheel drive control switch.
    If “Cruise Control Malfunction Visit Your Dealer” is displayed on the multi-information display

Press the “ON-OFF” button once to deactivate the system, and then press the button again to reactivate the system.

If the cruise control speed cannot be set or if the cruise control cancels imme- diately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer.

    Types of sensors

    Intuitive parking assist switch

Turns the intuitive parking assist on/off

When on, the indicator light comes on to inform the driver that the system is operational.

: If equipped

    Intuitive parking assist display

Front corner sensor opera- tion

Rear corner sensor operation Rear center sensor operation

    Sensor operation and distance to an obstacle

The system operates when the vehicle approaches an obstacle, as shown by the following table.

When 2 or more obstacles are detected simultaneously, the buzzer sys- tem responds to the nearest zone.

Approximate distance to obstacle

Display and buzzer

2.0 ft. (60 cm) to 1.5 ft. (45 cm)

Intermittent

1.5 ft. (45 cm) to 1.0 ft. (30 cm)

Fast intermittent

Less than 1.0 ft. (30 cm)

Continuously

Rear corner sensors

Approximate distance to obstacle

Display and buzzer

2.8 ft. (85 cm) to 2.0 ft. (60 cm)

Intermittent

2.0 ft. (60 cm) to 1.3 ft. (40 cm)

Fast intermittent

Less than 1.3 ft. (40 cm)

Continuously

Rear center sensor

Approximate distance to obstacle

Display and buzzer

5.9 ft. (180 cm) to 3.3 ft. (100 cm)

Intermittent

3.3 ft. (100 cm) to 2.5 ft. (75 cm)

Fast intermittent

2.5 ft. (75 cm) to 1.6 ft. (50 cm)

Very fast intermittent

Less than 1.6 ft. (50 cm)

Continuously

    When multiple obstacles are detected in front and behind the vehicle at the same time

The buzzer will change in the following manner.

    If an obstacle has been detected within 1.5 ft. (45 cm) of the front or 2.8 ft. (85 cm) in rear of the vehicle (a continuous buzzer is sounding), and a new obstacle is detected at the other end of the vehicle, the buzzer will sound 7 times then 1 continuous buzzer.
    If an obstacle has been detected within 1.5 ft. (45 cm) of the front or 2.8 ft. (85 cm) in rear of the vehicle (a continuous buzzer is sounding), and a new obstacle is detected in the same way at the other end of the vehicle, the buzzer will sound 3 times then 1 continuous buzzer.

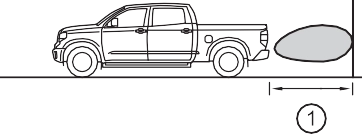

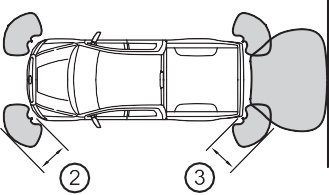

    Detection range of the sensors Approximately 5.9 ft. (180 cm) Approximately 2.0 ft. (60 cm) Approximately 2.8 ft. (85 cm)

The diagram shows the detection range of the sensors. Note that the sensors may not be able to detect obstacles that are extremely close to the vehicle.

The range of the sensors may change depending on the shape of the object, etc.

    The intuitive parking assist can be operated when
    Front corner sensors:
    The engine switch is in ON.
    The shift lever is in R.
    The shift lever is not in P or R and vehicle speed is less than about 6 mph (10 km/h).
    Rear corner and rear center sensors:
    The engine switch is in ON.
    The shift lever is in R.
    If the display flashes and a message is displayed

P. 494, 495

    Certification (Canada only)

This ISM device complies with Canadian ICES-001.

WARNING

    Sensor detection information

Pay particular attention to the following instances in where this may occur. Failing to do so way result in the vehicle being unable to be driven or parked safety and possibly cause an accident.

    The sensor’s detection areas are limited to the areas around the vehicle’s front corner and rear bumpers.
    Certain vehicle conditions and the surrounding environment may affect the ability of the sensor to correctly detect obstacles. Particular instances where this may occur are listed below.
    There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this problem.)
    The sensor is frozen. (Thawing the area will resolve this problem.)
    The sensor is covered in any way.
    The vehicle is leaning considerably to one side.
    On an extremely bumpy road, on an incline, on gravel, or on grass.
    The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves.
    There is another vehicle equipped with parking assist sensors in the vicinity.
    The sensor is coated with a sheet of spray or heavy rain.
    The vehicle is equipped with a fender pole or radio antenna.
    The bumper or sensor receives a strong impact.
    The vehicle is approaching a tall or curved curb.
    In harsh sunlight or intense cold weather.
    The area directly under the bumpers is not detected.
    If obstacles draw too close to the sensor.
    A non-genuine Toyota suspension (lowered suspension, etc.) is installed.
    A backlit license plate, license plate holder, etc., are installed.
    People may not be detected if they are wearing certain types and color- ing of clothing.
    People, animals, and moving objects may not be able to be detected. In addition to the examples above, there are instances in which, because of their shape, signs and other objects may be judged by the sensor to be closer than they are.

WARNING

    The shape of the obstacle may prevent the sensor from detecting it. Pay particular attention to the following obstacles:
    Wires, fences, ropes, etc.
    Cotton, snow and other materials that absorb sound waves
    Sharply-angled objects
    Low obstacles
    Tall obstacles with upper sections projecting outwards in the direction of your vehicle
    The following situations may occur during use.
    Depending on the shape of the obstacle and other factors, the detection distance may shorten, or detection may be impossible.
    Obstacles may not be detected if they are too close to the sensor.
    There will be a short delay between obstacle detection and display. Even at slow speeds, there is a possibility that the obstacle will come within the sensor’s detection areas before the display is shown and the warning beep sounds.
    Thin posts or objects lower than the sensor may not be detected for col- lision when approached, even if they have been detected once.
    It might be difficult to hear beeps due to the volume of audio system or air flow noise of air conditioning system.

NOTICE

    When using intuitive parking assist-sensor

In the following situations, the system may not function correctly due to a sensor malfunction, etc. Have the vehicle checked by your Toyota dealer.

    A beep does not sound when you turn the main switch on.
    The intuitive parking assist operation display flashes, and a beep sounds when no obstacles are detected.
    If the area around a sensor collides with something, or is subjected to strong impact.
    If the bumper collides with something.
    If the display shows continuously without a beep.
    If a display error occurs, first check the sensor.

If the error occurs even if there is no ice, snow or mud on the sensor, it is likely that the sensor is malfunctioning.

    Notes when washing the vehicle

Do not apply intensive bursts of water or steam to the sensor area. Doing so may result in the sensor malfunctioning.

    The Blind Spot Monitor function

Assists the driver in making the decision when changing lanes

    The Rear Cross Traffic Alert function Assists the driver when backing up

These functions use same sensors.

Multi-information display

Turning the BSM function/RCTA function on/off. (P. 306)

Blind Spot Monitor function:

When a vehicle is detected in a blind spot of the outside rear view mir- rors or approaching rapidly from behind into a blind spot, the outside rear view mirror indicator on the detected side will illuminate. If the turn signal lever is operated toward the detected side, the outside rear view mirror indicator will flash.

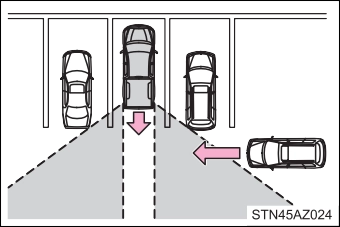

Rear Cross Traffic Alert function:

When a vehicle approaching from the right or left at the rear of the vehi- cle is detected, both outside rear view mirror indicators will flash.

: If equipped

When a vehicle approaching from the right or left rear of the vehicle is detected, a buzzer sounds from behind the left-hand rear pillar.

When the BSM function is turned on, the indicator illuminates.

When the RCTA function is turned on, the indicator illuminates.

Press “-¼” or “-¾” of meter control switches and select .

Press “<” or “>” of meter control switches and select “BSM” or “RCTA”, and press to select the desired setting (on/off).

The BSM (Blind Spot Monitor) outside rear view mirror indicators brightness can be changed on the multi-information display as follow- ing:

Press “-¼” or “-¾” of meter control switches and select .

Press “<” or “>” of meter control switches and select “Vehicle Settings”, and then press .

Press “<” or “>” of meter control switches and select “BSM

Brightness”, and then press to select the desired setting (bright/dim).

Press “-¼” or “-¾” of meter control switches and select .

Press “<” or “>” of meter control switches and select “Vehicle Settings”, and then press .

Press “<” or “>” of meter control switches and select “RCTA Vol- ume”, and then press to select the desired setting.

The buzzer volume changes with each press.

    The outside rear view mirror indicators visibility

When under strong sunlight, the outside rear view mirror indicator may be dif- ficult to see.

    Rear Cross Traffic Alert buzzer hearing

Rear Cross Traffic Alert function may be difficult to hear over noises such as high audio volume.

    When there is a malfunction in the Blind Spot Monitor system

If a system malfunction is detected due to any of the following reasons, warn- ing messages will be displayed: (P. 494, 495)

    There is a malfunction with the sensors
    The sensors have become dirty
    The outside temperature is extremely high or low
    The sensor voltage has become abnormal
    Certification for the Blind Spot Monitor system

For vehicles sold in the U.S.A. FCC ID: OAYSRR3A

This device complies with part 15 of the FCC Rules. Operation is subject to the following three conditions:

    This device may not cause harmful interference, and
    this device must accept any interference received, including interference that may cause undesired operation.

FCC Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada Applicable law: Canada 310

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ- ing interference that may cause undesired operation of the device.

Frequency bands: 24.05 – 24.25 GHz Output power: less than 20 milliwatts

WARNING

    Handling the radar sensor

One Blind Spot Monitor sensor installed inside the left and right side of the vehicle rear bumper respectively. Observe the following to ensure the Blind Spot Monitor system can function correctly.

    Keep the sensor and its surrounding area on the bumper clean at all times.
    Do not subject the sensor or surrounding area on the bumper to a strong impact. If the sensor moves even slightly off position, the system may mal- function and vehicles that enter the detection area may not be detected. If the sensor or surrounding area is subject to a strong impact, always have the area inspected by your Toyota dealer.
    Do not disassemble the sensor.
    Do not attach accessories or stickers to the sensor or surrounding area on the bumper.
    Do not modify the sensor or surrounding area on the bumper.
    Do not paint the rear bumper any color other than an official Toyota color.

The areas that vehicles can be detected in are outlined below.

The range of the detection area extends to:

Approximately 11.5 ft. (3.5 m) from the side of the vehicle

The first 1.6 ft. (0.5 m) from the side of the vehicle is not in the detection area

Approximately 3.3 ft. (1 m) for- ward of the rear bumper

    The Blind Spot Monitor function is operational when
    The BSM function is set to on.
    Vehicle speed is greater than approximately 25 mph (40 km/h).
    The Blind Spot Monitor function will detect a vehicle when
    A vehicle in an adjacent lane overtakes the vehicle.
    Another vehicle enters the detection area when it changes lanes.
    You overtake a vehicle in adjacent lane.
    Conditions under which the Blind Spot Monitor function will not detect a vehicle

The Blind Spot Monitor function is not designed to detect the following types of vehicles and/or objects:

    Small motorcycles, bicycles, pedestrians, etc.*
    Vehicles traveling in the opposite direction
    Guardrails, walls, signs, parked vehicles and similar stationary objects*
    Following vehicles that are in the same lane*
    Vehicles driving 2 lanes across from your vehicle*
    Vehicles which are being overtaken rapidly by your vehicle.

*: Depending on conditions, detection of a vehicle and/or object may occur

    Conditions under which the Blind Spot Monitor function may not func- tion correctly
    The Blind Spot Monitor function may not detect vehicles correctly in the fol- lowing conditions:
    During bad weather such as heavy rain, fog, snow, etc.
    When ice or mud, etc., is attached to the rear bumper
    When driving on a road surface that is wet due to rain, standing water, etc.
    When there is a significant difference in speed between your vehicle and the vehicle that enters the detection area
    When a vehicle is in the detection area from a stop and remains in the detection area as your vehicle accelerates
    When driving up or down consecutive steep inclines, such as hills, a dip in the road, etc.
    When multiple vehicles approach with only a small gap between each vehicle
    When vehicle lanes are wide, and the vehicle in the next lane is too far away from your vehicle
    When the vehicle that enters the detection area is traveling at about the same speed as your vehicle
    When towing anything such as trailer, boat, etc.
    When there is a significant difference in height between your vehicle and the vehicle that enters the detection area
    Directly after the BSM function is set to on
    When towing a trailer
    When items such as a bicycle carrier are installed on the rear of the vehi- cle
    Instances of the Blind Spot Monitor function unnecessarily detecting a vehi- cle and/or object may increase under the following conditions:
    When there is only a short distance between your vehicle and a guardrail, wall, etc.
    When there is only a short distance between your vehicle and a following vehicle
    When vehicle lanes are narrow and a vehicle driving 2 lanes across from your vehicle enters the detection area
    When items such as a bicycle carrier are installed on the rear of the vehi- cle

Approaching vehicles Detection areas

The areas that vehicles can be detected in are outlined below.

To give the driver a more consistent time to react, the buzzer can alert for faster vehicles from farther away.

Example:

Approaching vehicle

Speed

1 Approximate

alert distance

Fast

18 mph (28 km/h)

65 ft. (20 m)

Slow

5 mph (8 km/h)

18 ft. (5.5 m)

    The Rear Cross Traffic Alert function is operational when
    The RCTA function is set to on.
    The shift lever is in R.
    Vehicle speed is less than approximately 5 mph (8 km/h).
    Approaching vehicle speed is between approximately 5 mph (8 km/h) and 18 mph (28 km/h).
    Conditions under which the Rear Cross Traffic Alert function will not detect a vehicle

The Rear Cross Traffic Alert function is not designed to detect the following types of vehicles and/or objects.

    Small motorcycles, bicycles, pedestrians, etc.*
    Vehicles approaching from directly behind
    Guardrails, walls, signs, parked vehicles and similar stationary objects*
    Vehicles moving away from your vehicle
    Vehicles approaching from the parking spaces next to your vehicle*
    Vehicles backing up in the parking space next to your vehicle*

*: Depending on conditions, detection of a vehicle and/or object may occur.

    Conditions under which the Rear Cross Traffic Alert function may not function correctly

The Rear Cross Traffic Alert function may not detect vehicles correctly in the following conditions.

    When ice or mud, etc., is attached to the rear bumper
    During bad weather such as heavy rain, fog, snow, etc.
    When multiple vehicles approach continuously
    Shallow angle parking
    When a vehicle is approaching at high speed
    When parking on a steep incline, such as hills, a dip in the road, etc.
    Directly after the RCTA function is set to on
    Directly after the engine is started with the RCTA function is on
    When towing a trailer
    Vehicles that the sensors cannot detect because of obstacles

“2WD” (high speed position, two-wheel drive)

Use this for normal driving on dry hard-surfaced roads. This position gives greater economy, quietest ride and least wear.

Use this for driving only on tracks that permit the tires slide, like off-road, icy or snow-covered roads. This position provides greater traction than two-wheel drive.

The “4HI” indicator will come on.

Use this for maximum power and traction. Use “4L” for climbing or descending steep hills, off-road driving, and hard pulling in sand, mud or deep snow.

The “4LO” indicator will come on.

: If equipped

    Shifting from “2WD” to “4H”

The “4HI” indicator will come on.

    Shifting from “4H” to “2WD”

The “4HI” indicator will go off.

    Shifting from “4H” to “4L”

Shift the shift lever to N.

Push and turn the front-wheel drive control switch to “4L”.

The “4LO” indicator will come on.

    Shifting from “4L” to “4H”

Shift the shift lever to N.

Push and turn the front-wheel drive control switch to “4H”.

The “4LO” indicator will go off.

    When the front-wheel drive control switch is shifted to “4L”

VSC is automatically turned off.

    If the “4HI” indicator flashes

The transfer mode may not successfully change. Drive straight ahead while accelerating or decelerating, or drive in reverse.

    If the “4LO” indicator continues to flash

The transfer mode may not successfully change. Operate the front-wheel drive control switch again.

    If the “4LO” indicator continues to flash and a buzzer sounds

The shift lever is not in N and/or the vehicle is moving. Stop the vehicle com- pletely, shift the shift lever to N and make sure that the indicator stops flash- ing.

    If the “4HI” or “4LO” indicator flashes rapidly

There may be a malfunction in the four-wheel drive system. Have the vehicle inspected by your Toyota dealer immediately.

    Four-wheel drive usage frequency

You should drive in four-wheel drive for at least 10 miles (16 km) each month. This will assure that the front drive components are lubricated.

Press the briefly to turn on the system.

The “AUTO LSD” indicator will come on.

To turn off the system, press again.

Stop the vehicle completely, and

press for more than 3 sec- onds.

The “AUTO LSD” and VSC off indicators will come on.

To turn off the system, press again.

    If the brake system overheats

The system will cease operation and a buzzer will alert the driver. At this time, the “TRAC OFF” indicator will come on. Stop the vehicle in a safe place. (There is no problem with continuing normal driving.) The system will be auto- matically restored after a short time.

    ABS (Anti-lock Brake System)

    Brake assist

Generates an increased level of braking force after the brake pedal is depressed when the system detects a panic stop situation

    VSC (Vehicle Stability Control)

Helps the driver to control skidding when swerving suddenly or turning on slippery road surfaces

    Trailer Sway Control

Helps the driver to control trailer sway by selectively applying brake pressure for individual wheels and reducing driving torque when trailer sway is detected

    TRAC (Traction Control) for 2WD models and 2WD mode on 4WD models

Helps to maintain drive power and prevent the drive wheels from spinning when starting the vehicle or accelerating on slippery roads

    Hill-start assist control

Helps to reduce the backward movement of the vehicle when start- ing on an uphill

The slip indicator light will flash

while the TRAC/VSC/Trailer Sway Control systems are operating.

If the vehicle gets stuck in mud, dirt or snow, the TRAC system may reduce power from the engine to the wheels. Pressing to turn the system off may make it easier for you to rock the vehicle in order

to free it.

    Turning off TRAC system

2WD models and 2WD mode on 4WD models To turn the TRAC system off,

press .

The “AUTO LSD” indicator light will come on.

Press again to turn the system back on.

4H mode on 4WD models

To turn the TRAC system off, press .

The “TRAC OFF” indicator light will come on.

Press again to turn the system back on.

4L mode on 4WD models

To turn the TRAC system off, press and hold for more than 3 seconds while the vehi-

cle is stopped.

The VSC off and “TRAC OFF” indicator light will come on.

Press again to turn the system back on.

    Turning off TRAC, VSC and Trailer Sway Control systems

2WD models and 2WD mode on 4WD models

To turn the TRAC, VSC and Trailer Sway Control systems off, stop the vehi-

cle completely, and then press and hold for more than 3 seconds while the AUTO LSD system is activated. (P. 318)

4H mode on 4WD models

To turn the TRAC, VSC and Trailer Sway Control systems off, press and hold for more than 3 seconds while the vehicle is stopped.

The VSC off and “TRAC OFF” indicator light will come on.

Press again to turn the system back on.

    When the VSC or TRAC system is turned off by pressing the VSC off switch

On vehicles with pre-collision system, pre-collision brake assist and pre-colli- sion braking will also be disabled. The PCS warning light will come on and the message will be shown on the multi-information display. (P. 500)

    When the “TRAC OFF” indicator light comes on even if VSC off switch has not been pressed.

TRAC cannot be operated. Contact your Toyota dealer.

    Operating conditions of hill-start assist control

When the following four conditions are met, the hill-start assist control will operate:

    The shift lever is in a position other than P or N (when starting off forward/ backward on an upward incline)
    The vehicle is stopped
    The accelerator pedal is not depressed
    The parking brake is not engaged
    Automatic system cancelation of hill-start assist control

The hill-start assist control will turn off in any of the following situations: The shift lever is shifted to P or N

    The accelerator pedal is depressed
    The parking brake is engaged
    2 seconds at maximum elapsed after the brake pedal is released
    Sounds and vibrations caused by the ABS, brake assist, VSC, TRAC, Trailer Sway Control and hill-start assist control systems
    A sound may be heard from the engine compartment when the brake pedal is depressed repeatedly, when the engine is started or just after the vehicle begins to move. This sound does not indicate that a malfunction has occurred in any of these systems.
    Any of the following conditions may occur when the above systems are operating. None of these indicates that a malfunction has occurred.
    Vibrations may be felt through the vehicle body and steering.
    A motor sound may be heard also after the vehicle comes to a stop.
    The brake pedal may pulsate slightly after the ABS is activated.
    The brake pedal may move down slightly after the ABS is activated.
    Automatic reactivation of TRAC, Trailer Sway Control and VSC systems After turning the TRAC, Trailer Sway Control and VSC systems off, the sys- tems will be automatically re-enabled in the following situations:
    When the engine switch is turned off
    If only the TRAC system is turned off, the TRAC will turn on when vehicle speed increases

If both the TRAC and VSC systems are turned off, automatic re-enabling will not occur when vehicle speed increases.

    If the brake system overheats

TRAC will cease operation, and the slip indicator will change from flashing to being on continuously to alert the driver. Stop the vehicle in a safe place. (There is no problem with continuing normal driving.)

    Shifting to “4L”

VSC and Trailer Sway Control are automatically turned off.

WARNING

    The ABS does not operate effectively when
    The limits of tire gripping performance have been exceeded (such as excessively worn tires on a snow covered road).
    The vehicle hydroplanes while driving at high speed on wet or slick roads.
    Stopping distance when the ABS is operating may exceed that of nor- mal conditions

The ABS is not designed to shorten the vehicle’s stopping distance. Always maintain a safe distance from the vehicle in front of you, especially in the following situations:

    When driving on dirt, gravel or snow-covered roads
    When driving with tire chains
    When driving over bumps in the road
    When driving over roads with potholes or uneven surfaces
    TRAC/VSC may not operate effectively when

Directional control and power may not be achievable while driving on slip- pery road surfaces, even if the TRAC/VSC system is operating.

Drive the vehicle carefully in conditions where stability and power may be lost.

    Hill-start assist control does not operate effectively when
    Do not overly rely on hill-start assist control. Hill-start assist control may not operate effectively on steep inclines and roads covered with ice.
    Unlike the parking brake, hill-start assist control is not intended to hold the vehicle stationary for an extended period of time. Do not attempt to use hill-start assist control to hold the vehicle on an incline, as doing so may lead to an accident.
    When the TRAC/VSC/Trailer Sway Control are activated

The slip indicator light flashes. Always drive carefully. Reckless driving may cause an accident. Exercise particular care when the indicator light flashes.

WARNING

    When the TRAC/VSC/Trailer Sway Control systems are turned off

Be especially careful and drive at a speed appropriate to the road condi- tions. As these are the systems to help ensure vehicle stability and driving force, do not turn the TRAC/VSC/Trailer Sway Control systems off unless necessary.

Trailer Sway Control is part of the VSC system and will not operate if VSC is turned off or experiences a malfunction.

    Replacing tires

Make sure that all tires are of the specified size, brand, tread pattern and total load capacity. In addition, make sure that the tires are inflated to the recommended tire inflation pressure level.

The ABS, TRAC, VSC and Trailer Sway Control systems will not function correctly if different tires are installed on the vehicle.

Contact your Toyota dealer for further information when replacing tires or wheels.

    Handling of tires and the suspension

Using tires with any kind of problem or modifying the suspension will affect the driving assist systems, and may cause a system to malfunction.

    Trailer Sway Control precaution

The Trailer Sway Control system is not able to reduce trailer sway in all situ- ations. Depending on many factors such as the conditions of the vehicle, trailer, road surface, and driving environment, the Trailer Sway Control sys- tem may not be effective. Refer to your trailer owner’s manual for informa- tion on how to tow your trailer properly.

    If trailer sway occurs

Observe the following precautions.

Failure to do so may cause death or serious injury.

    Firmly grip the steering wheel. Steer straight ahead.

Do not try to control trailer swaying by turning the steering wheel.

    Begin releasing the accelerator pedal immediately but very gradually to reduce speed.

Do not increase speed. Do not apply vehicle brakes.

If you make no extreme correction with the steering or brakes, your vehicle and trailer should stabilize. (P. 213)

Trailer connection indicator

When the trailer has been connected, the indicator comes on green.

GAIN (+/-) selection button

Pressing the GAIN (+/-) buttons will adjust the amount of power that can be outputted to the trailer brakes. The gain can be adjusted from 0 (no trailer braking) to 10 (maximum output) in 0.5 increments. Each press of the button will increase or decrease the gain setting by one step. The gain value will appear in the multi-information display.

: If equipped

Trailer brake type can be selected by using the multi-information. The combination meter will show which trailer brake type is selected in the multi-information display.

Adjusting this slider position will engage the trailer’s brakes only. If the manual TRAILER BRAKE OUTPUT slider is used while the vehicle brake is applied, the greater of the two outputs will be sent to the trailer brakes.

Press “-¼” or “-¾” of meter control switches and select .

Press “<” or “>” of meter control switches and select “Vehicle Set- tings”, and press .

Press “<” or “>” of meter control switches and select “TBC Trailer Type”, and press to select the correct type of trailer brakes that are equipped on the trailer.

Changing trailer brake type will cause the current gain setting to reset to zero. Make sure to set the gain as described in the following sec- tion.

Gain setting on trailer brake controller should be set for a specific tow- ing condition. Gain setting should be adjusted each time the vehicle load, trailer load, road conditions, or weather changes. Setting the gain value to 0 will disable the trailer brake controller output.

Make sure the trailer brakes are in good working condition and functioning normally. See trailer dealer if necessary.

Hook up the trailer and make proper electrical connections.

Select the correct type of trailer brakes that are equipped on the trailer by using the multi-information display.

Drive vehicle with trailer attached on a level road surface similar to towing condition and in traffic-free environment. Driving speed should be approximately 20 - 25 mph [35 - 40 km/h].

Using the GAIN (+/-) selection buttons, set a starting gain of 5.0.

While driving 20 - 25 mph [35 - 40 km/h], fully apply the manual TRAILER BRAKE OUTPUT slider.

For confirmation, repeat steps and until desired gain setting is reached (just below point of trailer wheel lock-up).

    When using the trailer brake control system

Please turn off the intuitive parking assist while towing a trailer. If left on, sonar sensors will detect the trailer being towed.

    When setting the gain

Wheel lock-up occurs when the trailer wheel squeals or tire smoke occurs. Trailer wheels may not lock-up while driving heavily loaded trailer. During this case, adjust the Trailer gain to the highest allowable setting for the towing condition.

    When disconnecting and reconnecting battery terminals

The gain setting data will be reset.

WARNING

    Trailer brake type setting

It is the responsibility of the driver to make sure the trailer brakes are func- tioning normally and adjusted appropriately. Failure to check and maintain trailer brakes may result in loss of vehicle control, crash, or serious injury. Trailer brake control system will work with most electric and electric-over- hydraulic trailer braking systems up to 3 axles (24A output to trailer brakes). Please be sure to test compatibility with the system at low speeds and in a safe area. If a warning message appears in the multi-information display (P. 500), have the vehicle inspected by your Toyota dealer immediately. Some electric-over-hydraulic trailer brakes will take some minimum output to activate. Trailer brake control system will not work with trailer hydraulic surge brakes.

    When driving on slippery road surfaces

When stopping with ABS activated, output to the trailer might be reduced in order to reduce the likelihood of trailer wheels to lock. The trailer is not equipped with ABS. Drive safely on slippery road surfaces.


Download Manual
