Specifications
Maintenance data (fuel, oil level, etc.)
2WD models
|
Cab type |
Double Cab |
CrewMax |
|
|
Bed type |
Standard |
Long |
Short |
|
Overall length |
228.9 in. (5815 mm) |
247.8 in. (6295 mm) |
228.9 in. (5815 mm) |
|
Overall width |
79.9 in. (2030 mm) |
||
|
Overall height*1 |
78.3 in. (1990 mm)*2 |
78.1 in. (1985 mm)*2 |
|
|
78.1 in. (1985 mm)*3,*4 |
78.0 in. (1980mm)*3,*4 |
||
|
Wheelbase |
145.6 in. (3700 mm) |
164.5 in. (4180 mm) |
145.6 in. (3700 mm) |
|
Front tread |
67.9 in. (1725 mm) |
||
|
Rear tread |
67.9 in. (1725 mm) |
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
|
Cab type |
Double Cab |
CrewMax |
|
|
Bed type |
Standard |
Long |
Short |
|
Overall length |
228.9 in. (5815 mm) |
247.8 in. (6295 mm) |
228.9 in. (5815 mm) |
|
Overall width |
79.9 in. (2030 mm) |
||
|
Overall height*1 |
78.7 in. (2000 mm)*2 |
78.6 in. (1995 mm)*2 |
|
|
78.6 in. (1995 mm)*3,*4 |
78.3 in. (1990mm)*3,*4 |
||
|
Wheelbase |
145.6 in. (3700 mm) |
164.5 in. (4180 mm) |
145.6 in. (3700 mm) |
|
Front tread |
67.9 in. (1725 mm) |
||
|
Rear tread |
67.9 in. (1725 mm) |
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
|
Seating capacity |
Vehicles with front sep- arated type seats |
Vehicles with front bench type seat |
|
5 (Front 2, Rear 3) |
6 (Front 3, Rear 3) |
|
Model code*1 |
Engine |
Driving system |
Bed type |
Vehicle capacity weight (Occupants + lug- gage) |
|
USK51L- CRTSKA |
3UR-FE engine |
2WD |
Standard |
1605 lb. (730 kg) |
|
1540 lb. (700 kg)*2 |
||||
|
1425 lb. (645 kg)*3 |
||||
|
USK51L- CRTLKA |
1570 lb. (710 kg) |
|||
|
1505 lb. (680 kg)*2 |
||||
|
1385 lb. (630 kg)*3 |
||||
|
USK52L- CHTSKA |
Long |
1580 lb. (715 kg) |
||
|
1515 lb. (690 kg)*2 |
||||
|
1400 lb. (635 kg)*3 |
||||
|
USK56L- CRTSKA |
4WD |
Standard |
1500 lb. (680 kg) |
|
|
1435 lb. (650 kg)*2 |
||||
|
1320 lb. (600 kg)*3 |
||||
|
USK56L- CRTLKA |
1485 lb. (675 kg) |
|||
|
1420 lb. (645 kg)*2 |
||||
|
1300 lb. (590 kg)*3 |
||||
|
USK57L- CHTSKA |
Long |
1475 lb. (670 kg) |
||
|
1410 lb. (640 kg)*2 |
||||
|
1290 lb. (585 kg)*3 |
*1: The model code is indicated on the Certification Label. (P. 541)
*2: Vehicles with towing package
*3: Vehicles with towing package and large fuel tank
CrewMax models
|
Model code*1 |
Engine |
Driving system |
Bed type |
Vehicle capacity weight (Occupants + lug- gage) |
|
USK51L- PSTSKA |
3UR-FE engine |
2WD |
Short |
1545 lb. (700 kg) |
|
1510 lb. (685 kg)*2 |
||||
|
1480 lb. (670 kg)*3 |
||||
|
1360 lb. (620 kg)*4 |
||||
|
1445 lb. (655 kg)*5 |
||||
|
1325 lb. (600 kg)*6 |
||||
|
USK51L- PSTLKA |
1510 lb. (685 kg) |
|||
|
1475 lb. (670 kg)*2 |
||||
|
1445 lb. (655 kg)*3 |
||||
|
1325 lb. (600 kg)*4 |
||||
|
1410 lb. (640 kg)*5 |
||||
|
1290 lb. (585 kg)*6 |
||||
|
USK51L- PSTZKA |
1495 lb. (680 kg) |
|||
|
1460 lb. (665 kg)*2 |
||||
|
1430 lb. (650 kg)*3 |
||||
|
1315 lb. (595 kg)*4 |
||||
|
1395 lb. (635 kg)*5 |
||||
|
1280 lb. (580 kg)*6 |
|
Model code*1 |
Engine |
Driving system |
Bed type |
Vehicle capacity weight (Occupants + lug- gage) |
|
USK56L- PSTSKA |
3UR-FE engine |
4WD |
Short |
1450 lb. (660 kg) |
|
1415 lb. (640 kg)*2 |
||||
|
1385 lb. (630 kg)*3 |
||||
|
1270 lb. (575 kg)*4 |
||||
|
1350 lb. (610 kg)*5 |
||||
|
1235 lb. (560 kg)*6 |
||||
|
USK56L- PSTLKA |
1400 lb. (635 kg) |
|||
|
1365 lb. (620 kg)*2 |
||||
|
1335 lb. (605 kg)*3 |
||||
|
1220 lb. (555 kg)*4 |
||||
|
1300 lb. (590 kg)*5 |
||||
|
1185 lb. (535 kg)*6 |
||||
|
USK56L- PSTZKA |
1405 lb. (635 kg) |
|||
|
1370 lb. (620 kg)*2 |
||||
|
1340 lb. (605 kg)*3 |
||||
|
1220 lb. (555 kg)*4 |
||||
|
1305 lb. (590 kg)*5 |
||||
|
1185 lb. (540 kg)*6 |
*1: The model code is indicated on the Certification Label. (P. 541)
*2: Vehicles with electric moon roof
*3: Vehicles with towing package
*4: Vehicles with towing package and large fuel tank
*5: Vehicles with towing package and electric moon roof
*6: Vehicles with towing package, electric moon roof and large fuel tank
The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel.
This number is also on the Cer- tification Label.
The engine number is stamped on the engine block as shown.
|
Model |
3UR-FE |
|
Type |
8-cylinder V-type, 4-cycle, gasoline |
|
Bore and stroke |
3.70 x 4.02 in. (94.0 x 102.0 mm) |
|
Displacement |
345.6 cu.in. (5663 cm3) |
|
Drive belt tension |
Automatic adjustment |
|
Valve clearance (engine cold) |
Automatic adjustment |
|
Fuel type |
Unleaded gasoline only |
|
Octane rating (Unleaded gasoline) |
87 (Research Octane Number 91) or higher |
|
Fuel tank capacity (Reference) |
Standard fuel tank: 26.4 gal. (100.0 L, 22.0 Imp.gal.) Large fuel tank: 38.0 gal. (144.0 L, 31.7 Imp.gal.) |
|
Oil capacity |
|
|
(Drain and refill - reference*) |
|
|
With filter |
8.5 qt. (8.0 L, 7.0 Imp.qt.) |
|
Without filter |
7.9 qt. (7.5 L, 6.6 Imp.qt.) |
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the dipstick.
Oil grade: ILSAC GF-5 multigrade engine oil Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for good fuel economy and good starting in cold weather.
If SAE 0W-20 is not available, SAE 5W-20 oil may be used. However, it must be replaced with SAE 0W-20 at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
The International Lubricant Specification Advisory Commit- tee (ILSAC) Certification Mark is added to some oil containers to help you select the oil you should use.
|
Capacity |
Vehicles without towing package 11.4 qt. (10.8 L, 9.5 Imp.qt.) Vehicles with towing package 12.4 qt. (11.7 L, 10.3 Imp.qt.) |
|
Coolant type |
Use either of the following. “Toyota Super Long Life Coolant”
Similar high-quality ethylene glycol- based non-silicate, non-amine, non- nitrite, and non-borate coolant with long-life hybrid organic acid technology
Do not use plain water alone. |
|
Spark plug Make |
DENSO SK20HR11 |
|
Gap |
0.043 in. (1.1 mm) |
|
Battery Open voltage at 68°F (20°C): |
12.6 - 12.8 V Fully charged 12.2 - 12.4 V Half charged 11.8 - 12.0 V Discharged (Voltage is checked 20 minutes after the engine and all lights are turned off.) |
|
Charging rates |
5 A max. |
|
Oil capacity |
Front (4WD models) |
2.2 qt. (2.05 L, 1.8 Imp.qt.) |
|
|
Rear |
Double Cab models |
With standard bed 3.8 qt. (3.60 L, 3.2 Imp.qt.) With long bed 4.0 qt. (3.75 L, 3.3 Imp.qt.) |
|
|
CrewMax models |
2WD models 4.0 qt. (3.75 L, 3.3 Imp.qt.) 4WD models 3.8 qt. (3.60 L, 3.2 Imp.qt.) |
||
|
Oil type and viscosity* |
Toyota Genuine Differential Gear Oil LT 75W-85 GL-5 or equivalent |
*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of matching quality to satisfy the above specification. Please contact your Toyota dealer for further details.
|
Fluid capacity* |
11.7 qt. (11.1 L, 9.8 Imp.qt.) |
|
Fluid type |
Toyota Genuine ATF WS |
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Toyota dealer.
|
Oil capacity |
1.6 qt. (1.5 L, 1.3 Imp.qt.) |
|
Oil type |
Toyota Genuine Transfer Gear oil LF or equivalent |
|
Recommended oil viscosity |
SAE 75W |
|
Pedal clearance*1 |
4.1 in. (104 mm) Min. |
|
Pedal free play |
0.04 - 0.24 in. (1 - 6 mm) |
|
Brake pad wear limit |
0.04 in. (1.0 mm) |
|
Parking brake lining wear limit |
0.04 in. (1.0 mm) |
|
Parking brake pedal travel*2 |
6 — 9 clicks |
|
Fluid type |
FMVSS No. 116 DOT 3 or SAE J1703 |
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) with the engine running.
*2: Parking brake pedal travel when depressed with a force of 67.1 lbf (300 N, 30.6 kgf).
|
Free play |
Less than 1.2 in. (30 mm) |
|
Power steering fluid type |
Automatic transmission fluid DEXRON® II or III |
Type A
|
Tire size |
P255/70R18 112T |
|
Tire inflation pressure (Recommended cold tire inflation pressure) |
Front tires: 30 psi (210 kPa, 2.1 kgf/cm2 or bar) Rear tires: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) Spare tire: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) |
|
Wheel size |
18 x 8J |
|
Wheel nut torque |
Steel wheels: 154 ft·lbf (209 N·m, 21.3 kgf·m) Aluminum wheels: 97 ft·lbf (131 N·m, 13.4 kgf·m) |
Type B
|
Tire size |
P275/65R18 114T |
|
Tire inflation pressure (Recommended cold tire inflation pressure) |
Front tires: 30 psi (210 kPa, 2.1 kgf/cm2 or bar) Rear tires: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) Spare tire: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) |
|
Wheel size |
18 x 8J |
|
Wheel nut torque |
Steel wheels: 154 ft·lbf (209 N·m, 21.3 kgf·m) Aluminum wheels: 97 ft·lbf (131 N·m, 13.4 kgf·m) |
Type C
|
Tire size |
P275/65R18 114T, P255/70R18 112T (spare tire) |
|
Tire inflation pressure (Recommended cold tire inflation pressure) |
Front tires: 30 psi (210 kPa, 2.1 kgf/cm2 or bar) Rear tires: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) Spare tire: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) |
|
Wheel size |
18 x 8J, 18 x 8J (spare wheel) |
|
Wheel nut torque |
Steel wheels: 154 ft·lbf (209 N·m, 21.3 kgf·m) Aluminum wheels: 97 ft·lbf (131 N·m, 13.4 kgf·m) |
Type D
|
Tire size |
P275/55R20 111H, P255/70R18 112T (spare tire) |
|
Tire inflation pressure (Recommended cold tire inflation pressure) |
Front tires: 30 psi (210 kPa, 2.1 kgf/cm2 or bar) Rear tires: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) Spare tire: 33 psi (230 kPa, 2.3 kgf/cm2 or bar) |
|
Wheel size |
20 x 8J, 18 x 8J (spare wheel) |
|
Wheel nut torque |
Steel wheels: 154 ft·lbf (209 N·m, 21.3 kgf·m) Aluminum wheels: 97 ft·lbf (131 N·m, 13.4 kgf·m) |
|
Light Bulbs |
Bulb No. |
W |
Type |
|
|
Exterior |
Headlights*2 |
HB2 |
60/55 |
A |
|
Front fog lights (bulb type)*1 |
H16 |
19 |
B |
|
|
Front side marker lights |
W5W |
5 |
D |
|
|
Front turn signal lights/ parking lights*2 |
4157NAK |
27/8 |
C |
|
|
Front turn signal lights*3 |
7444NA |
28 |
C |
|
|
Rear turn signal lights |
921 |
16 |
D |
|
|
Stop/tail and rear side marker lights |
3157KX |
27/8 |
D |
|
|
Back-up lights |
7440 |
21 |
D |
|
|
License plate lights |
W5W |
5 |
D |
|
|
High mounted stoplight and cargo lamp |
921 |
16 |
D |
|
|
Outer foot light |
— |
5 |
D |
|
|
Interior |
Vanity lights |
7065 |
5 |
E |
|
Personal/interior lights Front Rear |
W5W W5W |
5 5 |
D D |
|
|
Foot well lighting |
— |
1.4 |
D |
*1: If equipped
*2: Vehicles with bulb type headlights
*3: Vehicles with LED type headlights A: HB2 halogen bulbs
B: H16 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear) E: Double end bulbs
In very few cases, driveability problems may be caused by the brand of gaso- line you are using. If driveability problems persist, try changing the brand of gasoline. If this does not correct the problem, consult your Toyota dealer.
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated gasolines, are available in some cities. These fuels are typically acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced vehicle emissions.
DO NOT use any flex-fuel or gasoline that could contain more than 15% etha- nol, including from any pump labeled E30, E50, E85 (which are only some examples of fuel containing more than 15% ethanol).
Some gasoline contains an octane enhancing additive called MMT (Methylcy- clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this happens, contact your Toyota dealer for service.
NOTICE
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters causing the emission control system to malfunction.
Other gasohol may cause fuel system damage or vehicle performance problems.
At worst, this will lead to engine damage.
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encountered after using a different type of fuel, discontinue the use of that type of fuel.
Take care not to spill gasohol. It can damage your vehicle’s paint.
DOT and Tire Identification Number (TIN) (P. 555)
Location of treadwear indicators (P. 426) Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Load limit at maximum cold tire inflation pressure (P. 559) Maximum cold tire inflation pressure (P. 559) This means the pressure to which a tire may be inflated.
A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.
Summer tire or all season tire (P. 431)
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.
Type A Type B

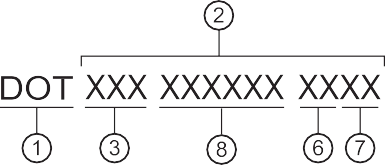

Tire Identification Number (TIN)
Tire manufacturer’s identification mark Tire size code
Manufacturer’s optional tire type code (3 or 4 letters) Manufacturing week
Manufacturing year Manufacturer’s code
*: The DOT symbol certifies that the tire conforms to applicable Federal
Motor Vehicle Safety Standards.
The illustration indicates typical tire size.
Tire use
(P = Passenger car, T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal) Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
Inner liner Reinforcing rubber Carcass
Rim lines Bead wires Chafer
This information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answer any questions you may have as you read this information.
All passenger vehicle tires must conform to Federal Safety Require- ments in addition to these grades. Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width.
For example: Treadwear 200 Traction AA Temperature A
The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speci- fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2) times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi- tions of their use. Performance may differ significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.
The traction grades, from highest to lowest, are AA, A, B and C, and they represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking (straight ahead) traction tests and does not include cornering (turn- ing) traction.
The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissi- pate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Stan- dard No. 109.
Grades B and A represent higher levels of performance on the labo- ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa- rately or in combination, can cause heat buildup and possible tire failure.
|
Tire related term |
Meaning |
|
Cold tire inflation pres- sure |
Tire pressure when the vehicle has been parked for three hours or more, or has not been driven more than 1 mile or 1.5 km under that condition |
|
Maximum inflation pressure |
The maximum cold inflated pressure to which a tire may be inflated, shown on the sidewall of the tire |
|
Recommended infla- tion pressure |
Cold tire inflation pressure recommended by a manufacturer |
|
Accessory weight |
The combined weight (in excess of those stan- dard items which may be replaced) of auto- matic transmission, power steering, power brakes, power windows, power seats, radio and heater, to the extent that these items are available as factory-installed equipment (whether installed or not) |
|
Curb weight |
The weight of a motor vehicle with standard equipment, including the maximum capacity of fuel, oil and coolant, and if so equipped, air conditioning and additional weight optional engine |
|
Maximum loaded vehi- cle weight |
The sum of: Curb weight
Accessory weight
Vehicle capacity weight
Production options weight
|
|
Normal occupant weight |
150 lb. (68 kg) times the number of occupants specified in the second column of Table 1* that follows |
|
Occupant distribution |
Distribution of occupants in a vehicle as speci- fied in the third column of Table 1* below |
|
Production options weight |
The combined weight of installed regular pro- duction options weighing over 5 lb. (2.3 kg) in excess of the standard items which they replace, not previously considered in curb weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim |
|
Tire related term |
Meaning |
|
Rim |
A metal support for a tire or a tire and tube assembly upon which the tire beads are seated |
|
Rim diameter (Wheel diameter) |
Nominal diameter of the bead seat |
|
Rim size designation |
Rim diameter and width |
|
Rim type designation |
The industry manufacturer’s designation for a rim by style or code |
|
Rim width |
Nominal distance between rim flanges |
|
Vehicle capacity weight (Total load capacity) |
The rated cargo and luggage load plus 150 lb. (68 kg) times the vehicle’s designated seating capacity |
|
Vehicle maximum load on the tire |
The load on an individual tire that is deter- mined by distributing to each axle its share of the maximum loaded vehicle weight, and dividing by two |
|
Vehicle normal load on the tire |
The load on an individual tire that is deter- mined by distributing to each axle its share of curb weight, accessory weight, and normal occupant weight (distributed in accordance with Table 1* below), and dividing by two |
|
Weather side |
The surface area of the rim not covered by the inflated tire |
|
Bead |
The part of the tire that is made of steel wires, wrapped or reinforced by ply cords and that is shaped to fit the rim |
|
Bead separation |
A breakdown of the bond between compo- nents in the bead |
|
Bias ply tire |
A pneumatic tire in which the ply cords that extend to the beads are laid at alternate angles substantially less than 90 degrees to the centerline of the tread |
|
Carcass |
The tire structure, except tread and sidewall rubber which, when inflated, bears the load |
|
Chunking |
The breaking away of pieces of the tread or sidewall |
|
Cord |
The strands forming the plies in the tire |
|
Tire related term |
Meaning |
|
Cord separation |
The parting of cords from adjacent rubber compounds |
|
Cracking |
Any parting within the tread, sidewall, or inner- liner of the tire extending to cord material |
|
CT |
A pneumatic tire with an inverted flange tire and rim system in which the rim is designed with rim flanges pointed radially inward and the tire is designed to fit on the underside of the rim in a manner that encloses the rim flanges inside the air cavity of the tire |
|
Extra load tire |
A tire designed to operate at higher loads and at higher inflation pressures than the corre- sponding standard tire |
|
Groove |
The space between two adjacent tread ribs |
|
Innerliner |
The layer(s) forming the inside surface of a tubeless tire that contains the inflating medium within the tire |
|
Innerliner separation |
The parting of the innerliner from cord material in the carcass |
|
Intended outboard sidewall |
The sidewall that contains a whitewall, bears white lettering, or bears manufac- turer, brand, and/or model name molding that is higher or deeper than the same molding on the other sidewall of the tire, or
The outward facing sidewall of an asym- metrical tire that has a particular side that must always face outward when mounted on a vehicle
|
|
Light truck (LT) tire |
A tire designated by its manufacturer as pri- marily intended for use on lightweight trucks or multipurpose passenger vehicles |
|
Load rating |
The maximum load that a tire is rated to carry for a given inflation pressure |
|
Maximum load rating |
The load rating for a tire at the maximum per- missible inflation pressure for that tire |
|
Maximum permissible inflation pressure |
The maximum cold inflation pressure to which a tire may be inflated |
|
Measuring rim |
The rim on which a tire is fitted for physical dimension requirements |
|
Tire related term |
Meaning |
|
Open splice |
Any parting at any junction of tread, sidewall, or innerliner that extends to cord material |
|
Outer diameter |
The overall diameter of an inflated new tire |
|
Overall width |
The linear distance between the exteriors of the sidewalls of an inflated tire, including ele- vations due to labeling, decorations, or protec- tive bands or ribs |
|
Passenger car tire |
A tire intended for use on passenger cars, multipurpose passenger vehicles, and trucks, that have a gross vehicle weight rating (GVWR) of 10,000 lb. or less. |
|
Ply |
A layer of rubber-coated parallel cords |
|
Ply separation |
A parting of rubber compound between adja- cent plies |
|
Pneumatic tire |
A mechanical device made of rubber, chemi- cals, fabric and steel or other materials, that, when mounted on an automotive wheel, pro- vides the traction and contains the gas or fluid that sustains the load |
|
Radial ply tire |
A pneumatic tire in which the ply cords that extend to the beads are laid at substantially 90 degrees to the centerline of the tread |
|
Reinforced tire |
A tire designed to operate at higher loads and at higher inflation pressures than the corre- sponding standard tire |
|
Section width |
The linear distance between the exteriors of the sidewalls of an inflated tire, excluding ele- vations due to labeling, decoration, or protec- tive bands |
|
Sidewall |
That portion of a tire between the tread and bead |
|
Sidewall separation |
The parting of the rubber compound from the cord material in the sidewall |
|
Tire related term |
Meaning |
|
Snow tire |
A tire that attains a traction index equal to or greater than 110, compared to the ASTM E- 1136 Standard Reference Test Tire, when using the snow traction test as described in ASTM F-1805-00, Standard Test Method for Single Wheel Driving Traction in a Straight Line on Snow-and Ice-Covered Surfaces, and which is marked with an Alpine Symbol ( |
|
Test rim |
The rim on which a tire is fitted for testing, and may be any rim listed as appropriate for use with that tire |
|
Tread |
That portion of a tire that comes into contact with the road |
|
Tread rib |
A tread section running circumferentially around a tire |
|
Tread separation |
Pulling away of the tread from the tire carcass |
|
Treadwear indicators (TWI) |
The projections within the principal grooves designed to give a visual indication of the degrees of wear of the tread |
|
Wheel-holding fixture |
The fixture used to hold the wheel and tire assembly securely during testing |
) on at least one sidewall*: Table 1 - Occupant loading and distribution for vehicle normal load for various designated seating capacities
|
Designated seating capacity, Number of occupants |
Vehicle normal load, Number of occupants |
Occupant distribution in a normally loaded vehicle |
|
2 through 4 |
2 |
2 in front |
|
5 through 10 |
3 |
2 in front, 1 in second seat |
|
11 through 15 |
5 |
2 in front, 1 in second seat, 1 in third seat, 1 in fourth seat |
|
16 through 20 |
7 |
2 in front, 2 in second seat, 2 in third seat, 1 in fourth seat |
Download Manual
