Operating the lights and wipers

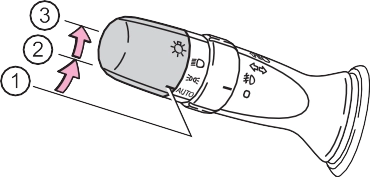

For U.S.A.

The headlights, daytime running lights

(P. 237) and all the

lights listed above turn on and off automatically. (When the engine switch is in ON.)

The side marker, park- ing, tail, license plate, instrument panel lights, and daytime running lights (P. 237) turn on.

The headlights and all lights listed above (except daytime run- ning lights) turn on.

The daytime running lights turn off.

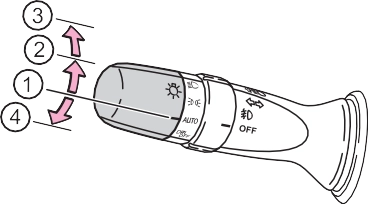

For Canada

The headlights, daytime running lights

(P. 237) and all the

lights listed above turn on and off automatically. (When the engine switch is in ON.)

The side marker, park- ing, tail, license plate, instrument panel lights, and daytime running lights (P. 237) turn on.

The headlights and all lights listed above (except daytime run- ning lights) turn on.

1 With the headlights on, push the lever away from you to turn on the high beams.

Pull the lever toward you to the center position to turn the high beams off.

You can flash the high beams with the headlights on or off.

Raises the level of the head- lights

Lowers the level of the head- lights

Guide to dial settings

Loading condition	Control switch position
Towing Hitch (Towing package)	Payload	Double Cab	CrewMax
		Standard	Long	Short
None	None	0	0	0
None	Maximum load	2.5	2	2.5
Maximum load	None	3.5	3	3.5

Daytime running light system

The daytime running lights illuminate using the same lights as the parking lights and illuminate brighter than the parking lights.

To make your vehicle more visible to other drivers during daytime driving, the daytime running lights turn on automatically when all of the following conditions are met. (The daytime running lights are not designed for use at night.)

The engine is running

The parking brake is released

The headlight switch is in the (Canada only), or * position

*: When the surroundings are bright

The daytime running lights remain on after they illuminate, even if the parking brake is set again.

For the U.S.A.: Daytime running lights can be turned off by operating the switch.

For the Canada: Daytime running lights are not designed for use at night.

Compared to turning on the headlights, the daytime running light system offers greater durability and consumes less electricity, so it can help improve fuel economy.

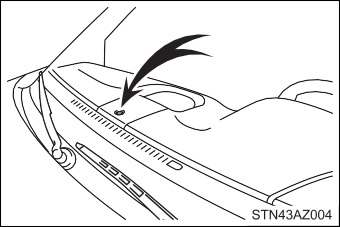

Headlight control sensor (vehicles with automatic headlight system)

The sensor may not function properly if an object is placed on the sensor, or anything that blocks the sensor is affixed to the windshield.

Doing so interferes with the sensor detecting the level of ambient light and may cause the automatic headlight sys- tem to malfunction.

Automatic light off system

When the headlights come on: The headlights and tail lights turn off 30 sec- onds after a door is opened and closed if the engine switch is turned to ACC or OFF. (The lights turn off immediately if the

button on the key is pressed after all the doors are locked.)

When only the tail lights come on: The tail lights turn off automatically if the engine switch is tuned to ACC or OFF and the driver’s door is opened.

Vehicles with automatic headlight system: If any of the doors is kept open, the lights automatically turn off after 20 minutes.

To turn the lights on again, turn the engine switch to ON, or turn the light switch off once and then back to or .

Light reminder buzzer

A buzzer sounds when the key is removed from the engine switch and the driver’s door is opened while the lights are turned on.

Customization that can be configured at Toyota dealer Settings (automatic light off system) can be changed. (Customizable features: P. 564)

or position.

The Automatic High Beam indica- tor will come on when the head- lights are turned on automatically to indicate that the system is active.

: If equipped

Switching to low beam

The Automatic High Beam indi- cator will turn off.

Push the lever away from you to activate the Automatic High Beam system again.

Switching to high beam

The Automatic High Beam indi- cator will turn off and the high beam indicator will turn on.

Press the switch to activate the Automatic High Beam system again.

High beam automatic turning on or off conditions

When all of the following conditions are fulfilled, the high beam will be auto- matically turned on (after approximately 1 second):

Vehicle speed is above approximately 21 mph (34 km/h).

The area ahead of the vehicle is dark.

There are no vehicles ahead with headlights or tail lights turned on.

There are few streetlights on the road ahead.

If any of the following conditions are fulfilled, the high beam will be automat- ically turned off:

Vehicle speed drops below approximately 17 mph (27 km/h).

The area ahead of the vehicle is not dark.

Vehicles ahead have headlights or tail lights turned on.

There are many streetlights on the road ahead.

Front camera detection information

The high beam may not be automatically turned off in the following situa- tions:

When oncoming vehicles suddenly appear from a curve

When the vehicle is cut off in front of by another vehicle

When vehicles ahead are hidden from sight due to repeated curves, road dividers or roadside trees

When vehicles ahead appear from the faraway lane on wide road

When vehicles ahead have no lights

The high beam may be turned off if a vehicle ahead that is using fog lights without using the headlights is detected.

House lights, street lights, traffic signals, and illuminated billboards or signs may cause the high beam to switch to the low beams, or the low beams to remain on.

The following factors may affect the amount of time taken to turn the high beam on or off:

The brightness of headlights, fog lights, and tail lights of vehicles ahead

The movement and direction of vehicles ahead

When a vehicle ahead only has operational lights on one side

When a vehicle ahead is a two-wheeled vehicle

The condition of the road (gradient, curve, condition of the road surface, etc.)

The number of passengers and amount of luggage

The high beam may be turned on or off when the driver does not expect it.

Bicycles or similar objects may not be detected.

In the situations shown below, the system may not be able to accurately detect surrounding brightness levels. This may cause the low beams to remain on or the high beams to cause problems for pedestrians, vehicles ahead or other parties. In these cases, manually switch between the high and low beams.

In bad weather (rain, snow, fog, sandstorms, etc.)

The windshield is obscured by fog, mist, ice, dirt, etc.

The windshield is cracked or damaged.

The front camera is deformed or dirty.

The front camera temperature is extremely high.

Surrounding brightness levels are equal to those of headlights, tail lights or fog lights.

Vehicles ahead have headlights that are either switched off, dirty, are changing color, or are not aimed properly.

When driving through an area of intermittently changing brightness and darkness.

When frequently and repeatedly driving ascending/descending roads, or roads with rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks, etc.).

When frequently and repeatedly taking curves or driving on a winding road.

There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.

The back of a vehicle ahead is highly reflective, such as a container on a truck.

The vehicle’s headlights are damaged or dirty.

The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.

The high beam and low beam are repeatedly being switched between in an abnormal manner.

The driver believes that the high beam may be causing problems or dis- tress to other drivers or pedestrians nearby.

Temporarily lowering sensor sensitivity

The sensitivity of the sensor can be temporarily lowered.

Turn the engine switch off while the following conditions are met.

The headlight switch is in

or .

The headlight switch lever is in high beam position.

Automatic High Beam switch is on. Turn the engine switch to ON.

Within 30 seconds after , repeat pulling the headlight switch lever to the original position then pushing it to the high beam position quickly 10 times, then leave the lever in high beam position.

If the sensitivity is changed, the Automatic High Beam indicator is turn on and off 3 times.

Automatic High Beam (headlights) may turn on even the vehicle is stopped.

If “Headlight System Malfunction. Visit Your Dealer.” is displayed on the multi-information display

The system may be malfunctioning. Have the vehicle inspected by your Toyota dealer.

Turns the front fog lights on
