Instrument cluster

Vehicle status information

and indicators 2

Warning lights and indicators

For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.

4.2-inch display

7-inch display (when analog speedometer is displayed)

2-1. Instrument cluster 73

7-inch display (when digital speedometer is displayed)

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.

Brake system warning

Malfunction indicator lamp*1 ( P.482)

(Canada)

SRS warning light*1 (P.482)

ABS warning light*1

(U.S.A.)

light*1 (P.481)

(U.S.A.)

(P.483)

ABS warning light*1

(Red) (Canada)

(Yellow)

Brake system warning light*1 (P.481)

High coolant temperature warning light*2 (P.481)

(Canada) (P.483)

Brake Override System warning light/Drive-Start Control warning light*2 (P.483)

Electric power steering system warning light*1

(U.S.A.)

Charging system warning

light*1 (P.482)

Low engine oil pressure warning light*2 (P.482)

Malfunction indicator lamp*1 (P.482)

(Red)

(Yellow)

(P.484)

Electric power steering system warning light*1 (P.484)

Low fuel level warning light (P.484)

Driver’s and front passen- ger’s seat belt reminder light (P.484)

Rear passengers’ seat belt reminder lights (P.485)

Tire pressure warning light*1 (if equipped) (P.485)

LTA indicator (if equipped) (P.485)

(Orange) LDA indicator (if equipped) (P.485)

PCS warning light*1

(Flashes ( P.486)

or illumi-

nates)

Slip indicator*1 (P.486)

Parking brake indicator

(Flashes) (P.486)

(U.S.A.)

Parking brake indicator

The indicators inform the driver of the operating state of the vehicle’s various systems.

Turn signal indicator (P.162)

Headlight indicator

(Flashes) (P.486)

(Canada)

(U.S.A.)

(P.170)

Brake hold operated indi- cator*1 (if equipped)

(Flashes) (P.487)

iMT indicator*1 (if

(Orange) equipped) (P.487)

*1: These lights come on when the engine switch is turned to ON to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your Toyota dealer.

*2: This light illuminates on the multi-information display.

Tail light indicator (P.170)

(Canada)

Headlight high beam indi- cator (P.172)

Automatic High Beam indicator (P.173)

PCS warning light*1, 2

(P.189)

Cruise control indicator (P.213, 223)

Dynamic radar cruise con- trol indicator (P.213, 223)

Cruise control “SET” indi- cator (P.213, 223)

LTA indicator (if equipped) (P.200)

*3 LDA indicator (if

Sport mode indicator (if equipped) (P.249)

equipped) (P.209)

BSM outside rear view

mirror indicators*4, 5 (if

(Green)

iMT indicator (if equipped) (P.161)

(Flashes)

(U.S.A.)

equipped) (P.236) BSM indicator (if equipped) (P.236)

Slip indicator*1 (P.251) VSC OFF indicator*1, 2

(P.252)

Smart key system indica- tor*6 (if equipped) (P.148)

Parking brake indicator (P.163, 164)

Parking brake indicator

*2: This light comes on when the system is turned off.

*3: Depending on the operating con- dition, the color and illuminat- ing/flashing state of the light change.

(P.163, 164)

(Canada)

Brake hold standby indi- cator*1 (if equipped) (P.167)

Brake hold operated indi- cator*1 (if equipped) (P.167)

Auto EPB OFF indicator*1, 2 (if equipped) (P.164) Eco Driving Indicator Light*1 (if equipped) (P.88)

Low outside temperature indicator*7 (P.77, 81) Security indicator (P.67, 69)

“AIR BAG ON/OFF”

indicator*1, 8 (P.39)

*4: In order to confirm operation, the BSM outside rear view mirror indicators illuminate in the follow- ing situations:

When the engine switch is turned to ON, the BSM func-

tion is enabled on of the multi-information display.

When the BSM function is

enabled on of the

multi-information display, the engine switch is turned to ON.

If the system is functioning cor- rectly, the BSM outside rear view mirror indicators will turn off after a few seconds.

If the BSM outside rear view mirror indicators do not illuminate or do not turn off, there may be a mal- function in the system.

If this occurs, have the vehicle inspected by your Toyota dealer.

*5: This light illuminates on the out- side rear view mirrors.

*6: This light illuminates on the multi-information display.

*7: When the outside temperature is approximately 37°F (3°C) or lower, this indicator will flash for approximately 10 seconds, then stay on.

*8: This light illuminates on the cen- ter panel.

Gauges and meters (4.2-inch display)

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Displays the engine speed in revolutions per minute

Displays the outside temperature within the range of -40°F (-40°C) to 122°F

(50°C)

Multi-information display

Presents the driver with a variety of vehicle data (P.86) Displays warning messages if a malfunction occurs (P.490)

Display change button (P.78) Fuel gauge

Displays the quantity of fuel remaining in the tank

Displays the engine coolant temperature

Outside temperature display

In the following situations, the cor- rect outside temperature may not be displayed, or the display may take longer than normal to change:

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system may be malfunctioning. Take your vehicle to your Toyota dealer.

Liquid crystal display

P.87

WARNING

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear number appearing on the display. This lag could cause the driver to downshift again, causing rapid and exces- sive engine braking and possibly an accident resulting in death or injury.

Changing the display

Display items

Odometer

Displays the total distance the vehi- cle has been driven.

Trip meter A/Trip meter B

Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display

different distances independently.

To reset, display the desired trip meter and press and hold the dis- play change button.

Brighter

Darker

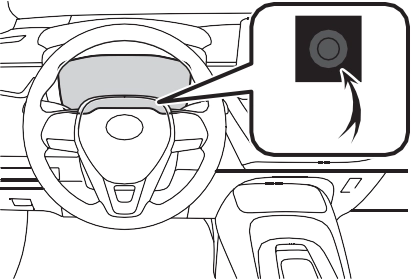

Instrument panel light bright- ness adjustment

The brightness of the instrument panel lights can be adjusted sepa- rately for when the tail lights are on and off.

Clock adjustment

Multi-information display

Audio system screen

Setting the clock to be adjusted automatically by GPS (Entune Audio [for U.S.A.]/Entune Audio Plus)

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS” to set to on.

Adjusting the clock manu- ally

Entune Audio (except for U.S.A.)

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Adjust the displayed time.

Hour: Select “-” or “+” of “Hours” to adjust the hour.

Minute: Select “-” or “+” of “Minutes” to adjust the min- ute.

“:00”: Select to set the clock to the beginning of the nearest hour.

e.g.

1:00 to 1:29 1:00

1:30 to 1:59 2:00

Entune Audio (for U.S.A.)/Entune Audio Plus

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS” to set to off.

Adjust the displayed time.

Hour: Select “-” or “+” of “Hours” to adjust the hour.

Minute: Select “-” or “+” of “Minutes” to adjust the min- ute.

“:00”: Select to set the clock to the beginning of the nearest hour.

e.g.

1:00 to 1:29 1:00

1:30 to 1:59 2:00

Setting the time zone (Entune Audio [for U.S.A.]/Entune Audio Plus)

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “Time Zone”. Select the desired time zone.

Setting daylight saving time (Entune Audio [for U.S.A.]/Entune Audio Plus)

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “Daylight Saving Time” then on/off.

Changing the clock between 12-hour/24-hour format

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “24-Hour Time For- mat” and then on/off.

When set to off, the clock is dis- played in 12 hour time format.

Clock settings screen (Entune Audio [for U.S.A.]/Entune Audio Plus)

If “Clock : 00” is displayed when is selected on the multi-information display, the system may be malfunc- tioning. Have the vehicle inspected by your Toyota dealer.

Gauges and meters (7-inch display)

Locations of gauges and meters

Analog speedometer

The units of measure may differ depending on the intended destination of the vehicle.

Displays the engine speed in revolutions per minute

Displays the quantity of fuel remaining in the tank

Displays the engine coolant temperature Display change button (P.83) Odometer and trip meter display (P.83) Multi-information display

Presents the driver with a variety of vehicle data (P.86)

Displays warning messages if a malfunction occurs (P.490)

Displays the outside temperature within the range of -40°F (-40°C) to 122°F

(50°C)

Digital speedometer

The units of measure may differ depending on the intended destination of the vehicle.

Displays the engine speed in revolutions per minute

Displays the quantity of fuel remaining in the tank

Displays the engine coolant temperature Display change button (P.83) Odometer and trip meter display (P.83) Multi-information display

Presents the driver with a variety of vehicle data (P.86)

Displays warning messages if a malfunction occurs (P.490)

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Outside temperature display

In the following situations, the cor- rect outside temperature may not

be displayed, or the display may take longer than normal to change:

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system may be malfunctioning. Take your vehicle to your Toyota dealer.

Liquid crystal display

P.87

Customization

The gauges and meters can be cus-

tomized in of the multi-informa- tion display. (P.90)

Changing the display

Press the display change button until the desired item is dis- played.

Display items

Odometer

Displays the total distance the vehi- cle has been driven.

Trip meter A/Trip meter B

Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display

different distances independently.

To reset, display the desired trip meter and press and hold the dis- play change button.

Brighter

Darker

Setting the clock to be adjusted automatically by GPS

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS” to set to on.

Adjusting the clock manu- ally

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

4 Select “Clock”.

Instrument panel light bright- ness adjustment

The brightness of the instrument panel lights can be adjusted sepa- rately for when the tail lights are on and off.

Clock adjustment

Multi-information display

Audio system screen

Select “Auto Adjust by GPS” to set to off.

Adjust the displayed time.

Hour: Select “-” or “+” of “Hours” to adjust the hour.

Minute: Select “-” or “+” of “Minutes” to adjust the min- ute.

“:00”: Select to set the clock to the beginning of the nearest hour.

e.g.

1:00 to 1:29 1:00

1:30 to 1:59 2:00

Setting the time zone

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “Time Zone”. Select the desired time zone.

Entune Premium Audio only:

If “Auto” is selected, the time zone is selected automatically by current vehicle position.

Setting daylight saving time

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “Daylight Saving Time” then on/off/auto*.

*: Entune Premium Audio only

Changing the clock between 12-hour/24-hour format

Press the “MENU” button.

Select “Setup” on the “Menu” screen.

Select “General” on the “Setup” screen.

Select “Clock”.

Select “24-Hour Time For- mat” and then on/off.

When set to off, the clock is dis- played in 12 hour time format.

Clock settings screen

If “Clock : 00” is displayed when is selected on the multi-information display, the system may be malfunc- tioning. Have the vehicle inspected by your Toyota dealer.

Display

4.2-inch display

Driving support system status display area

Displays an image when the follow- ing systems are operating and a

are also displayed in certain situa- tions.

Driving support system status display area

Displays an image when the follow- ing systems are operating and a

menu icon other than is selected:

LTA (Lane Tracing Assist)

Dynamic radar cruise control with full-speed range

menu icon other than is selected:

LTA (Lane Tracing Assist) (if

equipped)

LDA (Lane Departure Alert with steering control) (if equipped)

Dynamic radar cruise control (if equipped)

Dynamic radar cruise control with full-speed range (if equipped)

RSA (Road Sign Assist) (if equipped) (P.233)

By selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi-information display can also be used to change display settings and other vehicle settings.

Warning or advice pop-up displays

RSA (Road Sign Assist) (if equipped) (P.233)

Warning or advice pop-up displays are also displayed in certain situa- tions.

Menu icons

played by pressing the or meter control switch.

Driving information display (P.87)

Driving support system information display (P.89)

Audio system-linked dis- play (P.90)

Vehicle information dis- play (P.90)

Settings display (P.90)

Warning message display (P.490)

Liquid crystal display

Small spots or light spots may appear on the display. This phenom- enon is characteristic of liquid crys- tal displays, and there is no problem continuing to use the display.

WARNING

Caution for use while driving

When operating the multi-infor- mation display while driving, pay extra attention to the safety of the area around the vehicle.

Do not look continuously at the multi-information display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

The information display at low temperatures

P.78, 83

/ : Select menu icons

/ : Change displayed content, scroll up/down the screen and move the cursor up/down

Press: Enter/Set

Press and hold: Reset/Dis- play customizable items

Return to the previous screen

Call sending/receiving and history display

Linked with the hands-free system, sending or receiving call is dis- played. For details regarding the hands-free system, refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

Display items

Speedometer display/Driving range (4.2-inch display)

Fuel economy

Eco Driving Indicator/Driving range (if equipped)

Speedometer display/Driv- ing range (4.2-inch display)

Speedometer display

Driving range

Displays driving range with remain- ing fuel. Use the displayed values as a reference only.

This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

Fuel economy

Use the displayed values as a ref- erence only.

To reset the average fuel economy display, press and hold the

meter control switch.

Displays instantaneous current fuel consumption.

Displays driving range with remain- ing fuel.

This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

play can be changed in . (P.90)

Average fuel economy (after start)

Displays the average fuel con- sumption since engine start.

Average fuel economy (after refuel)

Displays the average fuel con- sumption since the vehicle was refueled.

Eco Driving Indicator/Driv- ing range (if equipped)

Eco Driving Indicator

This distance is computed based

on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

During Eco-friendly acceleration (Eco driving), the Eco Driving Indi- cator Light will turn on. When the acceleration exceeds the Zone of Eco driving, or when the vehicle is stopped, the light turns off.

Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.

If the acceleration exceeds the Zone of Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate.

At this time, the Eco Driving Indica- tor Light will turn off.

Driving range

Displays driving range with remain- ing fuel. Use the displayed values as a reference only.

Eco Driving Indicator

Eco Driving Indicator will not oper- ate under the following conditions:

The shift lever is in any position other than D.

A paddle shift switch is operated. (If equipped)

The driving mode is set to sport mode. (If equipped)

The vehicle speed is approxi- mately 80 mph (130 km/h) or higher.

Driving support system information

LTA (Lane Tracing Assist) (if equipped) (P.195)

LDA (Lane Departure Alert with steering control) (if equipped) (P.205)

Dynamic radar cruise control (if equipped) (P.223)

Dynamic radar cruise control

with full-speed range (if equipped) (P.213)

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked infor- mation:

Route guidance to destination

Compass display (head- ing-up display)

Select to enable selection of an audio source or track on the meter using the meter control switches.

This menu icon can be set to be displayed/not displayed in .

Drive information

Displays drive information such as the following:

Displays the following depend- ing on which drive information type and drive information items

were selected in . (P.90)

After start

Distance: Displays the distance driven since engine start

Elapsed time: Displays the elapsed time since engine start

Average vehicle speed: Displays the average vehicle speed since engine start

After reset

Distance: Displays the distance driven since the display was reset*

Elapsed time: Displays the elapsed time since the display was reset*

Average vehicle speed: Displays the average vehicle speed since the display was reset*

*: To reset, display the desired item and press and hold the

meter control switch.

Meter display settings that can be changed

Language

Select to change the language dis- played.

Units

Select to change the units of mea- sure displayed.

Speedometer display (7-inch

display)

Select to set the display of the speedometer to analog/digital.

Eco Driving Indicator Light (if equipped)

Select to enable/disable the Eco Driving Indicator Light.

Fuel economy display

Select to change the average fuel consumption display between after start/after reset. (P.88)

Select to display/not display the audio system linked display.

Select to change the displayed con- tent of the following:

Drive information type

Select to change the drive informa- tion type display between after start/after reset.

Drive information items

Select to set the first and second items of the drive information dis- play to any of the following: aver- age vehicle speed/distance/elapsed time.

Pop-up display

Select to enable/disable pop-up displays for each relevant system.

Multi-information display off

Select to turn the multi-information display off.

To turn the multi-information display on again, press any of the following meter control switches

/ / / / / .

Default setting

Select to reset the meter display settings to the default setting.

Vehicle functions and set- tings that can be changed

Suspension of the settings dis- play

Some settings cannot be changed while driving. When changing set- tings, park the vehicle in a safe place.

If a warning message is displayed, operation of the settings display will be suspended.

WARNING

Cautions during setting up the display

If the engine is running when changing the display settings, ensure that the vehicle is parked in a place with adequate ventila- tion. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a seri- ous health hazard.

NOTICE

During setting up the display

To prevent battery discharge, ensure that the engine is running while setting up the display fea- tures.

Audio system screen

Trip information

Entune Audio without DCM/Entune Audio Plus with- out DCM

Press the “MENU” button.

Select “Info” on the “Menu” screen.

If a screen other than “Trip Informa- tion” is displayed, select “Trip Infor- mation”.

Press the “MENU” button.

Select “Info” on the “Menu” screen.

Select “ECO” on the “Infor- mation” screen.

If a screen other than “Trip Informa- tion” is displayed, select “Trip Infor- mation”.

Fuel consumption in the past 15 minutes

Current fuel consumption

Average vehicle speed since the engine was started.

Elapsed time since the engine was started.

Cruising range

Average fuel consumption for the past 15 minutes is divided by color into past averages and averages attained since the engine switch was last turned to ON. Use the displayed average fuel consumption as a refer- ence.

The image is an example only, and may vary slightly from actual condi- tions.

History

Press the “MENU” button.

Select “Info” on the “Menu” screen.

If a screen other than “History” is

history is divided by color into past averages and the average fuel consumption since the last updated. Use the displayed average fuel consumption as a reference.

The image is an example only, and may vary slightly from actual condi- tions.

displayed, select “History”.

Press the “MENU” button.

Select “Info” on the “Menu” screen.

Select “ECO” on the “Infor- mation” screen.

If a screen other than “History” is displayed, select “History”.

Latest fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel con- sumption data

The average fuel consumption

Updating the history data

Update the latest fuel consumption by selecting “Clip” to measure the current fuel consumption again.

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

Cruising range

Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.

This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.

Before driving 3

3-4. Adjusting the steering wheel and mirrors Steering wheel 123

Inside rear view mirror

.................................. 124

Outside rear view mirrors

.................................. 125

3-5. Opening and closing the windows

Power windows 127

Moon roof 130

2020 Toyota Corolla Owners Manual - Instrument cluster

Instrument cluster
