Adjusting the seats
Front seats

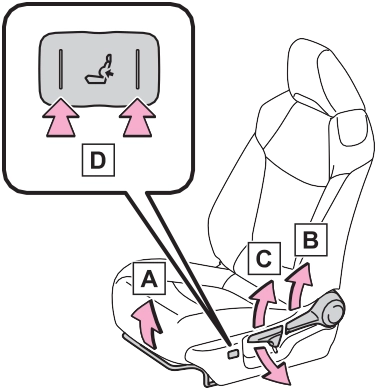

Manual seat
|
|
Seat position adjustment lever
Seatback angle adjustment lever
Vertical height adjustment lever (driver’s side only)
Lumbar support adjustment switch* (driver’s side only)
*: If equipped
|
|

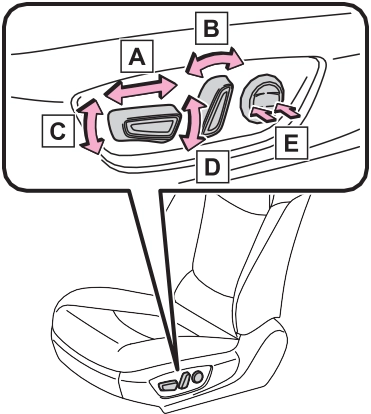

Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment switch
Vertical height adjustment switch
Lumbar support adjustment switch*
*: If equipped
119
Each seatback may be folded sep- arately.
|
|
|
Observe the following precau- tions. Failure to do so may result in death or serious injury. When folding the rear seat- backs down
Do not fold the seatbacks down while driving.
|
WARNING3-3. Adjusting the seats
121
|
|
|
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure they are locked in position.
Do not drive with the head restraints removed.
|
WARNINGPull the head restraints up.
Push the head restraint down while pressing the lock release button .
Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.
Pull the head restraints up.
Push the head restraint down while pressing the lock release button .
.
.
Align the head restraint with the installation holes and push it down to the lock position.
Press and hold the lock release
button when lowering the head restraint.
Press and hold the lock release
button when lowering the head restraint.
Steering wheel
123
