Maintenance tools
Your vehicle is equipped with the following maintenance tools.
Jack
Jack handle
Screwdriver
Towing hook (eye bolt)
Wheel nut wrench
In case of emergency/Maintenance tools
Tool locations

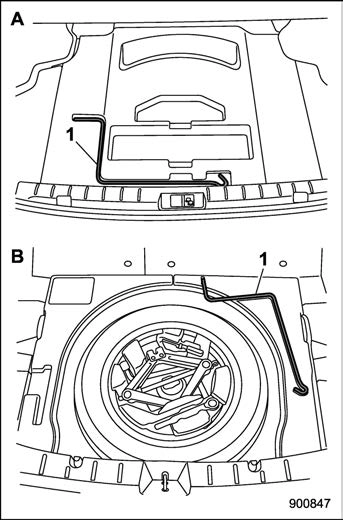

Jack handle
Sedan
5-door models

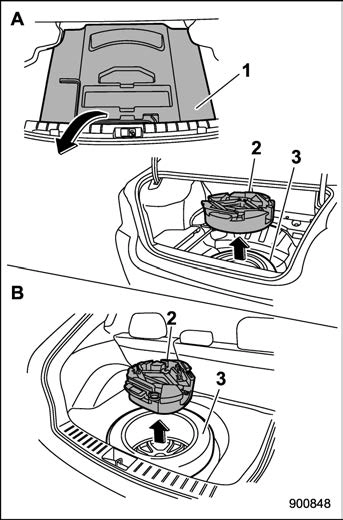

Under-floor storage compartment (if equipped) (Refer to “Under-floor storage compartment (sedan – if equipped)” 6- 16.)
Tool bucket
Spare tire
Sedan
5-door models

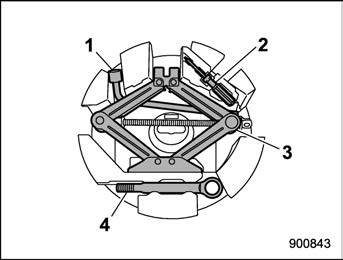

Wheel nut wrench
Screwdriver
Jack
Towing hook (eye bolt)
A jack handle is stored under the floor of the trunk (sedan) or the cargo area (5-door models). A jack and a towing hook are stored in the tool bucket that is located in the recess of the spare tire wheel.
Also, a tool bag that contains a wheel nut wrench and a screwdriver is equipped with the vehicle. Open the tool bag and store the tools in the tool bucket as illustrated in order that all tools are ready for use at any time.
Park on a hard, level surface, when- ever possible, then stop the engine.
Apply the parking brake securely and shift the shift lever in reverse (MT models) or the select lever to the “P” (Park) position (CVT models).
Turn on the hazard warning flasher and unload all occupants and luggage from the vehicle.

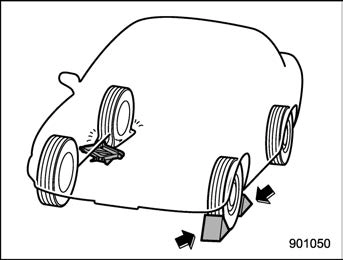

Put wheel blocks at the front and rear of the tire diagonally opposite the tire that you are going to replace.
Take out the jack, jack handle and wheel nut wrench.

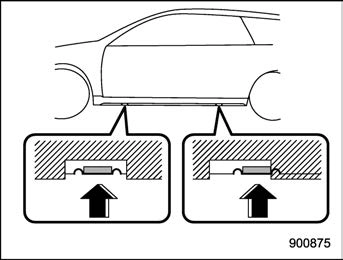

Jack-up points (type A models)
Jack-up points (type B models)
Place the jack under the side sill at the front or rear jack-up point closest to the tire that you are going to replace.

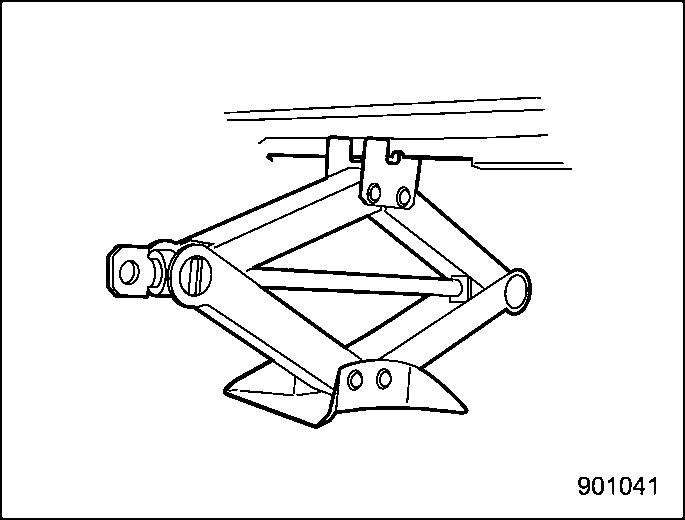

Turn the jackscrew by hand until the jack head engages firmly into the jack-up point.

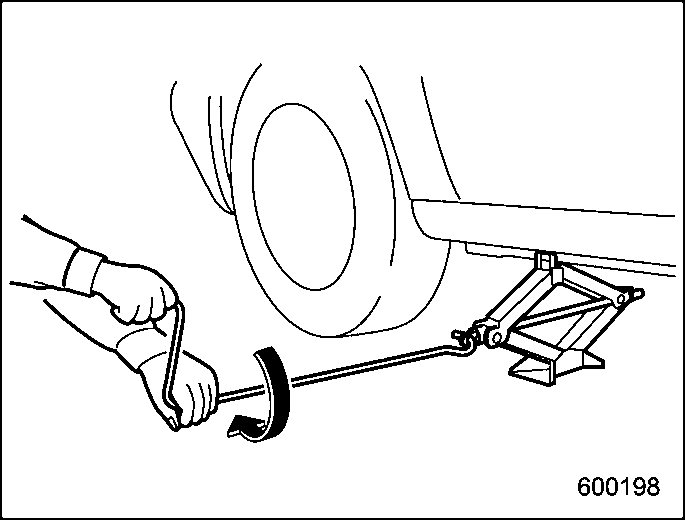

Insert the jack handle into the jack- screw, and turn the handle until the tire clears the ground. Do not raise the vehicle higher than necessary.
