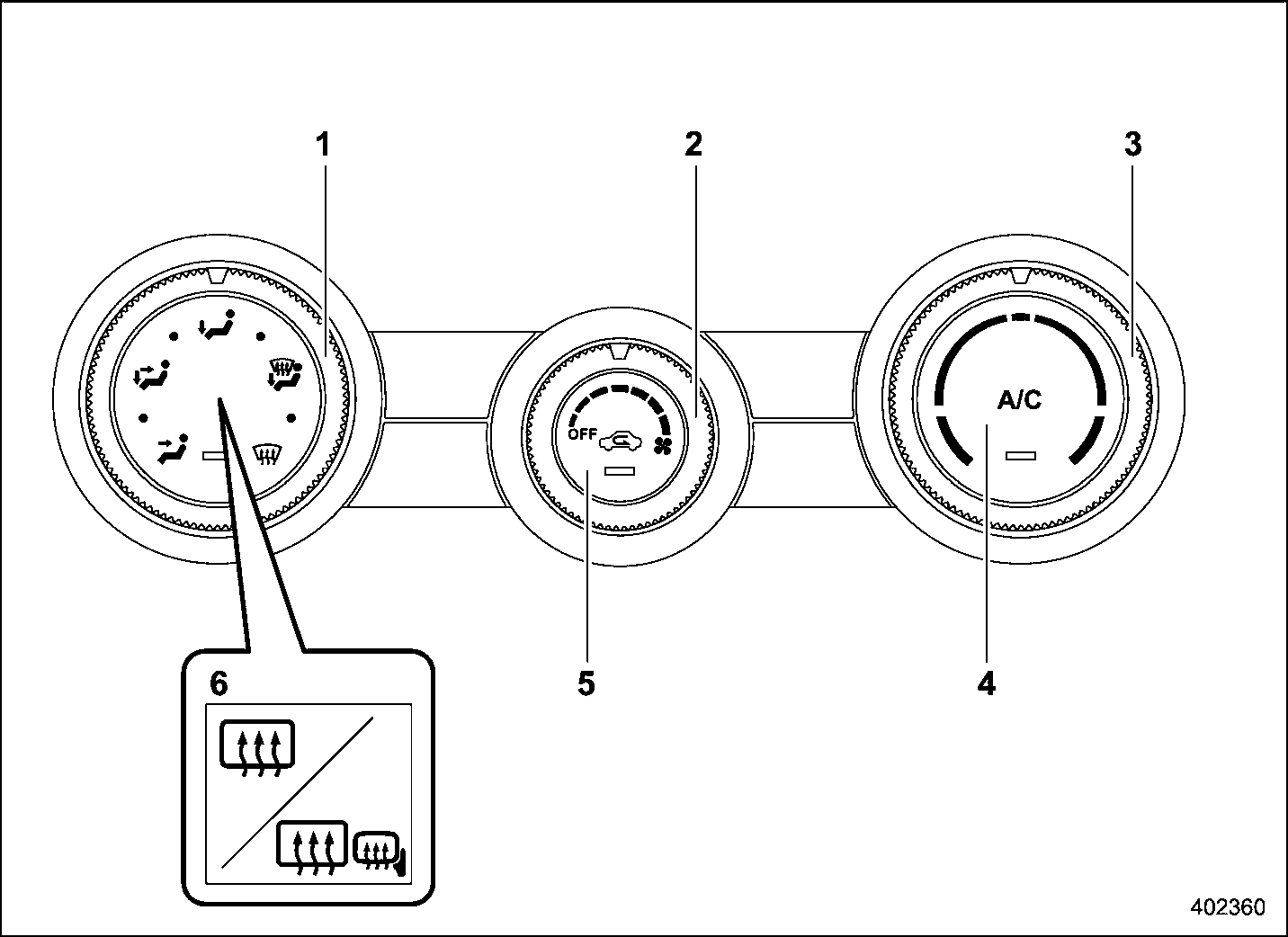

Climate control panel
Airflow mode selection dial (Refer to “Airflow mode selection” 4-7.)
Fan speed control dial (Refer to “Fan speed control” 4-9.)Temperature control dial (Refer to “Tem- perature control” 4-8.)
Air conditioner button (Refer to “Air conditioner control” 4-9.)
Air inlet selection button (Refer to “Air inlet selection” 4-9.)
Rear window defogger button and mirror heater button (if equipped) (Refer to “Defogger and deicer” 3-87.)
4-4 Climate control/Climate control panel

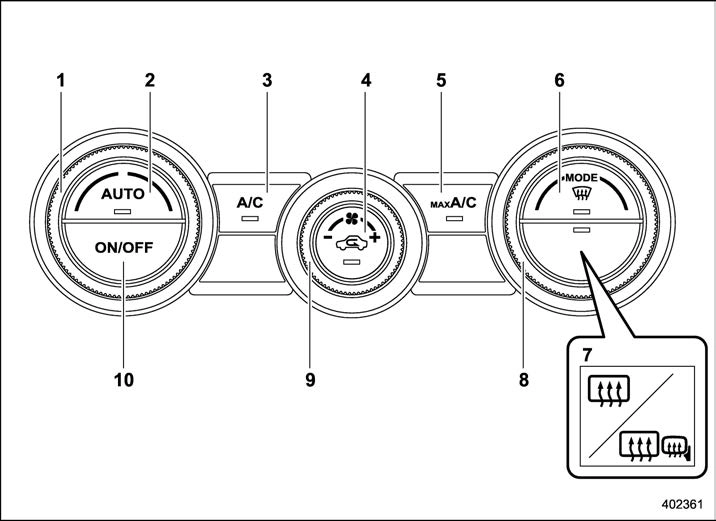

Type BAir inlet selection button (Refer to “Air inlet selection” 4-9.)
MAX A/C button (Refer to “MAX A/C mode (for type B and C)” 4-8.)
Defroster button (Refer to “Defrosting”
4-10.)
Rear window defogger button and mirror heater button (if equipped) (Refer to “Defogger and deicer” 3-87.)
Airflow mode selection dial (Refer to “Airflow mode selection” 4-7.)
Fan speed control dial (Refer to “Fan speed control” 4-9.)
ON/OFF button (Refer to “Automatic climate control operation (type B and C)” 4-6.)
For the multi-function display (color LCD), refer to “Climate control screen”
3-50.
For the multi-function display (black and white), refer to “Climate control screen (for automatic climate control without sync mode)” 3-46.

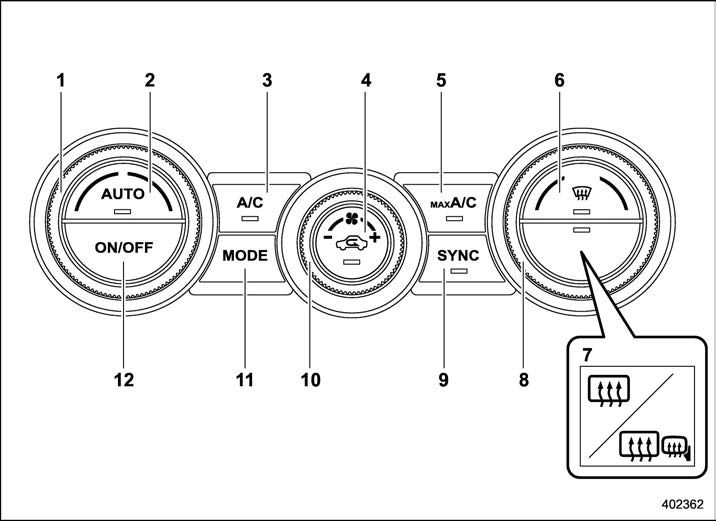

& Type C
Air inlet selection button (Refer to “Air inlet selection” 4-9.)
MAX A/C button (Refer to “MAX A/C mode (for type B and C)” 4-8.)
Defroster button (Refer to “Defrosting”
4-10.)
Rear window defogger button and mirror heater button (if equipped) (Refer to “Defogger and deicer” 3-87.)
Passenger’s side temperature control dial (Refer to “Temperature control” 4- 8.)
SYNC button (Refer to “SYNC mode (type C)” 4-8.)
Fan speed control dial (Refer to “Fan speed control” 4-9.)
Airflow mode selection button (Refer to “Airflow mode selection” 4-7.)
ON/OFF button (Refer to “Automatic climate control operation (type B and C)” 4-6.)
3-50.
4-6 Climate control/Automatic climate control operation (type B and C)
