Rear View Camera
The rear view camera provides a video image of the area behind your vehicle when the transmission is in reverse (R).
The rear view camera button is on the instrument panel.
|
the bumper, might not be seen on the screen due to the limited coverage of the camera system.
|
WARNING: The rear view camera system is a reverse aid supplement device that still requires the driver to use it in conjunction with the interior and exterior mirrors for maximum coverage.
WARNING: Objects that are close to either corner of the bumper or under
WARNING: Reverse your vehicle slowly. Failure to follow this instruction could result in the loss of control of your vehicle, personal injury or death.
WARNING: Use caution when the rear cargo door is ajar. If the rear cargo door is ajar, the camera will be out of position and the video image could be incorrect. All guide lines disappear when the rear cargo door is ajar. Failure to follow this instruction could result in personal injury.
WARNING: Use caution when turning camera features on or off when the transmission is not in park (P). Make sure your vehicle is not moving.Note: When towing, the camera only sees what you are towing. This might not provide adequate coverage and you might not see some objects. In some vehicles, the guide lines may disappear when you connect the trailer tow connector.
The rear view camera is on the tailgate. It provides a video image of the area behind your vehicle.
E306774
302

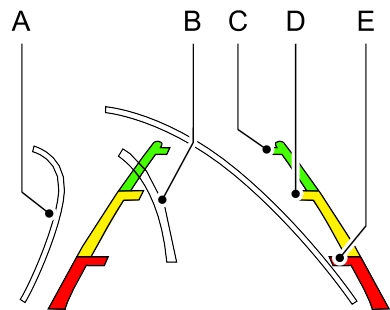

Active guide lines only show with fixed guide lines. To use active guide lines, turn the steering wheel to point the guide lines toward an intended path. If the steering wheel position changes while reversing, your vehicle might deviate from the intended path.
The fixed and active guide lines fade in and out depending on the steering wheel position. The active guide lines do not display when the steering wheel position is straight.
Use caution while reversing. Objects in the red zone are closest to your vehicle and objects in the green zone are farther away. Objects get closer to your vehicle as they move from the green zone to the yellow or red zones. Use the side view mirrors and rear view mirror to get better coverage on both sides and rear of your vehicle.
Note: Active guide lines and fixed guide lines are only available when the transmission is in reverse (R).
Note: The centerline is only available if the active or fixed guide lines are on.
Note: Not all camera modes work properly without an auxiliary camera.
|
|
WARNING: When manual zoom is on, the full area behind your vehicle may not show. Be aware of your surroundings when using the manual zoom feature.Selectable settings for this feature are zoom in (+) and zoom out (-). Press the symbol on the camera screen to change the view. The default setting is zoom off.
This allows you to get a closer view of an object behind your vehicle. The zoomed image keeps the bumper in the image to provide a reference. The zoom is only active while the transmission is in reverse (R).
Note: Zooming in also engages park hold which applies the electric park brake when you shift to park (P). When you press the zoom button, the electronic park hold button illuminates on the touchscreen. See Connecting a Trailer (page 371).
Note: Manual zoom is only available when the transmission is in reverse (R).
Note: Only the centerline shows when you enable manual zoom.
303
When shifting the transmission out of reverse (R) and into any gear other than park (P), the camera image remains in the display until:
304
