2018 Honda Ridgeline Owners Manual - Towing a Trailer

Total trailer weight

Do not exceed the maximum allowable weight of the trailer, cargo, and everything in or on it shown in the table below. Towing loads in excess of this can seriously affect vehicle handling and performance and can damage the engine and drivetrain.

• Each weight limit is calculated based on the following conditions:
• Occupants fill seats from the front of the vehicle to the back.
• Each occupant weighs 150 lbs (68 kg).
• Each occupant has 15 lbs (7 kg) of cargo in the cargo area.

Any additional weight, cargo, or accessories reduce the maximum trailer weight and maximum tongue load.

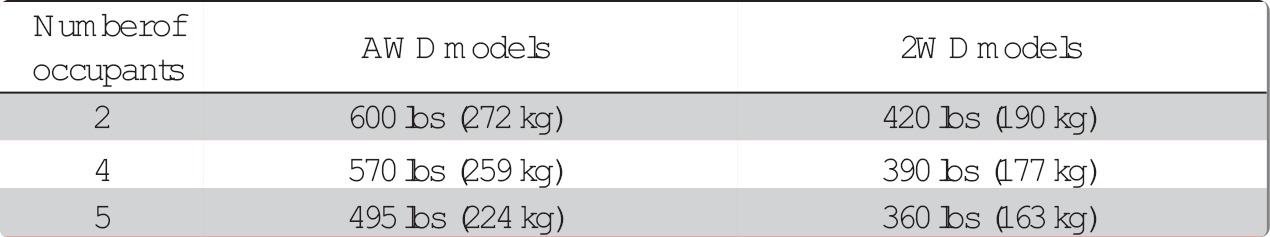

Tongue load

The weight of the tongue with a fully loaded trailer on the hitch should be approximately:

• Boat trailers: 5 - 15% of the total trailer weight
• Other trailers: 10 - 15% of total trailer weight

To estimate the tongue load

Excessive tongue load reduces front tire traction and steering control. Too little tongue load can make the trailer unstable and cause it to sway.

You can estimate the tongue load by measuring the trailer hitch height from the ground in the following steps:

1. Park the vehicle on level ground.
2. Measure the distance between the ground and the bottom of the trailer hitch.
3. Connect the fully loaded trailer to the hitch.
4. Measure the distance between the ground and the bottom of the trailer hitch again.

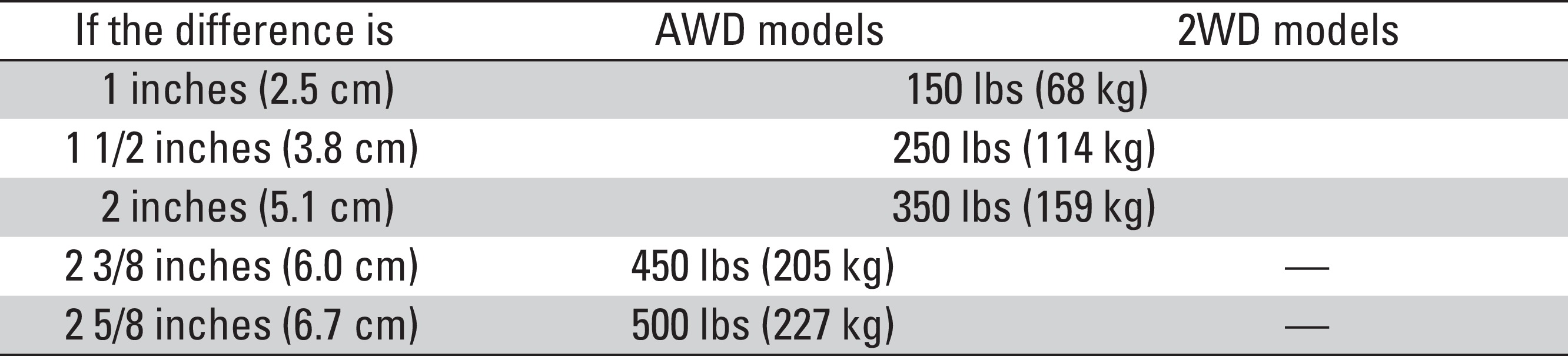

5. Subtract the second measurement from the first measurement, then refer to the following table.

If the difference becomes more than indicated in the table, distribute the load or remove cargo as needed.

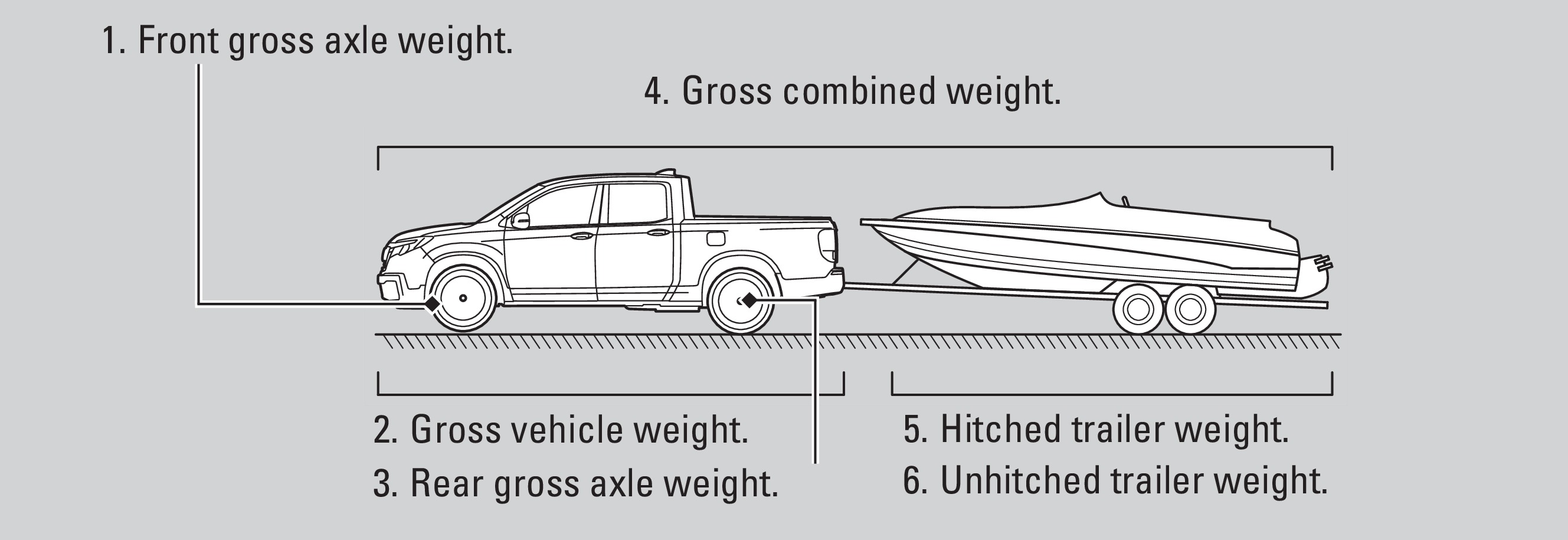

How to weigh the trailer loads using a public scale

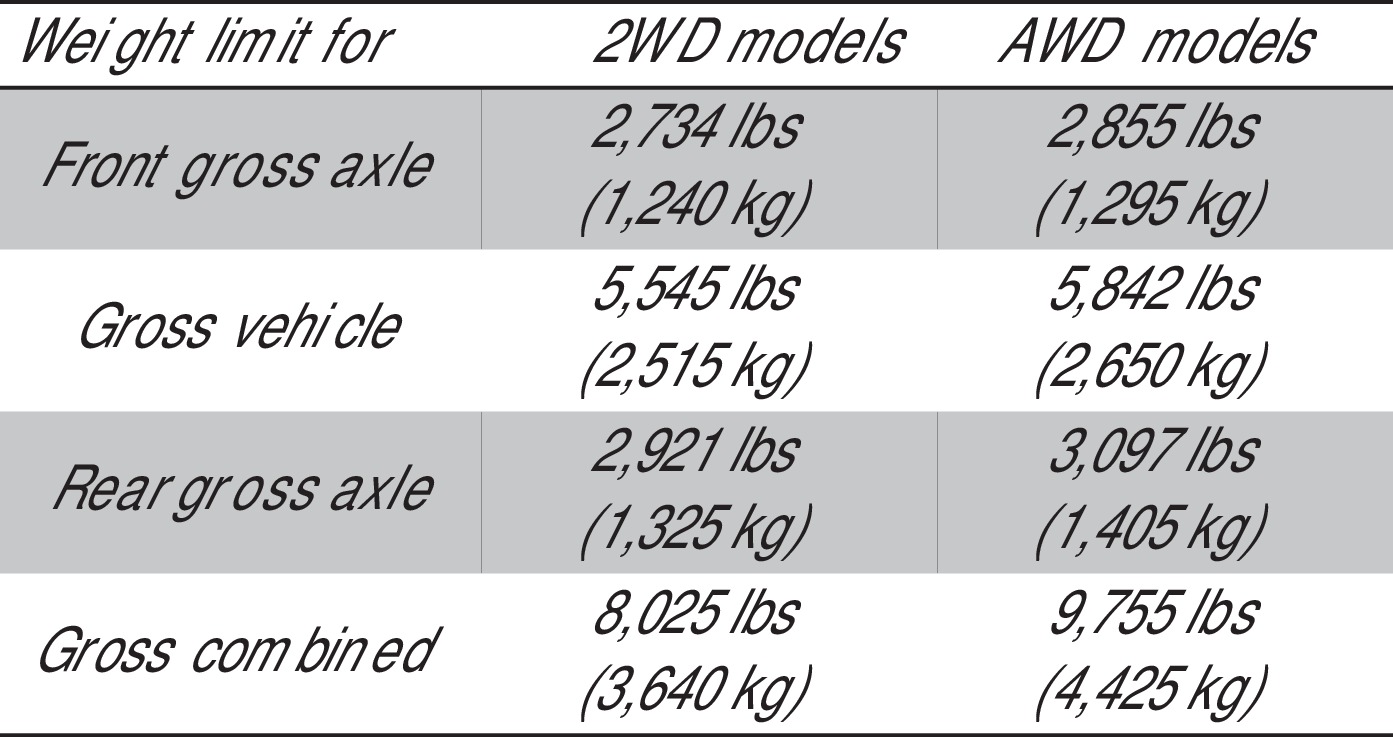

Check each weight in the order indicated as shown. Refer to the table below for each weight's limit except for the tongue load.

• If you cannot weigh the rear axle, subtract 1 from 2.
• The maximum gross combined weight (4) decreases by 2% for every 1,000 feet (305 m) of elevation.

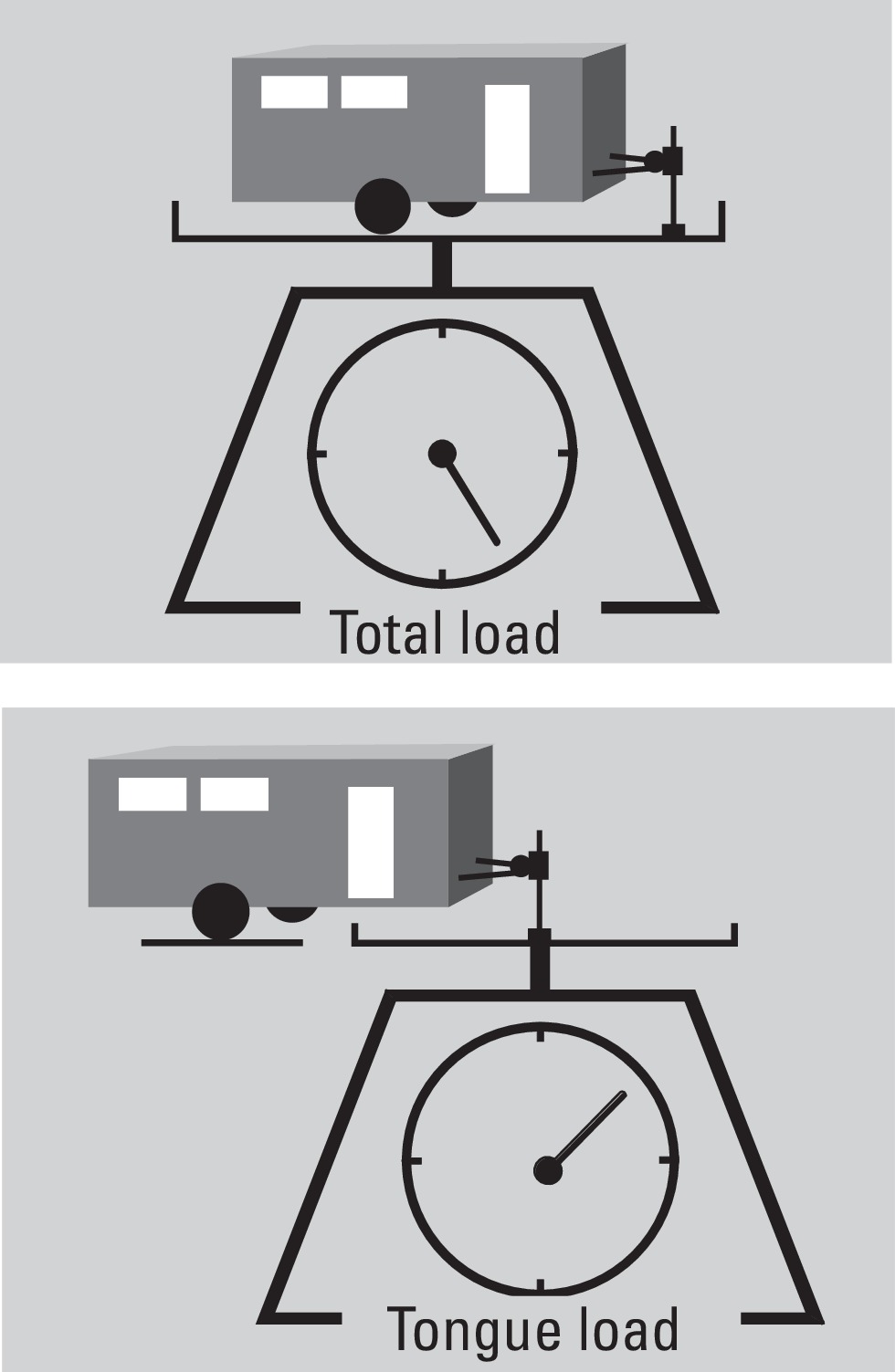

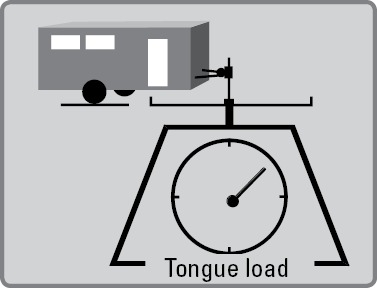

• To calculate the tongue load, subtract 5 from 6.
• Refer to the trailer owner's manual for additional information.

Fully load the vehicle and trailer. An attendant who watches the scale is needed as all occupants should stay in the vehicle.

If a public scale is not available, add the estimated weight of your cargo load to the weight of your trailer (as quoted by the manufacturer), and then measure the tongue load with an appropriate scale or tongue gauge or estimate it based on cargo distribution.

Pre-tow checklist

When preparing to tow, and before driving away, ensure the following:

• The vehicle has been properly serviced, and the suspension and the cooling system are in good operating condition.
• Avoid towing a trailer during your vehicle's first 600 miles (1,000 km).
• The trailer has been properly serviced and is in good condition.
• All weights and loads are within limits. Never exceed the gross weight ratings.
• Check if all loads are within limits at a public scale. If a public scale is not available, add the estimated weight of your cargo load to the weight of your trailer (as quoted by the manufacturer) and the tongue load.
• The hitch, safety chains, and any other attachments are secure.
• All items in or on the trailer are properly secured and cannot shift while you drive.

Your vehicle should not be used to carry a slide-in camper. If you install a truck cap, be sure it is properly installed and does not exceed your vehicle's load limits (see "Maximum Load Limit").
