Malfunction
Indicators
Learn about the indicators, gauges, and displays related to driving the vehicle.

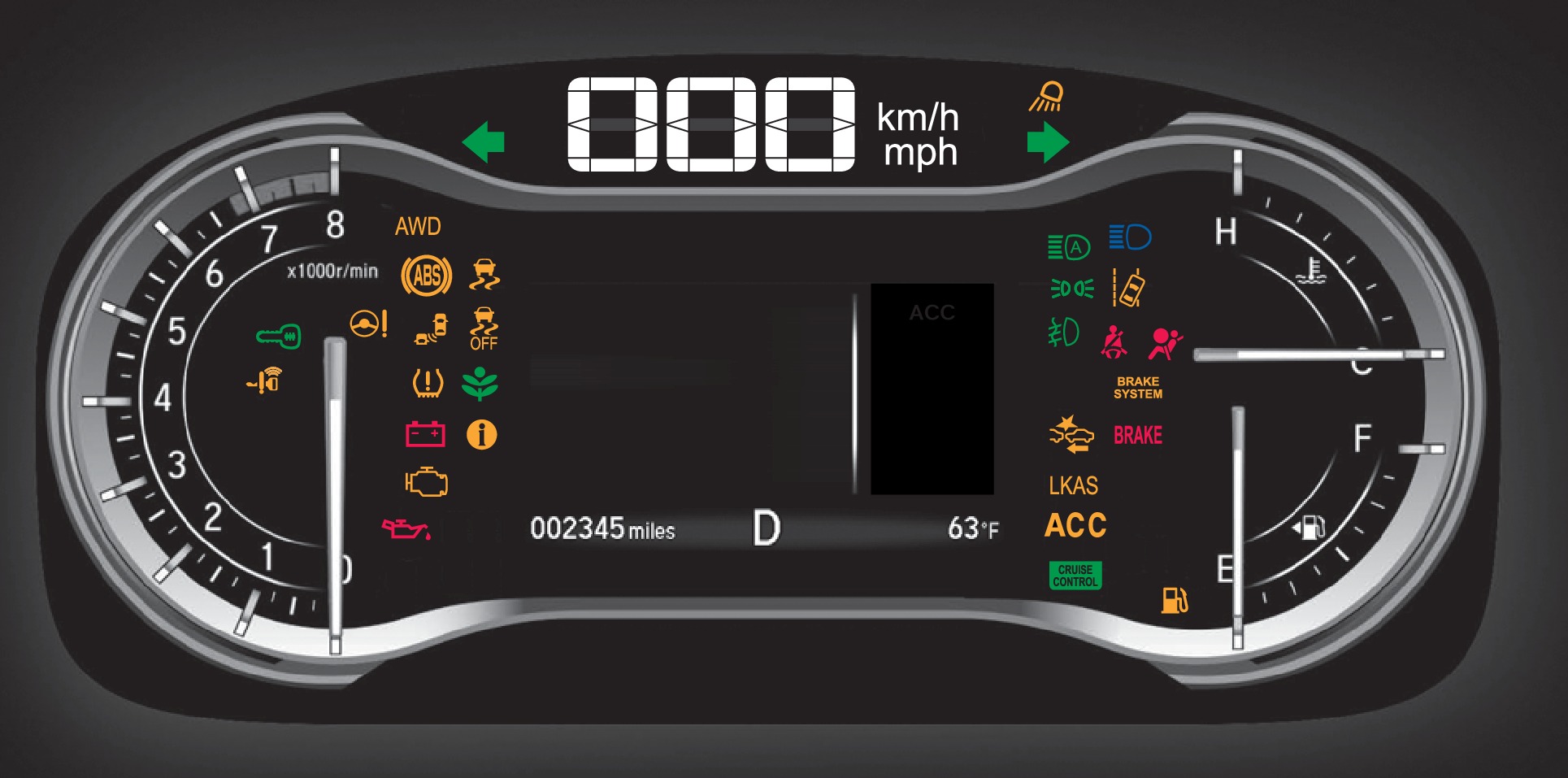

Indicators briefly appear with each engine start and then go out. Red and amber indicators are most critical. Blue and green indicators are used for general information.
These are the most critical indicators. If they come on and stay lit while driving or at any other time, there may be a problem. See your dealer if necessary.
|
|
Brake system The brake fluid is low, or the brake system has a problem. Press the brake pedal lightly to check pedal pressure. If normal, check the brake fluid level when you stop. If abnormal, take immediate action. If necessary, downshift the transmission to slow the vehicle using engine braking. Have your vehicle repaired immediately. |
|
|
Low oil pressure Engine oil pressure is low. Stop in a safe place. Open the hood. Check the oil level, and add oil if necessary (see "Engine Oil"). If the indicator does not turn off, have your vehicle repaired immediately. |
|
|
Charging system The battery is not charging. Turn off all electrical items, but do not turn off the vehicle to prevent further battery discharge. Have your vehicle repaired immediately. |
|
|
Supplemental Restraint System (SRS) There is a problem with one of the airbag systems or seat belt tensioners. |
|
|
Smart Entry system* There is a problem with the smart entry system. |
|
|
Lane Keeping Assist System (LKAS)* There is a problem with the system. |
|
|
Malfunction indicator lamp (check engine light) The emissions control system may have a problem, or the fuel cap is missing or loose. If the indicator blinks, a misfire in the engine's cylinders is detected. Stop in a safe place and wait for the engine to cool down. |
|
|
Anti-lock Brake System (ABS) There is a problem with the anti-lock brake system. Your vehicle still has normal braking ability, but no anti-lock function. |
|
|
Tire Pressure Monitoring System (TPMS)* There is a problem with the tire pressure monitoring system, or the vehicle is fitted with a spare tire. |
|
|
Vehicle Stability Assist (VSA) system There is a problem with the VSA or hill start assist system. |
|
|
Brake system There is a problem with one of the braking systems.. |
|
|
Collision Mitigation Braking System (CMBS)* There is a problem with the system, the temperature is too high, or the camera is blocked. |
|
|
Lane Departure Warning (LDW)*/Road Departure Mitigation (RDM)* There is a problem with the system, the temperature is too high, or the camera is blocked. |
|
|
Blind spot information (BSI)* There is a problem with the system, or the radar is blocked. |
|
|
Electric power steering There is a problem with the system. Stop the vehicle in a safe place, and restart the engine. |
|
|
All-Wheel Drive (AWD)* There is a problem with the system. If the indicator blinks, the differential temperature is too high. Stop in a safe place, and let the engine idle until the indicator goes off. |
|
|
Adaptive Cruise Control (ACC)* There is a problem with the system. |
*if equipped
