In-Bed Conveniences
In-Bed Box

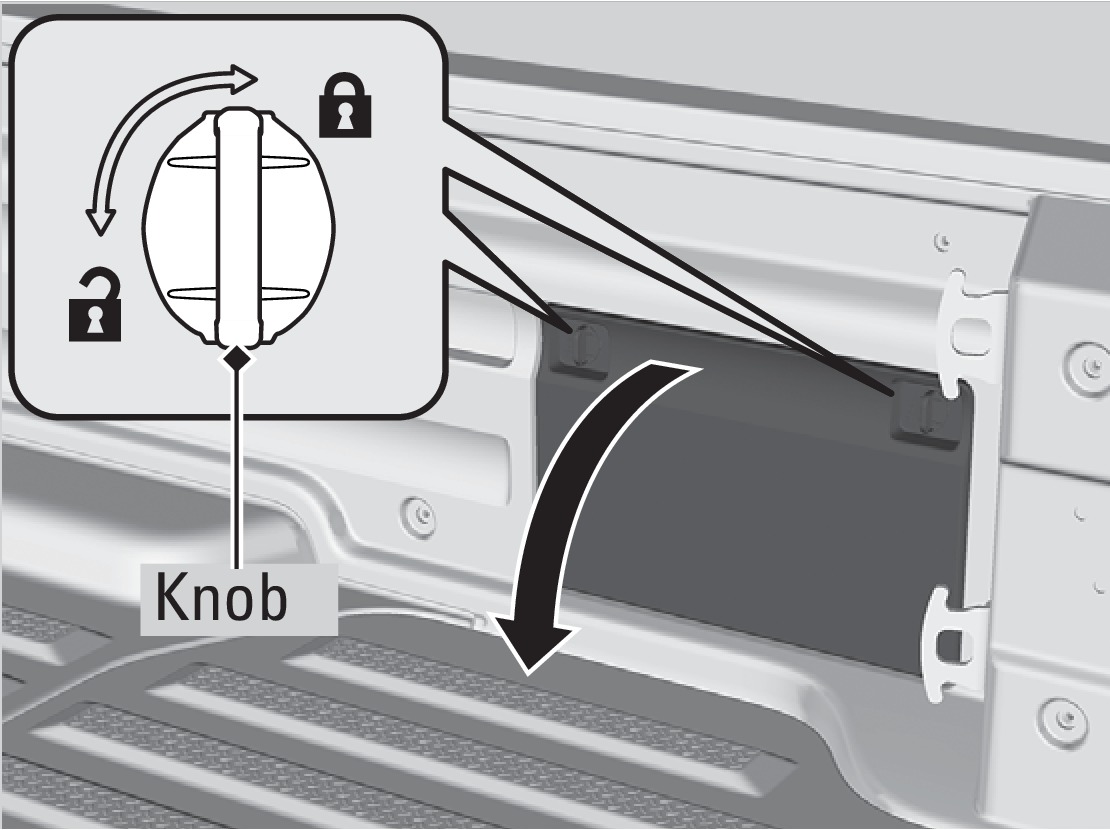

Turn the knobs to the left to open the lid
AC Power Outlet*

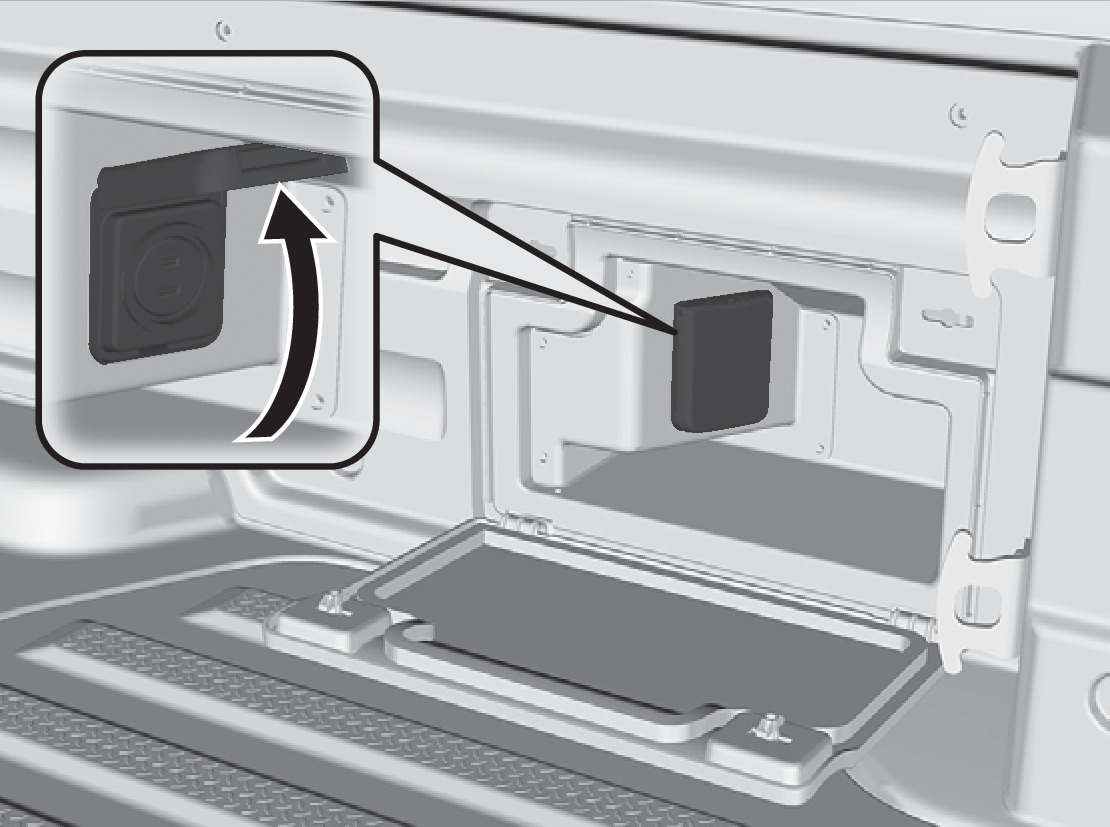

Open the in-bed box. Open the plug cover, insert a powercord slightly, rotate it 90° clockwise, then push it in all the way.

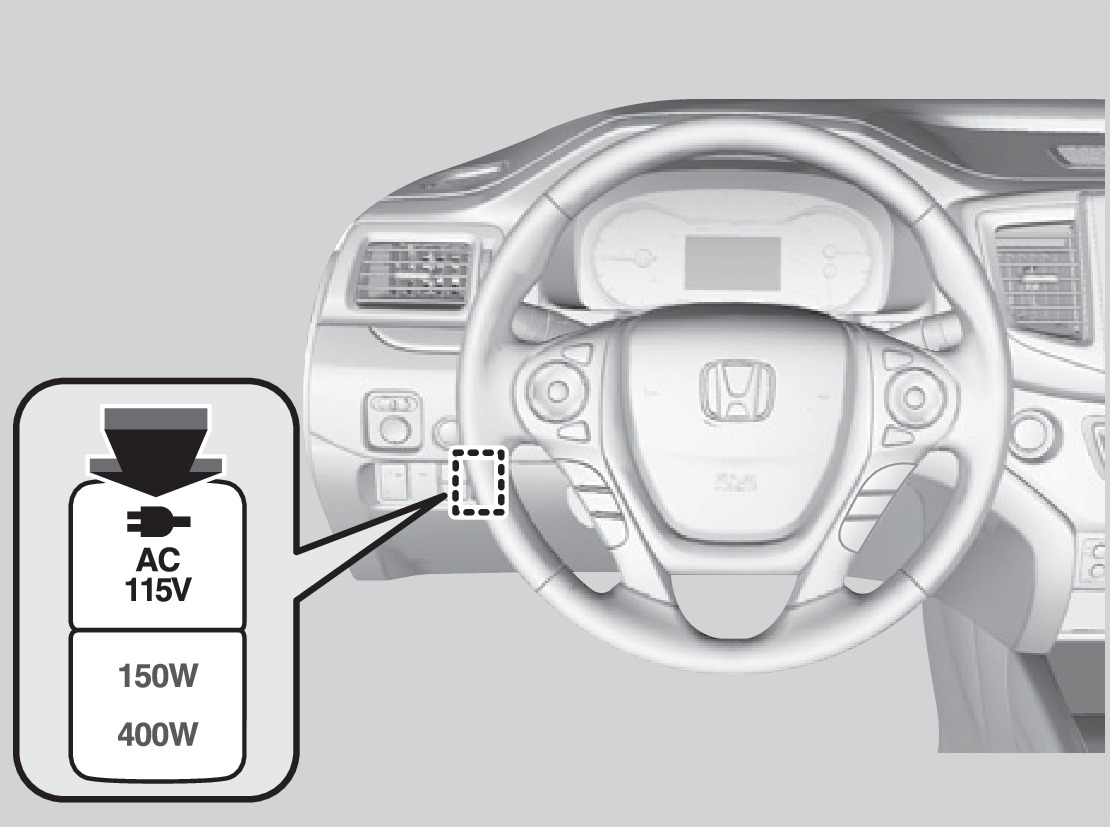

Push the AC power button to turn the system on or off. The maximum power is 400 watts when the engine is running and the vehicle is in Park. Otherwise, the maximum power is 150 watts.
The battery charge may be affected by using AC power with truck bed audio* or by heavy power outlet use while the vehicle is idling in Park (P). If this happens, engine-idle speed will increase until the battery again has a normal charge.
NOTICE
The AC-power system is not designed for devices needing precise power regulation, nor for devices requiring high initial peak wattage.
*if equipped
