Rear Seats
Adjust second-row seats, access third-row seats, or fold down seats for carrying cargo.

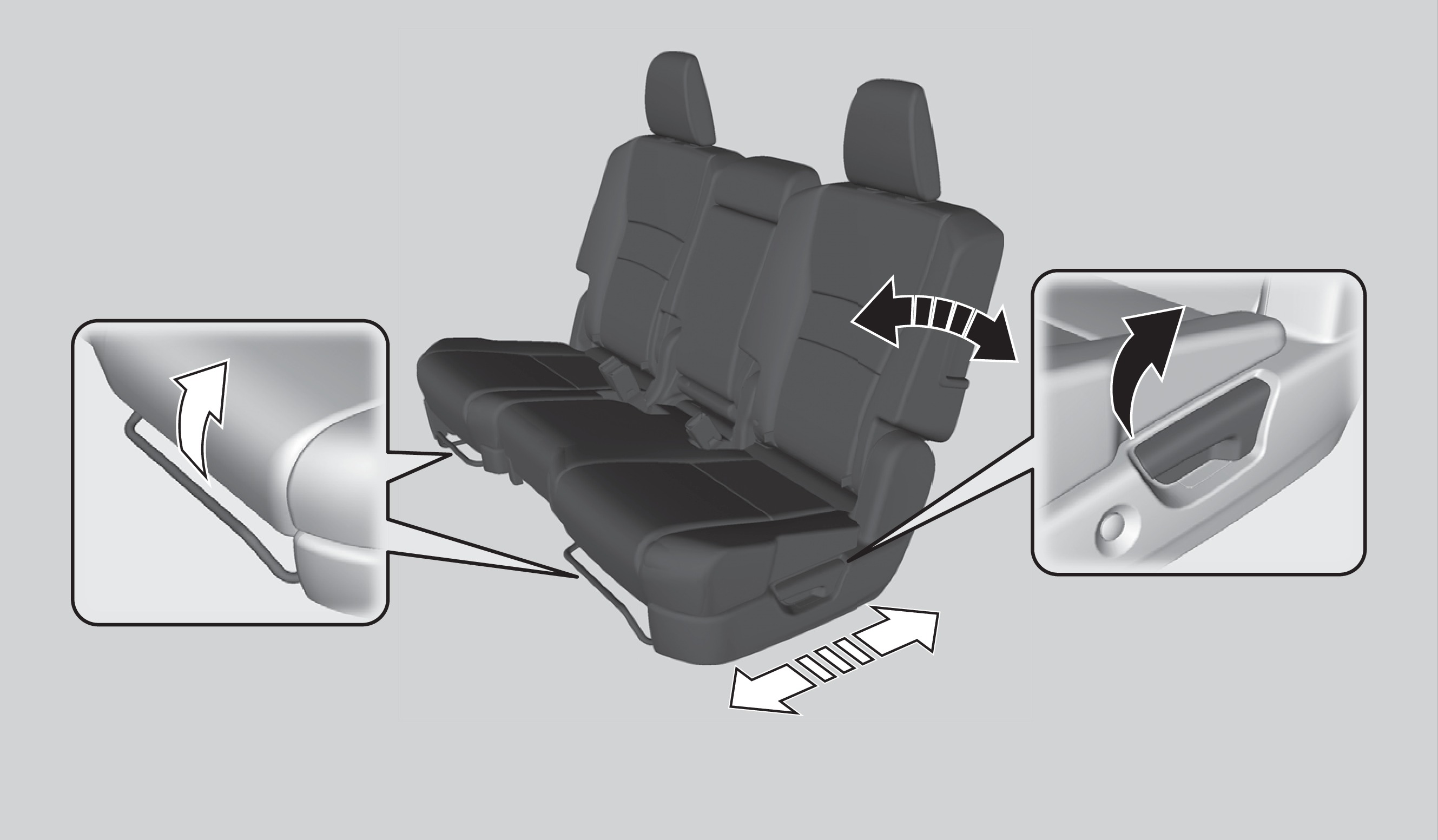

Adjusting the Second-Row Passenger's Seats
Horizontal position adjustment
Pull up the bar to move the seat, then release the bar.
Seat-back angle adjustment
Pull up the lever to change the angle.

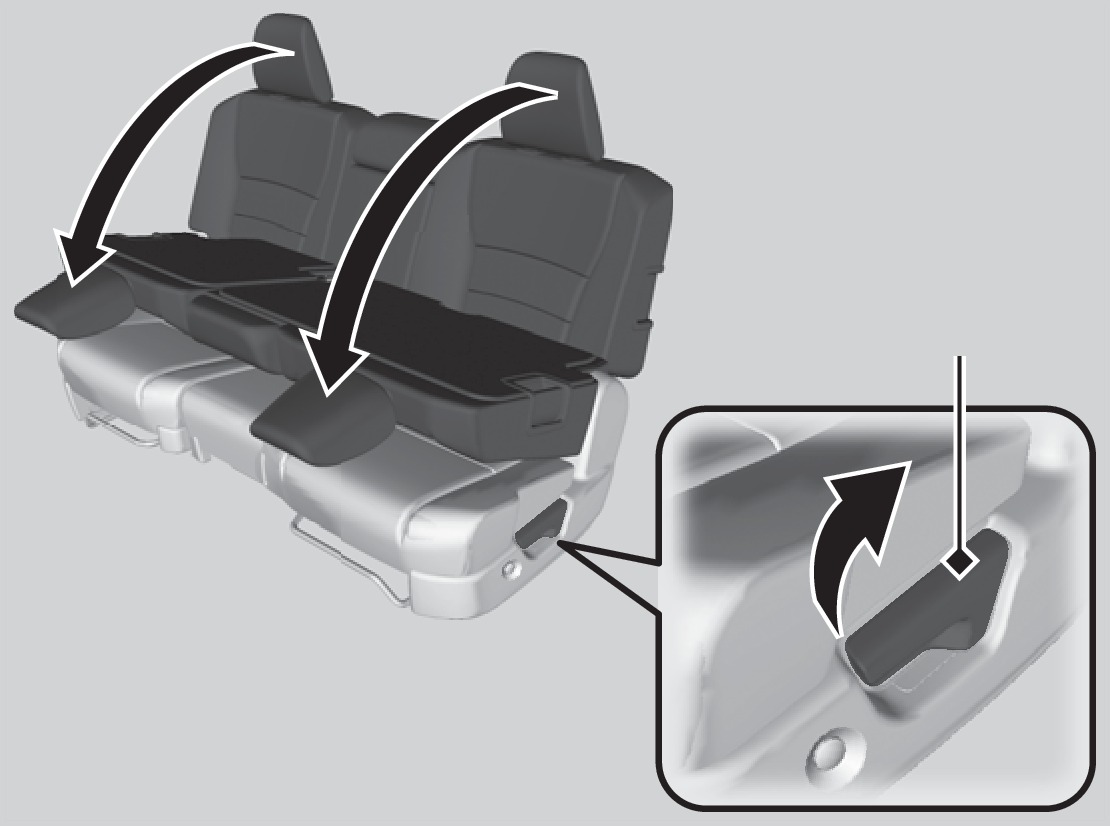

Folding Down the Second-Row Seat
Separately fold down the left and right halves of the second-row seat to make room for cargo.
- Store the center seat belt first. Insert the latch plate into the slot on the side of the anchor buckle.
- Retract the seat belt into the holder on the ceiling (see "Seat Belts").
- Lower the center head restraint to its lowest position. Put the armrest back into the seat-back.
- Pull up on the seat-back angle adjustment lever.
Lever
To return the seat to the original position, pull up the seat-back in the upright position until it latches. Reposition the seat belts as necessary.

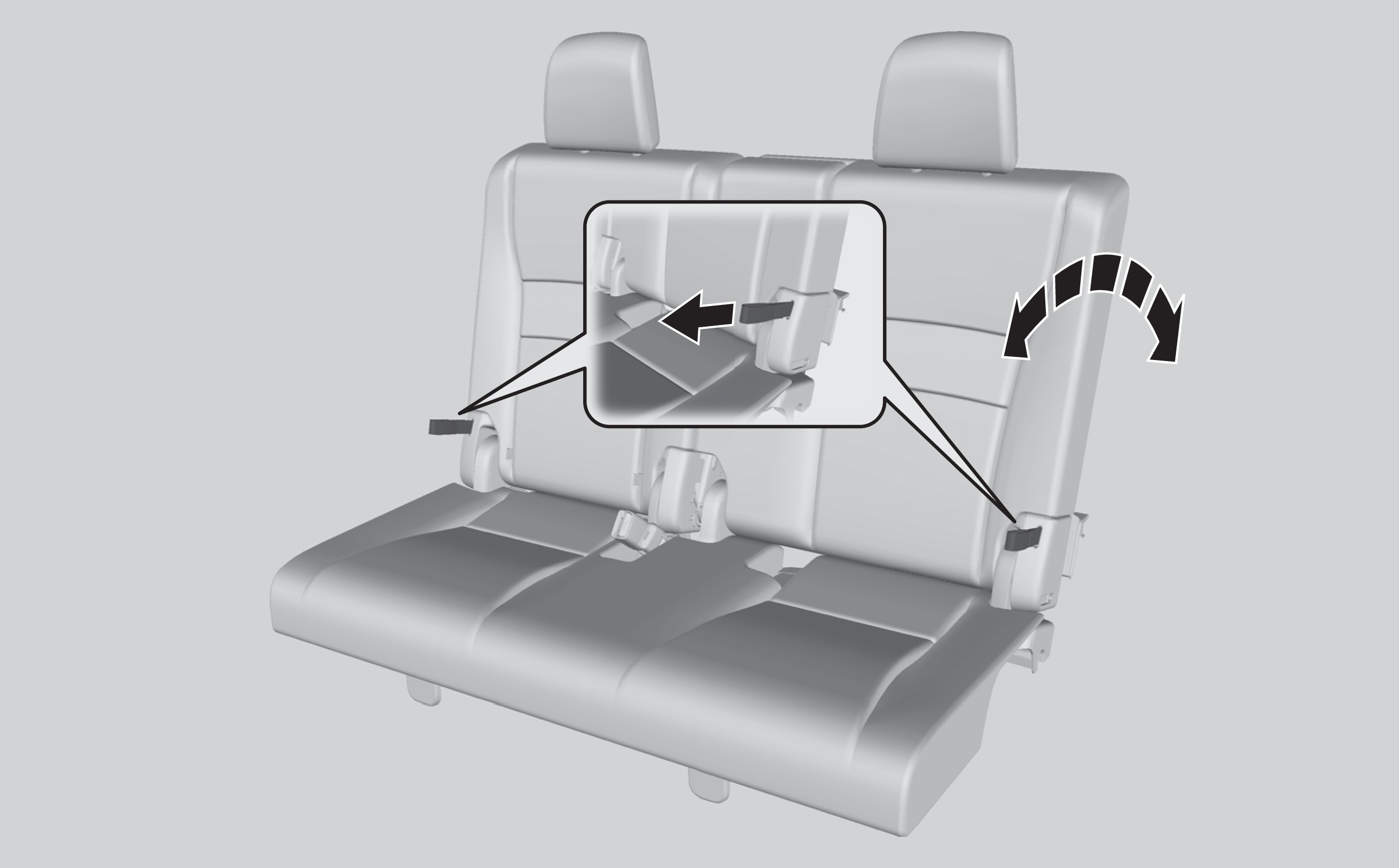

Adjusting the Third-Row Passenger's Seats
Seat-back angle adjustment
Pull the strap to change the angle.
Third-Row Seat Access

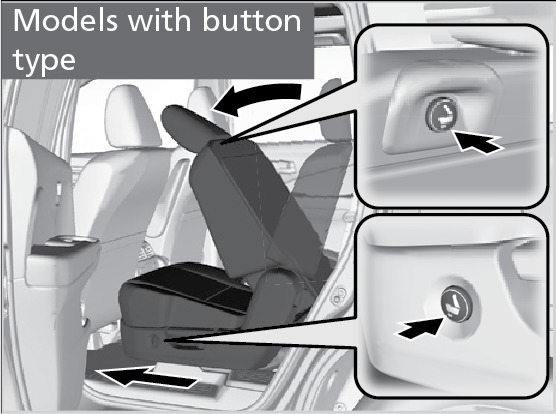

Using the button*
Press the button on the seat-back or seat cushion when the vehicle is stopped. The whole seat slides forward.
Using the lever or strap*
Pull up on the lever or strap. The whole seat slides forward.
Strap
*if equipped
Folding Down the Third-Row Seat
Separately fold down the left and right halves of the third-row seat to make room for cargo.
To fold down the seat
- Pull the strap on the seat-back. The head restraint tilts downward.
- Push the seat-back forward while pulling the strap.
Strap
To return the seat to the original position
- Pull up the seat-back with the strap pulled.
- Pull the head restraint up to its original position.
