MODELS WITH TOUCHSCREEN
Basic HFL Operation
Models with Display Audio
Make and receive phone calls using the vehicle's audio system, without handling your phone. Visit (U.S.) or call
(U.S. and Canada) to check phone compatibility.
To reduce the potential for driver distraction, certain manual functions may be inoperable or grayed out while the vehicle is moving. Stop or pull over to perform the function. Voice commands are also available.

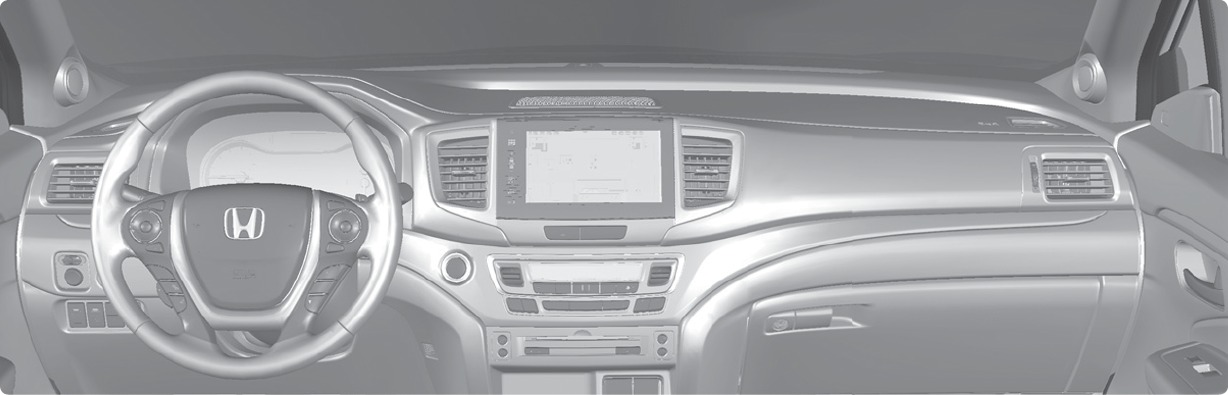

HFL Controls
Use the controls to enter information and make selections.

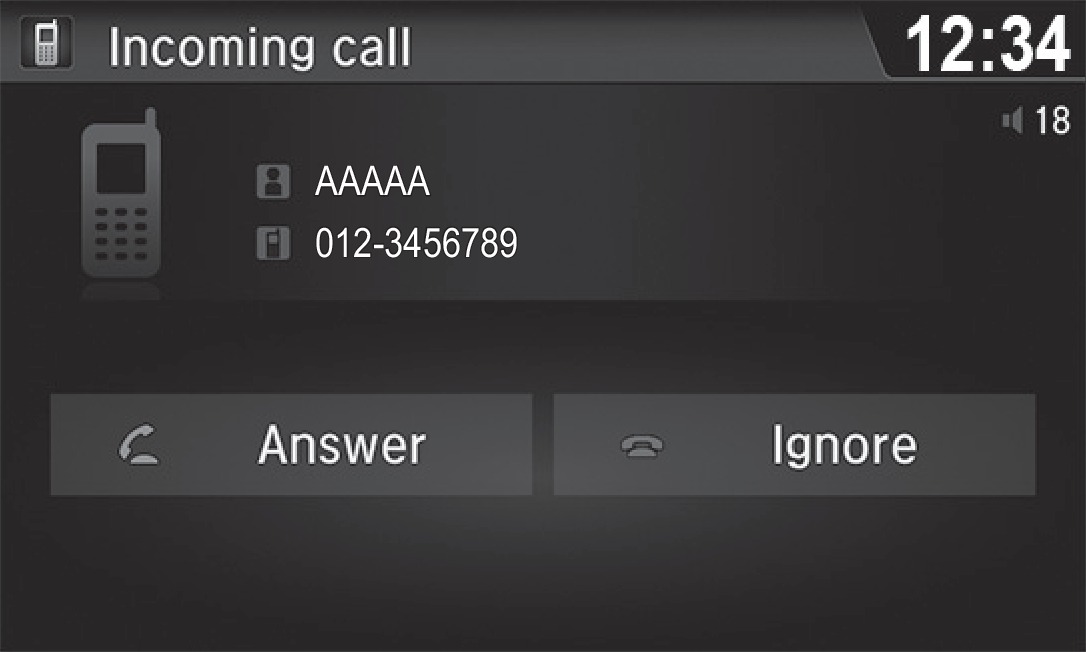

Pick-Up button: Answer an incoming call.
Hang-Up/Back button: End or decline a call, or cancel an operation.
Talk button: Make a call using a stored voice tag, or say voice commands*.

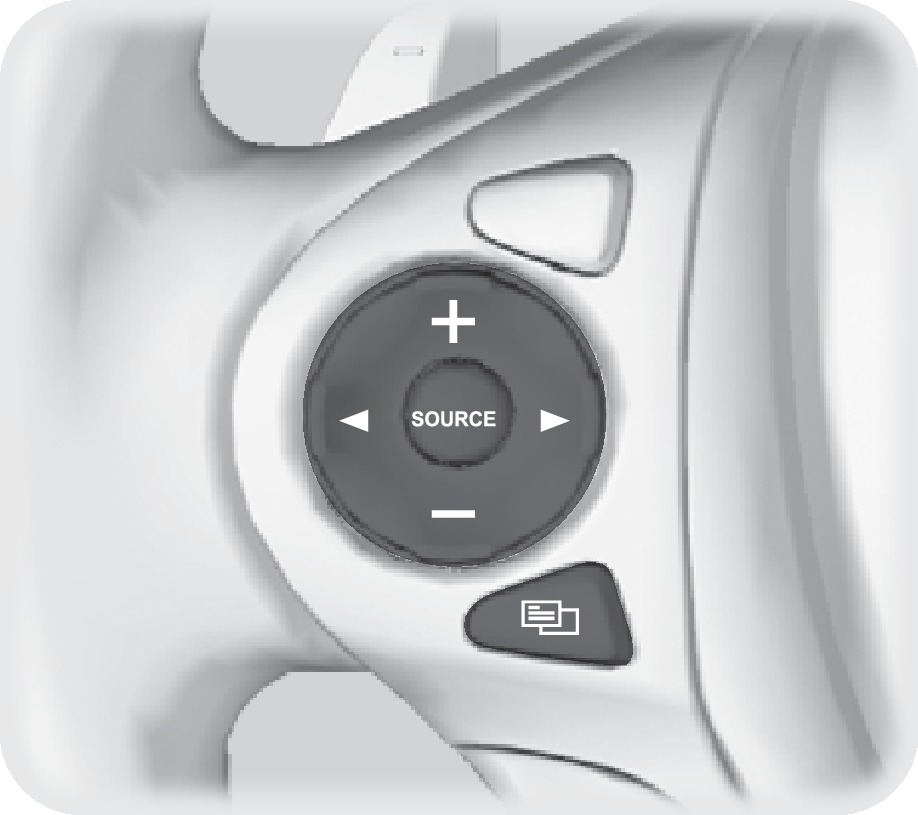

+ / - buttons: Scroll the list after pressing and holding the Menu button.
SOURCE button: Press to enter a selection after pressing and holding the Menu button.
Menu button: From the phone screen, press to display speed dial, call history, or redial.
MENU: From the phone screen, select various call options.
BACK: Go back to the previous display.
Phone: From the Home screen, display the phone screen.
Settings: Select Phone from the Settings screen for phone pairing and more.

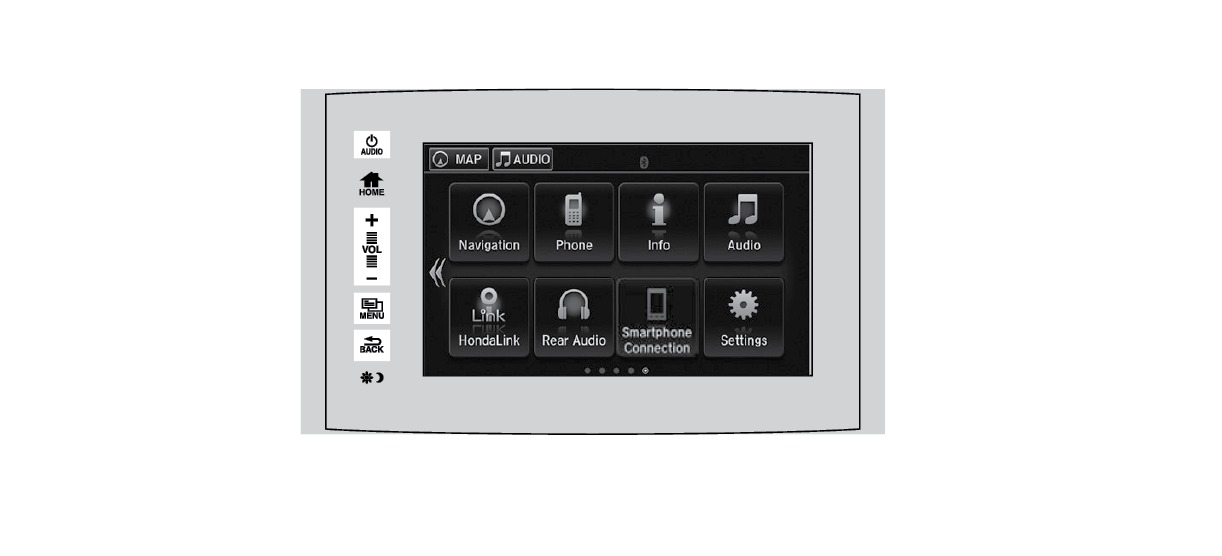

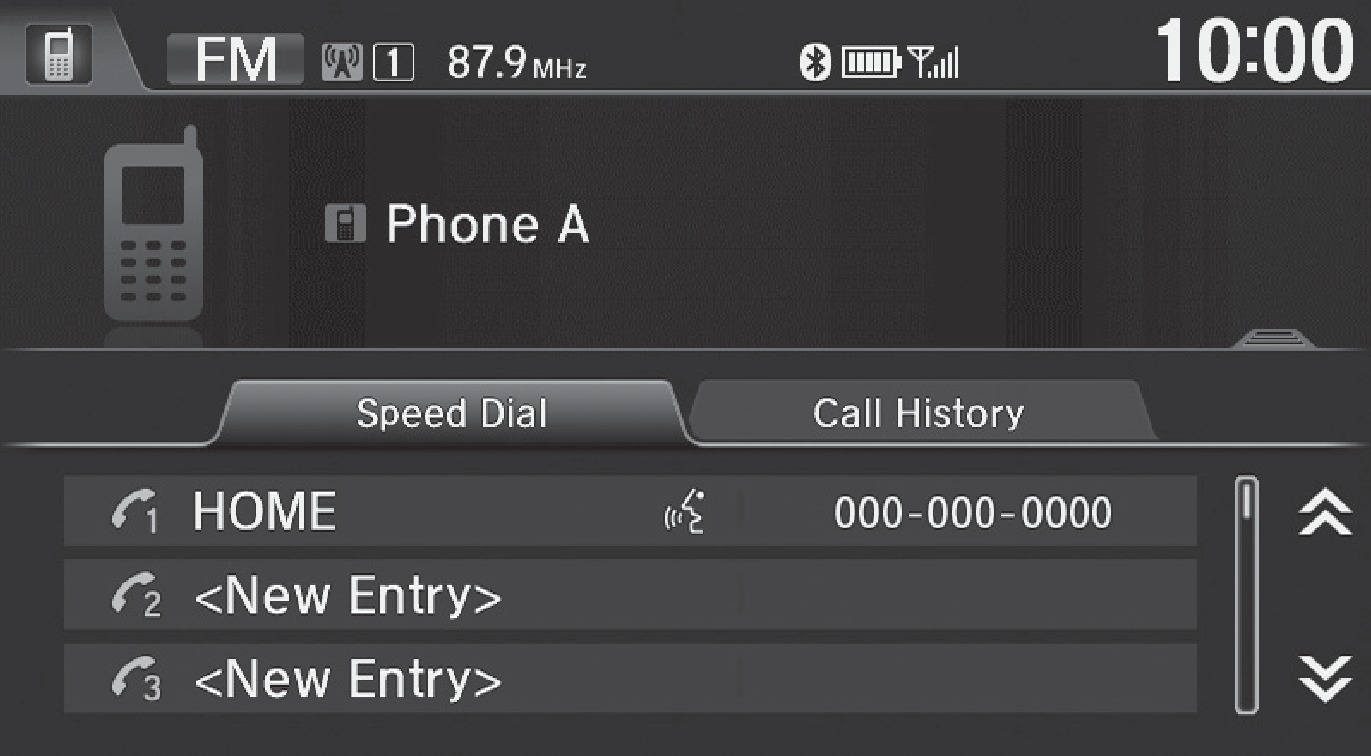

HFL display
*vehicles with navigation
Talk Button Tips
For a list of available phone commands, see "Voice Command Index".
- When using the Talk button, wait until you hear a beep before speaking.
- The system recognizes only those commands listed in the Voice Command Index (see "Voice Command Index")
- To bypass the system prompts, simply press the Talk button again to say your command.*
- When the Talk button is pressed, all available voice commands are highlighted in yellow.*
- Speak in a clear, natural voice.
- Reduce all background noise.
- Adjust the dashboard vents away from the microphone on the ceiling.
- Close the windows and moonroof.
*vehicles with navigation
Pairing a Phone
Models with Display Audio
To use hands-free phone and streaming audio functions, you must first pair your phone to the system. This can only be done when the vehicle is stopped. Use the touchscreen to make and enter selections.

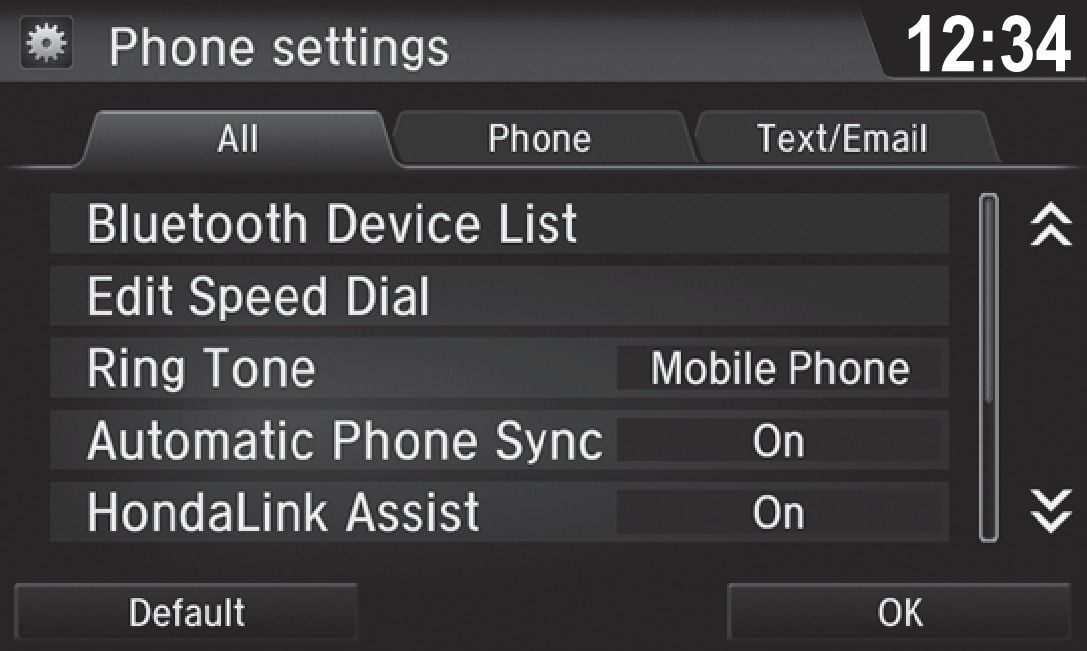

- From the Home screen, select Settings.
- Select Phone.

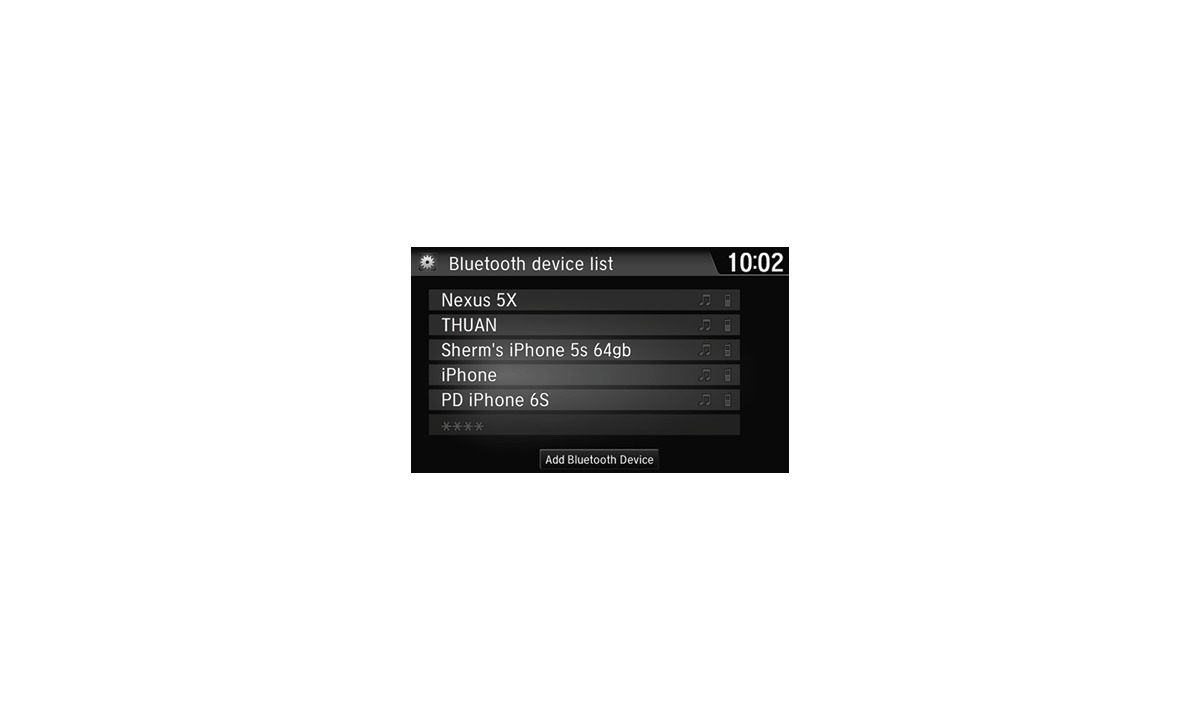

- Select Bluetooth Device List.
- Select Add Bluetooth Device.
- Make sure your phone is in discovery mode. Select Continue.

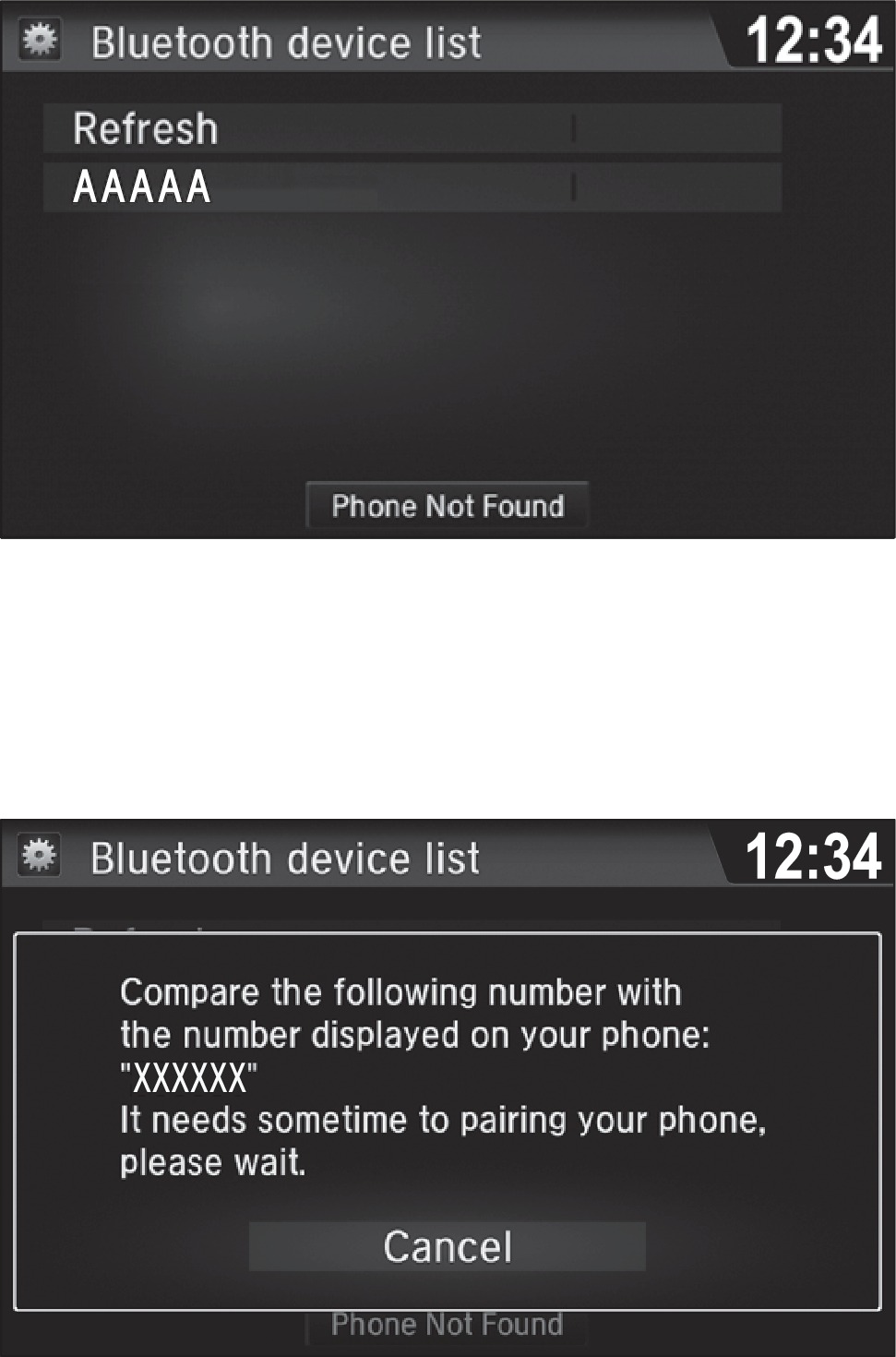

- The system searches for your phone. Select your phone when it appears on the list.
If your phone does not appear:
Select Phone Not Found and search for HandsFreeLink from your phone. Connect to HFL.

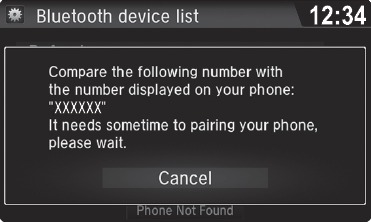

- The system gives you a pairing code. Compare it to the code that appears on your phone. Connect to HFL from your phone.
- The system asks if you want to enable options:
HondaLink Assist: Select On to enable emergency collision notification (see "HondaLink Assist").
Phone Synchronization: Select On to automatically import contacts and call history from your phone.
- Press BACK to exit the menu.
Applicable laws may prohibit the operation of handheld electronic devices while operating a vehicle.
Making a Call
Models with Display Audio
You can make a call using several methods.
Dialing a Number
Enter a 10-digit phone number to call.
Using voice commands
Press the Talk button before you say each command.

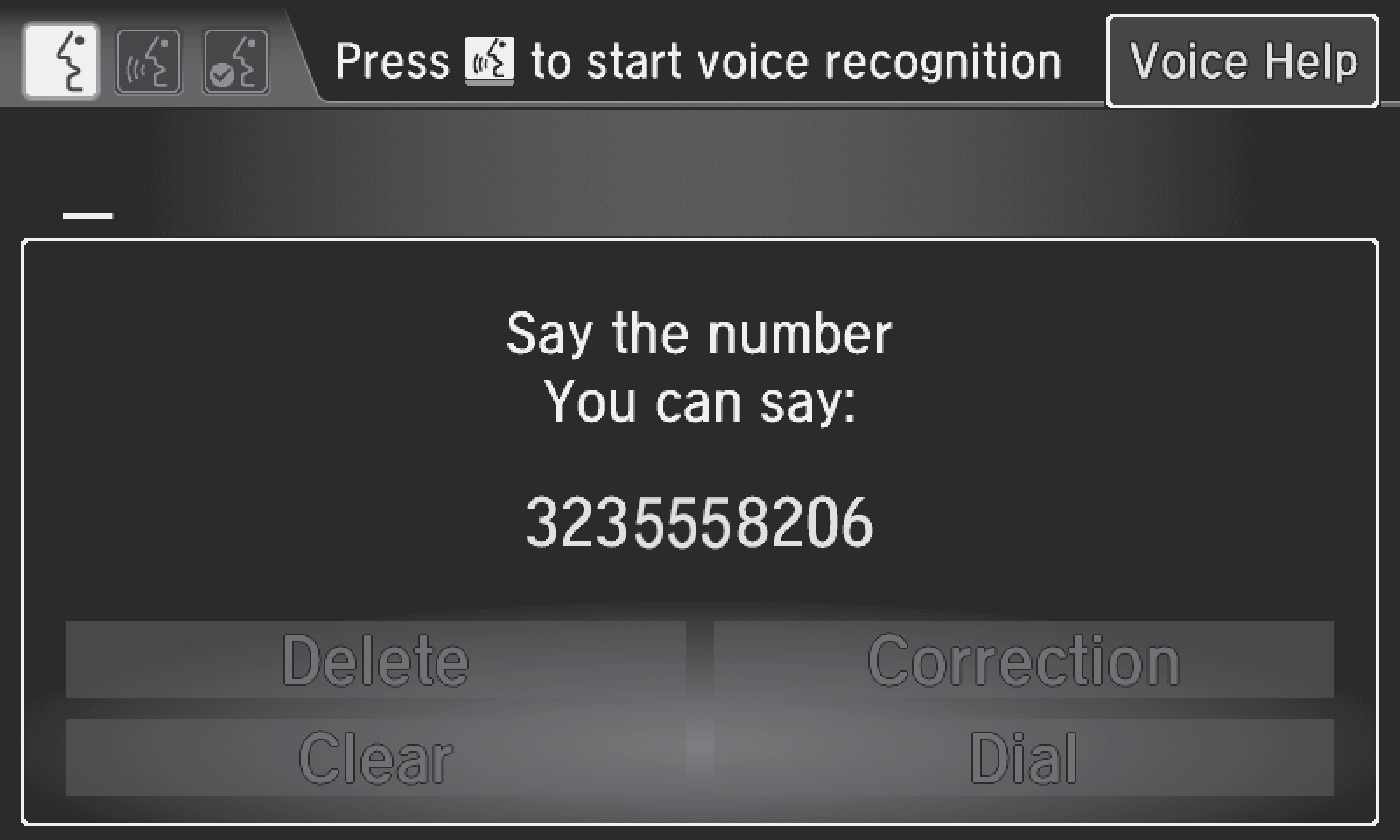

- Say "Dial by number."
- Say the phone number: For example, "3-1-0-5-5-5-1-2-3-4."
- The system begins to dial.

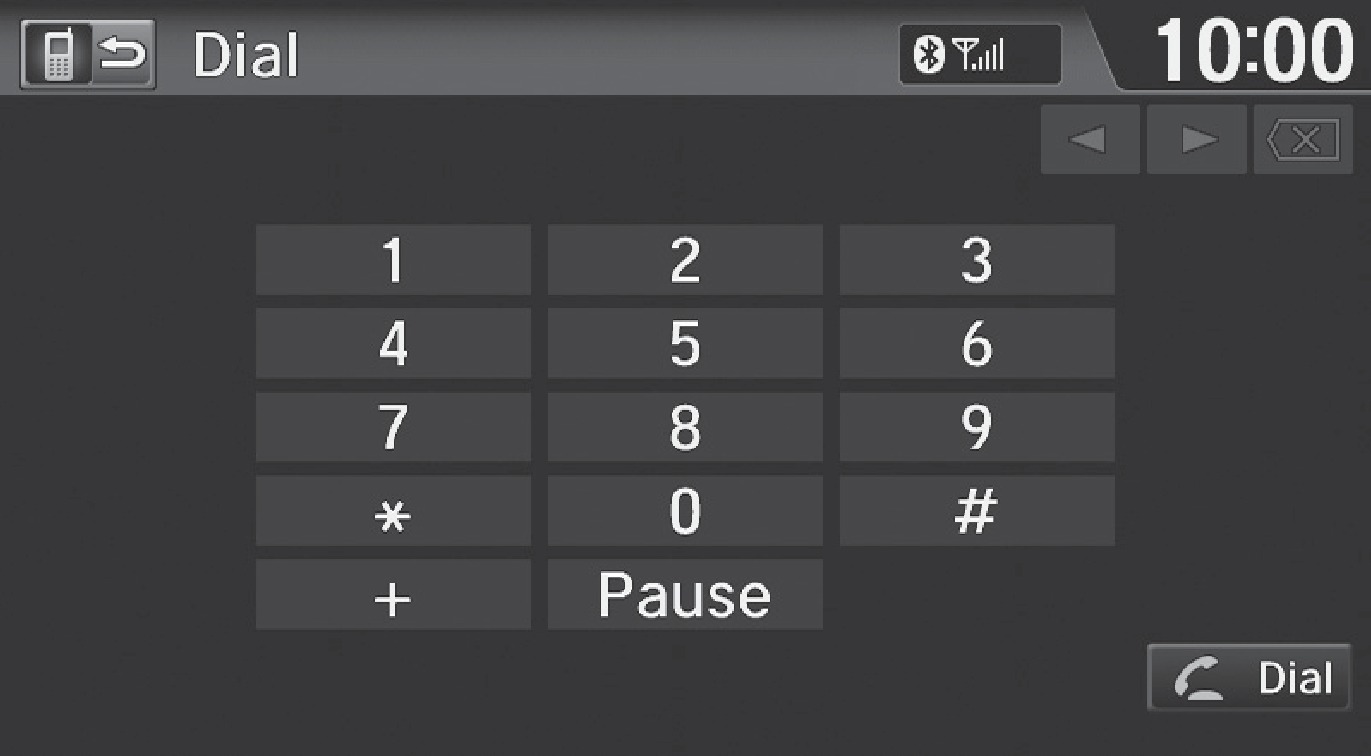

Using the touchscreen
Manual operation is limited while the vehicle is moving. Voice commands are always available.
- From the Home screen, select Phone.
- Select MENU.
- Select Dial.
- Enter the phone number. Select the green phone icon to call.
Using the Phonebook
When your phone is paired, its entire phonebook can be automatically imported to the system. Phone synchronization must be turned on.
Using voice commands
Press the Talk button before you say each command.

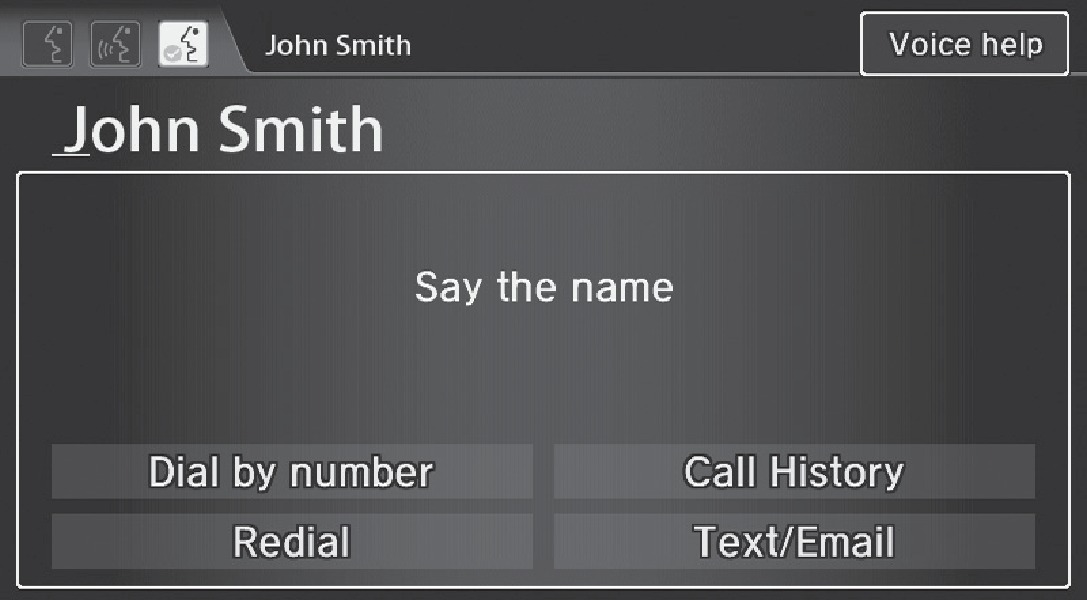

- Say "Dial by name."
- Say the phonebook name and phone type. For example, "John Smith mobile."
Using the touchscreen
Manual operation is limited while the vehicle is moving. Voice commands are always available.

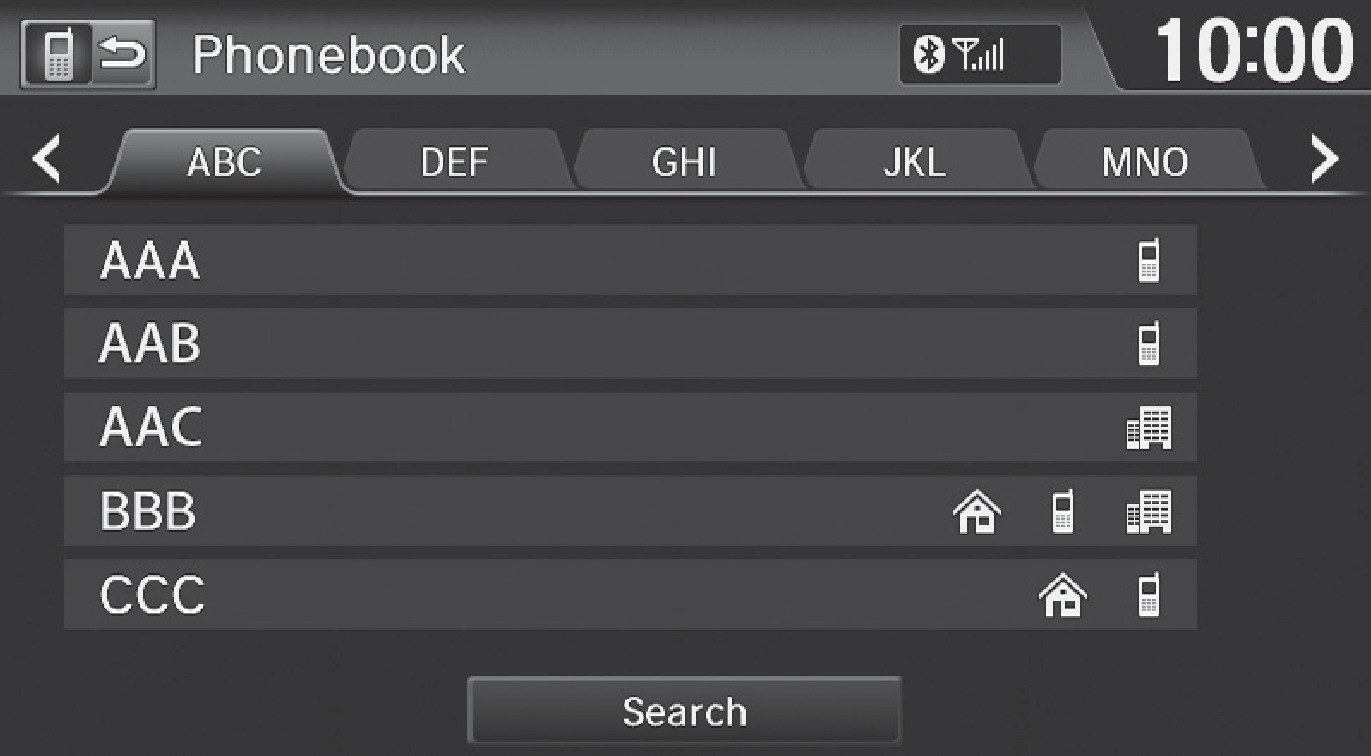

- From the Home screen, select Phone.
- Select MENU.
- Select Phonebook.
- Scroll through the list to find the name and number you want to call, and select it to call.

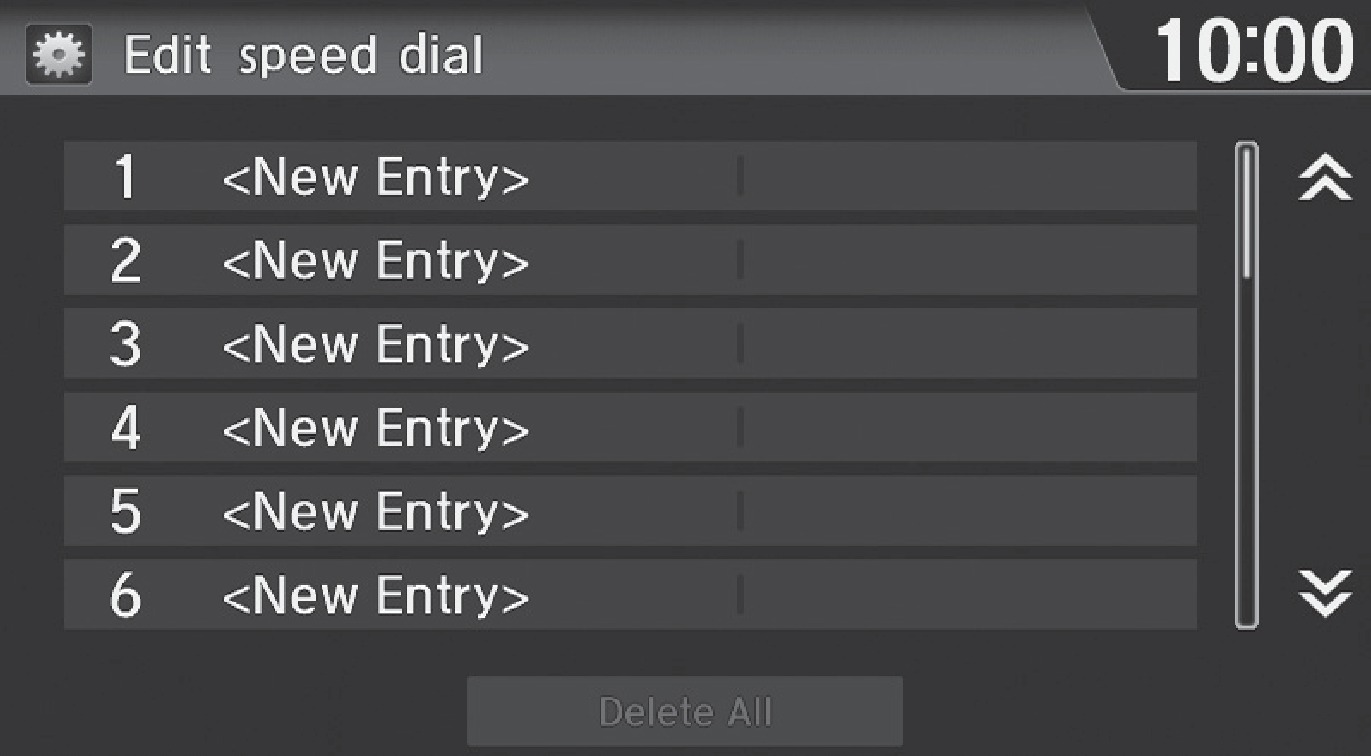

Storing Speed Dial Entries
Store up to 20 numbers for quick dialing.
- From the Home screen, select Phone.
- Select MENU.
- Select Edit Speed Dial, then select New Entry.
- Select an entry method.
- If desired, you can create a voice tag for the number. Follow the prompts.
Using Speed Dial
Make calls quickly using stored speed dial entries.
Using voice commands
Press the Talk button before you say each command.
- Say "Dial by name."
- Say the stored voice tag name. For example, "John Smith."
Using the touchscreen
- From the Home screen, select Phone.
- Scroll through the list to find the entry you want to call and select it to call.
HondaLink Assist

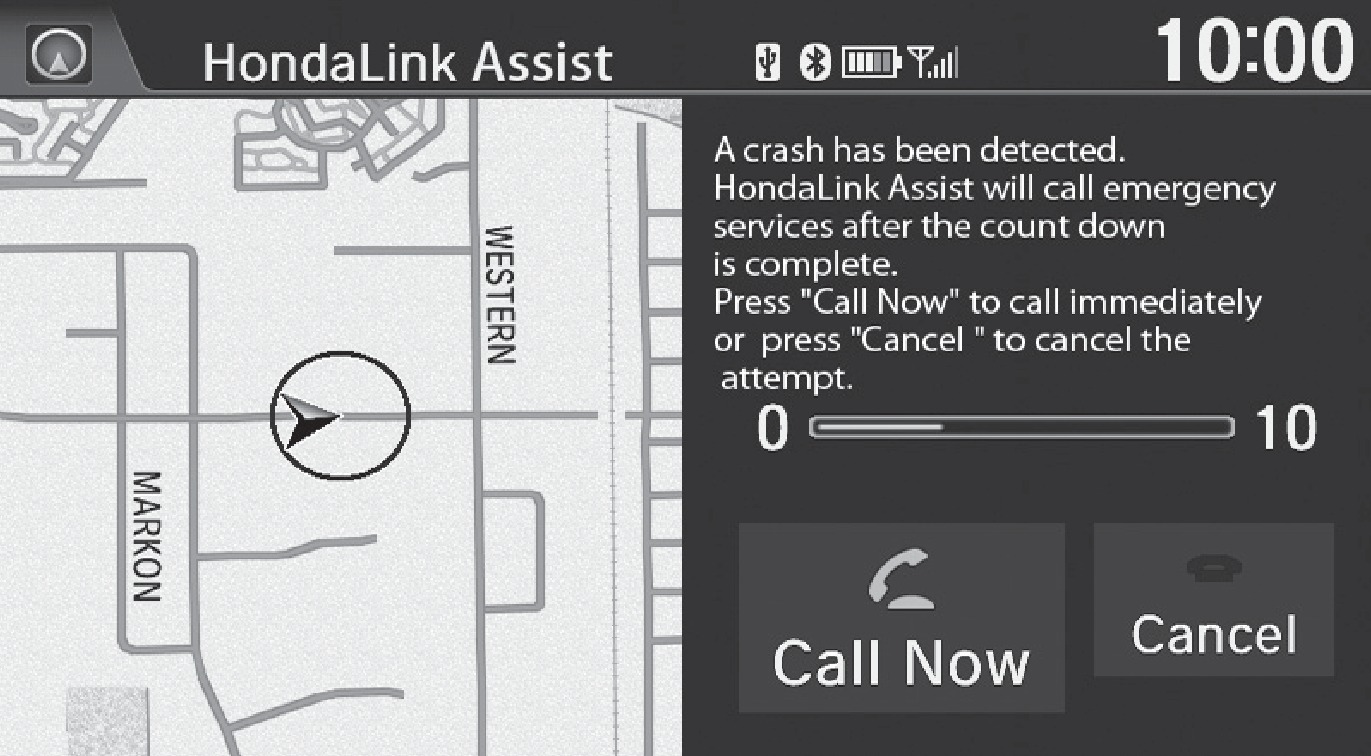

If your vehicle's airbags deploy or if the unit detects that the vehicle is severely impacted, your vehicle automatically attempts to connect to an operator. Your phone must be paired to the system and have good cellular connection. Visit (Canada) for more information.
- Make sure your phone is on and paired to Bluetooth HandsFreeLink (see "Pairing a Phone").
- Select Call Now, or the system automatically connects after 10 seconds. The vehicle information and its position are sent to the operator.*

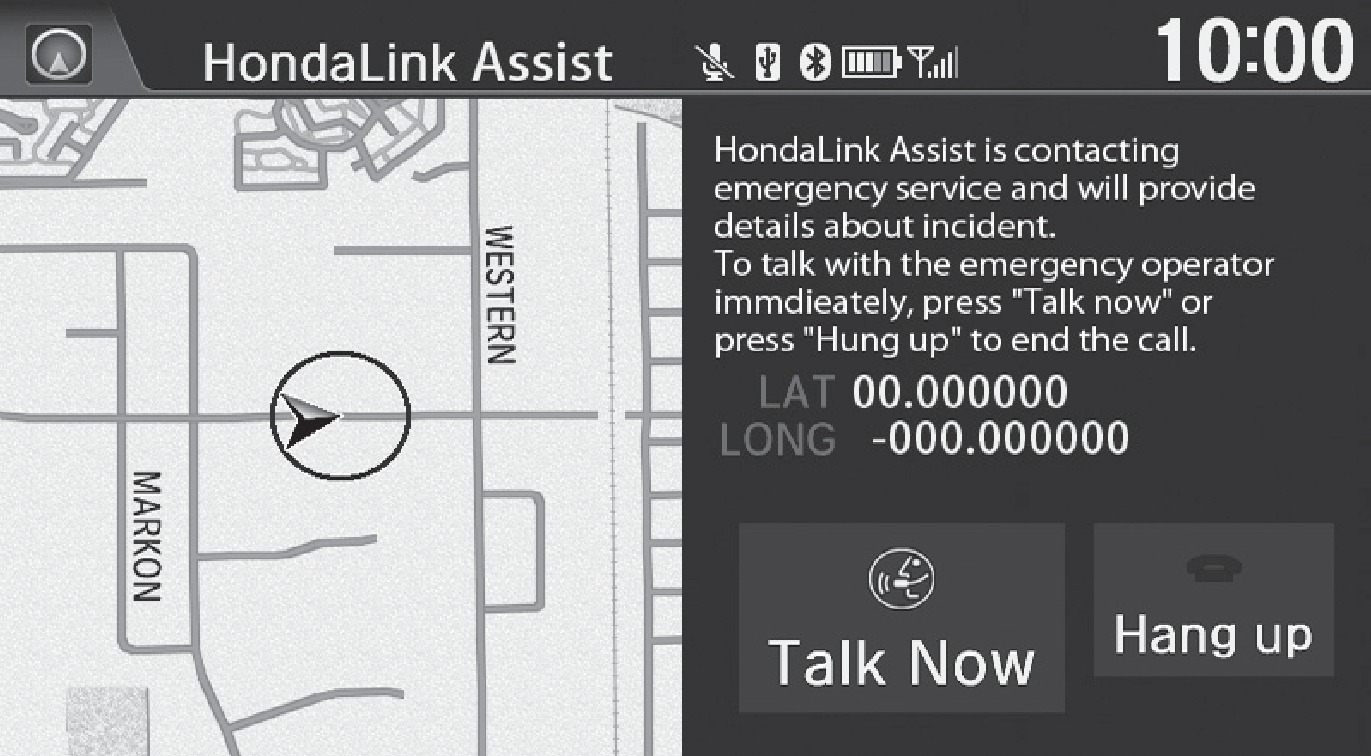

- Select Talk Now to immediately talk to the operator.
- When the call is complete, select Hang Up or press the Hang-Up/Back button on the steering wheel.
*Depending on your phone and cellular signal capability, your vehicle's location may not be sent to the operator.
SMS Text Messaging and E-Mail
Models with Display Audio
Certain phones can receive and send messages when paired and connected. Visit (Canada) to check phone compatibility. Standard message rates apply with your phone service provider. This feature is limited while the vehicle is moving.
Receiving and Responding to Messages

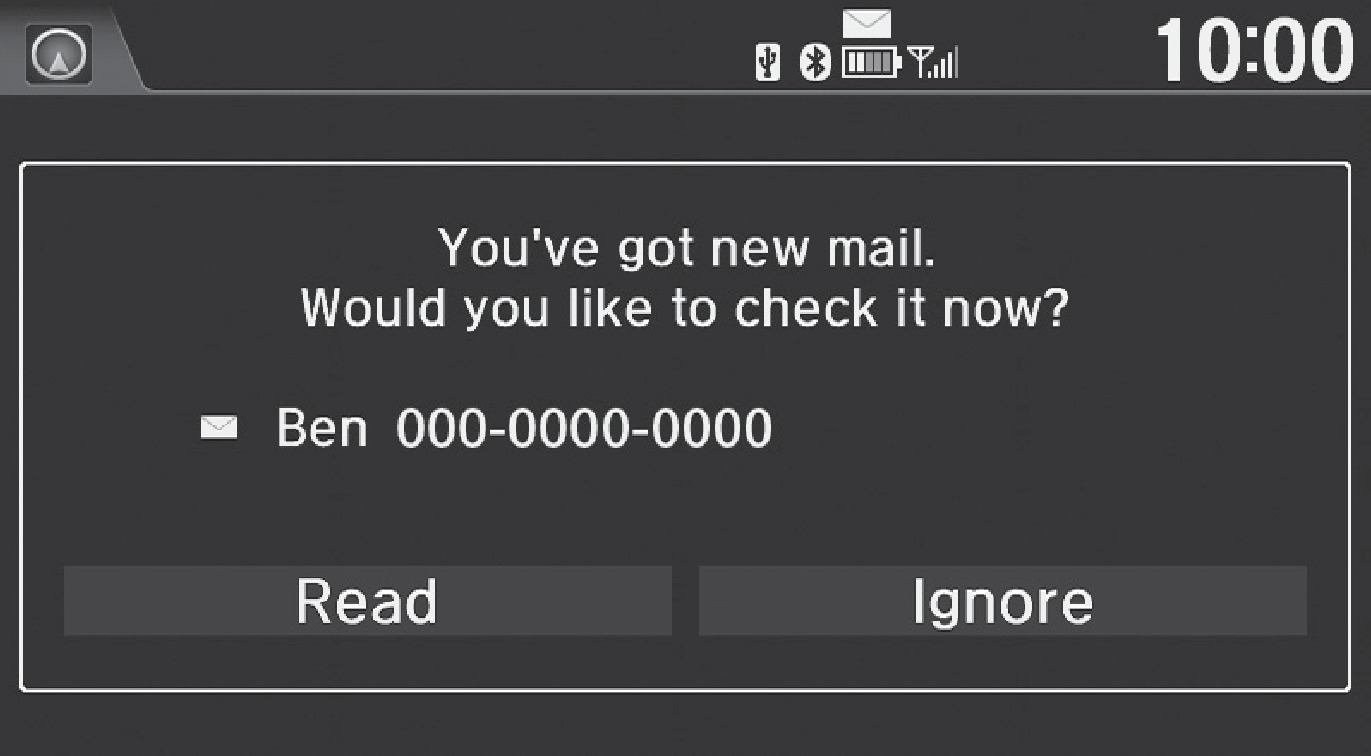

When you receive a new message, a pop-up appears on the touchscreen. You can view the message when the vehicle is stopped. You can also reply to it using fixed phrases or call the sender.
- When the prompt appears, select Read.
- The message is displayed, and the system reads it aloud.

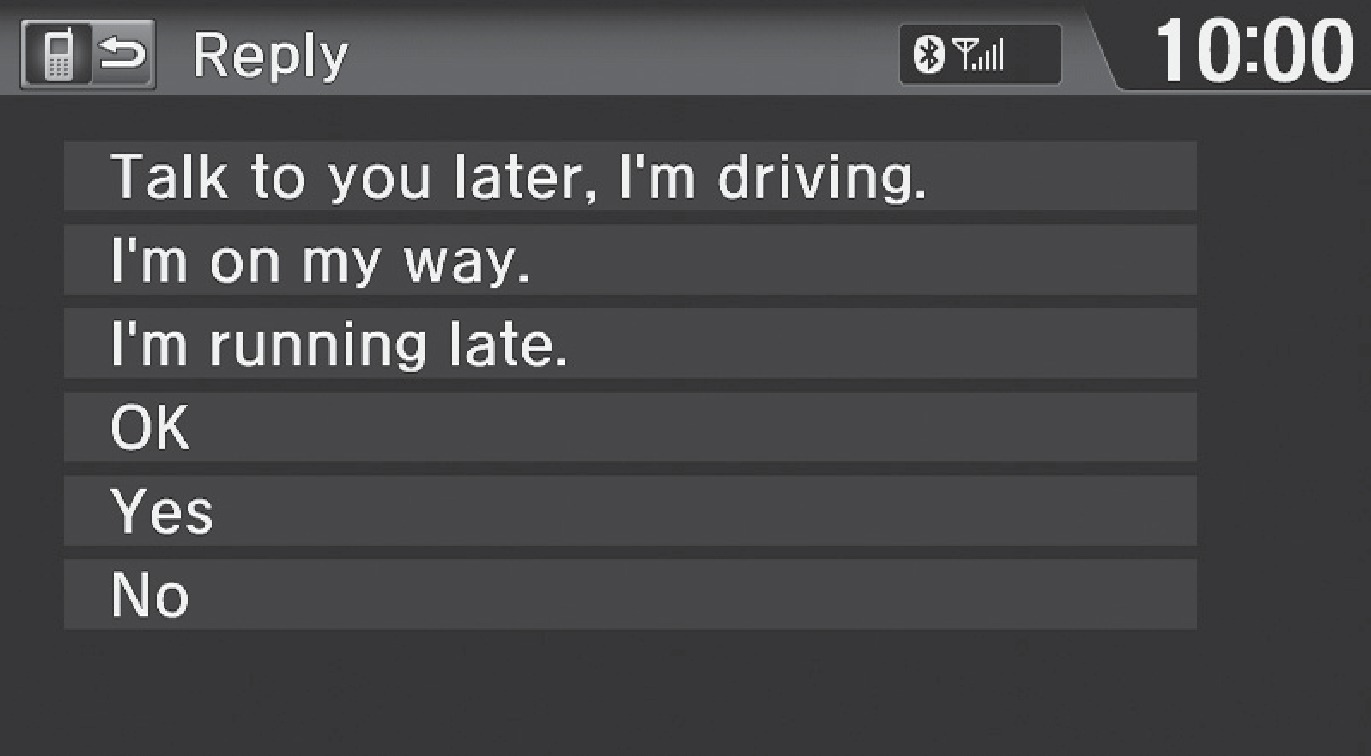

To reply: With the message open, select Reply, and choose one of the six available responses. Select Send to send the message. You cannot create a new text message.
To call the sender: With the message open, select Call.

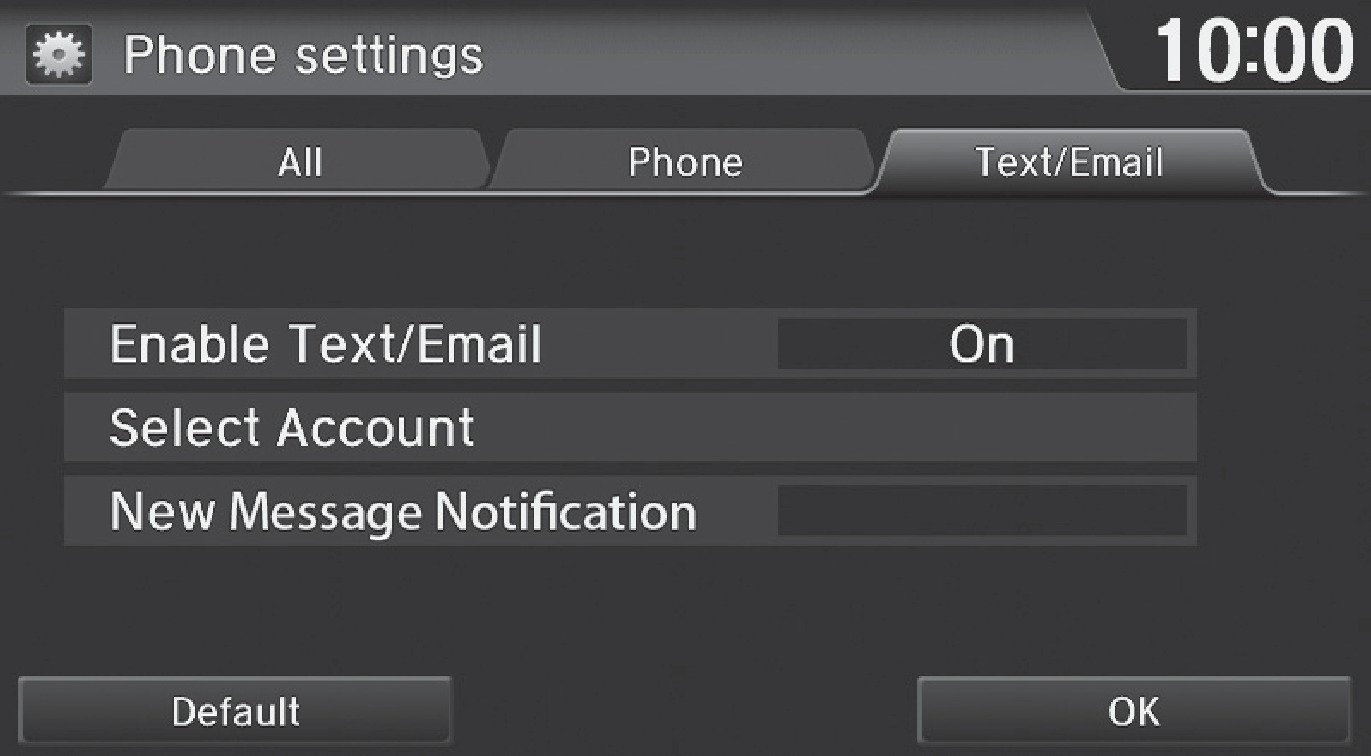

Selecting an Account
If your phone has both text message and e-mail accounts, you can select only one of them at a time to be active and receive notifications.
- From the Home screen, select Settings.
- Select Phone.
- Select Select Account.
- Select Text Message or an e-mail account.
Siri™ Eyes Free
Models with Display Audio
Activate Siri through your vehicle when an iPhone is paired to the system. Visit
(U.S.) or call
(U.S. and Canada) to check phone compatibility.
Hang-Up/Back button: Press to deactivate Siri Eyes Free mode.
Talk button: Press and hold to activate Siri Eyes Free mode. Say your command after you hear the Siri tone.
Smartphone screen
Here are some examples of Siri commands:
|
"Call John Smith" "Read my new text message" "Find a nearby sushi restaurant" |
"Remind me to pick up dinner" "Set up a meeting today at 3 p.m." "Play song XYZ" |
Notes:
- Any requests that include visual feedback from Siri on your phone are not displayed in the vehicle.
- Certain commands rely on the iPhone's features and existing apps.
- To hear turn-by-turn directions or songs through the vehicle, set the audio source to Bluetooth Audio.
Siri and iPhone are trademarks of Apple, Inc.
