Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

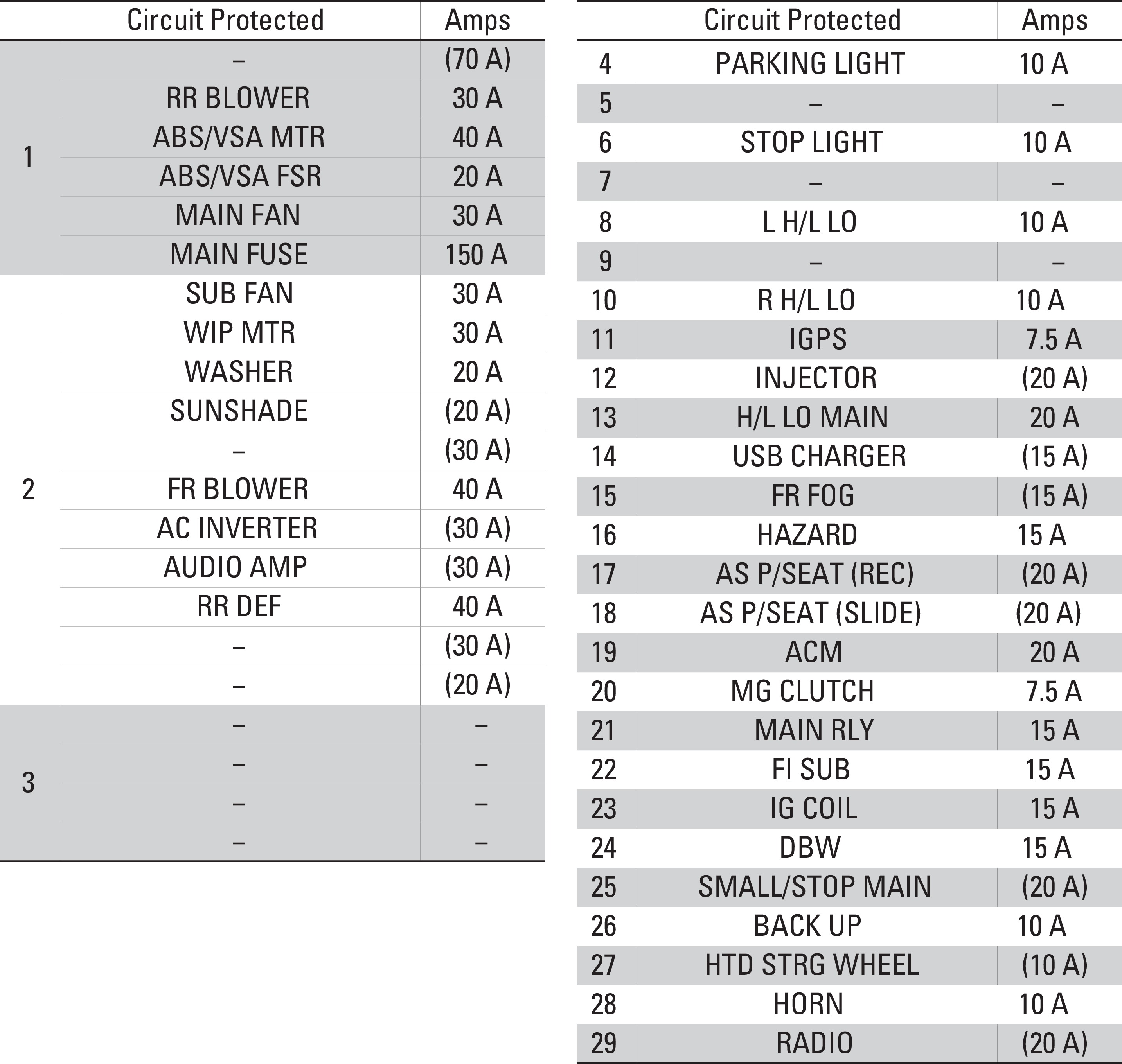

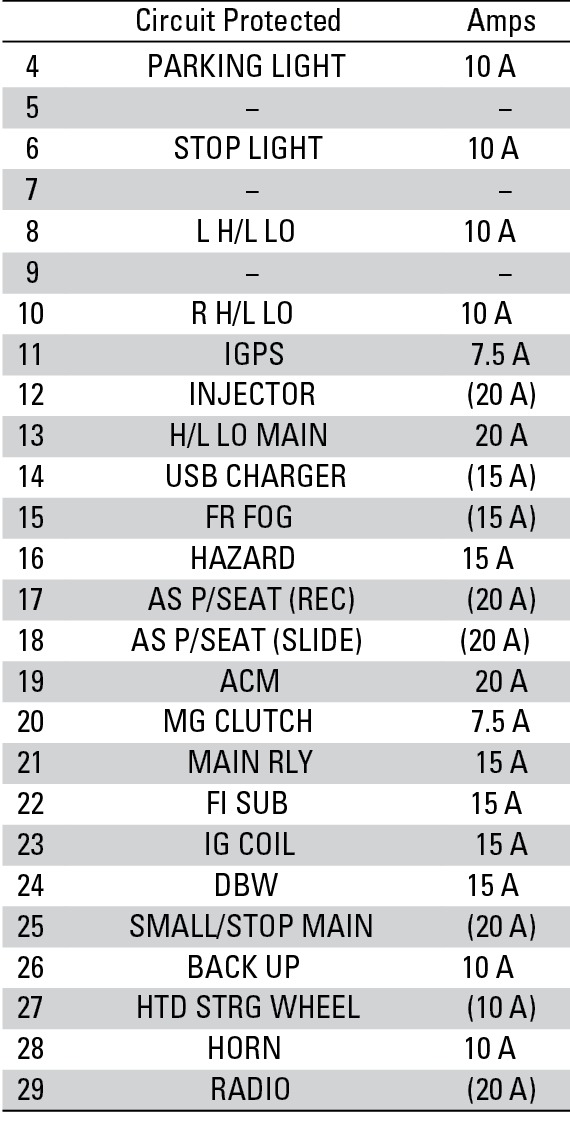

Engine Compartment Fuse Box A
Located under the hood on the passenger's side. Push the tabs to open the box.
Tab

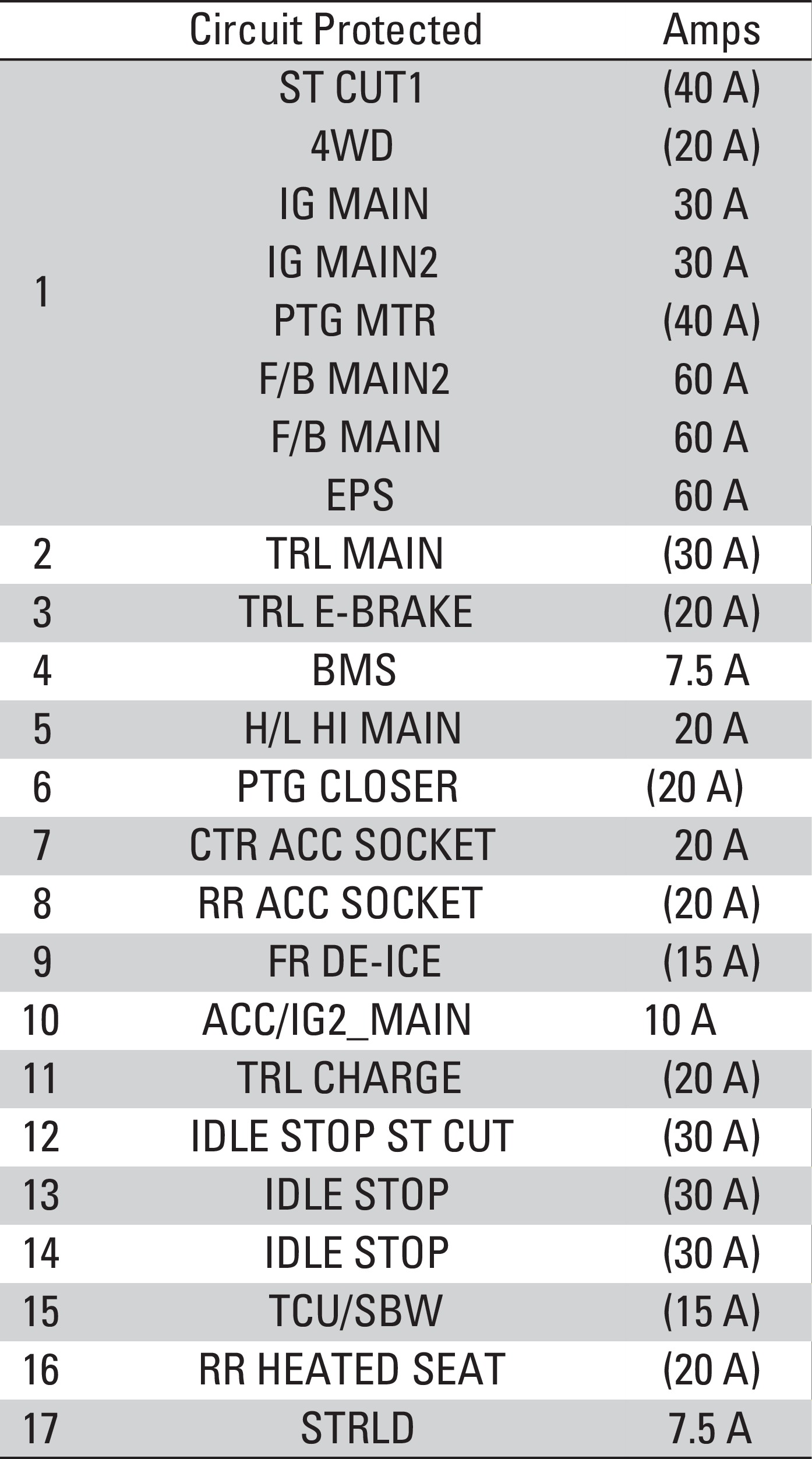

Engine Compartment Fuse Box B
Located under the hood near the brake fluid reservoir. Push the tabs to open the box.
Tab

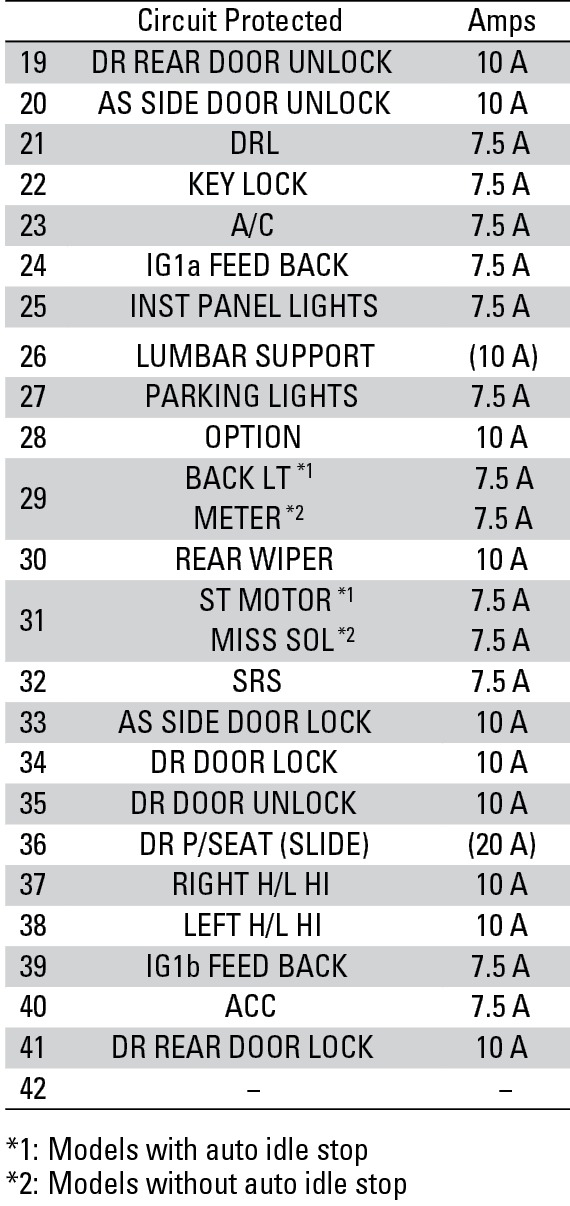

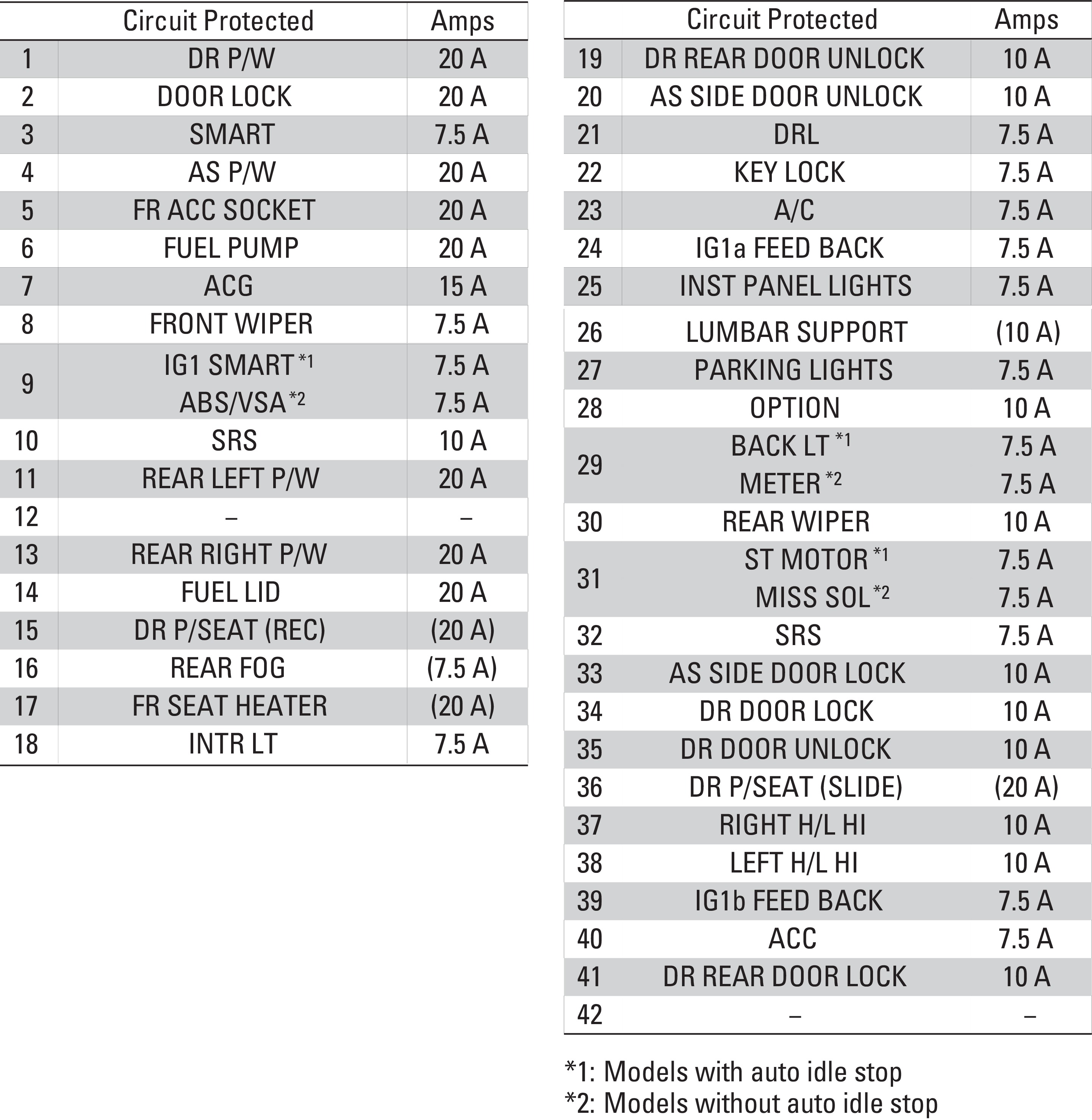

Interior Fuse Box A
Located under the dashboard.
Fuse box
Fuse label

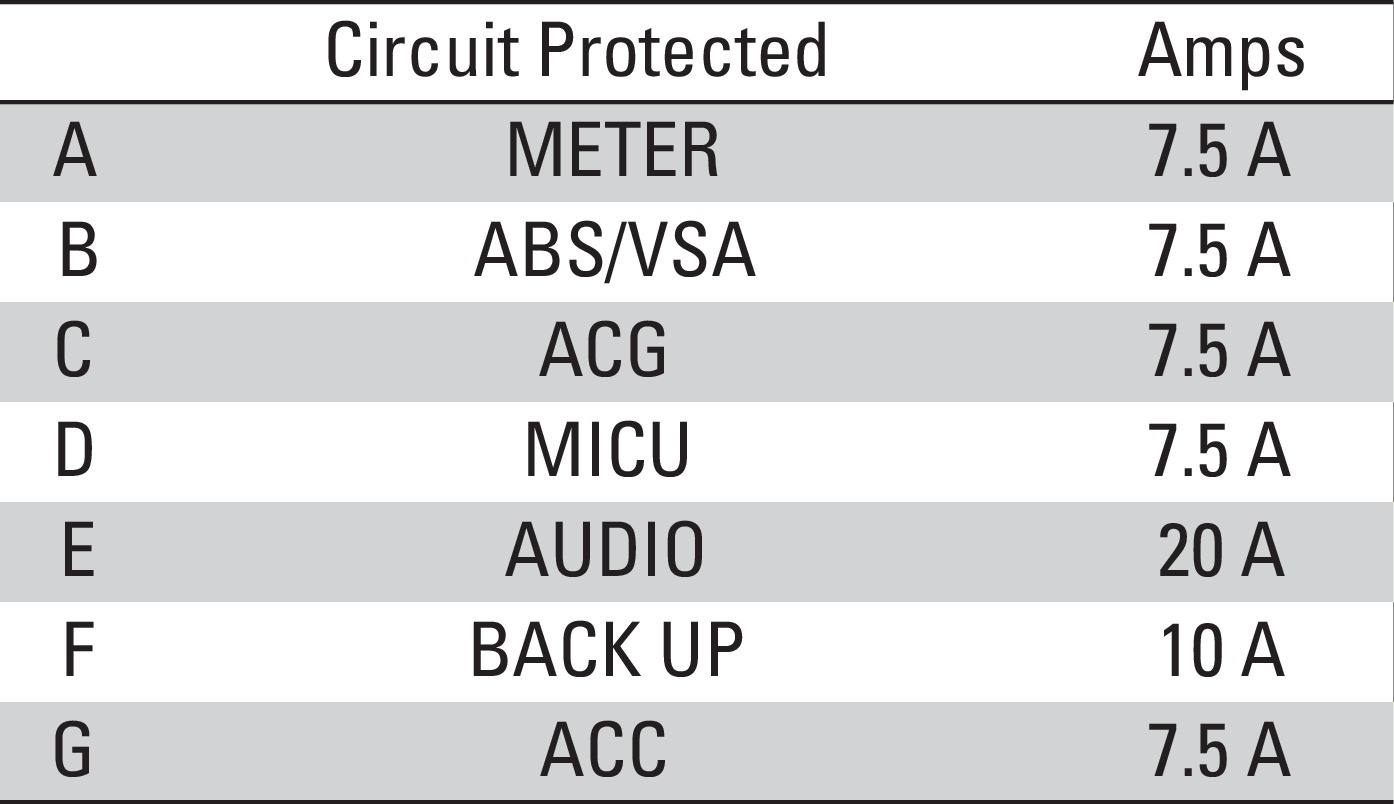

Interior Fuse Box B*
Located under the dashboard.
Fuse box
Fuse label
*if equipped
Inspecting and Changing Fuses
- Turn the vehicle off, including all lights and accessories.
- Remove the fuse box cover.
- Check the large fuse in the engine compartment.
Blown fuse
Combined fuse
If the fuse is blown, use a Phillips-head screwdriver to remove the screws and replace the fuse with a new one. Reinstall the screws.
- Inspect the small fuses in the engine compartment and the vehicle interior.
Fuse puller
If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
