2019 Chevrolet Silverado 2500HD Owners Manual - Front Seats

Front Seats

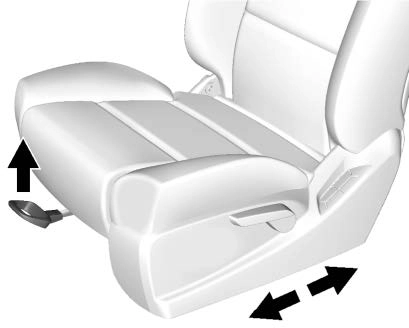

To adjust a manual seat:

Pull the handle at the front of the seat.

Slide the seat to the desired position and release the handle.

Try to move the seat back and forth to be sure it is locked in place.

To adjust the seatback, see

Reclining Seatbacks 0 59.

To adjust the lumbar support,

if equipped, see Lumbar Adjustment

0 58.

If equipped, the center front seatback doubles as an armrest and cupholder/storage area for the driver and passenger when the center front seat is not used. Do not use it as a seating position when the seatback is folded down.

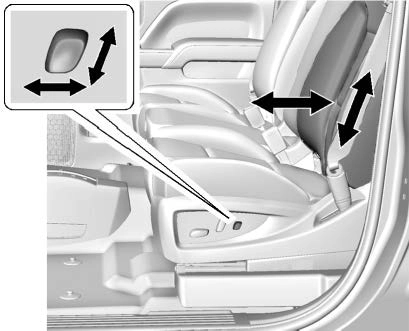

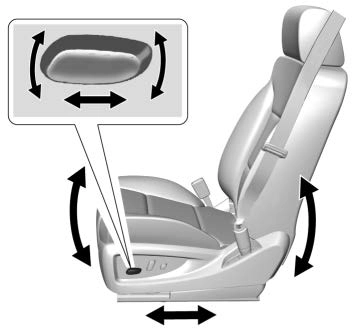

To adjust a power seat, if equipped:

Move the seat forward or rearward by sliding the control forward or rearward.

If equipped, raise or lower the front part of the seat cushion by moving the front of the control up or down.

If equipped, raise or lower the seat by moving the rear of the control up or down.

To adjust the seatback, see

Reclining Seatbacks 0 59.

To adjust the lumbar support, see

Lumbar Adjustment 0 58.

Some vehicles are equipped with a feature that activates a vibrating pulse alert in the driver seat to help the driver avoid crashes. See Driver Assistance Systems 0 279.

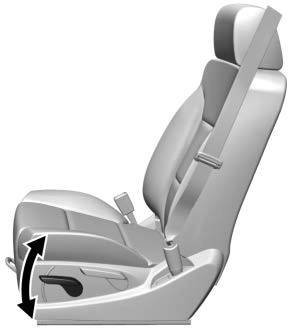

If equipped, move the lever up or down repeatedly to increase or decrease lumbar support.

To adjust the power lumbar support, if equipped:

Press and hold the control forward to increase or rearward to decrease upper and lower lumbar support at the same time.

If equipped, press and hold the control up to increase upper lumbar support and decrease lower lumbar support.

Press and hold the control down to increase lower lumbar support and decrease upper lumbar support.

Do not have a seatback reclined if the vehicle is moving.

To adjust a manual seatback:

Lift the lever.

The seatback will automatically fold forward.

To recline, move the seatback rearward to the desired position, then release the lever to lock the seatback in place.

Push and pull on the seatback to make sure it is locked.

To return the seatback to the upright position:

Lift the lever fully without applying pressure to the seatback, and the seatback will return to the upright position.

Push and pull on the seatback to make sure it is locked.

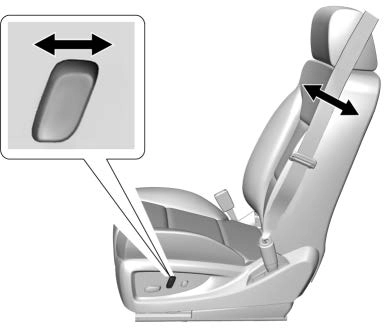

To recline a power seatback, if equipped:

Tilt the top of the control rearward to recline.

Tilt the top of the control forward to raise.

Crew/Double Cab Shown, Other Models Similar

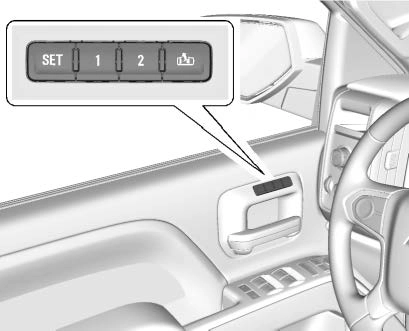

If equipped, memory seats allow two drivers to save and recall their unique seat positions for driving the vehicle, and a shared exit position for getting out of the vehicle. Other feature positions may also be saved, such as power mirrors and power steering wheel, if equipped. Memory positions are linked to RKE transmitter 1 or 2 for automatic memory recalls.

Before saving, adjust all available memory feature positions. Turn the ignition on and then press and release SET; a beep will sound.

Then immediately press and hold 1, 2, or B (Exit) until two beeps sound. To manually recall these positions, press and hold 1, 2, or B until the saved position is reached. Follow the instructions under “Saving Memory Positions.”

The vehicle identifies the current driver’s RKE transmitter number (1– 8). See Remote Keyless Entry (RKE) System Operation 0 36. Only RKE transmitters 1 and 2 can be used for automatic memory recalls. A Driver Information Center (DIC) welcome message indicating the transmitter number may display for the first few ignition cycles following a transmitter change. For Auto Memory Recall to work properly, save the positions to the memory button (1 or 2) matching the RKE transmitter number displayed in the DIC welcome message. Carry the linked RKE transmitter when entering the vehicle.

Memory adjustments may not be available upon delivery or after service until steps in “Saving Memory Positions” section are performed.

Vehicle Personalization Settings

To have the Auto Memory Recall movement begin when the vehicle is started, select the Settings menu, then Vehicle, then Comfort and Convenience, and then Auto Memory Recall. Select On or Off. See “Auto Memory Recall” later in this section.

To begin Easy Exit Recall movement when the ignition is turned off and the driver door is opened, or when the ignition is turned off with the driver door already opened, select the Settings menu, then Vehicle, then Comfort and Convenience, and then Easy Exit Options.

Select On or Off. See “Easy Exit Recall” later in this section.

See Vehicle Personalization 0 160 for additional setting information.

Identifying Driver Number

To identify the driver number:

Start the vehicle with a different key or RKE transmitter. The DIC should display the driver number; 1 or 2. Turn the ignition off and remove the key or RKE transmitter from the vehicle.

Start the vehicle with the initial key or RKE transmitter. The DIC should display the other driver number not shown in Step 1.

Saving Memory Positions

Read these instructions completely before saving memory positions.

To save preferred driving positions 1 and 2:

Turn the ignition on or to ACC/ ACCESSORY.

A DIC welcome message may indicate driver number 1 or 2.

Adjust all available memory features to the desired driving position.

Press and release SET; a beep will sound.

Immediately press and hold the 1 or 2 memory button matching the above DIC welcome message until two beeps sound.

If too much time passes between releasing SET and pressing 1, the memory position will not be saved and two beeps will not sound.

Repeat Steps 3 and 4.

1 or 2 corresponds to the driver number. See “Identifying Driver Number” previously in this section.

Repeat Steps 1–4 for a second driver using 1 or 2.

To save the position for B and easy exit features, repeat Steps 1–4 using B. This saves the position for getting out of the vehicle.

Save preferred memory feature positions to both 1 and 2 if you are the only driver.

Manually Recalling Memory Positions

Press and hold 1, 2, or B to recall the previously saved memory positions.

To stop Manual Memory Recall movement, release 1, 2, or B or press any of the following controls:

Power seat

Memory SET

Power mirror, with the driver or passenger side mirror selected

Power steering wheel, if equipped

Auto Memory Recall

The vehicle identifies the number of the current driver’s RKE transmitter (1–8). See Remote Keyless Entry (RKE) System Operation 0 36. If the RKE transmitter is 1 or 2, and Auto Memory Recall is programmed on in vehicle personalization, the

positions saved to the same memory button number 1 or 2 are automatically recalled when the ignition is turned on, or turned from off to ACC/ACCESSORY. RKE

transmitters 3–8 will not provide automatic memory recalls.

To turn Auto Memory Recall on or off, see "Vehicle Personalization Settings" previously in this section and Vehicle Personalization 0 160.

The shift lever must be in P (Park) to start Auto Memory Recall. Auto Memory Recall will complete if the vehicle is shifted out of P (Park) prior to reaching the saved memory position.

To stop Auto Memory Recall movement, turn the ignition off or press any of the following controls:

Power seat

Memory SET, 1, 2, or B

Power mirror, with the driver or passenger side mirror selected

Power steering wheel, if equipped

If the saved memory seat position does not automatically recall or recalls to the wrong positions, the driver’s RKE transmitter number (1 or 2) may not match the memory button number that positions were saved to. Try saving the position to the other memory button or try the other RKE transmitter.

Easy Exit Recall

Easy Exit Recall is not linked to an RKE transmitter. The position saved to B is used for all drivers. To turn Easy Exit Recall on or off, see "Vehicle Personalization Settings" previously in this section and Vehicle Personalization 0 160.

If turned on, the position saved to B is automatically recalled when one of the following occurs:

The vehicle is turned off and the driver door is opened within a short time.

The vehicle is turned off with the driver door open.

To stop Easy Exit Recall movement, press any of the following memory controls:

Power seat

Memory SET, 1, 2, or B

Power mirror, with the driver or passenger side mirror selected

Power steering wheel, if equipped

Obstructions

If something has blocked the driver seat and/or power steering wheel while recalling a memory position, the recall may stop. Remove the obstruction and try the recall again. If the memory position still does not recall, see your dealer for service.

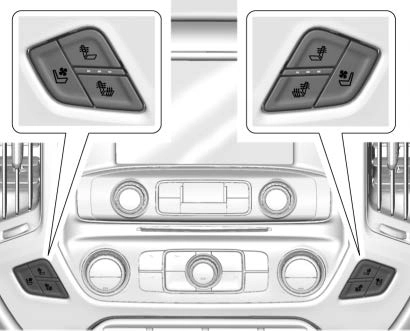

Heated and Ventilated Seat Buttons Shown, Heated Seat Buttons Similar

If equipped, the buttons are on the center stack. To operate, the engine must be running.

Press I to heat the driver or passenger seatback only.

Press J to heat the driver or passenger seat cushion and seatback.

Press C to ventilate the driver or passenger seat.

The indicator light on the button comes on when this feature is on.

Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The indicator lights next to the buttons indicate three for the highest setting and one for the lowest. If the heated seats are on high for an extended time, their level may automatically be lowered.

Remote Start Auto Heated and Ventilated Seats

During a remote start, the heated or ventilated seats can be turned on automatically. When it is cold outside, the heated seats turn on, and when it is hot outside the ventilated seats turn on. The heated or ventilated seats are canceled when the ignition is turned on. Press the heated or ventilated seat button to use the heated or ventilated seats after the vehicle is started.

The heated or ventilated seat indicator lights do not turn on during a remote start.

The temperature performance of an unoccupied seat may be reduced. This is normal.

The heated or ventilated seats will not turn on during a remote start unless they are enabled in the vehicle personalization menu.

See Remote Vehicle Start 0 38 and

Vehicle Personalization 0 160.
