For the proper type of replacement bulbs, or any bulb changing procedure not listed in this section, contact your dealer.
High Intensity Discharge (HID) Lighting
After an HID headlamp bulb has been replaced, the beam might be a slightly different shade than it was originally. This is normal.
This vehicle has several LED lamps. For replacement of any LED lighting assembly, contact your dealer.

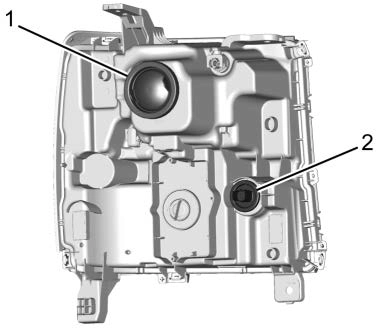

Driver Side Shown, Passenger Side Similar
Low/High-Beam Headlamp
Turn Signal
See your dealer for headlamp replacement.
Open the hood.
If replacing a bulb on the passenger side, remove the engine air cleaner.

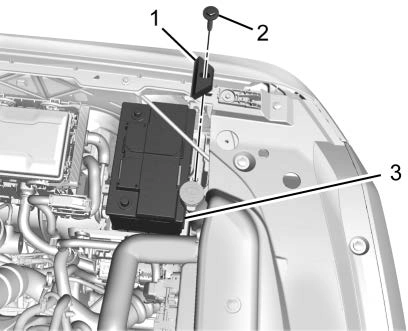

2500/3500 Series vehicles only, driver side:
Remove the auxiliary battery retainer bolt (2) and battery retainer (1).
Reposition the auxiliary battery (3) so that the front turn signal access port is visible.
Turn the bulb socket counterclockwise to remove it from the headlamp assembly and pull it straight out.
Remove the bulb by pulling it straight out of the bulb socket.
Install the new bulb into the bulb socket.
Turn the bulb socket clockwise to install it in the headlamp assembly.
2500/3500 Series vehicles only, driver side:
Reposition the auxiliary battery (3).
Install the auxiliary battery retainer (1) and battery retainer bolt (2).
If replacing a bulb on the passenger side, reinstall the engine air cleaner.
Close the hood.
To replace the front fog lamp bulb:
Locate the fog lamp in the front bumper.

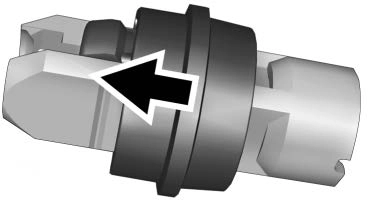

Disconnect the electrical connector from the fog lamp bulb assembly by pressing the connector release.
Remove the bulb from the housing by squeezing the two release tabs and pulling it straight out of the assembly.

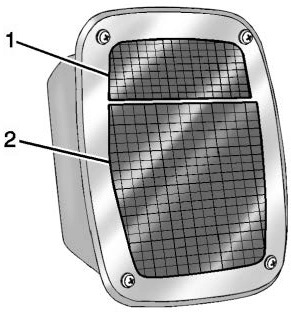

Back-Up Lamp
Stoplamp/Taillamp/Turn Signal Lamp
To replace one of these bulbs:
Remove the four screws.
Lift the lens off the lamp assembly.
Turn the old bulb counterclockwise and pull it straight out from the socket.

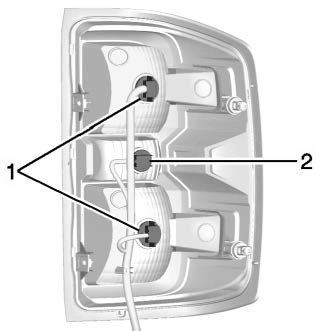

Stoplamp/Taillamp/Turn Signal Lamp
Back-Up Lamp
To replace one of these bulbs:
Open the tailgate.

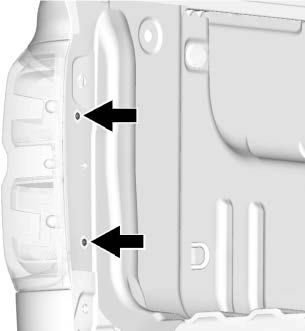

Remove the two rear lamp assembly screws.

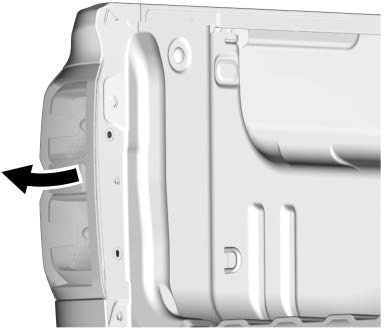

Pull the rear lamp assembly outboard away from the box side until the retainers release. There will be a noise when the retainers release.
Pull the rear lamp assembly straight back to remove it from the vehicle.
Turn the bulb socket counterclockwise.
Pull the bulb straight out from the socket.
Replace the bulb, then insert the bulb socket into the rear lamp assembly and turn clockwise.
Verify the retainer ring is in the proper position. If the retainer ring is out of position, it will not engage. Reset the retainer by pulling it forward with a tool.
Push the rear lamp assembly straight in until it is seated against the vehicle.
Make sure the rear lamp assembly is flush with the box side.
Reinstall the two rear lamp assembly screws.
Cargo Lamp Bulbs
Center High-Mounted Stoplamp (CHMSL) Bulb
To replace one of these bulbs:

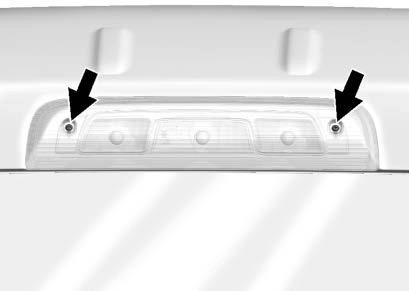

Remove the two screws and lift off the lamp assembly.
Turn the bulb socket counterclockwise and pull it straight out.
Pull the bulb straight out from the socket.
