Climatronic
Overview of the Climatronic
Automatic air conditioner
Climatronic is an automatic air conditioning system which warms, cools and dehumidifies the air. In automatic mode, Climatronic can automatically control the air temperature, air distribution and the volume of air.
The air conditioner is most effective when the vehicle interior is kept closed. If there is a build-up of heat inside the vehicle, ventilation can help to speed up the cooling process.
Some functions of the air conditioner, as well as a climate control bar for the rear seats, depend on the vehicle equipment.

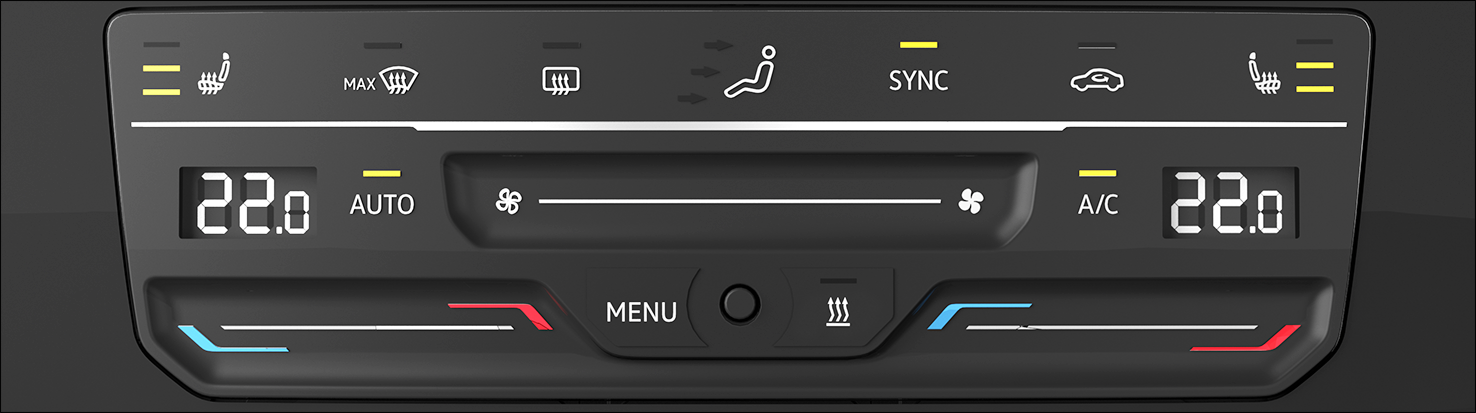

Fig. 106 In the upper section of the center console: Climate control bar for the Climatronic system.
Display of activated functions
Illuminated LEDss on the climate control bar indicate that the function is activated.
In the Air conditioner menu in the Infotainment system, yellow highlighted function keys indicate that a function is switched on ⇒ Air conditioner menu in the Infotainment system.
WARNING
Poor visibility through the windows increases the risk of collisions and accidents that can cause serious injury.
-
Keep all windows free of ice, snow, and fog to have good visibility.
-
Adjust the heating, air conditioner, and rear window defroster to a setting where the windows do not fog up.
-
Only start driving when all windows are clear.
-
Only use recirculation mode for a short time. Otherwise, the windows could fog up very quickly and greatly reduce visibility.
-
Always switch off recirculation mode when it is not necessary.
Air conditioner menu in the Infotainment system
On the climate control bar
Open the Air conditioner menu in the Infotainment system.
The Air conditioner menu in the Infotainment system is only available via the Climatronic. Certain functions depend on the vehicle equipment.
In the Air conditioner menu, you can find, for example, the functions for temperature regulation ⇒ Temperature regulation and air distribution ⇒ Air distribution and blower speed.
The top of the screen shows the current climate control settings, such as the air conditioner profile for automatic mode.
The lower section of the screen shows function keys for frequently used air conditioning functions.
Operating status of the air conditioner
The operating status of the air conditioning system is represented by colors:
Cooling.
Heating.
Climate control settings submenu
Open the Climate control settings submenu.
Switching the Climatronic on and off
In the air conditioner menu or on the climate control bar
Switch off the Climatronic.
Adjust the blower speed.
-
To switch on the Climatronic, increase the blower speed.
-
To switch off the Climatronic, swipe towards the left on the touch control for the blower speed.
Automatic mode of the Climatronic
In the air conditioner menu or on the climate control bar
The set air temperature is maintained constant. The air volume and air distribution are automatically controlled. Automatic mode switches off when the blower speed is changed manually.
Selecting the air conditioner profile
The blower power in automatic mode can be controlled via the air conditioning profiles.
-
Open the air conditioner menu.
-
Tap
. -
To select an air conditioner profile, tap
at the top of the screen. -
Select your preferred air conditioner profile in the pop-up window.
