Front Seats
Front Seat Precautions
 WARNING: Sitting improperly, out of position or with the seatback reclined too far can take weight off the seat cushion and affect the decision of the passenger sensing system, resulting in serious injury or death in the event of a crash. Always sit upright against your seat back, with your feet on the floor. WARNING: Do not recline the seat backrest too far as this can cause the occupant to slide under the seatbelt, resulting in personal injury in the event of a crash. WARNING: Do not place objects higher than the top of the seat backrest. Failure to follow this instruction could result in personal injury or death in the event of a sudden stop or crash. WARNING: Do not adjust the driver seat or seat backrest when your vehicle is moving. This may result in sudden seat movement, causing the loss of control of your vehicle. |
Sitting in the Correct Position
When you use them properly, the seat, head restraint, seatbelt and airbags will provide optimum protection in the event of a crash.
We recommend that you follow these guidelines:
- Sit in an upright position with the base of your spine as far back as possible.
- Do not recline the seat backrest so that your torso is more than 30 degrees from the upright position.
- Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable.
- Keep sufficient distance between yourself and the steering wheel. We recommend a minimum of 10 in (25 cm) between your breastbone and the airbag cover.
- Hold the steering wheel with your arms slightly bent.
- Bend your legs slightly so that you can press the pedals fully.
- Position the shoulder strap of the seatbelt over the center of your shoulder and position the lap strap tightly across your hips.
Make sure that your driving position is comfortable and that you can maintain full control of your vehicle.
Head Restraint Components
|
The front seat head restraints consists of: A An energy absorbing head restraint.B Two steel stems.C Guide sleeve adjust and unlock button. |
Adjusting the Head Restraint
| WARNING: Fully adjust the head restraint before you sit in or operate your vehicle. This will help minimize the risk of neck injury in the event of a crash. Do not adjust the head restraint when your vehicle is moving. WARNING: The head restraint is a safety device. Whenever possible it should be installed and properly adjusted when the seat is occupied. Failure to adjust the head restraint properly could reduce its effectiveness during certain impacts. WARNING: Adjust the head restraints for all passengers before you drive your vehicle. This will help minimize the risk of neck injury in the event of a crash. Do not adjust the head restraints when your vehicle is moving. |
Note: Adjust the seat backrest to an upright driving position before adjusting the head restraint. Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable. If you are extremely tall, adjust the head restraint to its highest position.
Pull the head restraint up to raise it.
To lower the head restraint:
- Press and hold the adjust and unlock button.
- Push the head restraint down.
To tilt the head restraint (if equipped):
- Adjust the seat backrest to an upright driving or riding position.
- Pivot the head restraint forward toward your head to the preferred position.
After the head restraint reaches the forward-most tilt position, pivot it forward again to release it to the rearward, untilted position.
Note: Do not attempt to force the head restraint backward after it is tilted. Instead, continue tilting it forward until the head restraint releases to the upright position.
Removing the Head Restraint
- Pull the head restraint up until it reaches its highest position.
- Press and hold the adjust and unlock button.
- Pull the head restraint up.
Installing the Head Restraint
Align the steel stems into the guide sleeves and push the head restraint down until it locks.
Moving the Seat Backward and Forward
| WARNING: Make sure the seat fully locks into place by rocking it backward and forward. |
Adjusting the Seat Backrest
| WARNING: Do not place cargo or any objects behind the seat backrest before returning it to the original position. Pull on the seat backrest to make sure that it has fully latched after returning the seat backrest to its original position. An unlatched seat may become dangerous if you stop suddenly or have a crash. |
Adjusting the Seat Height (If Equipped)
Head Restraint Components
|
The front seat head restraints consists of: AAn energy absorbing head restraint.B Two steel stems.C Guide sleeve adjust and unlock button. |
Adjusting the Head Restraint
| WARNING: Fully adjust the head restraint before you sit in or operate your vehicle. This will help minimize the risk of neck injury in the event of a crash. Do not adjust the head restraint when your vehicle is moving. WARNING: The head restraint is a safety device. Whenever possible it should be installed and properly adjusted when the seat is occupied. Failure to adjust the head restraint properly could reduce its effectiveness during certain impacts. WARNING: Adjust the head restraints for all passengers before you drive your vehicle. This will help minimize the risk of neck injury in the event of a crash. Do not adjust the head restraints when your vehicle is moving. |
Note: Adjust the seat backrest to an upright driving position before adjusting the head restraint. Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable. If you are extremely tall, adjust the head restraint to its highest position.
Pull the head restraint up to raise it.
To lower the head restraint:
- Press and hold the adjust and unlock button.
- Push the head restraint down.
To tilt the head restraint (if equipped):
- Adjust the seat backrest to an upright driving or riding position.
- Pivot the head restraint forward toward your head to the preferred position.
After the head restraint reaches the forward-most tilt position, pivot it forward again to release it to the rearward, untilted position.
Note: Do not attempt to force the head restraint backward after it is tilted. Instead, continue tilting it forward until the head restraint releases to the upright position.
Removing the Head Restraint
- Pull up the head restraint until it reaches its highest position.
- Press and hold the adjust and unlock button.
- Pull up the head restraint.
Installing the Head Restraint
Align the steel stems into the guide sleeves and push the head restraint down until it locks.

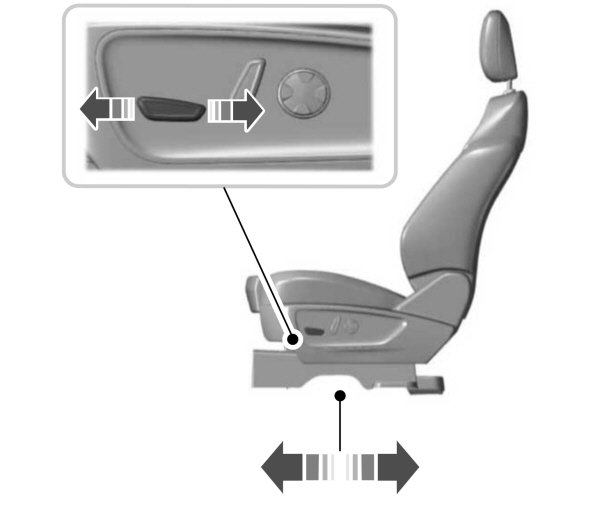

Moving the Seat Backward and Forward

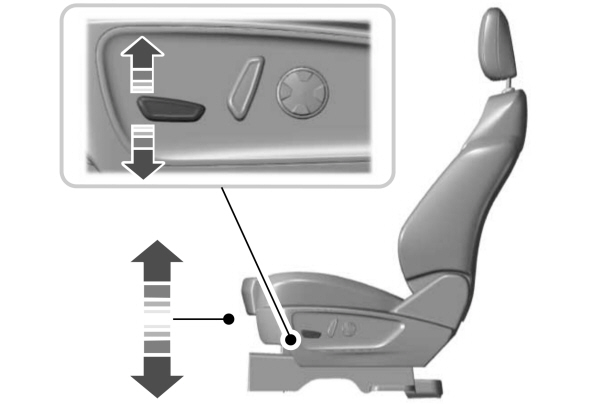

Adjusting the Seat Cushion (If Equipped)

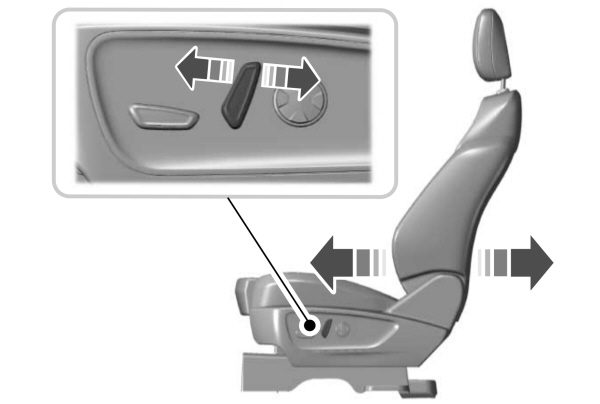

Adjusting the Seat Backrest (If Equipped)

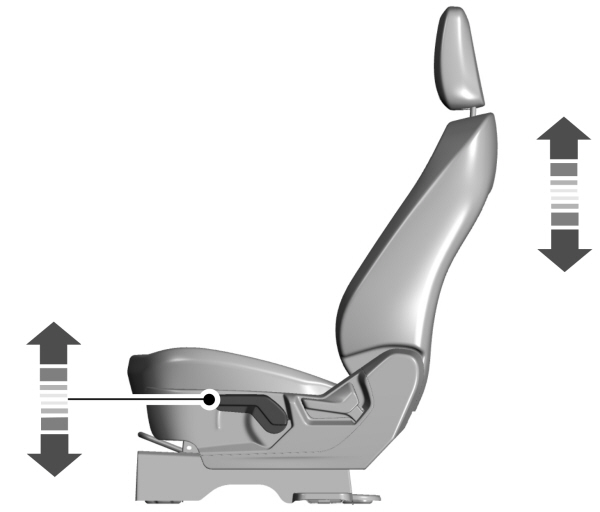

Adjusting the Seat Height
Adjusting the Lumbar Support (If Equipped)
Heated Seat Precautions
| WARNING: Use caution when using the heated seat if you are unable to feel pain to your skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical conditions. The heated seat could cause burns even at low temperatures, especially if used for long periods of time. Failure to follow this instruction could result in personal injury. WARNING: Do not poke sharp objects into the seat cushion or seat backrest. This could damage the heated seat element and cause it to overheat. Failure to follow this instruction could result in personal injury. WARNING: Do not place anything on the seat that blocks the heat, for example a seat cover or a cushion. This could cause the seat to overheat. Failure to follow this instruction could result in personal injury. |
Do not:
- Place heavy objects on the seat.
- Operate the heated seat if water or any other liquid spills on the seat. Allow the seat to dry.
Switching the Heated Seats On and Off
The vehicle must be running to use this feature.
Press the heated seat symbol to cycle through the various heat settings and off. The more indicators that display, the warmer the temperature of the seat.
Note: The heated seats may remain on after you remote start your vehicle, based on your remote start settings. The heated seats may also turn on when you start your vehicle if they were on when you switched your vehicle off.
