Changing Wiper
Blades
If the wiper blades leave streaks across the windshield, try cleaning them first with a paper towel or soft cloth and wiper fluid. If the wiper blade rubber has deteriorated, you should change the wiper blades.
Changing the Front Wiper Blade Rubber

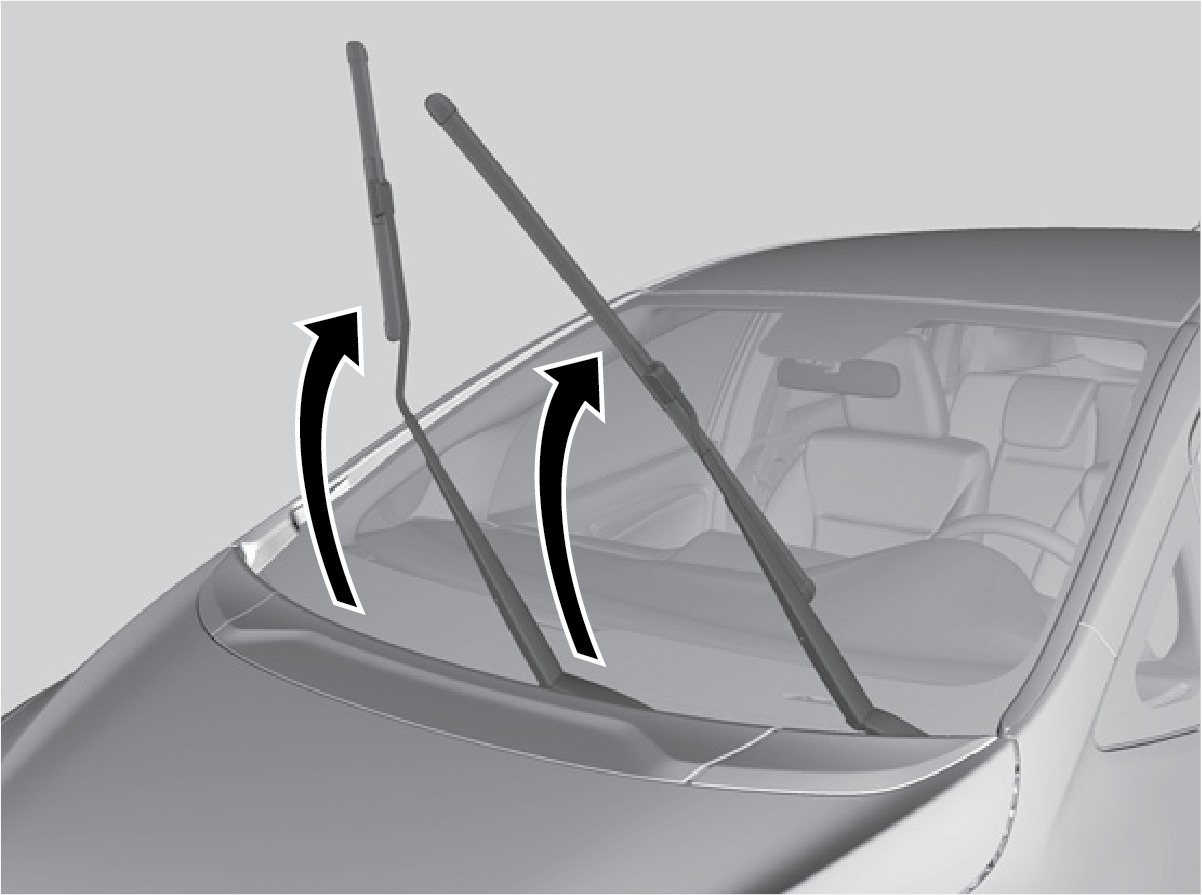

- Lift the driver side wiper arm first, then the passenger side.

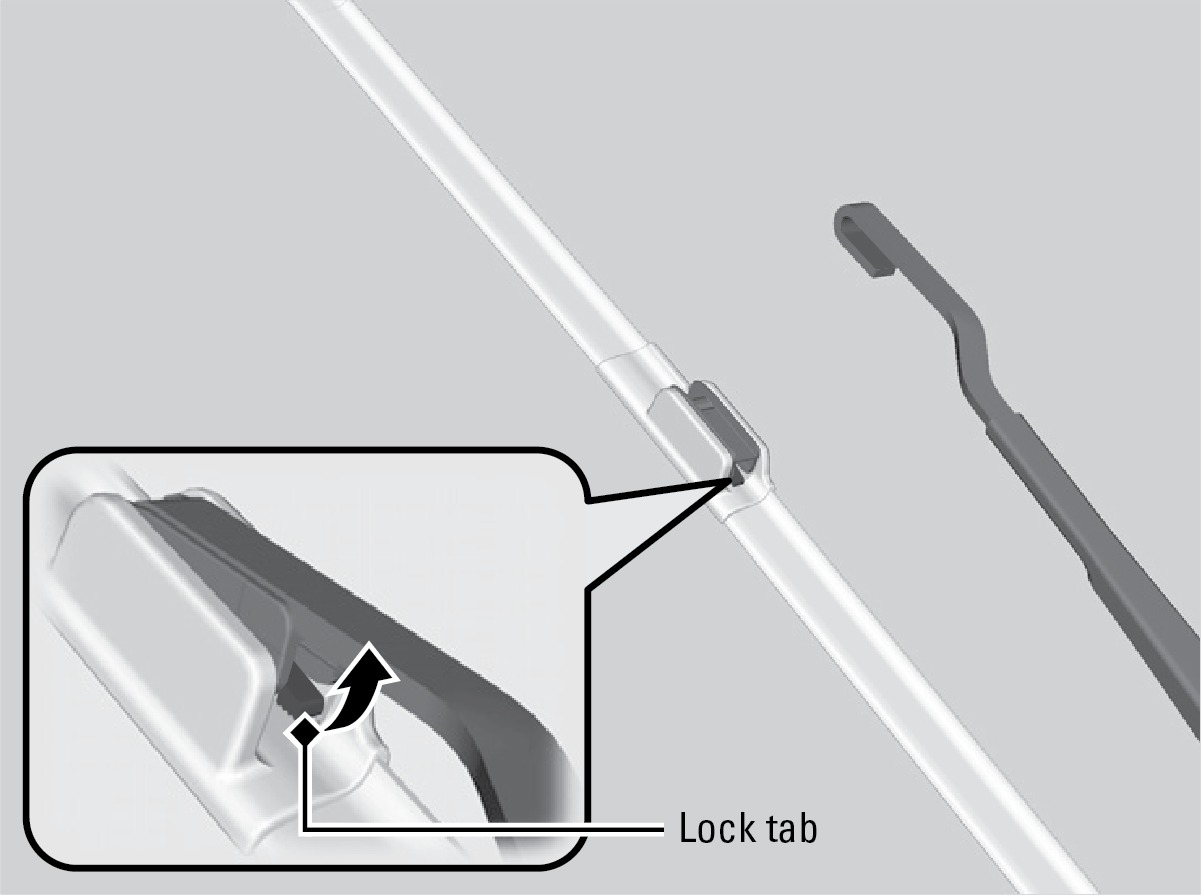

- Press and hold the tab, then slide the blade from the wiper arm.

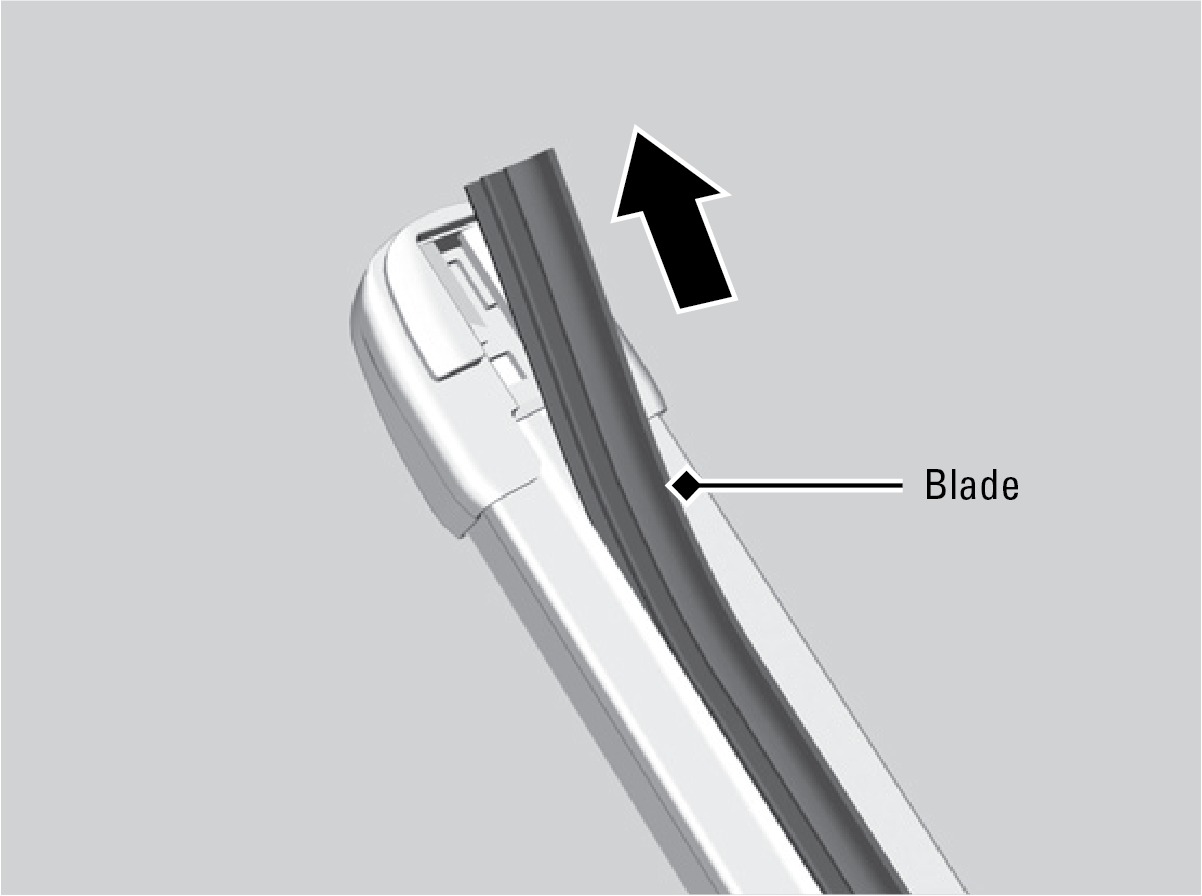

- Slide the wiper blade out from its holder by pulling the tabbed end out.

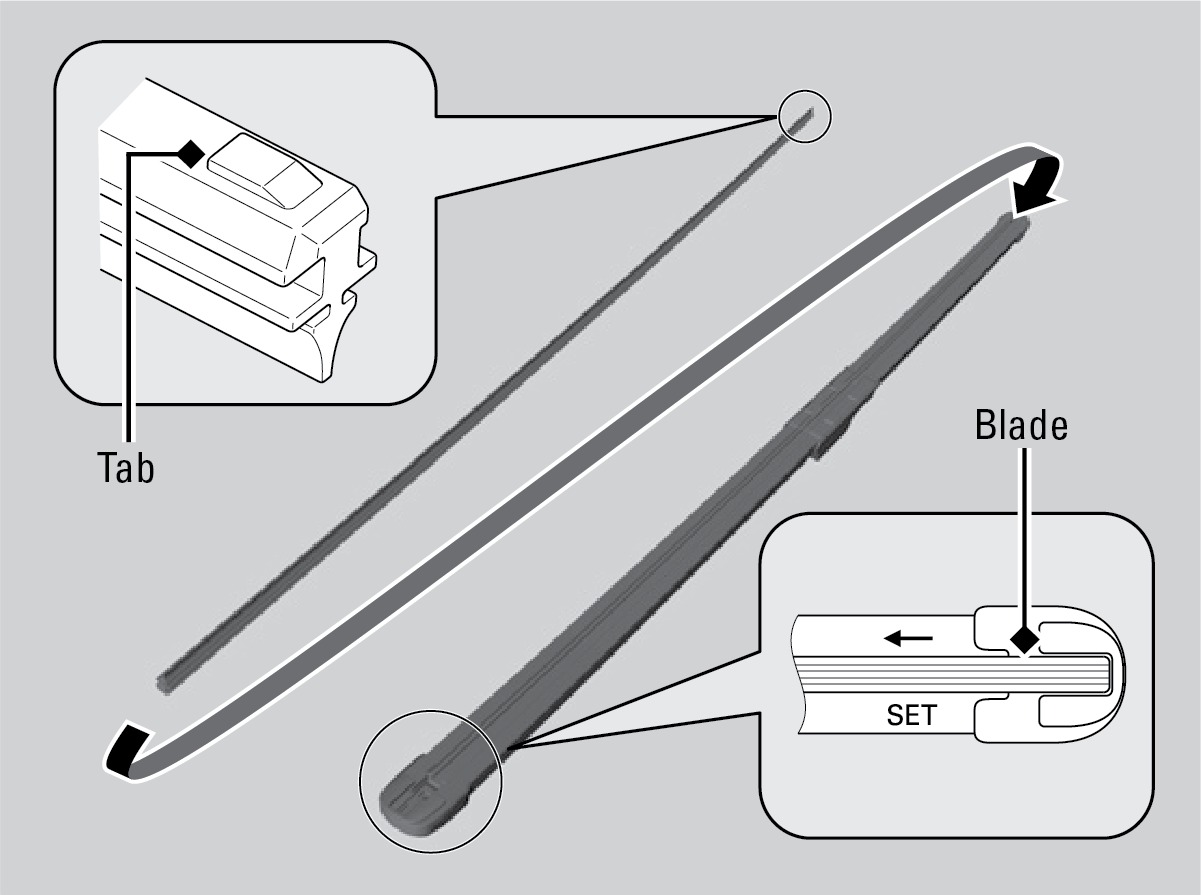

- Slide the new wiper blade onto the holder from the bottom end. The tab on the blade should fit in the indent of the top of the wiper holder.
- Slide the wiper blade onto the wiper arm securely.
- Lower the passenger side wiper arm first, then the driver side.
NOTICE
Avoid dropping the wiper arm, as it may damage the windshield.
the Rear Wiper Blade Rubber

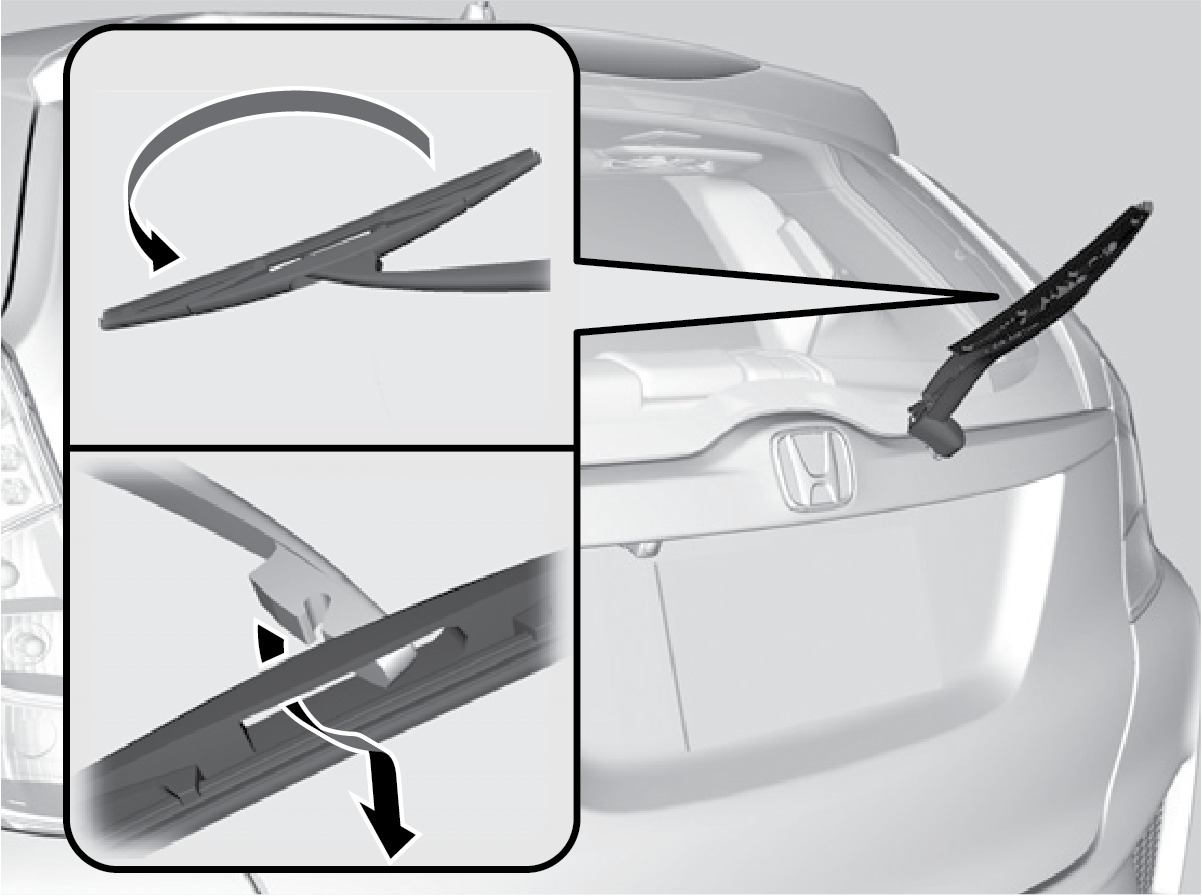

- Lift the wiper arm off the window.
- Pivot up the bottom end of the wiper blade until it comes off from the wiper arm.

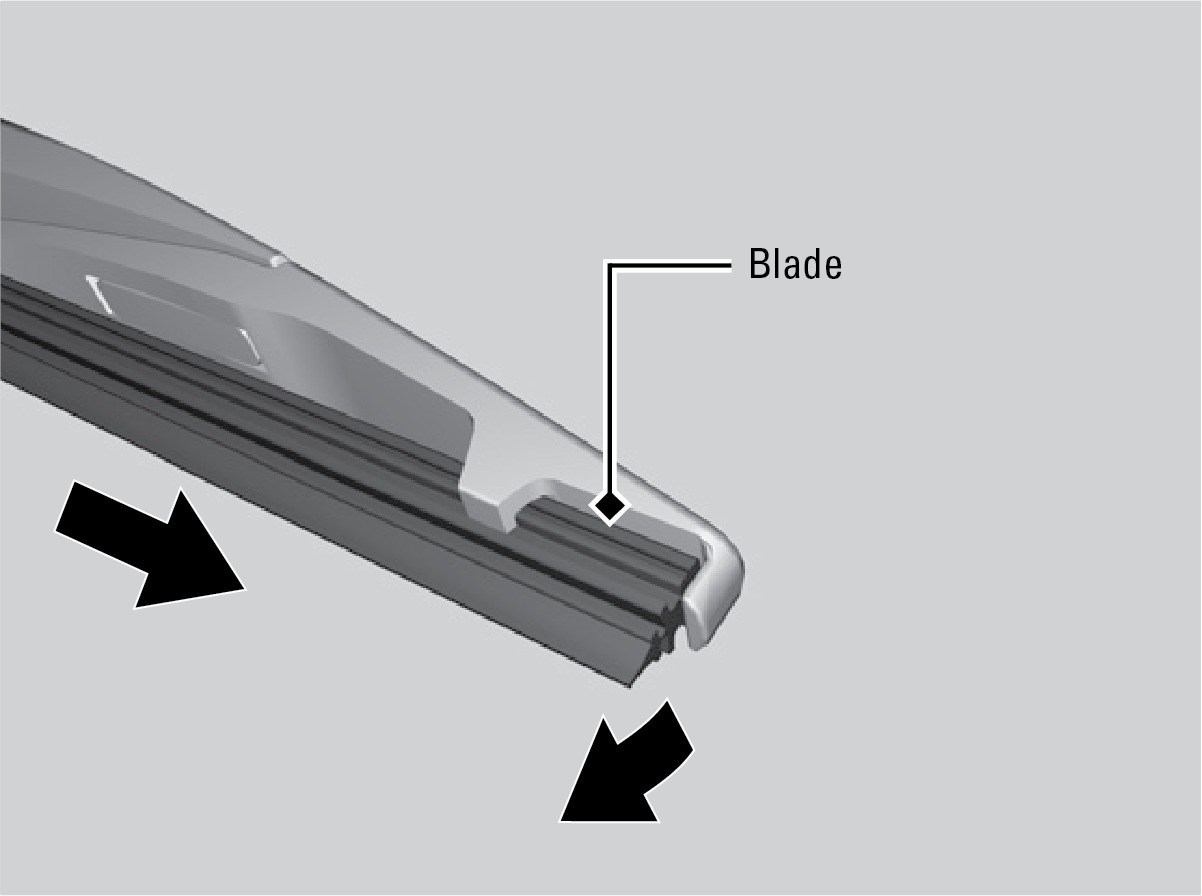

- Slide the wiper blade out from the end with the indent.

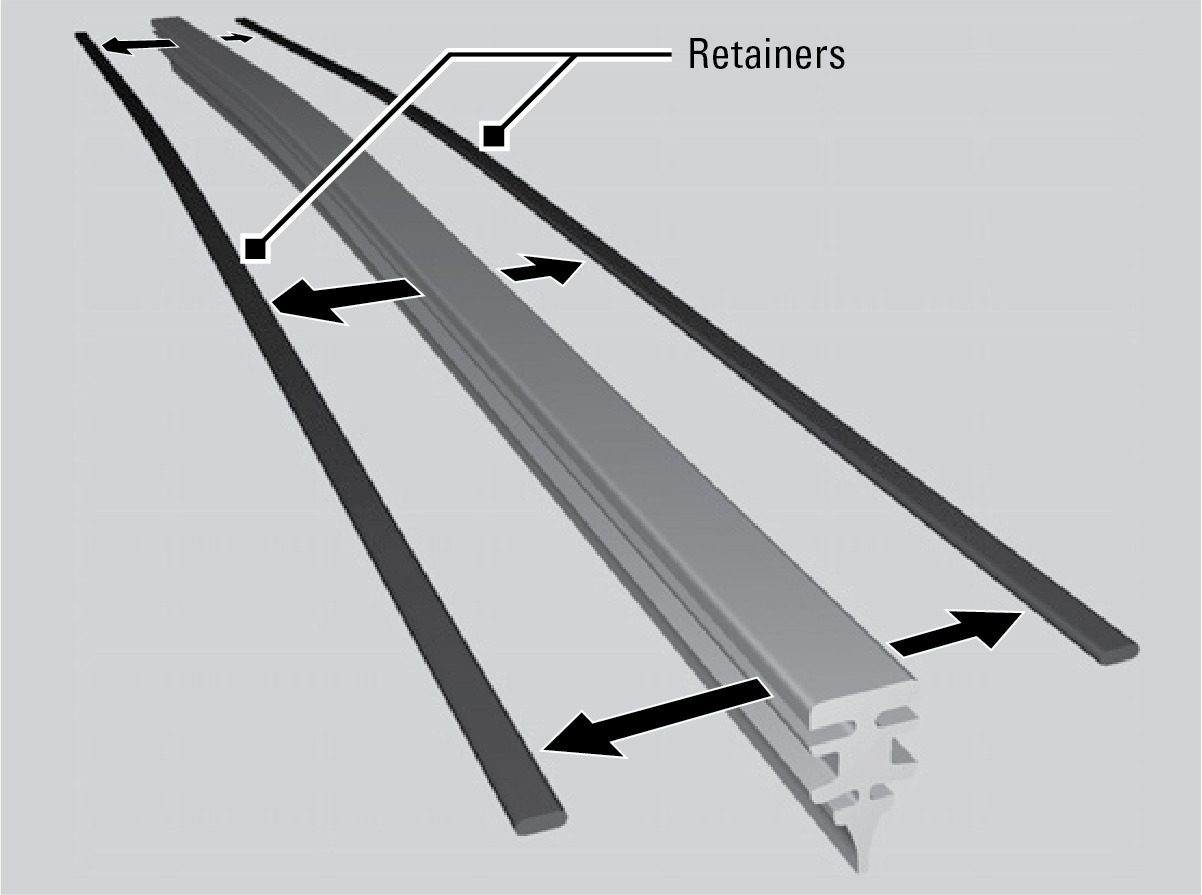

- Remove the retainers from the rubber blade that has been removed and mount to a new rubber blade.

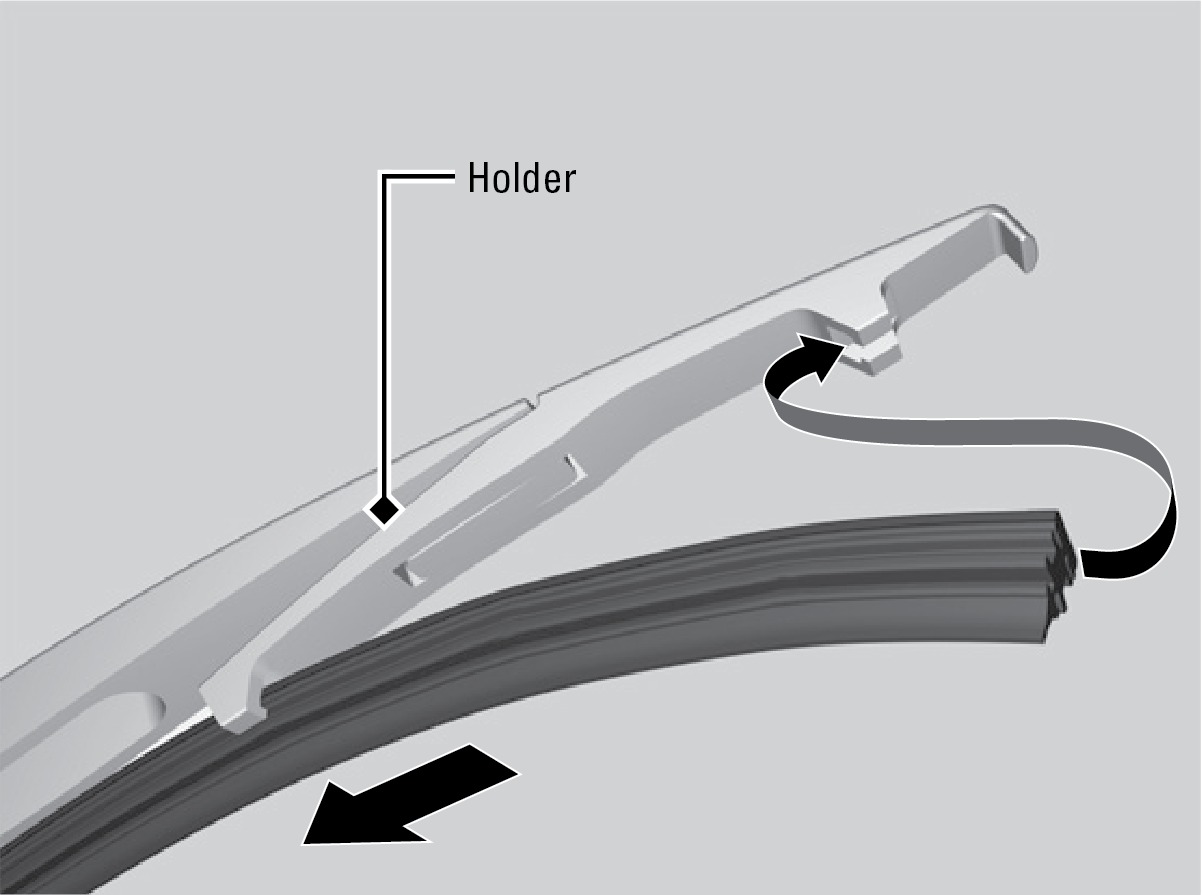

- Slide the new wiper blade onto the holder. Make sure it is engaged correctly, then install the wiper blade assembly onto the wiper arm.
