2023 Dodge Challenger Owners Manual - Refueling the vehicle

Refueling the vehicle

1. Put the vehicle in PARK and switch the ignition off.

2. Push near the rear edge and center of the of the fuel filler door to release. The door will pop open to allow hand access to open the door the rest of the way.

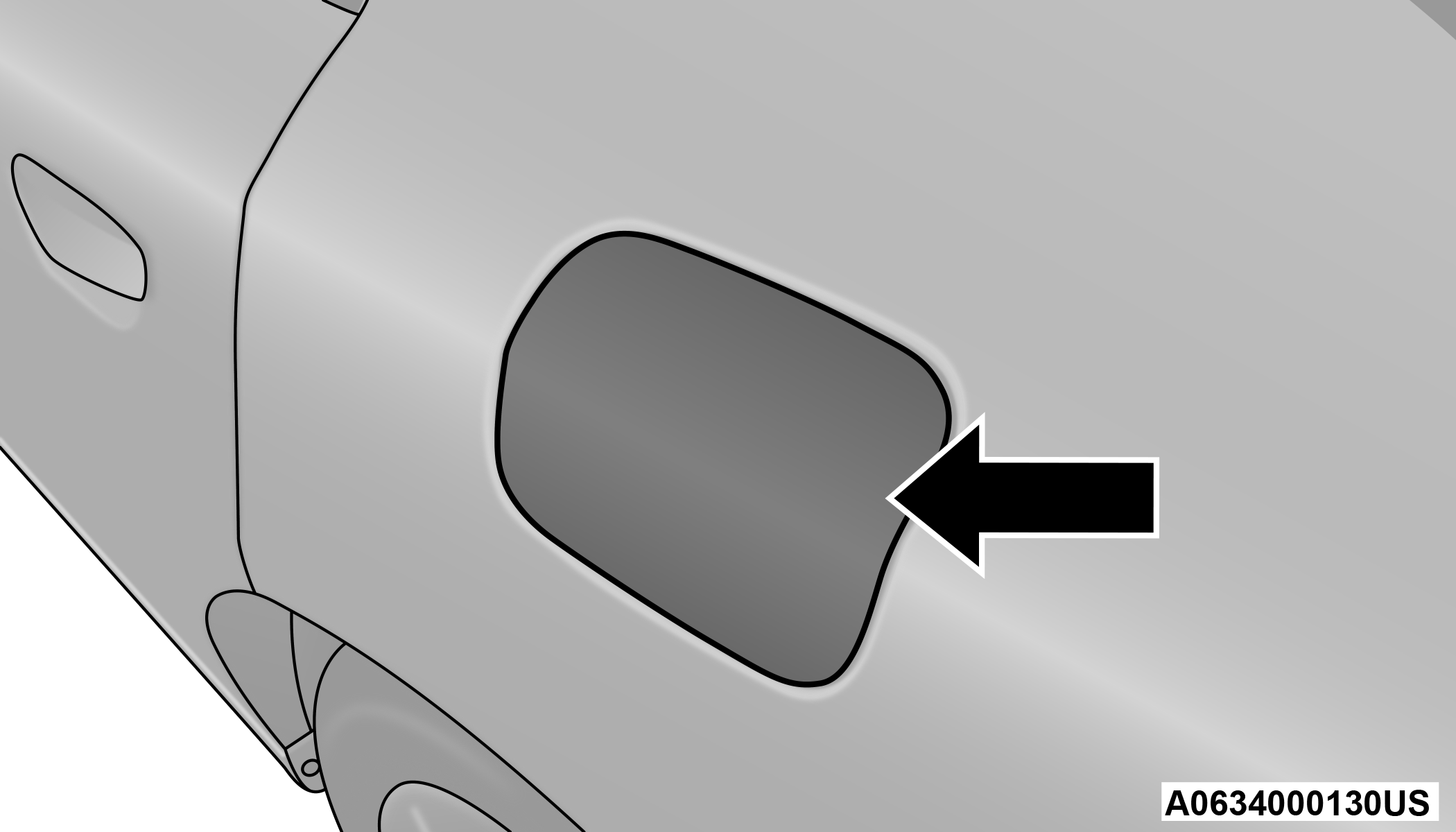

   Fuel Filler Door

3. Open the fuel filler door.

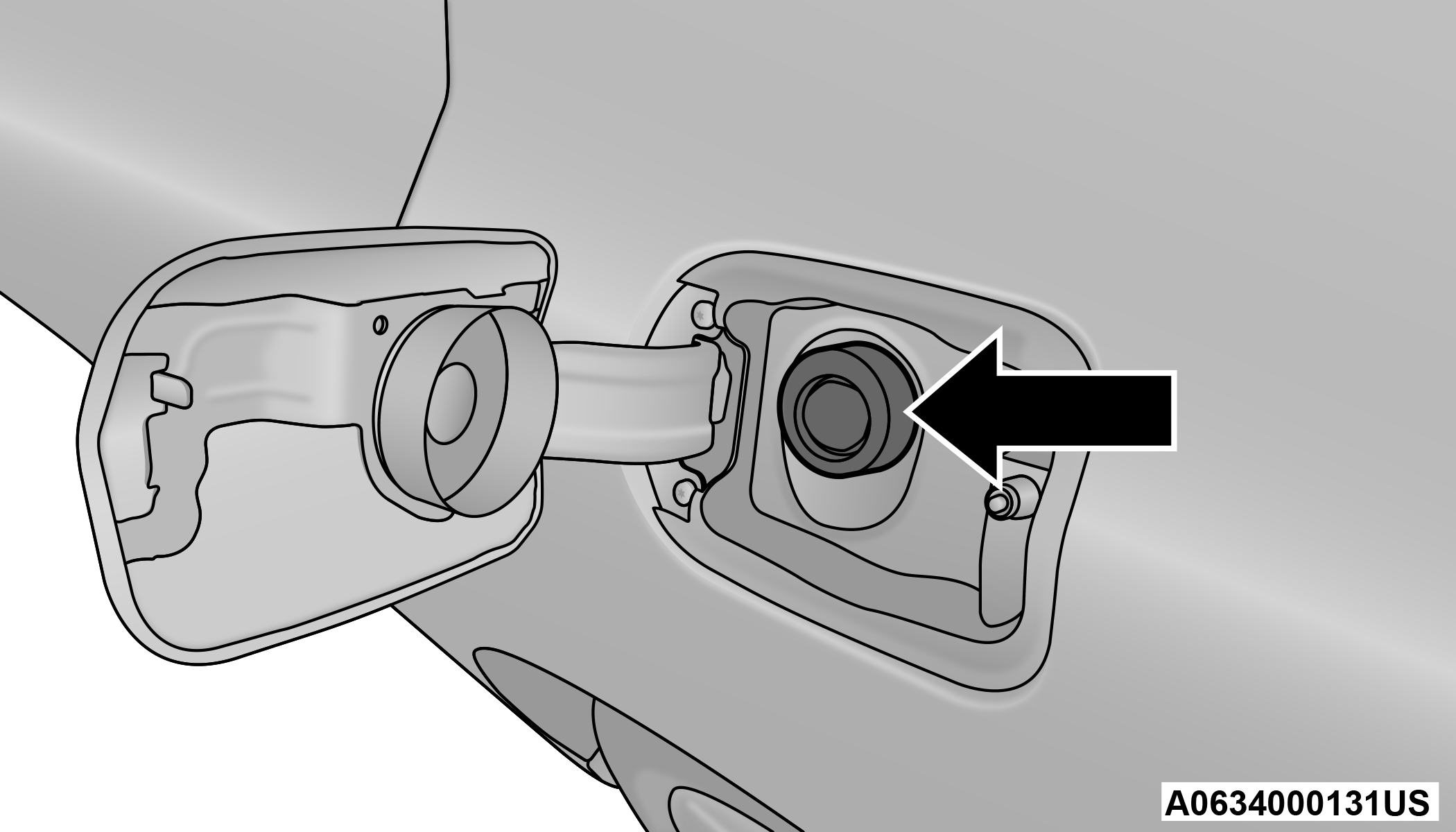

   Fuel Filler

   Note:

   In certain cold conditions, ice may prevent the fuel door from opening. If this occurs, lightly push on the fuel door to break the ice buildup.

4. There is no fuel filler cap. Two flapper doors inside the pipe seal the system.

5. Insert the fuel nozzle fully into the filler pipe – the nozzle opens and holds the flapper doors while refueling.

6. Fill the vehicle with fuel – when the fuel nozzle “clicks” or shuts off the fuel tank is full.

7. Wait five seconds before removing the fuel nozzle to allow excess fuel to drain from nozzle.

8. Remove the fuel nozzle and close the fuel door.

9. To close the fuel filler door, push the center-rear edge (three o’clock position) of the fuel filler door then release.

Note:

A funnel is provided (located in the trunk in the spare tire area) to open the flapper doors to allow for emergency refueling with a gas can.

Warning:

• Never have any smoking materials lit in or near the vehicle when the fuel door is open or the tank is being filled.

• Never add fuel when the engine is running. This is in violation of most state and federal fire regulations and may cause the Malfunction Indicator Light to turn on.

• A fire may result if fuel is pumped into a portable container that is inside of a vehicle. You could be burned. Always place fuel containers on the ground while filling.

CAUTION:

To avoid fuel spillage and overfilling, do not “top off” the fuel tank after filling.
