2023 Dodge Challenger Owners Manual - Performance pages



Owner’s Manuals 2023 Performance pages

Performance pages

Performance Pages is an application that provides a display for performance indicators, as received from the instrument cluster, that will help you gain familiarity with the capabilities of your vehicle in real time.

To access the Performance Pages, press the Apps button on the touchscreen then press the Performance Pages button on the touchscreen. Press the desired button on the touchscreen to access that specific Performance Page.

Warning:

Measurement of vehicle statistics with the Performance Pages is intended for off-highway or off-road use only and should not be done on any public roadways. It is recommended that these features be used in a controlled environment and within the limits of the law. The capabilities of the vehicle as measured by the Performance Pages must never be exploited in a reckless or dangerous manner, which can jeopardize the user’s safety or the safety of others. Only a safe, attentive, and skillful driver can prevent accidents.

The Performance Pages include the following:

  • Home

  • Timers

  • Gauges

  • G-Force

  • Engine

  • Dyno

If a USB drive is installed in the media hub, press the Camera icon on the top right of the touchscreen when using Performance Pages. A screen shot of the page will be taken and saved onto the USB.

Screenshot Camera Button

The following describes each feature and its operation:

HOME

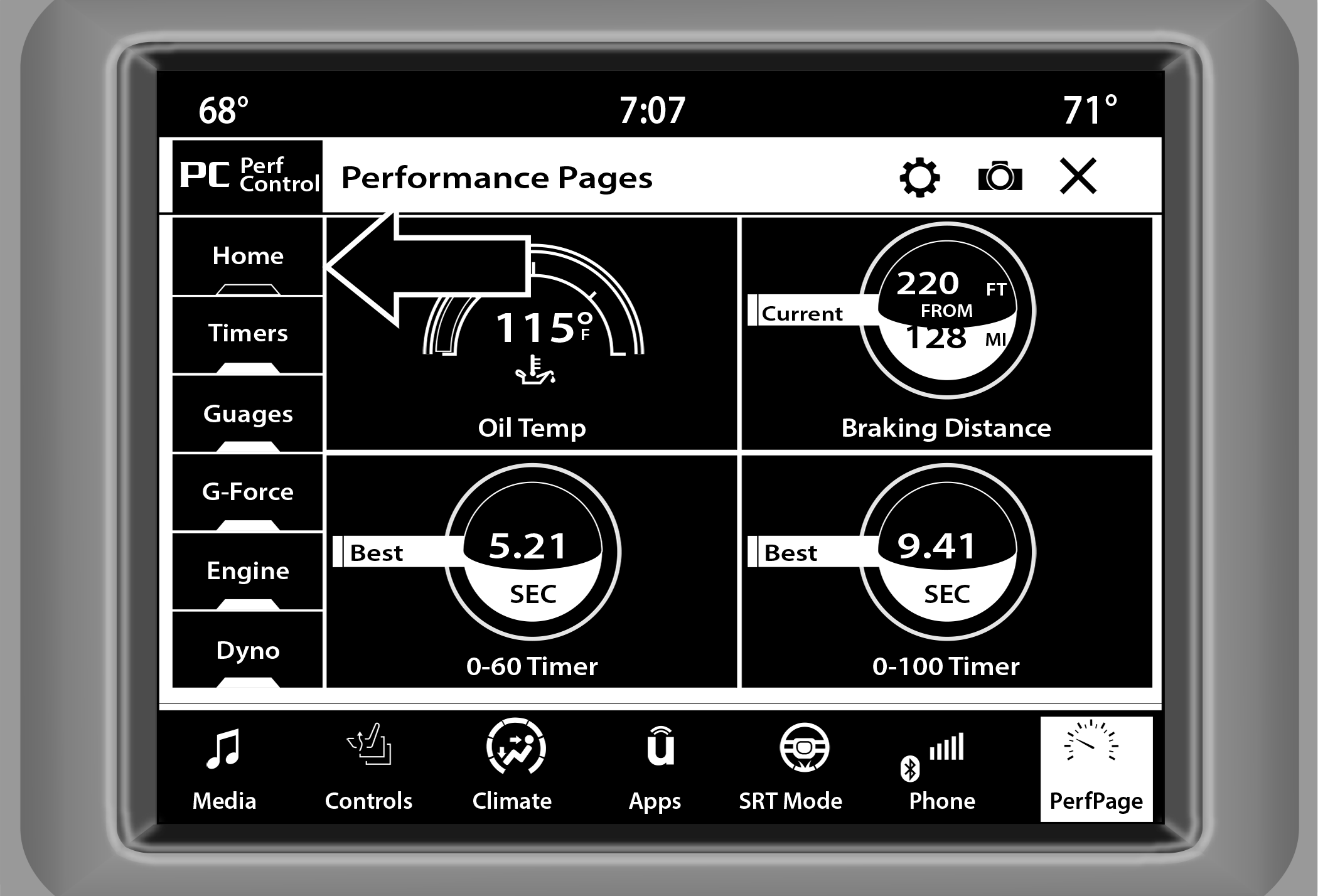

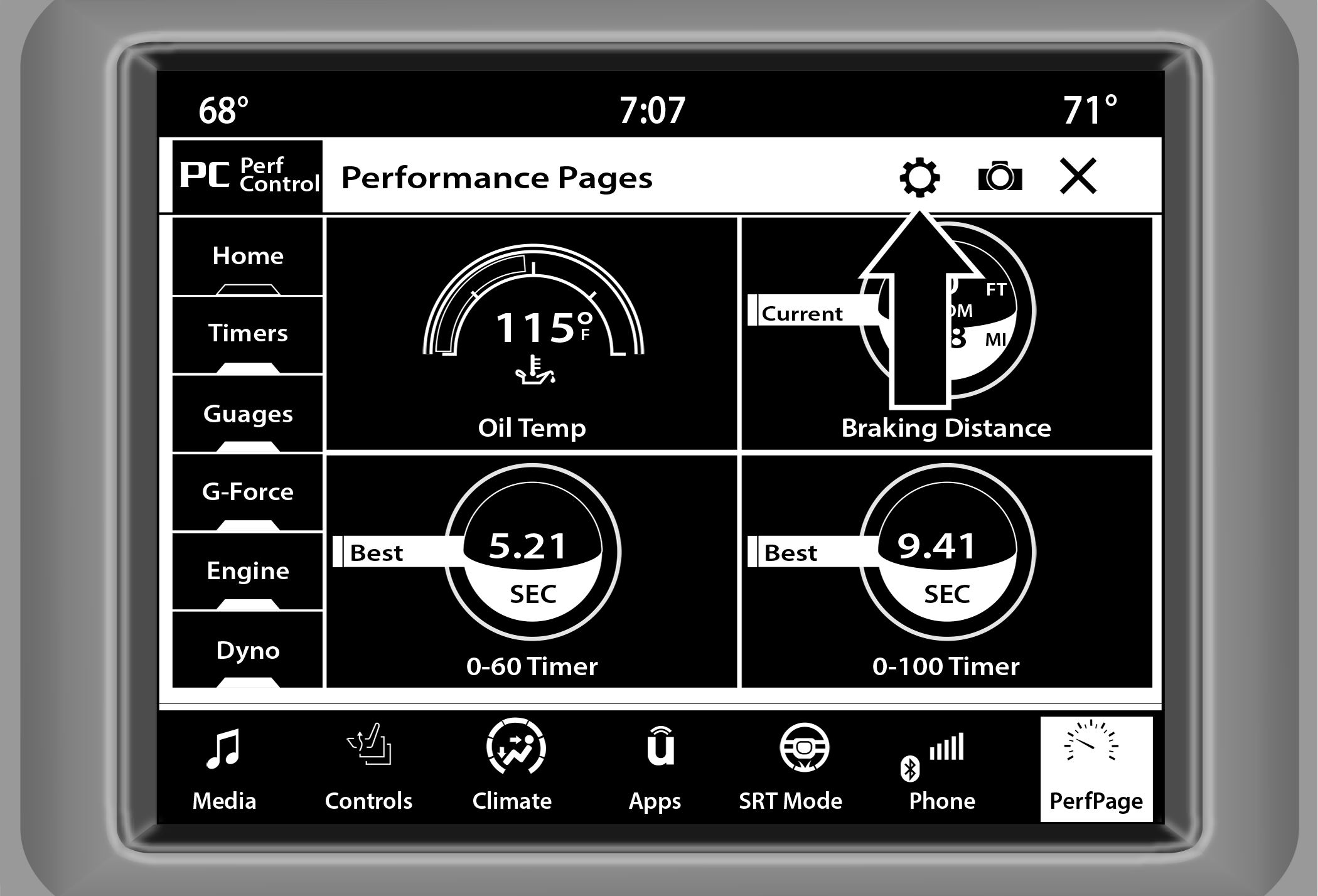

Performance Pages — Home

When Home is selected, a series of widgets (gauges) can be customized by the user. Follow these steps to change a widget. Either press directly on the widget you want to change, or:

  1. Press the Settings button (gear icon) on the touchscreen to access the main menu for the widgets.

  2. Select one the following options from the menu:

    • Set Widget: Top Left

    • Set Widget: Top Right

    • Set Widget: Bottom Left

    • Set Widget: Bottom Right

  3. After selecting a widget location, select the gauge to display:

    • Gauge: Oil Temp

    • Gauge: Oil Pressure

    • Gauge: Coolant Temp

    • Gauge: Battery Voltage

    • Gauge: Trans Temp — If Equipped with an Automatic Transmission

    • Gauge: Boost Pressure — If Equipped

    • Gauge: Air/Fuel Ratio — If Equipped

    • Gauge: I/C Coolant Temp — If Equipped

    • Gauge: Intake Air Temp

    • Gauge: Engine Torque

    • Gauge: Engine Power

    • Gauge: G-Force

    • Gauge: Steering Angle

    • Gauge: Current Gear

    • Gauge: Current Speed

    • Timer: 0–60 mph (0–100 km/h)

    • Timer: 0–100 mph (0–160 km/h)

    • Timer: 60 ft (20 m)

    • Timer: 330 ft (100 m)

    • Timer: 1/8 Mile (200 m)

    • Timer: 1000 ft (300 m)

    • Timer: 1/4 Mile (400 m)

    • Timer: Braking Distance

    • Timer: Reaction Time

Historical Data

The Historical Data feature allows you to view information about your vehicle such as the VIN, miles on the odometer, longitude and latitude coordinates, and more.

To activate the Historical Data feature on your touchscreen, follow these steps:

  1. Select the Home page tab within Performance Pages. Then, press the settings icon (gear icon) in the upper right hand corner of the touchscreen.

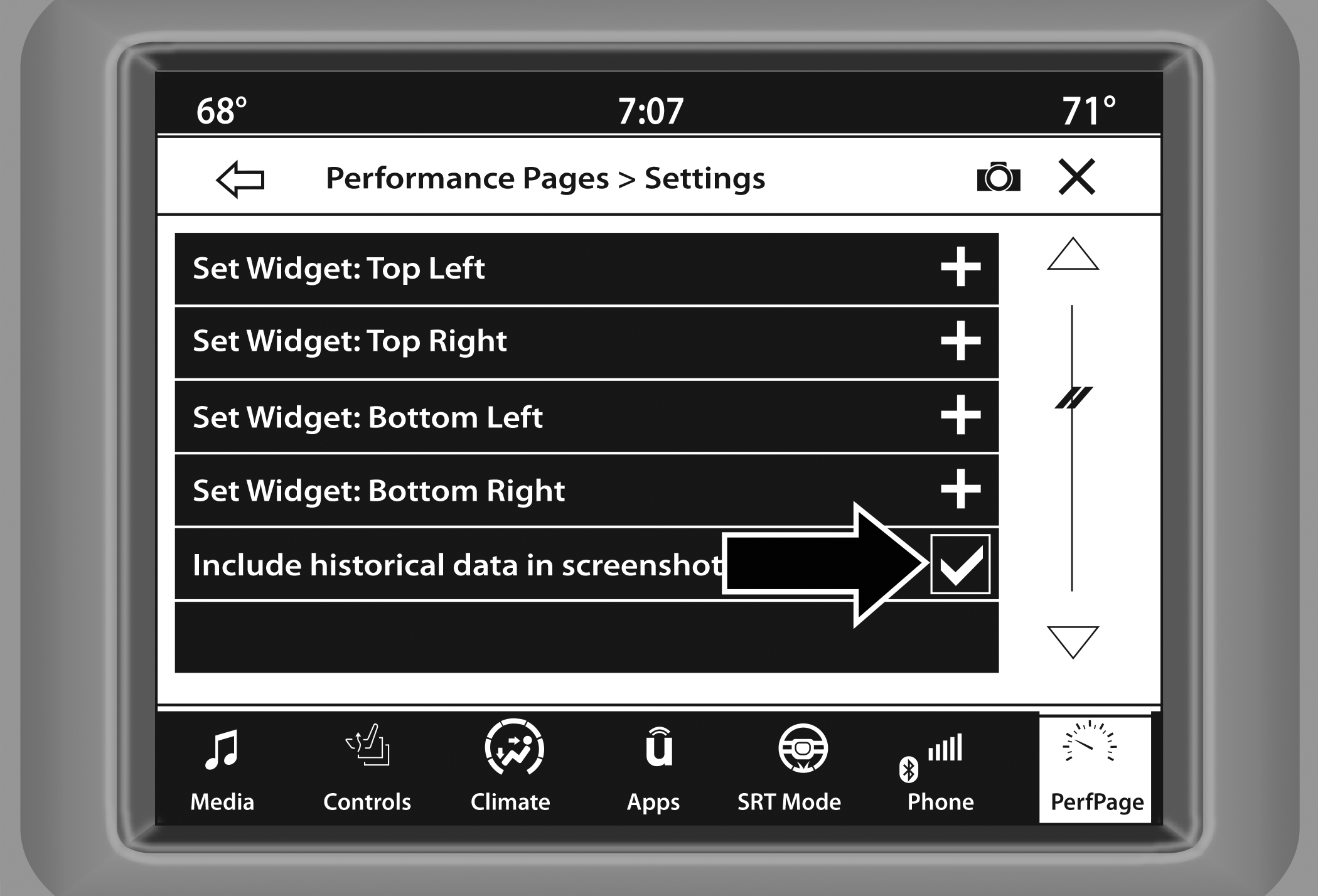

    Home Page Settings

  2. Towards the bottom of the screen, a checkbox will appear next to “Include historical data in screenshot.” Click the box to signify that this feature will be on.

    Historical Data

    Note:

    Once the checkbox is selected, the bottom bar of the screen will be replaced with the historical data from your vehicle present at the time the screenshot icon was pressed.

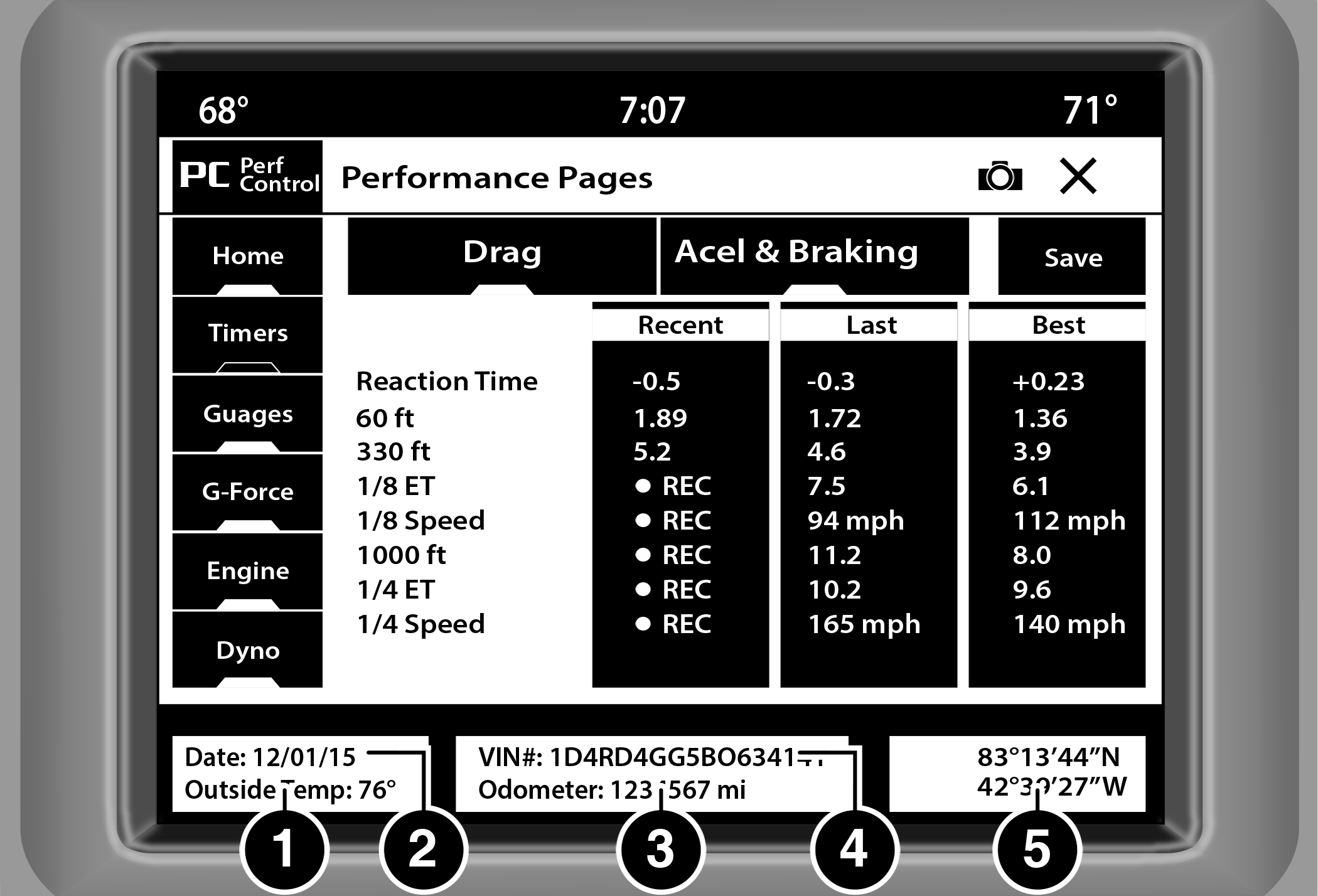

    Historical Data

    1 — Outside Temperature
    2 — Date
    3 — Odometer
    4 — Vehicle Identification Number (VIN)
    5 — Longitude And Latitude Coordinates
  3. To take a screenshot of the historical data, make sure a USB device is plugged into the vehicle. Next, click the Camera icon located in the top right corner of the touchscreen. The historical data image file will be saved to the USB drive.

    Historical Data Camera Icon

TIMERS

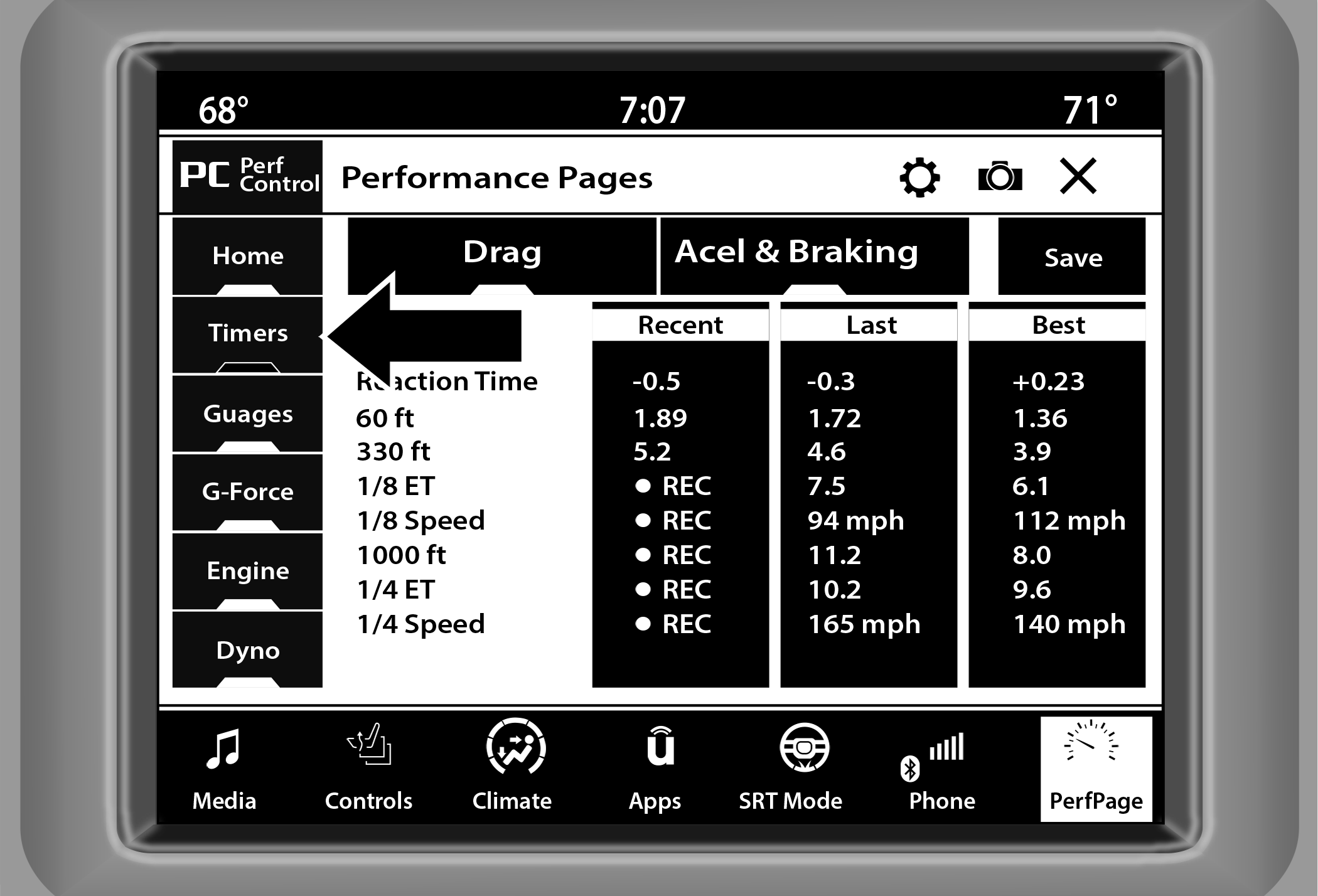

Performance Pages — Timers

When the Timers Page is selected, you will be able to select the Drag or Accel & Braking tabs. The following will be displayed:

  • Recent

    The most recent successful run of performance timers. If a run does not complete within the timers limit, or is aborted, the values shown will revert to the most recent valid run.

  • Last

    The last recorded successful run of performance timers.

  • Best

    The best recorded run of performance timers, except for braking data.

  • Save

    Pressing the Save button will let you save the visible page, Recent/Last/Best. Any saved run over 10 will overwrite the last saved run for Uconnect system storage.

Note:

Pressing the Camera icon in the upper right corner of the screen at any time will save a screenshot of the screen currently being viewed to the connected USB device.

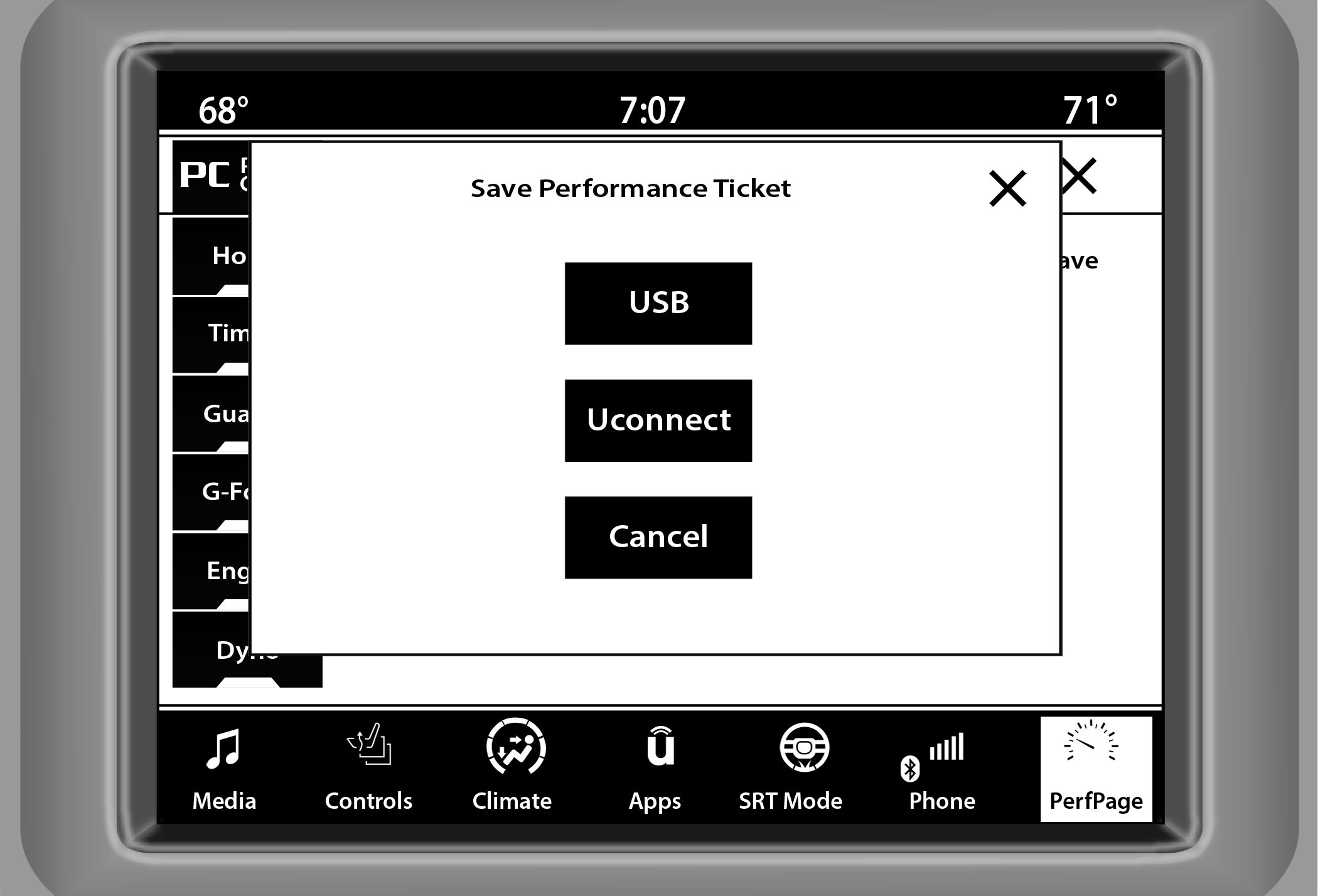

Timers — Save

  • With a USB jump drive installed, press the USB button to save to the jump drive.

  • Press the Uconnect button to save the runs to the Owner’s web page.

    Note:

    Uconnect option will be grayed out or missing if the vehicle does not have a valid Uconnect account associated with it.

  • Press the Cancel button to return to the Timers page.

The tabs on the Timers page contain the timers listed:

  • Reaction Time

    Measures the driver's reaction time for launching the vehicle against a simulated drag strip timing light (behavior modeled after 500 Sportsman Tree) displayed in the instrument cluster display.

    Note:

    Drag timers (RT, 60 ft [20 m], 330 ft [100 m], 1/8 mile [200 m], 1000 ft [300 m], and 1/4 mile [400 m]).

    Note:

    Accel & Braking timers (0-60 mph [0-100 km/h], 0-100 mph [0-160 km/h], Brake from mph [km/h], and Brake Distance ft [meters]).

  • 0-60 mph (0-100 km/h)

    Displays the time it takes for the vehicle to go from 0 to 60 mph (0 to 100 km/h).

  • 0-100 mph (0-160 km/h)

    Displays the time it takes for the vehicle to go from 0 to 100 mph (0 to 160 km/h).

  • 60 ft (20 m) ET

    Displays the time it takes the vehicle to go 60 feet (20 m).

  • 330 ft (100 m) ET

    Displays the time it takes the vehicle to go 330 feet (100 m).

  • ⅛ mile (200 m) ET

    Displays the time it takes for the vehicle to go ⅛ mile (200 m).

  • ⅛ mile (200 m) mph

    Displays the vehicle speed at the time ⅛ mile (200 m) was reached.

  • 1000 ft (300 m) ET

    Displays the time it takes the vehicle to go 1000 ft (300 m).

  • ¼ mile (400 m) ET

    Displays the time it takes for the vehicle to go ¼ mile (400 m).

  • ¼ mile (400 m) mph

    Displays the speed the vehicle was at when ¼ mile (400 m) was reached.

  • Brake Distance ft (meters)

    Displays the distance it takes the vehicle to make a complete stop.

    Note:

    The distance measurement will be aborted if the brake pedal is released or the parking brake is engaged, before the vehicle comes to a complete stop.

  • Brake from mph (km/h)

    Displays the speed the vehicle is traveling when the brake pedal is pressed.

    Note:

    Brake Distance and Speed timers only display "ready" when the vehicle is traveling at greater than 30 mph (48 km/h).

GAUGES

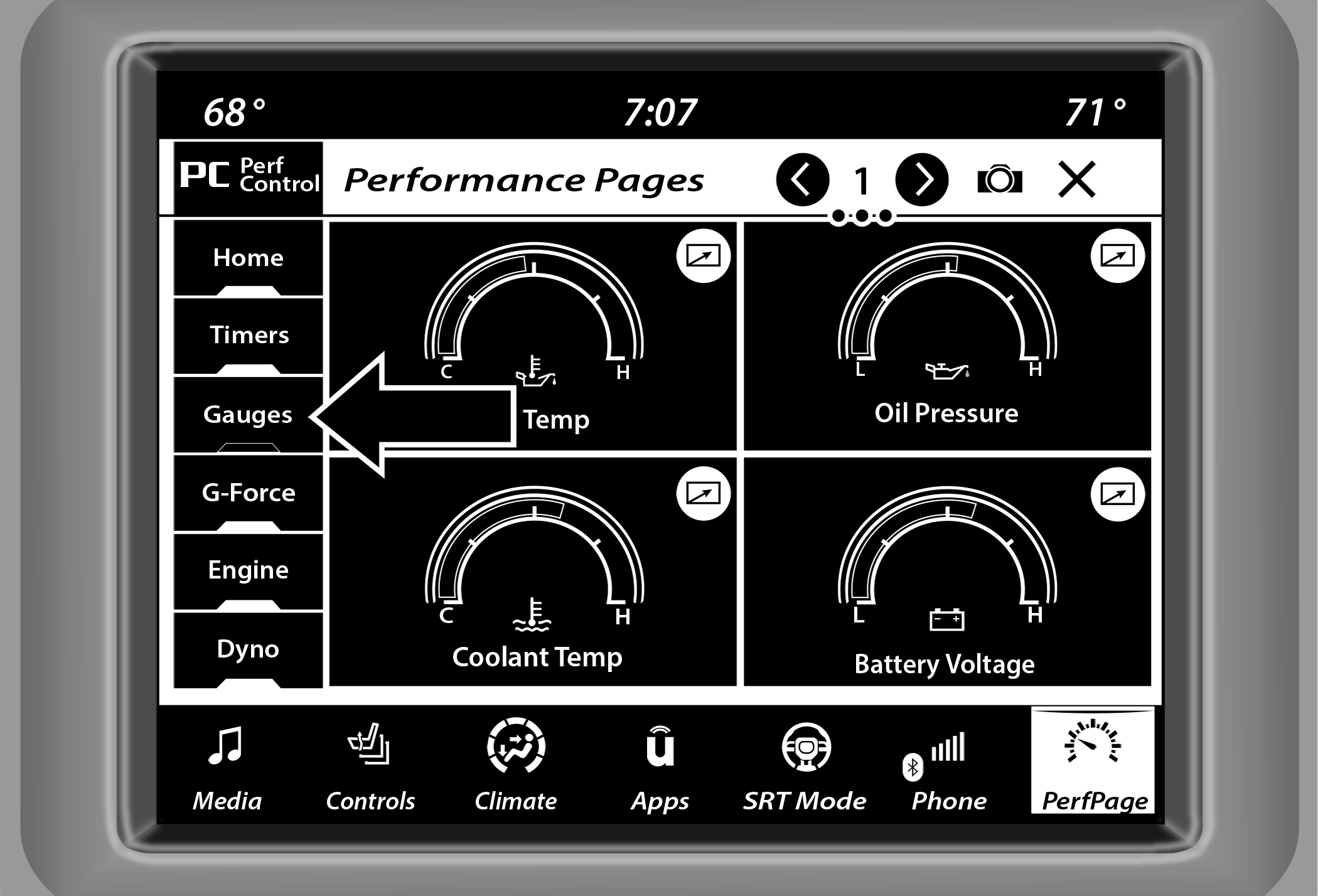

Performance Pages — Gauges

When selected, this screen displays the following values:

  • Oil Temperature

    Shows the actual oil temperature.

  • Oil Pressure

    Shows the actual oil pressure.

  • Coolant Temperature

    Shows the actual coolant temperature.

  • Battery Voltage

    Shows actual battery voltage.

  • Trans Oil Temp — If Equipped with an Automatic Transmission

    Shows actual transmission oil temperature.

  • Boost Pressure — If Equipped

    Shows actual boost pressure.

  • Air Fuel Ratio — If Equipped

    Shows current air fuel ratio.

  • I/C Coolant Temp — If Equipped

    Shows actual I/C Coolant temperature.

  • Intake Air Temp

    Shows actual air intake temperature.

If a gauge is selected, the Gauge Detail View page will appear on the screen. This page shows gauge values for the previous two minutes on the selected gauge.

Pressing the Left and Right arrows will cycle through the details for each of the gauges. Pressing the minimize button above the graph will return to the gauge menu.

Gauge Detail View Page

G-FORCE

Performance Pages — G-Force

When selected, this screen displays all four G-Force values as well as steering angle.

When G-Force is selected, the following features will be available:

  • Vehicle Speed:

    Measures the current speed of the vehicle in either mph or km/h, starting at zero with no maximum value.

  • Front G-Force:

    Measures the peak braking force on the front of the vehicle.

  • Right G-Force:

    Measures the peak force on the right side of the vehicle.

  • Left G-Force:

    Measures the peak force on the left side of the vehicle.

  • Rear G-Force:

    Measures the peak acceleration force on the rear of the vehicle.

    Note:

    Front, Right, Left, and Rear G-Forces are all peak values. These readings can be reset by clearing peak G-Force on the instrument cluster.

  • Steering Wheel Angle

    Steering Wheel Angle utilizes the steering angle sensor to measure the degree of the steering wheel relative to zero (straight ahead) reference angle. The zero degree reference angle measurement indicates a steering wheel straight ahead position.

The friction circle display shows instantaneous G-Force as a highlight and previous G-Force as dots within the circle. The system records previous G-Force for three minutes. If there are multiple samples at a given point, the color of the dot will darken from blue to red. Vectors more frequent will show in red; infrequent vectors will show in blue.

ENGINE

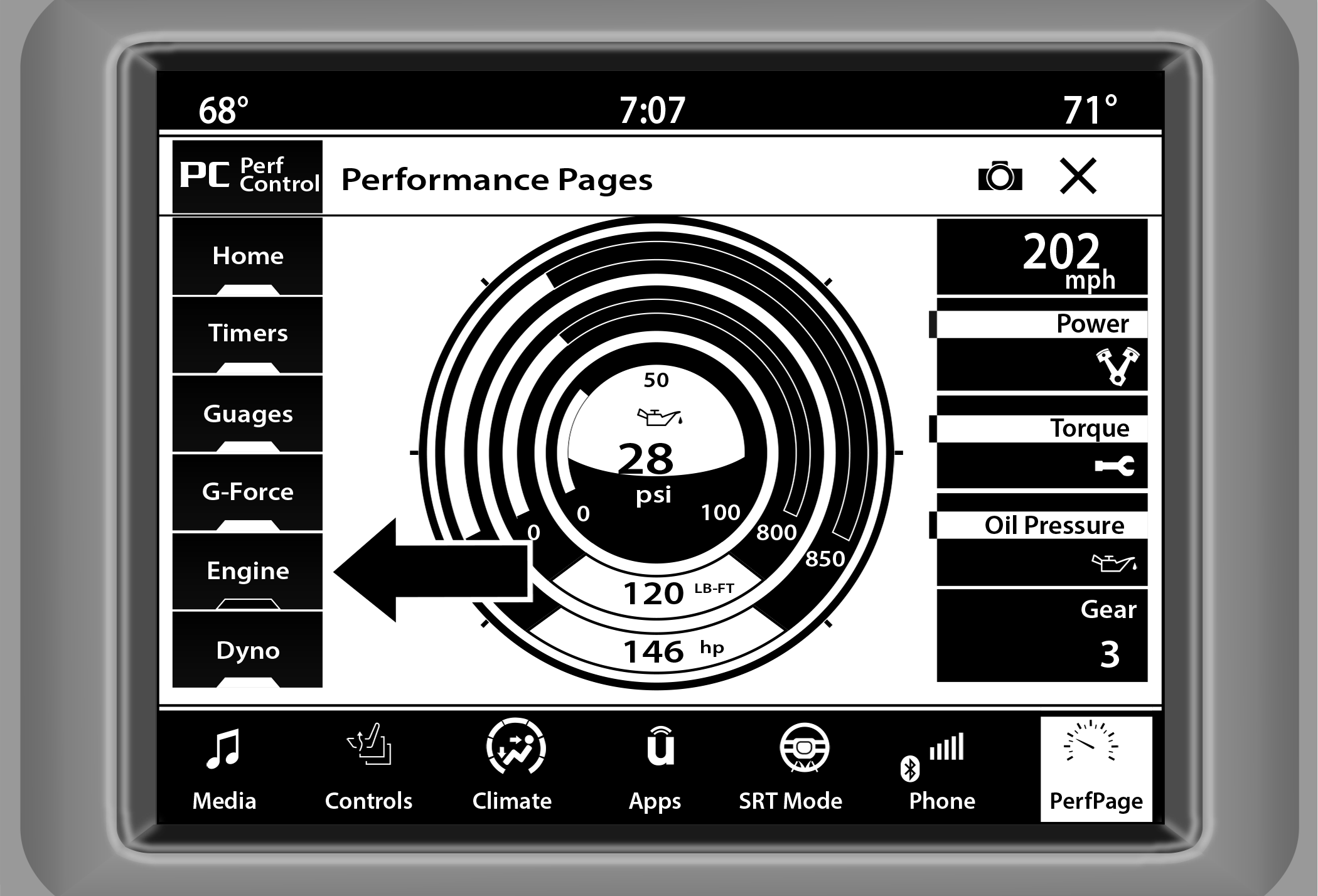

Performance Pages — Engine

When selected, this screen displays the following values:

  • Vehicle Speed

    Shows the actual vehicle speed.

  • Engine Power

    Shows the instantaneous power.

  • Engine Torque

    Shows the instantaneous torque.

  • Oil Pressure (6.4L Only) — If Equipped

    Shows the actual engine oil pressure.

  • Boost Pressure (6.2L Only) — If Equipped

    Shows the actual boost pressure.

  • Gear (Automatic Transmission Only)

    Shows the current (or pending) operating gear of the vehicle.

DYNAMOMETER (DYNO)

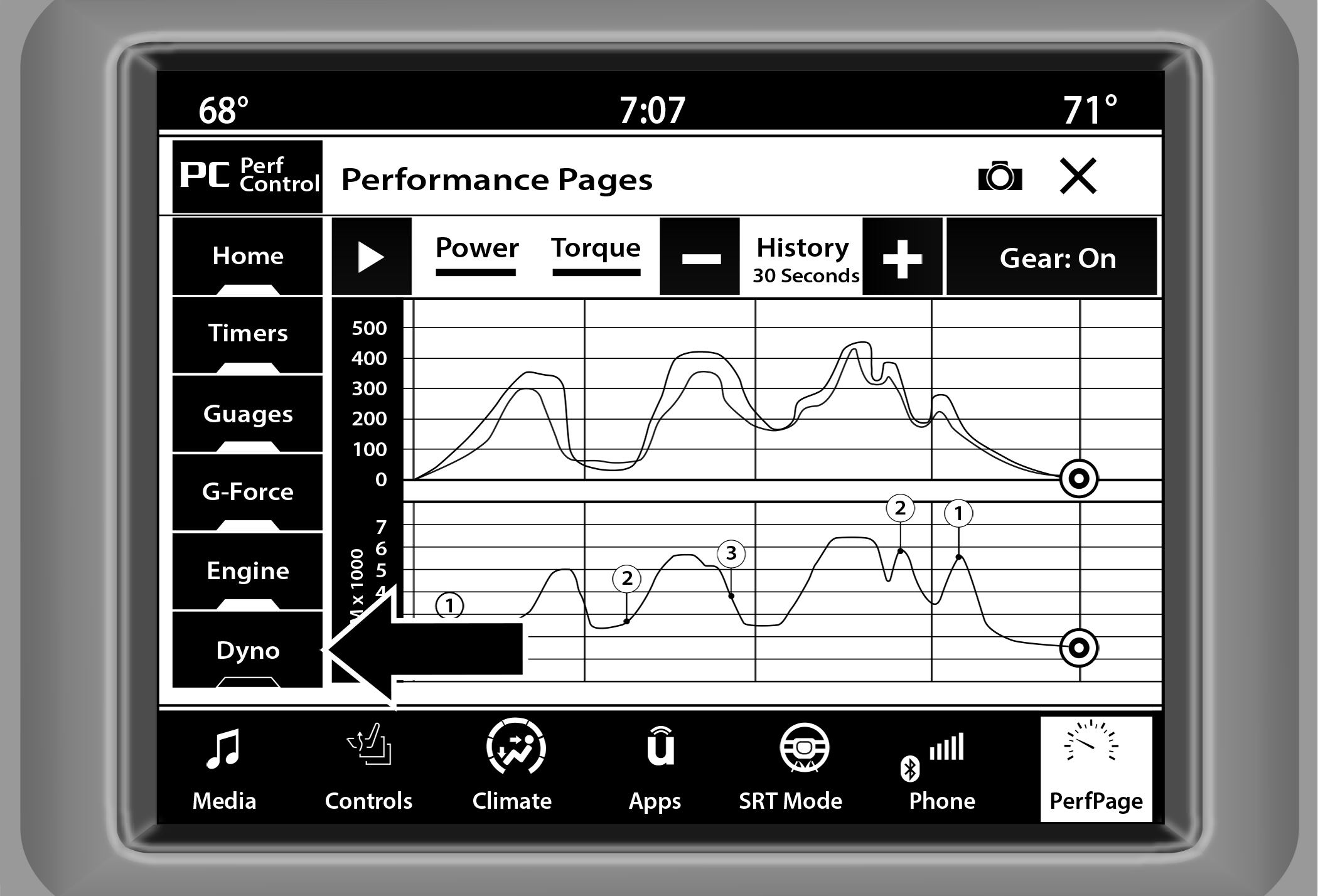

Performance Pages — Dyno

The system will start drawing graphs for Power and Torque (top chart) and Engine Speed (bottom chart). The graph will fill to the right side of the page (based on History time selected). Once the right side of the page is reached, the graph will scroll with the right side always being the most recent recorded sample.

The following options can be selected:

  • Pressing the STOP button will freeze the graph. Selecting Play will clear the graph and restart the process over.

  • Press the + or - buttons to change the history of the graph. The selectable options are “30”, “60”, “90”, and “120” seconds. The graph will expand or constrict depending on the setting selected.

  • Select the “Gear” display setting to turn the graph gear markers on and off for automatic transmission vehicles only.

Note:

The Gear on/off feature will only display if your vehicle is equipped with an Automatic Transmission.
