Power sunroof — if equipped

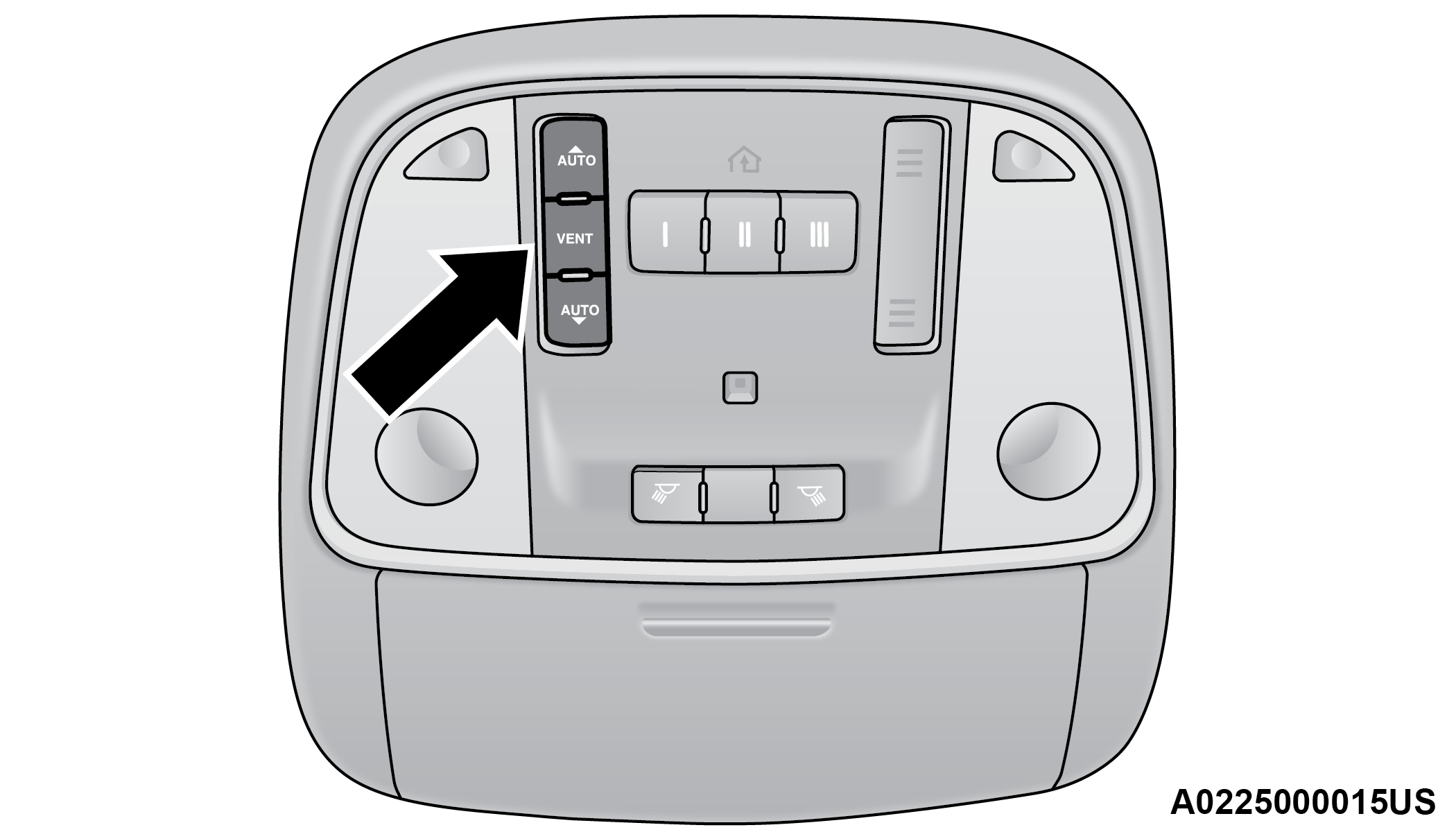

The power sunroof switch is located between the sun visors on the overhead console.
Power Sunroof Switch
Warning:
-
Never leave children unattended in a vehicle, or with access to an unlocked vehicle. Never leave the key fob in or near the vehicle, or in a location accessible to children. Do not leave the Keyless Enter ‘n Go™ Ignition in the ACC or ON/RUN position. Occupants, particularly unattended children, can become entrapped by the power sunroof while operating the power sunroof switch. Such entrapment may result in serious injury or death.
-
In a collision, there is a greater risk of being thrown from a vehicle with an open sunroof. You could also be seriously injured or killed. Always fasten your seat belt properly and make sure all passengers are also properly secured.
-
Do not allow small children to operate the sunroof. Never allow your fingers, other body parts, or any object, to project through the sunroof opening. Injury may result.
OPENING AND CLOSING THE SUNROOF
Express Open/Close
Push the switch rearward and release it within one second and the sunroof will open automatically from any position. The sunroof will open fully and stop automatically.
Push the switch forward and release it within one second and the sunroof will close automatically from any position. The sunroof will close fully and stop automatically.
During Express Open or Express Close operation, any other movement of the sunroof switch will stop the sunroof.
Manual Open/Close
To open the sunroof, push and hold the switch rearward to full open.
To close the sunroof, push and hold the switch in the forward position.
Any release of the switch during open or close operation will stop the sunroof movement. The sunroof will remain in a partially opened position until the switch is operated and held again.
Venting The Sunroof
Push and release the Vent switch within one second, and the sunroof will express open to the vent position. Push and hold the Vent switch for more than one second for manual opening of the sunroof vent.
PINCH PROTECT FEATURE
This feature will detect an obstruction in the closing of the sunroof during the Express Close operation. If an obstruction in the path of the sunroof is detected, the sunroof will automatically retract. Remove the obstruction if this occurs.
Note:
If three consecutive sunroof close attempts result in Pinch Protect reversals, Pinch Protect will disable and the sunroof must be closed in Manual mode.
SUNSHADE OPERATION
The sunshade can be opened manually. However, the sunshade will open automatically as the sunroof opens.
Note:
The sunshade cannot be closed if the sunroof is open.
SUNROOF MAINTENANCE
Use only a non-abrasive cleaner and a soft cloth to clean the glass panel. Periodically check for and clear out any debris that may have collected in the tracks.
IGNITION OFF OPERATION
The power sunroof switch can remain active in Accessory Delay for up to approximately 10 minutes after the vehicle’s ignition is placed to the OFF position. Opening either front door will cancel this feature.
This feature is programmable using the Uconnect system UCONNECT SETTINGS.
