Information Displays
The DIC displays are shown in the center of the instrument cluster in the Info application. See Instrument Cluster 0 98. The Info application is only available when the ignition is on. The displays show the status of many vehicle systems. The controls for the DIC are on the right steering wheel control.

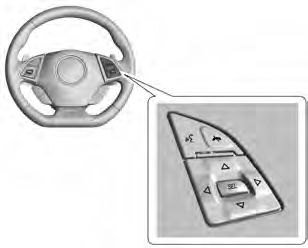

w or x : Press to move up or down in a list.
o or p : Press o to open application menus on the left. Press p to open interaction menus on the right.
SEL : Press to select a menu item. Press and hold to reset values on certain screens.
The following is the list of all possible DIC info displays. Depending on the vehicle, some may not be available. Some items may not be turned on by default but can be turned on through the Options app.
Current Speed : Displays the vehicle speed in either kilometers per hour (km/h) or miles per hour (mph).
Trip A or B/Average Fuel Economy : Trip displays the current distance traveled, in either kilometers (km) or miles (mi), since the trip odometer was last reset.
The trip odometer can be reset by pressing and holding SEL while this display is active.
Average Fuel Economy displays the approximate average liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number is calculated based on the number of L/100 km (mpg) recorded since the last time this menu item was reset. This number reflects only the approximate average fuel economy that the vehicle has right now, and will change as driving conditions change. The Average Fuel Economy can be reset by pressing and holding SEL while this display is active.
Average Speed: Displays the average speed of the vehicle in kilometers per hour (km/h) or miles per hour (mph). This average is calculated based on the various vehicle speeds recorded since the last reset of this value. The average speed can be reset by pressing and holding SEL while this display is active.
Fuel Range (Base Cluster) : Fuel Range displays the approximate distance the vehicle can be driven without refueling. LOW will be displayed when the vehicle is low on fuel. The fuel range estimate is based on an average of the vehicle's fuel economy over recent driving history and the amount of fuel remaining in the fuel tank.
Fuel Information (Base Cluster) or Fuel Range/Instantaneous Fuel Economy (Uplevel Cluster) : Fuel Range displays the approximate distance the vehicle can be driven without refueling. LOW will be displayed when the vehicle is low on fuel. The fuel range estimate is based on an average of the vehicle's fuel economy over recent driving history and the amount of fuel remaining in the fuel tank.
Instantaneous Fuel Economy displays the current fuel economy in either liters per 100 kilometers (L/ 100 km) or miles per gallon (mpg). This number reflects only the approximate fuel economy that the
vehicle has right now and changes frequently as driving conditions change.
This display may also show the number of cylinders the vehicle is running on. See Active Fuel Management 0 181.
Fuel Economy Last XXX : Displays the average fuel economy over a set number of kilometers or miles.
Average Speed : Displays the average speed of the vehicle in kilometers per hour (km/h) or miles per hour (mph). This average is calculated based on the various vehicle speeds recorded since the last reset of this value. The average speed can be reset by pressing and holding SEL while this display is active.
Timer : This display can be used as a timer. To start/stop the timer, press p while this display is active and then SEL to start/stop the timer. The
display will show the amount of time that has passed since the timer was last reset. To reset the timer to zero,
press and hold SEL or use p to access the menu while this display is active.
Oil Life : Displays an estimate of the oil's remaining useful life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the current oil life remains.
When the remaining oil life is low, the CHANGE ENGINE OIL SOON
message will appear on the display. The oil should be changed as soon as possible. See Engine Oil 0 229. In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended. See Maintenance Schedule 0 306.
The Oil Life display must be reset after each oil change. It will not reset itself. Do not reset the Oil Life display accidentally at any time other than when the oil has just been changed. It cannot be reset accurately until the next oil change. To reset the engine oil life system, press and hold SEL for several
seconds while the Oil Life display is active. See Engine Oil Life System 0 232.
Air Filter Life : If equipped, shows an estimate of the engine air filter’s remaining useful life and the state of the system. Engine Air Filter Life 95% means 95% of the current air filter life remains. Messages will display based on the engine air filter life and the state of the system.
When the REPLACE AT NEXT OIL
CHANGE message displays, the engine air filter should be replaced at the time of the next oil change. When the REPLACE NOW message displays, the engine air filter should be replaced as soon as possible.
The Air Filter Life display must be reset after the engine air filter replacement. To reset, see Engine Air Filter Life System (2.0L LTG and 3.6L LGX Engines Only) 0 234.
Engine Hours : If equipped, shows the total number of hours the engine has run.
Coolant Temperature : Displays the coolant temperature in either degrees Celsius (°C) or degrees Fahrenheit (°F).
Tire Pressure : Displays the approximate pressures of all four tires. Tire pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi). If the pressure is low, the value for that tire is shown in amber. See Tire Pressure Monitor System 0 269 and
Tire Pressure Monitor Operation
0 270.
Battery Voltage : Displays the current battery voltage. The battery voltage can fluctuate while viewing this information on the DIC. This is normal.
Speed Limit (Uplevel Cluster) : Displays sign information, which comes from a roadway database in the onboard navigation.
Oil Temperature (Base Cluster) : Shows the current oil temperature in either degrees Celsius (°C) or degrees Fahrenheit (°F). This
display is available in the Performance app on the uplevel cluster.
Oil Pressure (Base Cluster) : Shows the current oil pressure in either kilopascal (kPa) or in pounds per square inch (psi). This display is available in the Performance app on the uplevel cluster.
Performance Timer (Base Cluster) : Press p when Performance Timer is displayed to enter the menu. Press p while Set Start Speed is highlighted then use w or x to enter the start speed.
Press SEL to save it. Press p while
Set End Speed is highlighted then use w or x to enter the end speed. Press SEL to save it. After the start
and end speeds have been entered, press o to set the Sport display to the set speeds and the performance
timer is ready to use. On the next acceleration, the performance time will record the time. To reset the
timer, highlight Reset on the performance timer menu and press SEL. This display is available in the Performance app on the uplevel cluster.
Lap Timer (Base Cluster) : Use to start, stop, or reset the lap timer.
A stopwatch icon will be displayed when the lap timer is active. Press SEL while the Lap Timer page is active to start the timer. If the lamp timer is active, pressing SEL on any page will stop the current lap timer and start a new lap. Also, pressing and holding SEL on any page will stop the lap timer. This display is available in the Performance app on the uplevel cluster.
G-Force (Base Cluster) : Gives the driver an indication of the vehicle performance in cornering. The
G-force is displayed in the center of the DIC as a numerical value. This display is available in the Performance app on the uplevel cluster.
Transmission Fluid Temperature (Base Cluster) : Shows the temperature of the transmission fluid in either degrees Celsius (°C) or degrees Fahrenheit (°F). This display is available in the Performance app on the uplevel cluster.
Blank : Shows no information.
If equipped with HUD, some information concerning the operation of the vehicle is projected onto the windshield.
The HUD information appears as an image focused out toward the front of the vehicle.
The HUD information can be displayed in various languages. The speedometer reading and other numerical values can be displayed in either English or metric units.
The language of the HUD information displayed can be changed. The speedometer reading and other numerical values can be displayed in either English or metric units.
The language selection is changed through the radio and the units of measurement is changed through the instrument cluster. See
“Settings” in the Infotainment Manual and “Options” under Instrument Cluster 0 98.
HUD Display on the Windshield
The HUD may display different alerts and information for vehicles equipped with these features:

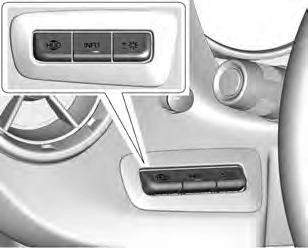

The HUD control is to the left of the steering wheel.
To adjust the HUD image:
$ : Press or lift to center the HUD image. The HUD image can only be adjusted up and down, not side
to side.
! : Press to select the display view. Each press will change the display view.
D : Lift and hold to brighten the display. Press and hold to dim the display. Hold to turn the display off.
The HUD image will automatically dim and brighten to compensate for outside lighting. The HUD brightness control can also be adjusted as needed.
The HUD image can temporarily light up depending on the angle and position of the sunlight on the HUD display. This is normal.
Polarized sunglasses could make the HUD image harder to see.
Head-Up Display (HUD) Rotation Option
The HUD rotation main view is located in the options menu. From the main menu, press p to enter
adjust mode. Press w for counter-clockwise and x for
clockwise. Press SEL to save and
o to cancel and exit.
HUD Views
There are four views in the HUD. Some vehicle information and vehicle messages or alerts may be displayed in any view.
Metric
English
Speed View : This displays digital Speed (in English or metric units), Speed Limit along with Indicators such as Vehicle Ahead, Lane Departure Warning/Lane Keep Assist, Adaptive Cruise Control and Set Speed.
Metric
English
Audio/Phone View : This displays digital speed, indicators from Speed view along with audio/phone information.
All HUD views may briefly display audio information when the steering wheel controls are used to adjust the audio settings appearing in the instrument cluster.
Incoming phone calls appearing in the instrument cluster may also display in any HUD view.
Metric
English Navigation View : This displays
digital speed, indicators from Speed view along with Turn-by-Turn Navigation information in some vehicles. When navigation routing is not active, the compass heading is displayed.
Metric
English

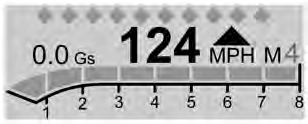

Performance View : This displays digital speed, indicators from speed view along with rpm reading, transmission positions, gear shift indicator (if equipped), Shift Timing Light Position (if equipped), and lateral acceleration (G) indicators.
If equipped, the shift timing lights at the top of the display will appear with increases in engine rpm. The rows of lights get closer together as the shift point gets closer. Shift the transmission before the lights come together in the display. Shift
immediately if the lights are flashing. See Manual Mode 0 186 or
Manual Transmission 0 188.
Clean the inside of the windshield as needed to remove any dirt or film that could reduce the sharpness or clarity of the HUD image.
Clean the HUD lens with a soft cloth sprayed with glass cleaner. Wipe the lens gently, then dry it.
If you cannot see the HUD image when the ignition is on, check that:
If the HUD image is not correct, contact your dealer.
The windshield is part of the HUD system. See Windshield Replacement 0 249.
