Information Displays
The DIC displays are shown in the center of the instrument cluster. The displays show the status of many vehicle systems. The trip odometer reset stem in the instrument cluster is used to access the DIC menu items.
Turn the trip odometer reset stem to scroll through the following menu items:
. Unit
Digital Speedometer
The speedometer shows how fast the vehicle is moving in either kilometers per hour (km/h) or miles per hour (mph). The speedometer cannot be reset.
Trip
Turn the trip odometer reset stem until TRIP displays. The current distance traveled, in either kilometers (km) or miles (mi), since the last reset for the trip odometer is shown. The trip odometer can be reset to zero by pressing and holding the trip odometer reset stem while the trip odometer is displayed.
Fuel Range
This display shows the approximate distance the vehicle can be driven without refueling. The fuel range estimate is based on an average of the vehicle's fuel economy over recent driving history and the amount of fuel remaining in the fuel tank. Fuel range cannot be reset.
Average Fuel Economy
The Average Fuel Economy display shows the approximate average liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number reflects only the approximate average fuel economy that the vehicle has right now, and will change as driving conditions change. This number is based on the number of L/100 km (mpg) recorded since the last time this menu item was reset. Reset this display by pressing the trip odometer reset stem.
Tire Pressure
Turn the trip odometer reset stem until a vehicle with the approximate pressures of all four tires displays. Tire pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi).
See Tire Pressure Monitor System
0 394 and Tire Pressure Monitor
Operation 0 395.
Remaining Oil Life
Turn the trip odometer reset stem until REMAINING OIL LIFE
displays. An estimate of the oil's remaining useful life is shown. REMAINING OIL LIFE 99% means
99% of the current oil life remains.
When the remaining oil life is low, the CHANGE ENGINE OIL SOON
message will appear on the display. The oil should be changed as soon as possible. See Engine Oil 0 343. In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule. See Maintenance Schedule 0 443.
The Oil Life display must be reset after each oil change. It will not reset itself. Do not reset the Oil Life display at any time other than when the oil has just been changed.
It cannot be reset accurately until the next oil change. To reset the engine oil life system, see Engine Oil Life System 0 346.
Transmission Fluid Temperature
The temperature of the automatic transmission fluid displays in either degrees Celsius (°C) or degrees Fahrenheit (°F).
Trailer Brake
On vehicles with the Integrated Trailer Brake Control (ITBC) system, turn the trip odometer reset stem until TRAILER GAIN and TRAILER OUTPUT displays.
TRAILER GAIN shows the Trailer Gain setting. This setting can be adjusted from 0.0 to 10.0 with either a trailer connected or disconnected.
TRAILER OUTPUT shows the power output to the trailer anytime a trailer with electric brakes is connected. Output is displayed as a bar graph. Dashes may appear in the TRAILER OUTPUT display if a trailer is not connected.
Hourmeter
This display shows the total number of hours the engine has run.
Unit
This will change the displays on the instrument cluster and DIC to either metric or English (US) measurements. To change the units, press the trip odometer reset stem when UNITS is displayed to enter the Unit menu. Turn the trip odometer reset stem to switch between English and metric. Press the trip odometer reset stem when the desired setting is displayed.
The vehicle may have a compass in the Driver Information Center (DIC). See Compass 0 131.

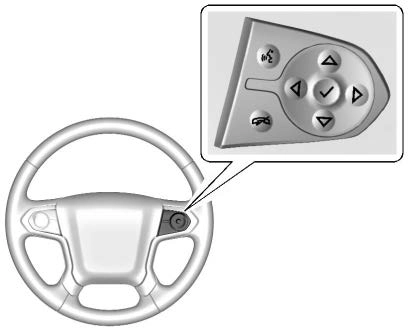

The DIC displays are shown in the center of the instrument cluster in the Info app. See Instrument Cluster 0 137. The displays show the status of many vehicle systems. The controls for the DIC are on the right steering wheel control.
w or x : Press to move up or down in a list. In the main view, press up and down to move
between different info app pages.
o or p : Press to move between the interactive display zones in the cluster.
V : Press to open a menu or select a menu item. Press and hold to reset values on certain screens.
The info pages on the DIC can be turned on or off through the Options menu.
The following is the list of all possible DIC info page displays. Some may not be available for your particular vehicle. Some items may not be turned on by default but can be turned on through the Options app. See “DIC Info Page Options” earlier in this section.
Speed : Shows the vehicle speed in either kilometers per hour (km/h) or miles per hour (mph). If equipped, press p to open the menu and select to display speed limit signs.
Trip A or Trip B : Shows the current distance traveled, in either kilometers (km) or miles (mi), since the trip odometer was last reset.
This also shows the approximate average liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number is calculated based on the number of L/100 km (mpg) recorded since the last time this menu item was reset. This number reflects only the approximate average fuel economy that the vehicle has right now, and will change as driving conditions change.
Press and hold V while this display is active to reset the trip odometer and the average fuel economy. Trip A and Trip B can also be reset by pressing p and choosing reset.
Fuel Range : Shows the approximate distance the vehicle can be driven without refueling. LOW will be displayed when the vehicle is low on fuel. The fuel range estimate is based on an average of the vehicle's fuel economy over recent driving history and the amount of fuel remaining in the fuel tank.
Oil Life : Shows an estimate of the oil's remaining useful life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the current oil life remains.
When the remaining oil life is low, the CHANGE ENGINE OIL SOON
message will appear on the display. The oil should be changed as soon as possible. See Engine Oil 0 343. In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule. See Maintenance Schedule 0 443.
The Oil Life display must be reset after each oil change. It will not reset itself. Do not reset the Oil Life
display at any time other than when the oil has just been changed.
It cannot be reset accurately until the next oil change. To reset the engine oil life system, press and hold V for several seconds while the Oil Life display is active. See Engine Oil Life System 0 346.
Tire Pressure : Shows the approximate pressures of all four tires. Tire pressure is displayed in either kilopascal (kPa) or in pounds per square inch (psi). If the pressure is low, the value for that tire is shown in amber. See Tire Pressure Monitor System 0 394 and Tire
Pressure Monitor Operation 0 395.
Fuel Economy : The center displays the approximate instantaneous fuel economy as a number and bar graph. Displayed above the bar graph is a running average of fuel economy for the most recently traveled selected distance. Displayed below the bar graph is the best average fuel economy that has been achieved for the selected distance. The selected distance is displayed at the top of
the page as “last xxx mi/km.” Next to the odometer, the Active Fuel Management displays the number of cylinders the vehicle is running on. See Active Fuel Management
0 256.
Press p to select the distance or reset best value. Use w and x to choose the distance and press V. Press w and x to select “Reset Best Score.” Press V to reset the
best average fuel economy. After reset, the momentary average fuel economy will display.
The display provides information on how current driving behavior affects the running average and how well recent driving compares to the best that has been achieved for the selected distance.
Timer : This display can be used as a timer. To start the timer, press V while this display is active. The display will show the amount of time that has passed since the timer was last reset. To stop the timer, press V briefly while this display is active
and the timer is running. To reset the timer to zero, press and hold V while this display is active, or press p and select reset.
Speed Limit (If Equipped) : Shows sign information, which comes from a roadway database in the onboard navigation.
Engine Hours : Shows the total number of hours the engine has run.
Transmission Fluid Temperature : Shows the temperature of the automatic
transmission fluid in either degrees Celsius (°C) or degrees Fahrenheit (°F).
Trailer Brake (If Equipped) : On vehicles with the Integrated Trailer Brake Control (ITBC) system, the trailer brake display appears in the DIC.
TRAILER GAIN shows the trailer gain setting. This setting can be adjusted from 0.0 to 10.0 with either a trailer connected or disconnected.
TRAILER OUTPUT shows the power output to the trailer anytime a trailer with electric brakes is connected. Output is displayed as a bar graph. Dashes may appear in the OUTPUT display if a trailer is not connected.
Off Road : Displays vehicle pitch and roll information, road wheel angle, and four-wheel drive (4WD) status.
Blank Page : Shows no information.
