Electrical System

The vehicle has fuses and circuit breakers to protect against an electrical system overload.

When the current electrical load is too heavy, the circuit breaker opens and closes, protecting the circuit until the current load returns to normal or the problem is fixed. This greatly reduces the chance of circuit overload and fire caused by electrical problems.

Fuses and circuit breakers protect power devices in the vehicle.

Replace a bad fuse with a new one of the identical size and rating.

If there is a problem on the road and a fuse needs to be replaced, the same amperage fuse can be borrowed. Choose some feature of the vehicle that is not needed to use and replace it as soon as possible.

An electrical overload may cause the lamps to go on and off, or in some cases to remain off. Have the headlamp wiring checked right away if the lamps go on and off or

remain off.

If the wiper motor overheats due to heavy snow or ice, the windshield wipers will stop until the motor cools and will then restart.

Although the circuit is protected from electrical overload, overload due to heavy snow or ice may cause wiper linkage damage.

Always clear ice and heavy snow from the windshield before using the windshield wipers.

If the overload is caused by an electrical problem and not snow or ice, be sure to get it fixed.

The wiring circuits in the vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of damage caused by electrical problems.

To check a fuse, look at the

silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating.

Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as possible.

To identify and check fuses, circuit breakers, and relays, see Engine Compartment Fuse Block 0 267 and Rear Compartment Fuse Block

0 271.

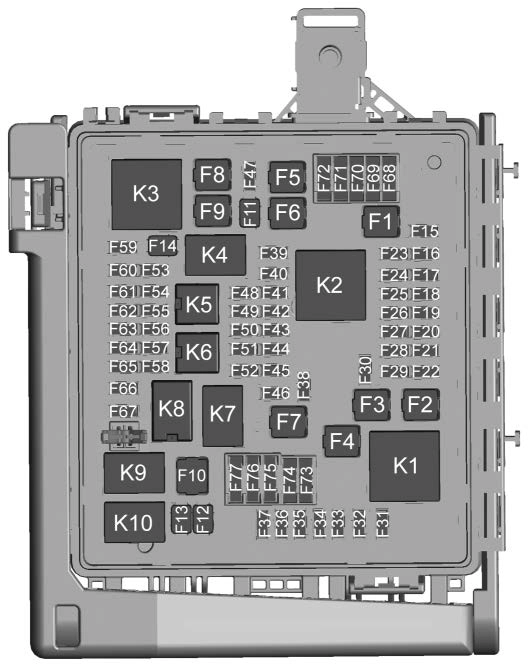

To remove the hinged fuse block cover, press the clip at the front of the cover, and swing it up.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses Usage

F1 ABS pump

F2 –

Fuses Usage

F3 Driver power seat

F4 Cooling fan

F5 Passenger power seat

F6 –

F7 –

F8 –

F9 –

F10 –

F11 AUX DRL

F12 Front wiper

F13 Starter

F14 Brake vacuum pump

F15 Automatic headlamp leveling module

F16 Front heated seat

Fuses Usage

F17 Passenger window

F18 Body control

module 4

F19 SDM/AOS

F20 OnStar/ Navigation

F21 Body control

module 6

F22 ABS valve

F23 –

F24 –

F25 Electric steering column lock

F26 Body control

module 2

F27 –

F28 Body control

module 3

F29 Body control

module 8

Fuses Usage

F30 Windshield wiper

F31 Right LED headlamp

F32 Left LED headlamp

F33 –

F34 Horn

F35 Automatic headlamp leveling motor

F36 Left high-beam

headlamp

F37 Right

high-beam headlamp

F38 –

F39 –

F40 Rear electrical

center/Ignition

F41 Malfunction indicator lamp/ Ignition

Relays Usage

K7 Engine control module

K8 Fuel prime

K9 –

K10 Starter

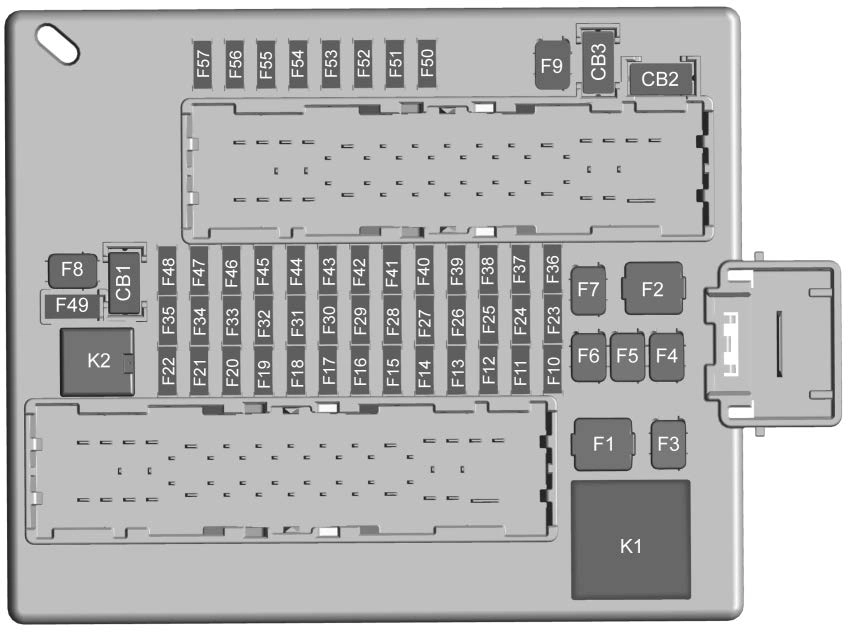

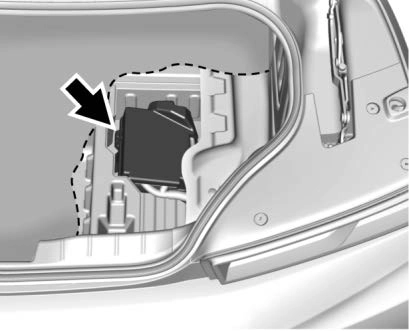

The rear compartment fuse block is on the right side under the trunk load floor.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses Usage

F1 Rear window defogger

Fuses Usage

F46 Fuel system control

Relays Usage

K2 Fuel pump

module V8

F47 Shunt

F48 –

Circuit Breakers

CB1 –

Usage

F49 Steering wheel F50 Front camera

module

F51 Camera module

F52 Park assist

F53 Rear driver control module

F54 Side blind zone alert

F55 Radio

F56 –

F57 –

Relays Usage

K1 Rear window defogger

CB2 Retained accessory

power

CB3 –
