Climate Control Systems
The heating, cooling, defrosting, and ventilation for the vehicle can be controlled with this system.

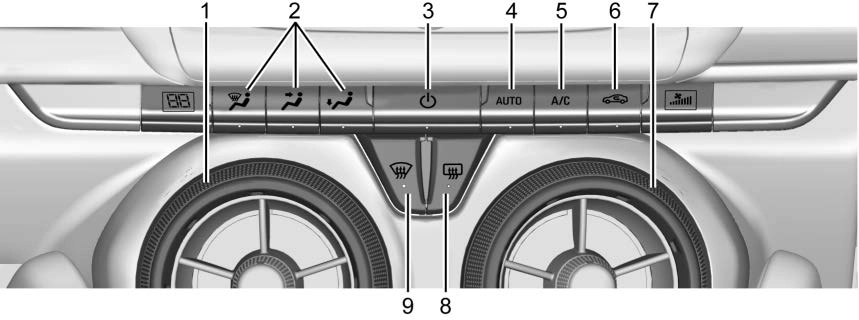

Temperature Control

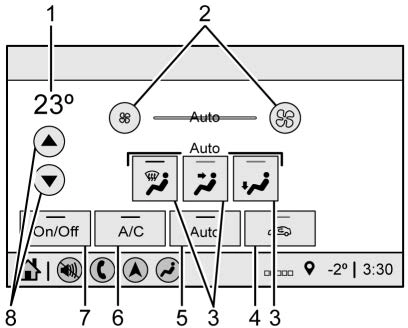

Climate Control Display
The climate control status display appears briefly when the climate controls on the center stack are adjusted.
Automatic Operation
The system automatically controls the fan speed, air delivery, air conditioning, and recirculation in order to heat or cool the vehicle to the desired temperature:
When AUTO is lit, all four functions operate automatically. Each function can also be manually set and the setting is displayed. Functions not
manually set will continue to be automatically controlled, even if the AUTO indicator is not lit.
For automatic operation:
O : Press to turn the fan off or on.
Temperature Control : Turn the outer ring of the air vent clockwise or counterclockwise to increase or decrease the temperature setting.
Fan Control : Turn the outer ring of the air vent clockwise or counterclockwise to increase or decrease the fan speed.
Air Delivery Mode Controls : Press X, Y, or [ to change the direction of the airflow. Any combination of the three buttons can be selected. The indicator light in the button will turn on. The current mode appears in the display screen. Pressing any of the three buttons cancels automatic air
delivery control and the direction of the airflow is controlled manually. Press AUTO to return to automatic operation.
To change the current mode, select one or more of the following:
X : Clears the windows of fog or moisture. Air is directed to the windshield and side window outlets.
Y : Air is directed to the instrument panel outlets.
[ : Air is directed to the floor outlets.
directed to the windshield and side window outlets. The air conditioning may turn on automatically to remove fog.
For best results, clear all snow and ice from the windshield before defrosting.
Do not drive the vehicle until all windows are clear.
A/C : Press to turn the air conditioning on or off. An indicator light turns on. If the fan is turned off or the outside temperature falls below freezing, the air conditioning will not run, but the indicator light will be lit.
The air conditioning might automatically come on when 0 is selected.
@ : Press to turn on recirculation. An indicator light comes on. Air is recirculated inside the vehicle.
It helps to quickly cool the air inside the vehicle or reduce the outside air and odors that may enter.
Operation in the recirculation mode while the air conditioner is off increases humidity and may cause the windows to fog.
Recirculation is not available in the defrost or defog modes.
To improve fuel efficiency and to cool the vehicle faster, recirculation may be automatically selected in warm weather. The recirculation
light will not come on. Press @ to select recirculation; press it again to select outside air.
The rear window defogger can be set to automatic operation. See “Climate and Air Quality” under Vehicle Personalization 0 141.
When Auto Rear Defog is selected, the rear window defogger turns on automatically when the interior temperature is cold and the outside temperature is about 7°C (44°F) and below.
The heated outside mirrors turn on when the rear window defogger button is on and help to clear fog or frost from the surface of the mirrors.
Do not drive the vehicle until all windows are clear.
The heating, cooling, defrosting, and ventilation for the vehicle can be controlled with this system.
Remote Start Climate Control Operation, If Equipped : The climate control system may run when the vehicle is started remotely, depending on the outside temperature. See Remote Vehicle Start 0 34. The rear defog may come on during remote start based on cold ambient conditions. The rear defog indicator light does not come on during a remote start.
When enabled, the front heated seats, if equipped, will turn on automatically if it is cold outside. See Vehicle Personalization 0 141. The heated seat indicator lights do not come on during a remote start.

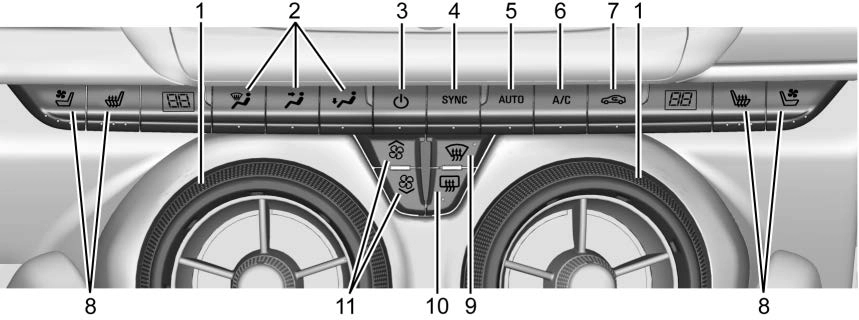

Driver and Passenger Temperature Controls

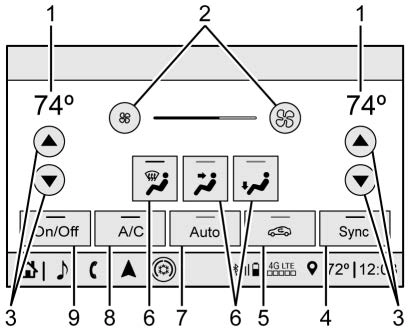

The fan, air delivery mode, air conditioning, driver and passenger temperatures, and Sync settings can be controlled by touching CLIMATE on the infotainment Home Page or the climate button in the climate control display application tray. A selection can then be made on the front climate control page displayed. See the infotainment manual.
The climate control status display appears briefly when the center stack climate controls are adjusted.
Automatic Operation
The system automatically controls the fan speed, air delivery, air conditioning, and recirculation in order to heat or cool the vehicle to the desired temperature:
When AUTO is lit, all four functions operate automatically. Each function can also be manually set and the setting is displayed. Functions not manually set will continue to be automatically controlled, even if the AUTO indicator is not lit.
For automatic operation:
Driver and Passenger Temperature Controls : The temperature can be adjusted separately for the driver and the passenger. Turn the outer ring of the air vents clockwise or counterclockwise to increase or
decrease the driver or passenger temperature setting. The setting will appear on the temperature display.
SYNC : Press to link the passenger climate temperature settings to the driver setting. The SYNC indicator light will turn on. When the passenger settings are adjusted, the SYNC indicator light turns off.
Manual Operation
O : Press to turn the fan off or on. h or i : Press to increase or decrease the fan speed.
Air Delivery Mode Controls : Press X, Y, or [ to change the direction of the airflow. Any combination of the three buttons can be selected. The indicator light in the button will turn on. The current mode appears in the display screen. Pressing any of the three buttons cancels automatic air delivery control and the direction of the airflow is controlled manually.
Press AUTO to return to automatic operation.
To change the current mode, select one or more of the following:
X : Clears the windows of fog or moisture. Air is directed to the windshield and side window outlets. Y : Air is directed to the instrument
panel outlets.
[ : Air is directed to the floor outlets.
0 : Clears the windshield of fog or frost more quickly. Air is only
directed to the windshield and side window outlets. The air conditioning may turn on automatically to remove fog.
For best results, clear all snow and ice from the windshield before defrosting.
Do not drive the vehicle until all windows are clear.
A/C : Press to turn the air conditioning on or off. An indicator light turns on. If the fan is turned off or the outside temperature falls
below freezing, the air conditioning will not run, but the indicator light will be lit.
The air conditioning might automatically come on when 0 is selected.
@ : Press to turn on recirculation. An indicator light comes on. Air is recirculated inside the vehicle.
It helps to quickly cool the air inside the vehicle or reduce the outside air and odors that may enter.
Operation in the recirculation mode while the air conditioner is off increases humidity and may cause the windows to fog.
Recirculation is not available in the defrost or defog modes.
To improve fuel efficiency and to cool the vehicle faster, recirculation may be automatically selected in warm weather. The recirculation light will not come on. Press @ to select recirculation; press it again to select outside air.
1 : Press to turn the rear window defogger on or off. An indicator light on the button comes on to show that the rear window defogger is on. The defogger turns off if the ignition is turned off or to ACC/ACCESSORY.
The rear window defogger can be set to automatic operation. See “Climate and Air Quality” under Vehicle Personalization 0 141.
When Auto Rear Defog is selected, the rear window defogger turns on automatically when the interior temperature is cold and the outside temperature is about 7°C (44°F) and below.
The heated outside mirrors turn on when the rear window defogger button is on and help to clear fog or frost from the surface of the mirrors.
Do not drive the vehicle until all windows are clear.
L or M (If Equipped) : Press L or
M to heat the driver or
passenger seat.
Press { or C, if equipped, to ventilate the driver or passenger
seat. See Heated and Ventilated Front Seats 0 66.
Remote Start Climate Control Operation, If Equipped : The climate control system may run when the vehicle is started remotely, depending on the outside temperature. See Remote Vehicle Start 0 34. The rear defog may come on during remote start based on cold ambient conditions. The
rear defog indicator light does not come on during a remote start.
When enabled, the front heated seats, if equipped, will turn on automatically if it is cold outside. See Vehicle Personalization 0 141. The heated seat indicator lights do not come on during a remote start.
