Opening, closing and locking the doors

Smart key system (if equipped)

Grip the driver’s door handle to unlock the door. Grip the passenger’s door handle to unlock all the doors.*

Make sure to touch the sensor on the back of the handle.

The doors cannot be unlocked for 3 seconds after the doors are locked.

*: The door unlock settings can be changed. (P. 115)

Check that the door is securely locked.

Wireless remote control (if equipped)

Check that the door is securely

locked.

Pressing the button unlocks the driver’s door. Pressing the but- ton again within 5 seconds unlocks the other doors.

3-2. Opening, closing and locking the doors

Check that the door is securely

locked.

Pressing the button unlocks the driver’s door. Pressing the but- ton again within 5 seconds unlocks the other doors.

Key

Vehicles without a smart key system Locks all the doors

Unlocks all the doors

Driver’s side only: Turning the key unlocks the driver's door. Turning the key again unlocks the other doors.

109

The doors can also be locked and unlocked with the mechanical key. (P. 523)

110 3-2. Opening, closing and locking the doors

Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: once; Unlocked: twice)

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

When the door cannot be locked by the lock sensor on the upper part of the door handle

If the door will not lock even when the top- side sensor area is touched, try using your palm to touch the lock sensor.

Door lock buzzer

If an attempt to lock the doors using the wireless remote control or smart key system is made when a door is not fully closed, a buzzer will sound for 5 sec- onds. Fully close the door, and lock the vehicle again.

Setting the alarm (if equipped)

Locking the doors will set the alarm system. (P. 69)

If the smart key system or the wireless remote control does not operate properly

Use the mechanical key to lock and unlock the doors. (P. 523) Replace the battery with a new one if it is depleted. (P. 455)

3-2. Opening, closing and locking the doors

111

Door lock switches Locks all the doors Unlocks all the doors

Inside lock buttons Locks the door Unlocks the door

The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

Vehicles without a smart key system

The door cannot be locked if either of the front doors is open and the key is in the engine switch.

Vehicles with a smart key system

The door cannot be locked if the engine switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle. However, the key may not be detected correctly and the door may be locked.

112 3-2. Opening, closing and locking the doors

inside the vehicle when the lock is set.

Unlock Lock

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

3-2. Opening, closing and locking the doors

113

*1: Vehicles with a continuously variable transmission

*2: Vehicles with a smart key system

114 3-2. Opening, closing and locking the doors

Setting and canceling the functions

Vehicles without a smart key system: Close all the doors and switch the engine switch to the “ON” position. (Perform step within 20 seconds.)

Vehicles with a smart key system: Close all the doors and switch the engine switch to IGNITION ON mode. (Perform step within 20 seconds.)

Shift the shift lever to P or N, and press and hold the driver's door lock switch ( or ) for approximately 5 seconds and then release.

The shift lever and switch posi- tions corresponding to the desired function to be set are shown as follows.

Use the same procedure to cancel the function.

*1: Vehicles with a continuously variable transmission

*2: Vehicles with a smart key system

3-2. Opening, closing and locking the doors

115

Switching the door unlock function (vehicles with a smart key system) It is possible to set which doors the entry function unlocks using the wireless remote control.

Turn the engine switch off.

When the indicator light on the key surface is not on, press and hold , or for approximately 5 seconds while pressing and holding

.

The setting changes each time an operation is performed, as shown below. (When changing the setting continuously, release the buttons, wait for at least 5 seconds, and repeat step .)

Vehicles with an alarm: To prevent unintended triggering of the alarm, unlock the doors using the wireless remote control and open and close a door once after the settings have been changed. (If a door is not opened within 60 sec-

onds after is pressed, the doors will be locked again and the alarm will automatically be set.)

In case that the alarm is triggered, immediately stop the alarm. (P. 69)

116 3-2. Opening, closing and locking the doors

Conditions affecting the operation of the smart key system or wireless remote control (with a wireless remote control function)

Vehicles without a smart key system

The wireless remote control function may not operate normally in the follow- ing situations:

When the wireless key battery is depleted

Near a TV tower, radio station, electric power plant, airport or other facility that generates strong radio waves

When carrying a portable radio, cellular phone or other wireless communi- cation devices

When multiple wireless keys are in the vicinity

When the wireless key is in contact with, or is covered by a metallic object

When a wireless key (that emits radio waves) is being used nearby

When the wireless key has been left near an electrical appliance such as a personal computer

If window tint with a metallic content or metallic objects are attached to the rear window

Vehicles with a smart key system

P. 125

Customization

Settings (e.g. unlocking function using a key) can be changed. (Customizable features: P. 564)

3-2. Opening, closing and locking the doors

117

trunk lid.

Opening the trunk from outside the vehicle

Smart key system (if equipped)

While carrying the electronic key, press the button on the trunk lid.

When all the doors are unlocked with the power door lock sys- tem, the trunk can be opened without carrying the electronic key.

118 3-2. Opening, closing and locking the doors

Wireless remote control (if equipped)

Vehicles with a smart key system Press and hold the switch.

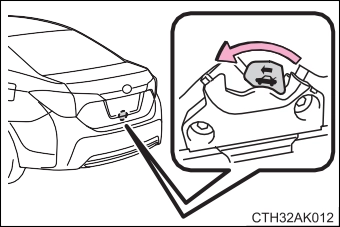

Key (vehicles with a key cylinder on the trunk lid)

Turn the key clockwise to release the trunk lid.

3-2. Opening, closing and locking the doors

119

Operation signal (with a wireless remote control function)

A buzzer sounds to indicate that the trunk has been opened.

Trunk light

The trunk light turns on when the trunk is opened.

Function to prevent the trunk being locked with the electronic key inside (vehicles with a smart key system)

When all doors are being locked, closing the trunk lid with the electronic key left inside the trunk will sound an alarm.

In this case, the trunk lid can be opened by pressing the trunk release but- ton on the trunk lid.

Even when the spare electronic key is put in the trunk with all the doors locked, the key confinement prevention function can be activated so the trunk can be opened. In order to prevent theft, take all electronic keys with you when leaving the vehicle.

Even when the electronic key is put in the trunk with all the doors are locked, the key may not be detected depending on the places and the surrounding radio wave conditions. In this case, the key confinement prevention function cannot be activated, causing the doors to lock when the trunk is closed. Make sure to check where the key is before closing the trunk.

The key confinement prevention function cannot be activated if any one of the doors is unlocked. In this case, open the trunk using the trunk opener.

Internal trunk release lever

The trunk lid can be opened by pushing the glow-in-the-dark lever located on the inside of the trunk lid to the side.

The lever will continue to glow for some time after the trunk lid is closed.

Customization

The trunk unlocking operation can be changed. (Customizable features: P. 564)

120 3-2. Opening, closing and locking the doors

3-2. Opening, closing and locking the doors

121

122 3-2. Opening, closing and locking the doors

Locks and unlocks the doors (P. 108)

Opens the trunk (P. 117)

Starts the engine (P. 174)

Antenna location

Antennas outside the cabin

Antennas inside the cabin

Antenna inside the trunk

Antenna outside the trunk

*: If equipped

3-2. Opening, closing and locking the doors

Effective range (areas within which the electronic key is detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the outside front door handles. (Only the doors detecting the key can be operated.)

123

The system can be operated when the electronic key is inside the vehicle.

The system can be operated when the electronic key is within about

2.3 ft. (0.7 m) of the trunk release button.

Alarms and warning indicators

A combination of exterior and interior alarms as well as warning messages shown on the multi-information display are used to prevent theft of the vehicle and accidents resulting from erroneous operation. Take appropriate mea- sures in response to any warning message on the multi-information display. (P. 489)

The following table describes circumstances and correction procedures when only alarms are sounded.

124 3-2. Opening, closing and locking the doors

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic key battery and the vehicle battery from being discharged while the vehicle is not in operation for a long time.

In the following situations, the smart key system may take some time to unlock the doors.

The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside of the vehicle for 10 minutes or longer.

The smart key system has not been used for 5 days or longer.

If the smart key system has not been used for 14 days or longer, the doors cannot be unlocked at any doors except the driver’s door. In this case, take hold of the driver’s door handle, or use the wireless remote control or the mechanical key, to unlock the doors.

Electronic Key Battery-Saving Function

When battery-saving mode is set, battery depletion is minimized by stopping the electronic key from receiving radio waves.

Press twice while pressing and holding . Confirm that the electronic key indicator flashes 4 times.

While the battery-saving mode is set, the

smart key system cannot be used. To cancel the function, press any of the elec- tronic key buttons.

3-2. Opening, closing and locking the doors

Conditions affecting operation

125

The smart key system uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system, wireless remote control and engine immobi- lizer system from operating properly. (Ways of coping: P. 523)

When the electronic key battery is depleted

Near a TV tower, electric power plant, gas station, radio station, large dis- play, airport or other facility that generates strong radio waves or electrical noise

When carrying a portable radio, cellular phone, cordless phone or other wireless communication device

When the electronic key is in contact with, or is covered by the following metallic objects

Cards to which aluminum foil is attached

Cigarette boxes that have aluminum foil inside

Metallic wallets or bags

Coins

Hand warmers made of metal

Media such as CDs and DVDs

When other wireless keys (that emit radio waves) are being used nearby

When carrying the electronic key together with the following devices that emit radio waves

Another vehicle’s electronic key or a wireless key that emits radio waves

Personal computers or personal digital assistants (PDAs)

Digital audio players

Portable game systems

If window tint with a metallic content or metallic objects are attached to the rear window

When the electronic key is placed near a battery charger or electronic devices

126 3-2. Opening, closing and locking the doors

Note for the entry function

Even when the electronic key is within the effective range (detection areas), the system may not operate properly in the following cases:

The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.

The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is opened.

The electronic key is on the instrument panel, rear package tray or floor, or in the door pockets or glove box when the engine is started or engine switch modes are changed.

Do not leave the electronic key on top of the instrument panel or near the door pockets when exiting the vehicle. Depending on the radio wave recep- tion conditions, it may be detected by the antenna outside the cabin and the doors will become lockable from the outside, possibly trapping the electronic key inside the vehicle.

As long as the electronic key is within the effective range, the doors may be locked or unlocked by anyone. However, only the doors detecting the elec- tronic key can be used to unlock the vehicle.

Even if the electronic key is not inside the vehicle, it may be possible to start the engine if the electronic key is near the window.

The doors may unlock or lock if a large amount of water splashes on the door handle, such as in the rain or in a car wash, when the electronic key is within the effective range. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)

If the wireless remote control is used to lock the doors when the electronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

Touching the door lock or unlock sensor while wearing gloves may prevent lock or unlock operation.

When the lock operation is performed using the lock sensor, recognition sig- nals will be shown up to two consecutive times. After this, no recognition signals will be given.

If the door handle becomes wet while the electronic key is within the effec- tive range, the door may lock and unlock repeatedly. In this case, follow the following correction procedures to wash the vehicle:

Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)

Set the electronic key to battery-saving mode to disable the smart key system. (P. 124)

3-2. Opening, closing and locking the doors

127

If the electronic key is inside the vehicle and a door handle becomes wet during a car wash, a message may be shown on the multi-information dis- play and a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.

The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc. Clean the lock sensor and attempt to operate it again.

If there is another electronic key in the detection area, it may take slightly longer to unlock the doors after the door handle is gripped.

Fingernails may scrape against the door during operation of the door han- dle. Be careful not to injure fingernails or damage the surface of the door.

A sudden handle operation or a handle operation immediately after entering the effective range may prevent the doors from being unlocked. Touch the door unlock sensor and check that the doors are unlocked before pulling the door handle again.

Unlocking the vehicle may take more time if another electronic key is within the effective range.

When the vehicle is not driven for extended periods

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2

m) of the vehicle.

The smart key system can be deactivated in advance. (P. 564)

To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention function may not operate.)

If the smart key system does not operate properly

Locking and unlocking the doors: Use the mechanical key. (P. 523)

Starting the engine: P. 524

Customization

Settings (e. g. smart key system) can be changed. (Customizable features: P. 564)

If the smart key system has been deactivated in a customized setting

Locking and unlocking the doors and opening the trunk:

Use the wireless remote control or mechanical key. (P. 118, 523)

Starting the engine and changing engine switch modes: P. 524

Stopping the engine: P. 175

128 3-2. Opening, closing and locking the doors

Certification for the smart key system

For the U.S.A.

FCC ID: HYQ23AAB FCC ID: HYQ14FBA NOTE:

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For Canada NOTE:

This device complies with Industry Canada’s licence-exempt RSSs. Opera-

tion is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

For the U.S.A.

FCC ID: NI4TMLF10-51

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For Canada

This device complies with Industry Canada’s licence-exempt RSSs. Opera- tion is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

NOTE:

Le présent appareil est conforme aux CNR d’lndustrie Canada appli- cables aux appareils radio exempts de licence. L’exploitation est autori- sée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compro- mettre le fonctionnement.

3-2. Opening, closing and locking the doors

129
